Z-TQUAD-8
- AUDIO SYSTEM 58mm Installation-Terminal
- 8-pin MOLEX MINI-FIT Connector
- outer Ø: 84mm
- pitch circle Ø: 70mm
- 4x pairs blade connector (2,8 & 4,8mm) with 240W (2Ohm) / 480W (4Ohm)
Z-TQUAD-68
- AUDIO SYSTEM Subwoofer-Terminal
- 2-time with push terminal up to 4 qmm
- Größe: 80 x 80 x 25 mm
Z-TQUAD-DVC
- AUDIO SYSTEM 0,5m Connection Cable to Z-TQUAD-8
- 2x pairs flat terminals with 2,8 & 4,8mm at each side
Z-TQUAD-DVC OE
- AUDIO SYSTEM 0,5m Connection Cable to Z-TQUAD-8
- 2x pairs flat terminals with 2,8 & 4,8mm at each side + open ends
Z-TQUAD-1M
- AUDIO SYSTEM 1m MOLEX-Cable to Z-TQUAD-8
- 2x 8-Pin MOLEX MINI-FIT connectors at each side and SNAKE-SKIN
Z-TQUAD-3M
- AUDIO SYSTEM 3m MOLEX-Cable to Z-TQUAD-8
- 2x 8-Pin MOLEX MINI-FIT connectors at each side and SNAKE-SKIN
Z-TQUAD-5M
- AUDIO SYSTEM 5m MOLEX-Cable to Z-TQUAD-8
- 2x 8-Pin MOLEX MINI-FIT connectors at each side and SNAKE-SKIN
Z-TQUAD-EXT
- AUDIO SYSTEM 0,2m Extension for Z-TQUAD-1M/3M/5M
- 2x 8-Pin MOLEX MINI-FIT coupling at each side and SNAKE-SKIN

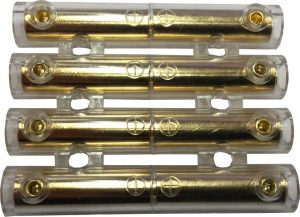

Z-BC 1-4
- AUDIO SYSTEM Speaker Connector
- 4-time silvern connector
- 4x 1,5-4qmm
TERMINAL 2
- AUDIO SYSTEM Subwoofer-Terminal
- 2-time with push terminal up to 4 qmm
- Größe: 80 x 80 x 25 mm
TERMINAL 4
- AUDIO SYSTEM Subwoofer-Terminal
- 4-times terminal with golden screw terminal up to 4 qmm
- outer-dim.: 97×124
- install. depth: 32 mm
- install. dimension: 76×96 mm
AERO PORT
- Double Sided Glueable AERO Vented Tube
- aerodynamic and flow-optimised vented tube
- nominal diameter: 90 mm
- length: 200 mm
- outer diameter: 176 mm
- hole circle diameter: 156 mm
- installation dimension: 135 mm
AERO 90°
- AERO Vented Tube Angel
- 90° angel for AERO PORT 2
- nominal diameter: 90 mm
- middle length: 90 mm
- length: 105 mm
AERO 55
- AERO Vented Tube Extension
- 50 mm extension piece for AERO PORT 2
- nominal diameter: 90 mm
- length: 55 mm
AERO PORT BP
- AERO Vented Tube for Bandpass/Vented Box
- aerodynamic and flow-optimised 200mm vented tube for bandpass and reflexbox
- nominal diameter: 190 mm
- length: 200 mm
- outer diameter: 210/260 mm
- hole circle diameter: 201 mm
T-MOUNTING KIT
- Accessories for EVO SUBFRAMES
- T-mounting kit to fix wooden plate in the trunk instead of spare tire
SUBFRAME MOUNTING KIT
- Accessories for EVO SUBFRAMES
- Original Mounting Kit for SUBFRAME R10 FLAT EVO and SUBFRAME R08 FLAT EVO
Z-METAL SHEET
- AUDIO SYSTEM HEXAGON Grill
- ultra stable matt black HEXAGON grill 2part set
- size: 0,7 m x 0,45 m
- thickness: 1,2 mm with 8 mm HEXAGON holes
Z-METALBARS 8
- AUDIO SYSTEM 12 mm Loudspeaker Grill
- ultra stable matt black steelstruts for 200 mm chassis
- 2part set.length 205 mm
- height: 51 mm
- and 12x screw
Z-METALBARS 10
- AUDIO SYSTEM 12 mm Loudspeaker Grill
- ultra stable matt black steelstruts for 250 mm chassis
- 2part set
- length 235 mm
- height: 51 mm
- and 12x screw
Z-METALBARS 12
- AUDIO SYSTEM 12 mm Loudspeaker Grill
- ultra stable black matt steelstruts for 300 mm chassis
- 2part set
- length 280 mm
- height: 51 mm
- and 12x screw
GI 08
- AUDIO SYSTEM Subwoofer-Grill black with LOGO
- 200mm loudspeaker grill for R08 FLAT EVO (Pair)
- outer diameter: 224mm x 25mm
- inner diameter: 222mm x 17mm
GI 10
- AUDIO SYSTEM Subwoofer-Grill black with LOGO
- 250mm loudspeaker grill for R10 FLAT EVO (Pair)
- outer diameter: 261mm x 25mm
- inner diameter: 259mm x 17mm
GI 12
- AUDIO SYSTEM Subwoofer-Grill black with LOGO
- 300mm loudspeaker grill for R10 FLAT EVO (Pair)
- outer diameter: 315mm x 25mm
- inner diameter: 313mm x 17mm
