MIDRANGE

AV MIDRANGE

AV 165

  • AUDIO SYSTEM Midrange Woofer
  • 165 mm ABSOLUTE HIGH-END loudspeaker with neodymiummagnet
  • ventilated AOT basket
  • ultra light/stable EgyptianNAWI-TFP-paper-cone with LLR edge
  • aluminum phase plugand red Nomex-spider
  • impedance: 4 Ohm
  • power: 230/150 Watt
  • external diameter: 171 mm
  • high at all: 83 mm
  • installation depth: 74 mm
  • installation diameter: 140 mm
  • magnet diameter (Neodymum): 95 mm

MS MIDRANGE

MS 200 EVO

  • AUDIO SYSTEM 200mm Paper Midrange Woofer
  • 200 mm HIGH EFFICIENT speaker special for OEM heat units
  • very efficient loudspeaker with paper cone and nomex-spider
  • impedance: 3 Ohm
  • power: 150/105 Watt
  • external diameter: 209 mm
  • installation depth: 65 mm
  • installation dimension: 177 mm

MS 100 EVO

  • AUDIO SYSTEM Midrange Speaker
  • 100 mm fibreglass cone loudspeaker
  • ventilated european standard
  • chassis and nomex-spider with very high efficiency
  • impedance: 3 Ohm
  • power: 100/60 Watt
  • external diameter: 102/128 mm
  • installation depth: 48 mm
  • installation dimension: 91 mm

MS 130 EVO

  • AUDIO SYSTEM Midrange Speaker
  • 130 mm fibreglas-cone loudspeaker
  • ventilated european standard
  • chassis and nomex-spider with very high efficiency
  • impedance: 3 Ohm
  • power: 110/70 Watt
  • external diameter: 130/150 mm
  • installation depth: 58 mm
  • installation dimension: 113 mm

MS 165 EVO

  • AUDIO SYSTEM Midrange Speaker
  • 165 mm fibreglass cone loudspeaker
  • ventilated european standard
  • chassis and nomex-spider with very high efficiency
  • impedance: 3 Ohm
  • power: 120/80 Watt
  • external diameter: 165 mm
  • installation depth: 63 mm
  • installation dimension: 143 mm

MXS 165 EVO

  • AUDIO SYSTEM Midrange Speaker
  • 165 mm paper cone loudspeaker
  • ventilated european standard
  • chassis and nomex-spider with very high efficiency
  • impedance: 3 Ohm
  • power: 110/70 Watt
  • external diameter: 165 mm
  • installation depth: 63 mm
  • installation dimension: 143 mm

MXS 130 EVO

  • AUDIO SYSTEM Midrange Speaker
  • 130 mm paper cone loudspeaker
  • ventilated european standard
  • chassis and nomex-spider with very high efficiency
  • impedance: 3 Ohm
  • power: 100/65 Watt
  • external diameter: 130/150 mm
  • installation depth: 53 mm
  • installation dimension: 113 mm

AS MIDRANGE

AS 100 EVO

  • AUDIO SYSTEM RADION Midrange Speaker
  • 100 mm fiberglass cone loudspeaker
  • very efficient midrange speaker
  • EURO chassis and nomex-spider
  • impedance: 3 Ohm
  • power: 110/65 Watt
  • external diameter: 102/128 mm
  • installation depth: 50 mm
  • installation dimension: 91 mm

AS 130 EVO

  • AUDIO SYSTEM RADION Midrange Speaker
  • 130 mm fiberglass cone loudspeaker
  • very efficient kick/mid-range speaker
  • EURO chassis and nomex-spider
  • impedance: 3 Ohm
  • power: 125/85 Watt
  • external diameter: 129/155 mm
  • installation depth: 55 mm
  • installation dimension: 113 mm

AS 165 EVO

  • AUDIO SYSTEM RADION Midrange Woofer
  • 165 mm fiberglass cone loudspeaker
  • very efficient kick/mid-range speaker
  • EURO chassis and nomex-spider
  • impedance: 3 Ohm
  • power: 145/100 Watt
  • external diameter: 165 mm
  • installation depth: 62 mm
  • installation dimension: 143 mm

AS 130 EM EVO

  • AUDIO SYSTEM RADION Midrange Woofer
  • 130 mm paper cone loudspeaker
  • very efficient kick/mid-range speaker
  • EURO chassis and nomex-spider
  • impedance: 3 Ohm
  • power: 120/80 Watt
  • external diameter: 129/153 mm
  • installation depth: 55 mm
  • installation dimension: 113 mm

AS 165 EM EVO

  • AUDIO SYSTEM RADION Midrange Woofer
  • 165 mm paper cone loudspeaker
  • very efficient kick/mid-range speaker
  • EURO chassis and nomex-spider
  • impedance: 3 Ohm
  • power: 140/90 Watt
  • external diameter: 165 mm
  • installation depth: 65 mm
  • installation dimension: 143 mm

AS 165 DC EM EVO

  • AUDIO SYSTEM RADION Midrange Woofer
  • 165 mm paper cone loudspeaker
  • very efficient kick/mid-range speaker
  • EURO chassis and nomex-spider
  • impedance: 2×3 Ohm
  • power: 2x 70/45 Watt
  • external diameter: 165 mm
  • installation depth: 65 mm
  • installation dimension: 143 mm

AS 130 FLAT EVO2

  • AUDIO SYSTEM Midrange Speaker
  • 130 mm FLAT-LINE mid-range speaker
  • extremely flat chassis-construction
  • NAWI-paper cone and nomex-spider
  • impedance: 3 Ohm
  • power: 120/80 Watt
  • external diameter: 129/155 mm
  • installation depth: 33 mm
  • installation dimension: 113 mm

AS 165 FLAT EVO2

  • AUDIO SYSTEM Midrange Woofer
  • 165 mm FLAT-LINE speaker
  • extremely flat chassis-construction
  • NAWI-paper cone and nomex-spider
  • impedance: 3 Ohm
  • power: 130/90 Watt
  • external diameter: 166 mm
  • installation depth: 41 mm
  • installation dimension:143 mm

AS 165 DC FLAT EVO2

  • AUDIO SYSTEM Midrange Woofer
  • 165 mm FLAT-LINE DOUBLE COIL speaker
  • extremely flat chassis-construction
  • NAWI-paper cone and nomex-spider
  • impedance: 2×2 Ohm
  • power: 2x 75/45 Watt
  • external diameter: 166 mm
  • installation depth: 41 mm
  • installation dimension:143 mm

AS 165 E46 EVO

  • AUDIO SYSTEM Midrange Woofer
  • 165 mm fiberglass cone speaker special for BMW E46
  • very efficient deep/mid-range speaker with ventilated steel basket and nomex-Spider
  • impedance: 3 Ohm
  • power: 130/90 Watt
  • external diameter: 160/176 mm
  • installation depth: 65 mm
  • installation dimension:140 mm

AS 507 EVO

  • AUDIO SYSTEM Midrange Woofer
  • 5×7 special speaker for Ford and american modells
  • 5×7″ normchassis with fibreglass cone and nomex-spider
  • impedance: 3 Ohm
  • power: 130/90 Watt
  • external diameter: 193/139 mm
  • installation depth: 57 mm
  • installation dimension: 181/126 mm

AS 609 EVO

  • AUDIO SYSTEM Midrange Woofer
  • 6×9 special speaker for Mini and american modells
  • 6×9″ normchassis with fibreglass cone and nomex-spider
  • impedance: 3 Ohm
  • power: 200/140 Watt
  • external diameter: 243/166 mm
  • installation depth: 83 mm
  • installation dimension: 218/150 mm

AS 200 EVO

  • AUDIO SYSTEM Midrange Woofer
  • 200 mm FREE-AIR speaker special for rear shelf
  • very efficient loudspeaker with integrated protection grill
  • impedance: 4 Ohm
  • power: 140/90 Watt
  • external diameter: 230 mm
  • installation depth: 78 mm
  • installation dimension: 184 mm

AS 200 EM EVO

  • AUDIO SYSTEM Midrange Woofer
  • 200 mm HIGH EFFICIENT speaker special for OEM hat units
  • very efficient loudspeaker with paper cone and nomex-spider
  • impedance: 3 Ohm
  • power: 170/120 Watt
  • external diameter: 209 mm
  • installation depth: 68 mm
  • installation dimension: 177 mm

EX MIDRANGE

EX 80 SQ GOLF V EVO

  • AUDIO SYSTEM EX 80 SQ + LSR GOLF V
  • For all GOLF V Modells
  • impedance: 4 Ohm
  • power: 80/50 Watt
  • external diameter: 140/112 mm
  • installation depth: 33 mm

EX 80 SQ BMW II EVO

  • AUDIO SYSTEM EX 80 SQ + LSR BMW II
  • For all E and F BMW Modells
  • impedance: 4 Ohm
  • power: 80/50 Watt
  • external diameter: 126/116 mm
  • installation depth: 28 mm

EX 80 SQ BMW I EVO

  • AUDIO SYSTEM EX 80 SQ + LSR BMW I
  • For all E and F BMW Modells
  • impedance: 4 Ohm
  • power: 80/50 Watt
  • external diameter: 116/102 mm
  • installation depth: 34 mm

AX MIDRANGE

AX 08 US

  • AUDIO SYSTEM FLAT Subwoofer from US08 ACTIVE
  • 200 mm SPECIAL FLAT WOOFER for small closed boxes
  • extremely flat construction and very stiff aluminum cone
  • impedance: 2 Ohm
  • power: 210/150 Watt
  • external diameter: 210 mm
  • installation depth: 55 mm
  • installation dimension: 185 mm

AX 10 US

  • AUDIO SYSTEM Subwoofer
  • 250 mm SPECIAL FLAT WOOFER for small closed boxes
  • extremely flat construction and very stiff aluminum cone
  • impedance: 2 Ohm
  • power: 250/180 Watt
  • external diameter: 228/245 mm
  • installation depth: 55 mm
  • installation dimension: 211 mm

AX 130-2 EVO 2

  • AUDIO SYSTEM Midrange Woofer
  • 130 mm EXTREM KICKBASS loudspeaker
  • pressure casting european standard-chassis
  • FKP coneand nomex-spider
  • 4-layer 32 mm voice coil
  • impedance: 2 Ohm
  • power: 200/120 Watt
  • external diameter: 128/152 mm
  • installation depth: 58 mm
  • installation dimension: 114 mm

AX 165-4 EVO 2

  • AUDIO SYSTEM Midrange Woofer
  • 165 mm EXTREM KICKBASS loudspeaker
  • pressure casting european standard-chassis
  • FKP coneand nomex-spider
  • 4-layer 38 mm voice coil
  • impedance: 4 Ohm
  • power: 220/150 Watt
  • external diameter: 166 mm
  • installation depth: 71 mm
  • installation dimension: 146 mm

AX 165-2 EVO 2

  • AUDIO SYSTEM Midrange Woofer
  • 165 mm EXTREM KICKBASS loudspeaker
  • pressure casting european standard-chassis
  • FKP coneand nomex-spider
  • 4-layer 38 mm voice coil
  • impedance: 2 Ohm
  • power: 220/150 Watt
  • external diameter: 166 mm
  • installation depth: 71 mm
  • installation dimension: 146 mm

AX 165 PA EVO

  • AUDIO SYSTEM PA Midrange Woofer
  • 165 mm EXTREM DYNAMIC loudspeaker with NEODYMIUM-DRIVER
  • high defintion pressure basket
  • very light and stable HPPC-cone
  • nomex-spider
  • 4-layer 38 mm voice coil with aluminum former
  • impedance: 4 Ohm
  • power: 200/125 Watt
  • external diameter: 166 mm
  • installation depth: 71 mm
  • installation dimension: 146 mm

AX 200 PA EVO

  • AUDIO SYSTEM PA Midrange Woofer
  • 200 mm EXTREM DYNAMIC loudspeaker with NEODYMIUM-DRIVER
  • high defintion pressure basket
  • very light and stable HPPC-cone
  • nomex-spider
  • 4-layer 38 mm voice coil with aluminum former
  • impedance: 4 Ohm
  • power: 250/150 Watt
  • external diameter: 211 mm
  • installation depth: 85 mm
  • installation dimension: 180 mm

AX 08 BMW EVO 2

  • AUDIO SYSTEM Neodym-Subwoofer
  • 200 mm special BMW papercone loudspeaker with volcanic effect
  • For all E and F BMW Modells
  • screwable connection terminal
  • impedance: 3 Ohm
  • power: 210/150 Watt
  • external diameter: 216/240 mm
  • installation depth: 52 mm
  • installation dimension: 180 mm

AX 08 BMW PRO US

  • AUDIO SYSTEM Subwoofer
  • 200 mm special BMW under seat subwoofer
  • impedance: 2 Ohm
  • power: 210/150 Watt
  • external diameter: 215/242 mm
  • installation depth: 52 mm
  • installation dimension: 200 mm

AX 08 MB UNI EVO

  • AUDIO SYSTEM Neodym-Subwoofer
  • 200 mm special MERCEDES papercone loudspeaker
    For W205//213, A238, C238/253, X253 Modells
  • original connector with crossover
  • impedance: 2 Ohm
  • power: 225/150 Watt
  • external diameter: 219/283 mm
  • installation depth: 57 mm
  • installation dimension: 192 mm

AX 08 BMW PLUS EVO

  • AUDIO SYSTEM Neodym-Subwoofer
  • 200 mm special BMW fibreglass cone loudspeaker
  • For all E and F BMW Modells
  • screwable connection terminal
  • impedance: 2 Ohm
  • power: 250/175 Watt
  • external diameter: 216/240 mm
  • installation depth: 31 mm
  • installation dimension: 200 mm

AX 08 FL EVO 2

  • AUDIO SYSTEM Neodym-Subwoofer
  • 200 mm PP-cone loudspeaker special for rear shelf
  • screwable connection terminal
  • impedance: 3 Ohm
  • power: 200/150 Watt
  • external diameter: 203 mm
  • installation depth: 57 mm
  • installation dimension: 183 mm

GI AX08 BMW

  • AUDIO SYSTEM Loudspeakergrill black
  • Subwoofer grill for 200 mm Chassis (pair) for
    AX08 BMW EVO2, AX08 BMW EVO,  AX08 BMW MK2 and AX08 BMW

EX-SQ MIDRANGE

EX 50 SQ EVO

  • AUDIO SYSTEM Midrange Speaker
  • 50 mm HIGH-END loudspeaker
  • stable and light-weight NAWI fibreglass cone and nomex-spider
  • deep reaching repeat
  • impedance: 4 Ohm
  • power: 70/40 Watt
  • external diameter: 68/52,5 mm
  • installation depth: 27 mm
  • installation dimension: 46 mm

EX 80 SQ EVO 2

  • AUDIO SYSTEM Midrange Speaker
  • 80 mm HIGH-END loudspeaker with ventilated basket
  • stable and light-weight NAWI fibreglass cone and nomex spider
  • deep reaching repeat
  • impedance: 4 Ohm
  • power:90/60 Watt
  • external diameter: 98/83 mm
  • installation depth: 39 mm
  • installation dimension: 76 mm

EX 406 SQ EVO 3

  • AUDIO SYSTEM Neodymium Midrange Woofer
  • 4×6 HIGH-END-NEODYM loudspeaker with ventilated basket
  • ultra light-weight and stable NAWI-HPPC paper-cone with Glass Fiber inlay
  • NOMEX-Spider
  • a newly developed EPN38 NEODYM Magnet and deep reaching repeat
  • impedance: 3 Ohm
  • power:120/80 Watt
  • outer diameter: 152/97 mm
  • installation depth: 46 mm
  • installation dimension: 94 mm

EX 100 SQ EVO 3

  • AUDIO SYSTEM Midrange Speaker
  • 130 mm HIGH-END-NEODYM loudspeaker with ventilated basket
  • tultra light-weight and stable NAWI-paper-cone with fibreglass and nomex-spider
  • deep reaching repeat
  • impedance: 3 Ohm
  • power: 100/80 Watt
  • external diameter: 102/128 mm
  • installation depth: 47 mm
  • installation dimension: 94 mm

EX 130 SQ EVO 3

  • AUDIO SYSTEM Midrange Speaker
  • 130 mm HIGH-END-NEODYM loudspeaker with ventilated basket
  • ultra light-weight and stable NAWI-paper-cone with fibreglass and nomex-spider
  • deep reaching repeat
  • impedance: 3 Ohm
  • power: 120/90 Watt
  • external diameter: 129/153 mm
  • installation depth: 56 mm
  • installation dimension: 113 mm

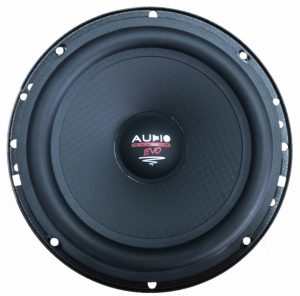

EX 165 SQ EVO 3

  • AUDIO SYSTEM Midrange Woofer
  • 165 mm HIGH-END loudspeaker with ventilated basket
  • ultra light-weight and stable NAWI-aluminium-cone and nomex-spider
  • very deep reaching repeat
  • impedance: 3 Ohm
  • power: 130/110 Watt
  • external diameter: 166 mm
  • installation depth: 63 mm
  • installation dimension: 143 mm

EX 200 SQ EVO 3

  • AUDIO SYSTEM Neodymium Midrange Woofer
  • 200 mm HIGH-END-NEODYM loudspeaker with ventilated steal basket
  • ultra light-weight and stable NAWI-HPPC paper-cone with Glass Fiber inlay
  • NOMEX-Spider
  • a newly developed EPN38 NEODYM Magnet and very deep reaching repeat
  • impedance: 3 Ohm
  • power: 200/140 Watt
  • outer diameter: 208 mm
  • installation depth: 67 mm
  • installation dimension: 176 mm

EX-DUST MIDRANGE

EX 80 DUST EVO 3

  • AUDIO SYSTEM Neodymium Midrange Speaker
  • 80 mm HIGH-END loudspeaker with ventilated cast basket
  • ultra light-weight and stable NAWI-paper-cone with glass fiber and nomex-spider
  • deep reaching repeat
  • impedance: 3 Ohm
  • power: 95/65 Watt
  • external diameter: 95/112 mm
  • installation depth: 44 mm
  • installation dimension: 77 mm

EX 100 DUST EVO 3

  • AUDIO SYSTEM Neodymium Midrange Speaker
  • 100 mm HIGH-END loudspeaker with ventilated cast basket
  • ultra light-weight and stable NAWI-paper-cone with glass fiber and nomex-spider
  • deep reaching repeat
  • impedance: 3 Ohm
  • power: 120/85 Watt
  • external diameter: 128/104 mm
  • installation depth: 49,5 mm
  • installation dimension: 93 mm

EX 130 DUST EVO 3

  • AUDIO SYSTEM Neodymium Midrange Speaker
  • 130 mm HIGH-END loudspeaker with ventilated cast basket
  • ultra light-weight and stable NAWI-paper-cone with glass fiber and nomex spider
  • deep reaching repeat
  • impedance: 3 Ohm
  • power: 140/95 Watt
  • external diameter: 133/150 mm
  • installation depth: 60 mm
  • installation dimension: 120 mm

EX 165 DUST EVO 3

  • AUDIO SYSTEM Neodymium Midrange Speaker
  • 165 mm HIGH-END loudspeaker with ventilated cast basket
  • ultra light-weight and stable black NAWI-paper-cone with glass fiber and nomex-spide
  • very deep reaching repeat,
  • impedance: 3 Ohm
  • power: 240/150 Watt
  • external diameter: 166 mm
  • installation depth: 67 mm
  • installation dimension: 146 mm

EX-PHASE MIDRANGE

EX 80 PHASE EVO 3

  • AUDIO SYSTEM Neodymium Midrange Speaker
  • 80 mm HIGH-END loudspeaker with ventilated cast basket
  • ultra light-weight and stable NAWI-paper-cone with glass fiber, nomex-spider andPHASE PLUG
  • deep reaching repeat
  • impedance: 3 Ohm
  • power: 95/65 Watt
  • external diameter: 95/112 mm
  • installation depth: 44 mm
  • installation dimension: 77 mm

EX 100 PHASE EVO 3

  • AUDIO SYSTEM Neodymium Midrange Speaker
  • 100 mm HIGH-END loudspeaker with ventilated cast basket
  • ultra light-weight and stable NAWI-paper-cone with glass fiber, nomex-spider andPHASE PLUG
  • deep reaching repeat
  • impedance: 3 Ohm
  • power: 120/85 Watt
  • external diameter: 128/104 mm
  • installation depth: 49,5 mm
  • installation dimension: 93 mm

EX 130 PHASE EVO 3

  • AUDIO SYSTEM Neodymium Midrange Speaker
  • 130 mm HIGH-END loudspeaker with ventilated cast basket
  • ultra light-weight and stable black NAWI-paper-cone with glass fiber, nomex-spider and PHASE PLUG
  • deep reaching repeat
  • impedance: 3 Ohm
  • power: 140/95 Watt
  • external diameter: 133/150 mm
  • installation depth: 60 mm
  • installation dimension: 120 mm

EX 165 PHASE EVO 3

  • AUDIO SYSTEM Neodymium Midrange Speaker
  • 165 mm HIGH-END loudspeaker with ventilated cast basket
  • ultra light-weight and stable black NAWI-paper-cone with glass fiber and nomex-spider
  • deep reaching repeat,
  • impedance: 3 Ohm
  • power: 240/150 Watt
  • external diameter: 166 mm
  • installation depth: 67 mm
  • installation dimension: 146 mm
