ACTIVE SERIES Boom Box Subwoofer

R 08 FLAT BR ACTIVE EVO

Description

  • RADION-SERIES ACTIVE EVO Woofer
  • 11 l vented box with R 08 FLAT EVO + M-350.1 D
  • very strong box made with 18 mm MDF and 33 mm front plate CARBON design

Performance Data

  • impedance: 4 Ohm
  • 270/240 Watt

Dimensions

  • l = 450 mm
  • h = 300 mm
  • depth 1 = 150 mm
  • depth 2 = 210 mm

R 08 FLAT DBR ACTIVE EVO

Description

  • RADION-SERIES ACTIVE EVO Woofer
  • 11 l vented box with R 08 FLAT EVO + CO-220.1
  • very strong box made with 10/18 mm MDF

Performance Data

  • impedance: 4 Ohm
  • 200/150 Watt

Dimensions

  • l = 482 mm
  • h = 334 mm
  • d = 110 mm

R 10 FLAT G ACTIVE EVO

Description

  • RADION-SERIES ACTIVE EVO Woofer
  • 20 l sealed box with R 10 FLAT EVO + M-350.1 D
  • very strong box made with 18 mm MDF and 33 mm front plate CARBON design

Performance Data

  • impedance: 4 Ohm
  • 285/240 Watt

Dimensions

  • l = 460 mm
  • h = 340 m
  • depth 1 = 150 mm
  • depth 2 = 280 mm

R 12 FLAT G ACTIVE EVO

Description

  • RADION-SERIES ACTIVE EVO Woofer
  • 30 l sealed box with R 12 FLAT EVO + M-350.1 D
  • very strong box made with 18 mm MDF and 33 mm front plate CARBON design

Performance Data

  • impedance: 4 Ohm
  • 300/240 Watt

Dimensions

  • l = 500 mm
  • h = 380 m
  • depth 1 = 180 mm
  • depth 2 = 320 mm

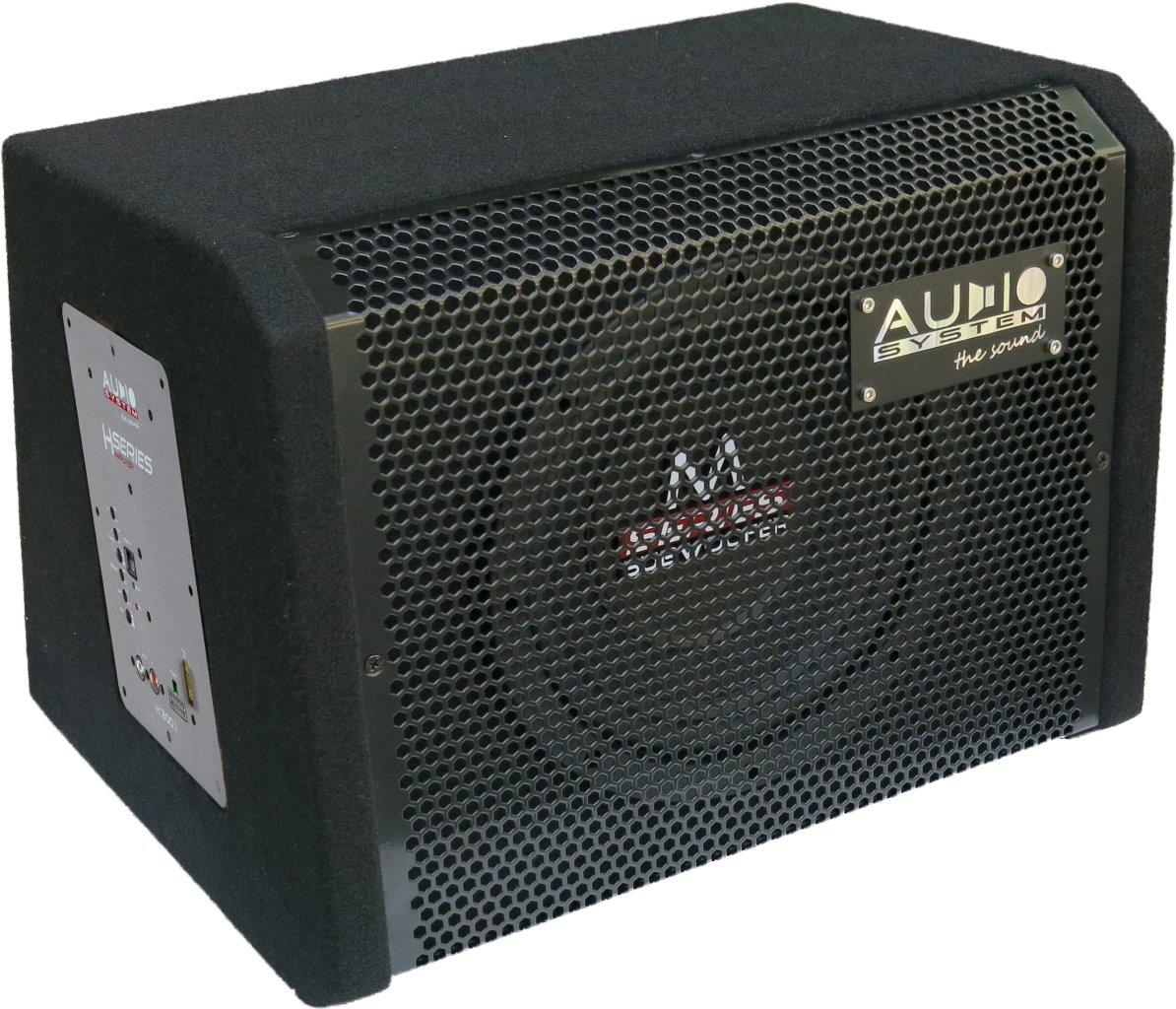

M 08 ACTIVE

Description

  • AKTIVE M-SERIES HIGH EFFICIENT
  • Boom Box Subwoofer + Monoamplifier
  • 15 l vented box with M 08 + M-350.1 D
  • very strong box build with MDF and stable protection grill

Performance Data

  • impedance: 4 Ohm
  • 300/240 Watt

Dimensions

  • l = 370 mm
  • h = 280 m
  • depth 1 = 245 mm
  • depth 2 = 345 mm

M 12 ACTIVE

Description

  • AKTIVE M-SERIES HIGH EFFICIENT
  • Boom Box Subwoofer + Monoamplifier
  • 45 l Bassreflexgehäuse mit M 12 + M-350.1 D
  • very strong box build with MDF and stable protection grill

Performance Data

  • impedance: 4 Ohm
  • 300/240 Watt

Dimensions

  • l = 620 mm
  • h = 380 m
  • depth 1 = 275 mm
  • depth 2 = 375 mm

US 08 ACTIVE

Description

  • UNDERSEAT WOOFER with Internal Mono Amplifier
  • extrem heavy aluminum-diecast housing with 6,5 kg
  • 2x passiv-cone on both sides
  • phase shift: 0-180°
  • special clipping electronic
  • bass boost: 0-18 dB at 50 Hz
  • RCA input or external High-Level input with automatically “Turn On”
  • including original RTC
  • including original cable set from H-340.1 D

Performance Data

  • impedance: 2 Ohm
  • 250/200 Watt

Dimensions

  • l = 345 mm
  • h = 70 m
  • d = 250 mm

US08 ACTIVE 24V

Description

  • 24V UNDERSEAT WOOFER
  • Underseat Subwoofer with Internal Mono Amplifier
  • extrem heavy aluminum-diecast housing with 6,5 kg
  • 2x passiv-cone on both sides
  • phase shift: 0-180°
  • special clipping electronic
  • bass boost: 0-18 dB at 50 Hz
  • RCA input or external High-Level input with automatically “Turn On”
  • including original RTC
  • including original cable set from H-340.1 D

Performance Data

  • impedance: 2 Ohm
  • 250/200 Watt

Dimensions

  • l = 345 mm
  • h = 70 m
  • d = 250 mm

US08 PASSIV

Description

  • PASSIVER UNDERSEAT WOOFER
  • extrem heavy aluminum-diecast housing with 6,0 kg
  • 2x passiv-cone on the sides
  • frequeny response: 35-150 Hz

Performance Data

  • impedance: 2 Ohm
  • 350/300 Watt

Dimensions

  • l = 345 mm
  • h = 70 m
  • d = 250 mm
