SW-SERIES Spare Wheel Subwoofer

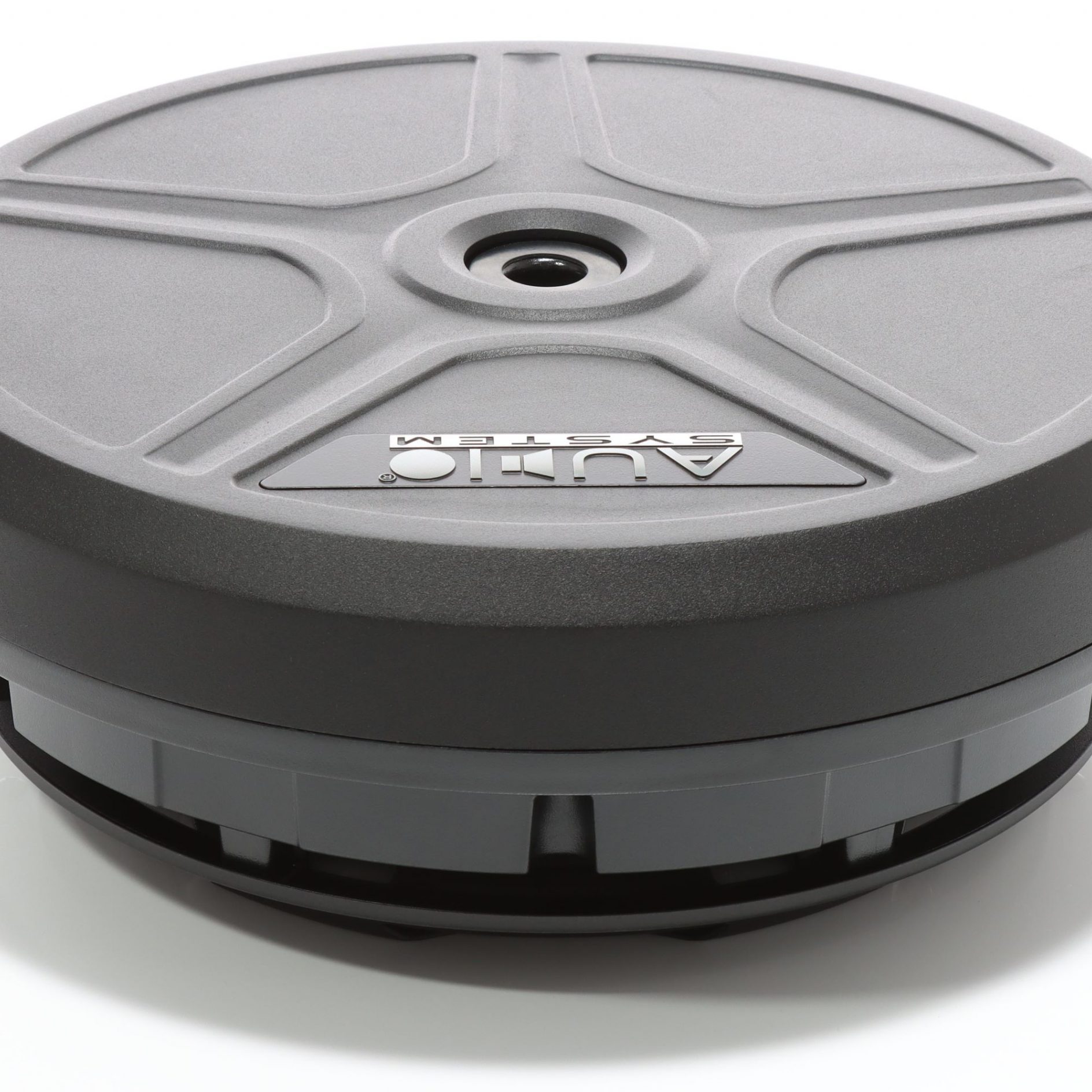

SW 11 ACTIVE

Description

  • Spare Wheel Woofer
  • 28 cm Spare Wheel Subwoofer with Internal Mono Amplifier
  • extrem heavy aluminum-die cast housing with 8 kg
  • inclusive RTC SW for Phase Shift: 0/180°
  • BASS BOOST 0-12 dB
  • LOW-PASS Filter und GAIN
  • RCA input or external High-Level input with automatically “Turn On”
  • including original short cable

Performance Data

  • impedance: 4 Ohm
  • 200/150 Watt

Dimensions

  • d = 360 mm
  • h = 135 mm

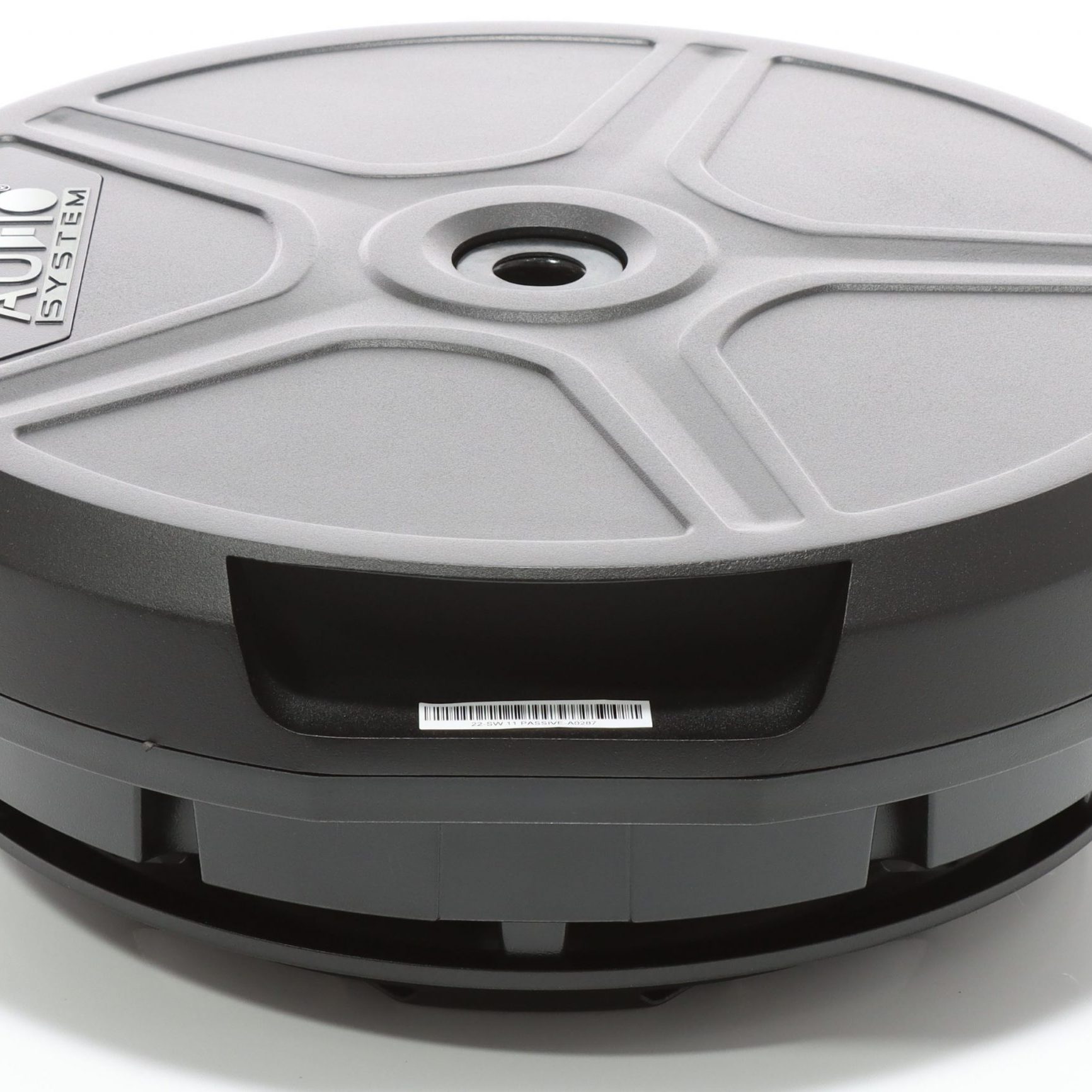

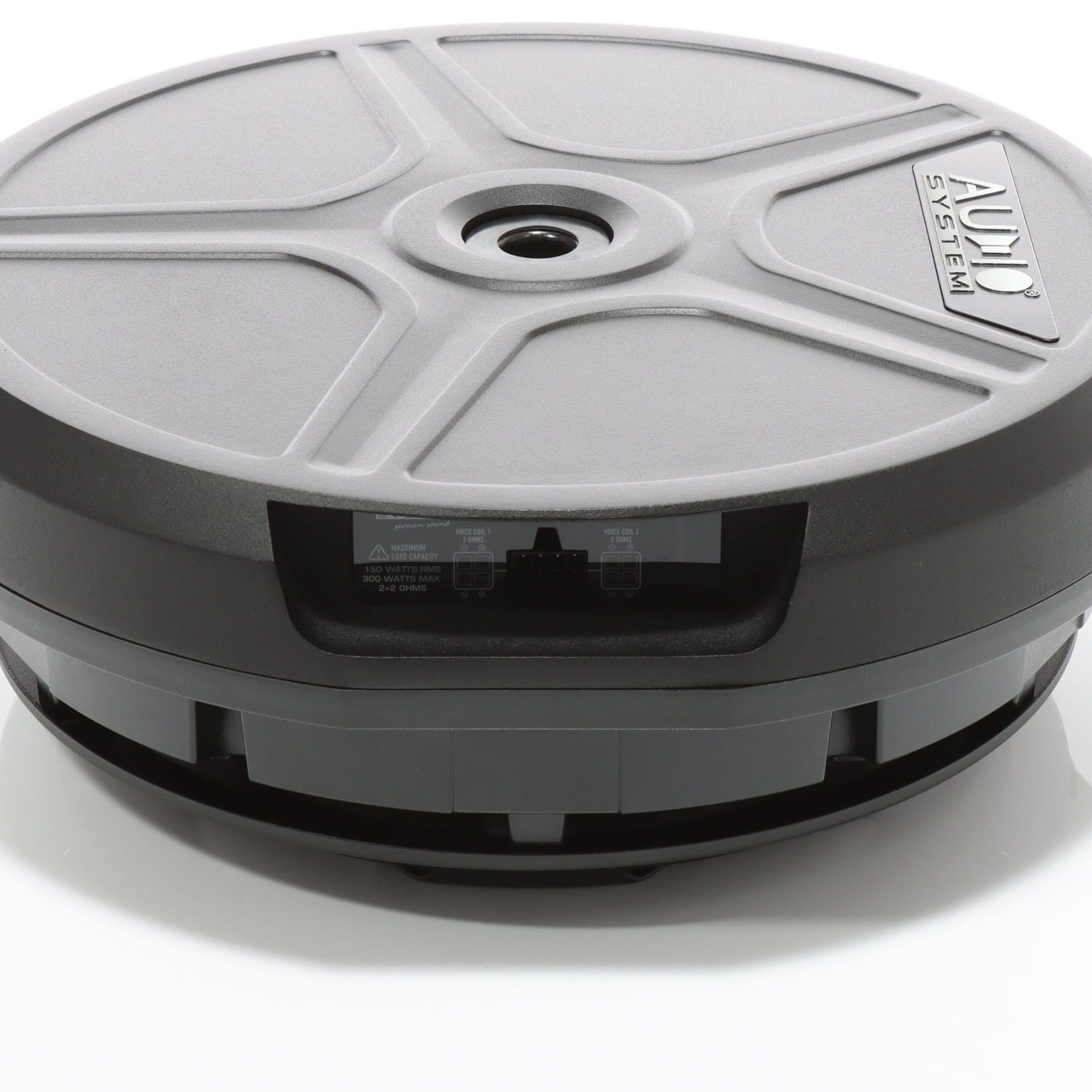

SW 11 PASSIVE

Description

  • Spare Wheel Woofer
  • Passive Spare Wheel Subwoofer
  • extrem heavy aluminum-die cast housing with 7,5 kg

Performance Data

  • impedance: 2X2 Ohm
  • 2X 250 / 2X 175 Watt

Dimensions

  • d = 360 mm
  • h = 135 mm

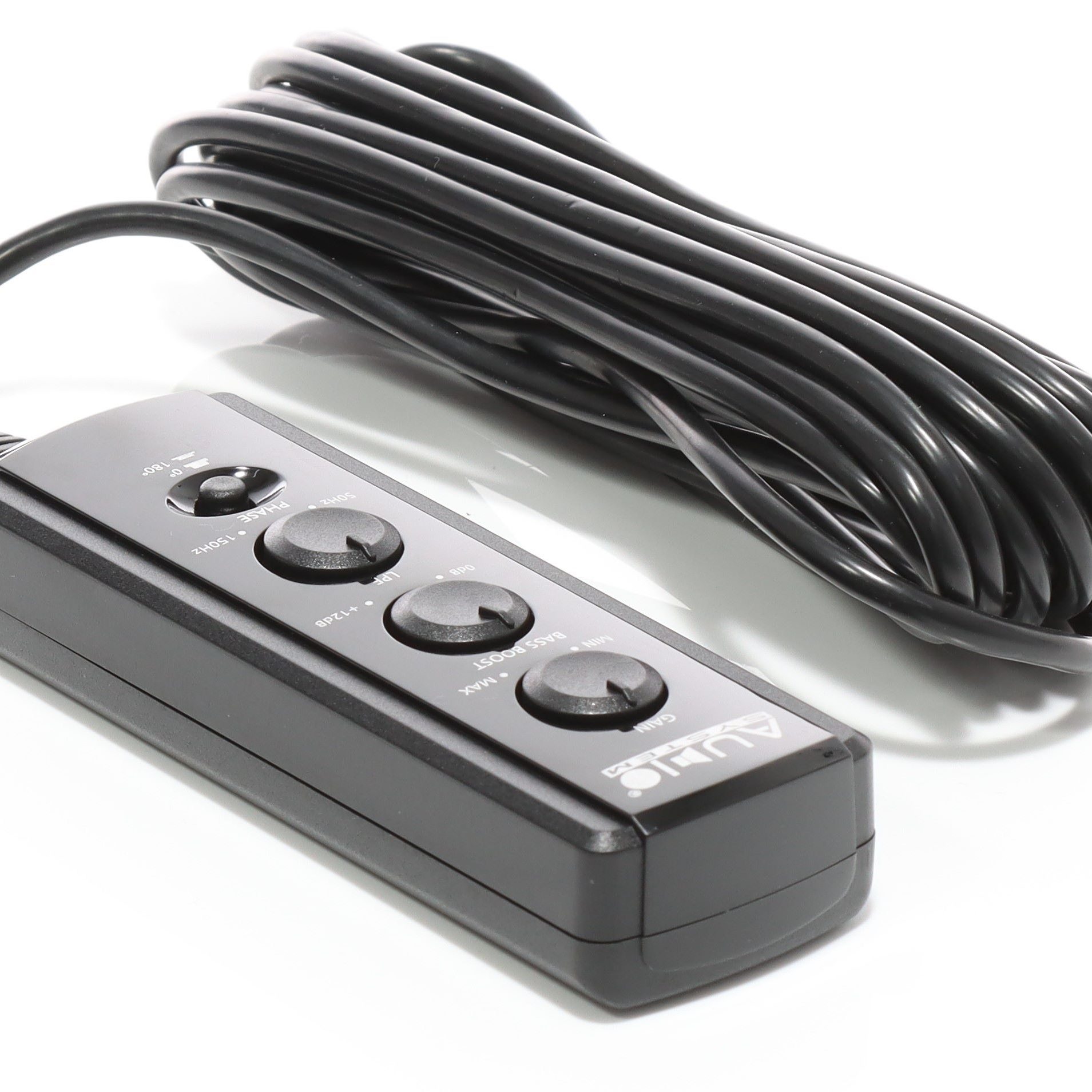

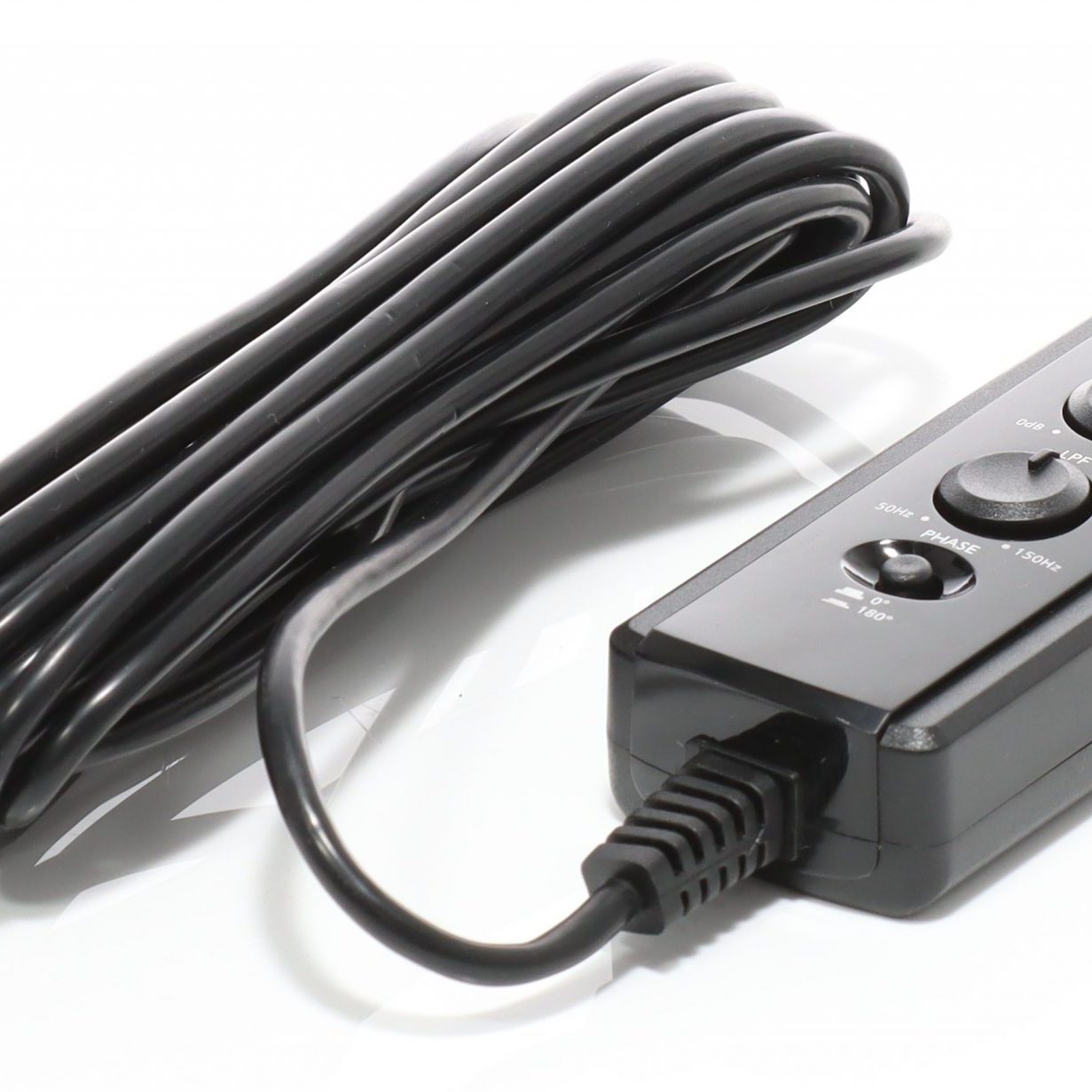

RTC SW 11

Description

  • Remote Control for SW 11 ACTIVE
  • Controller for Gain
  • Crossover
  • Bass Boost and Phase
  • size: 100 x 37 mm
  • cable length: 500 cm

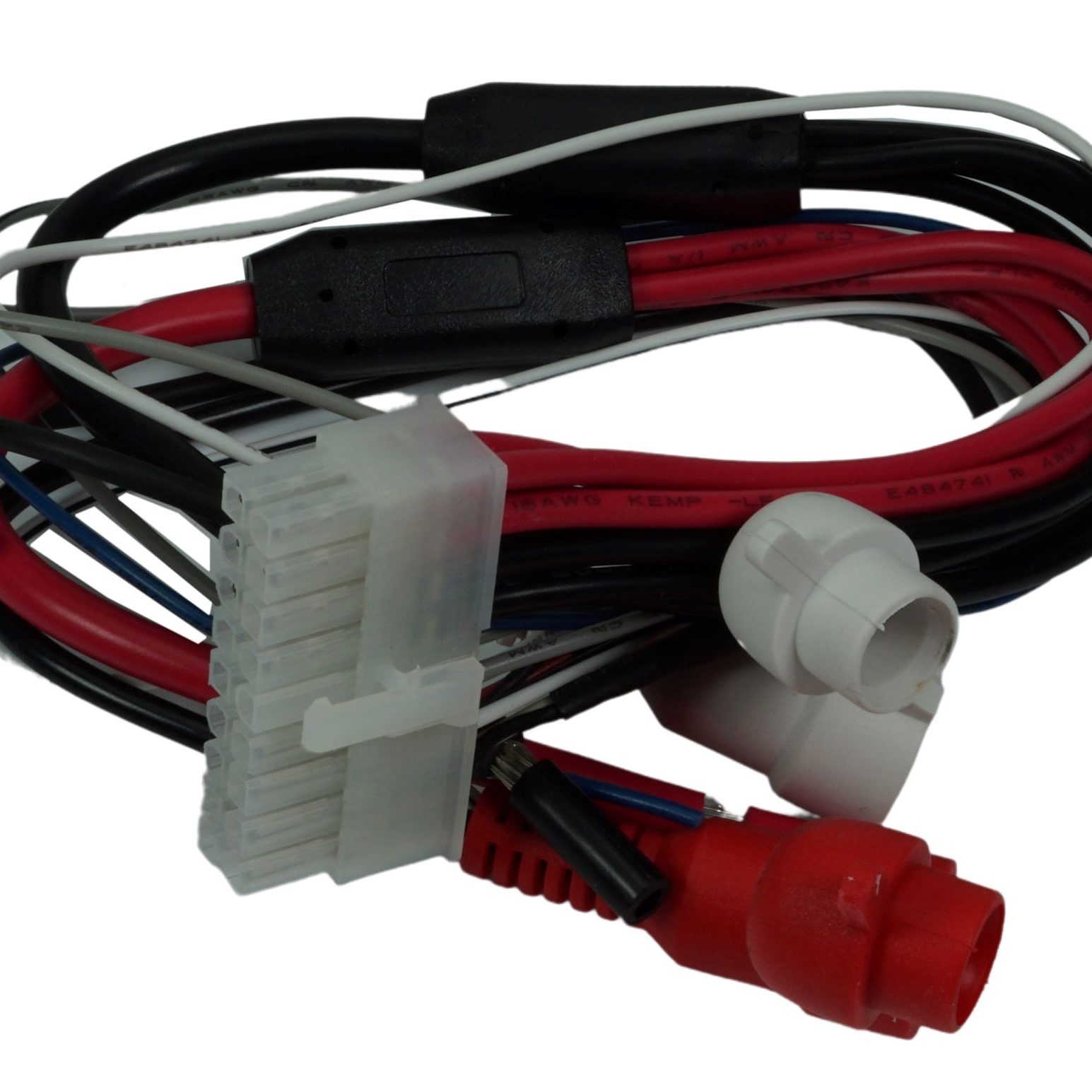

PCS SW 11

Description

  • Cable Set for SW 11 ACTIVE
  • power
  • ground
  • HIGH and LOW input
  • remote
  • cable length: 30 cm
