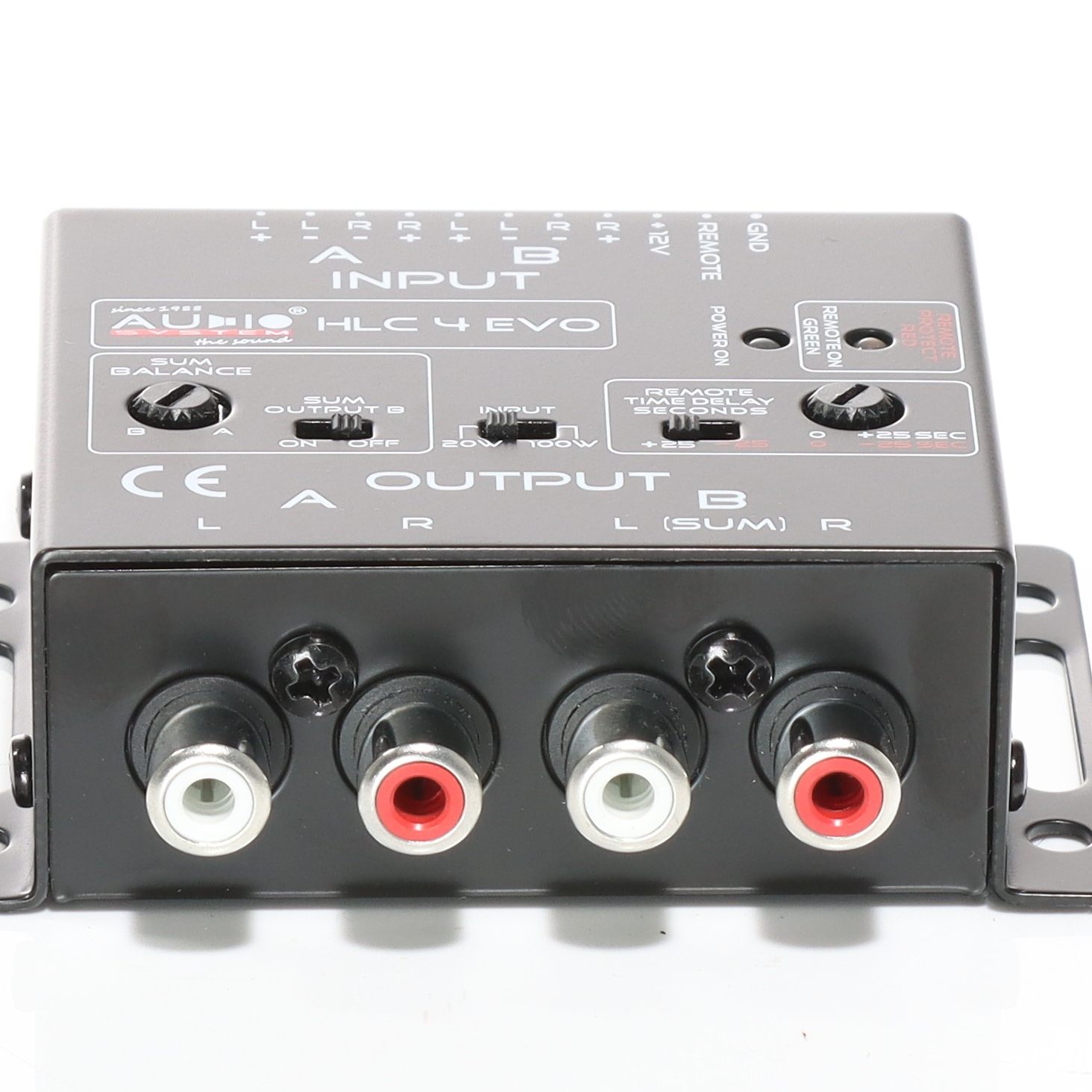

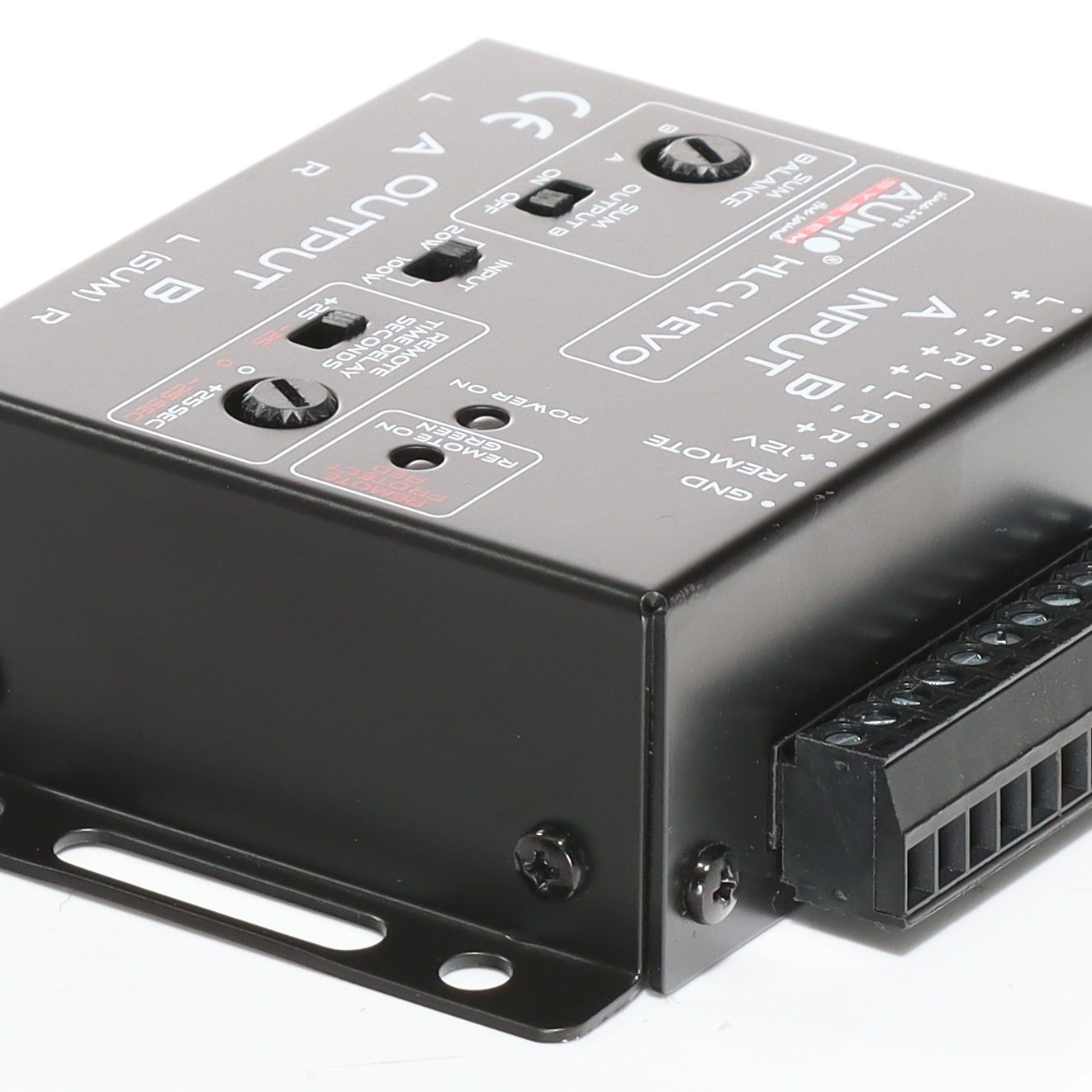

HIGH-LOW ADAPTER

HLC 4 EVO

Description

  • 4-Way High-Low Converter for OEM Heat Unit
  • HIGH POWER up to 100 WATT
  • generates a switch-on-signal (Remote) delayable +/- 25 sec.
  • outstanding soundquality through PSA- and 5 V technology
  • summary function and pluggable connection terminal
  • automatic recognition between BTL and music recognition
  • speaker PRS rsistor simulation (Phanton Resistor Simulation)
  • size: 82x27x57 mm

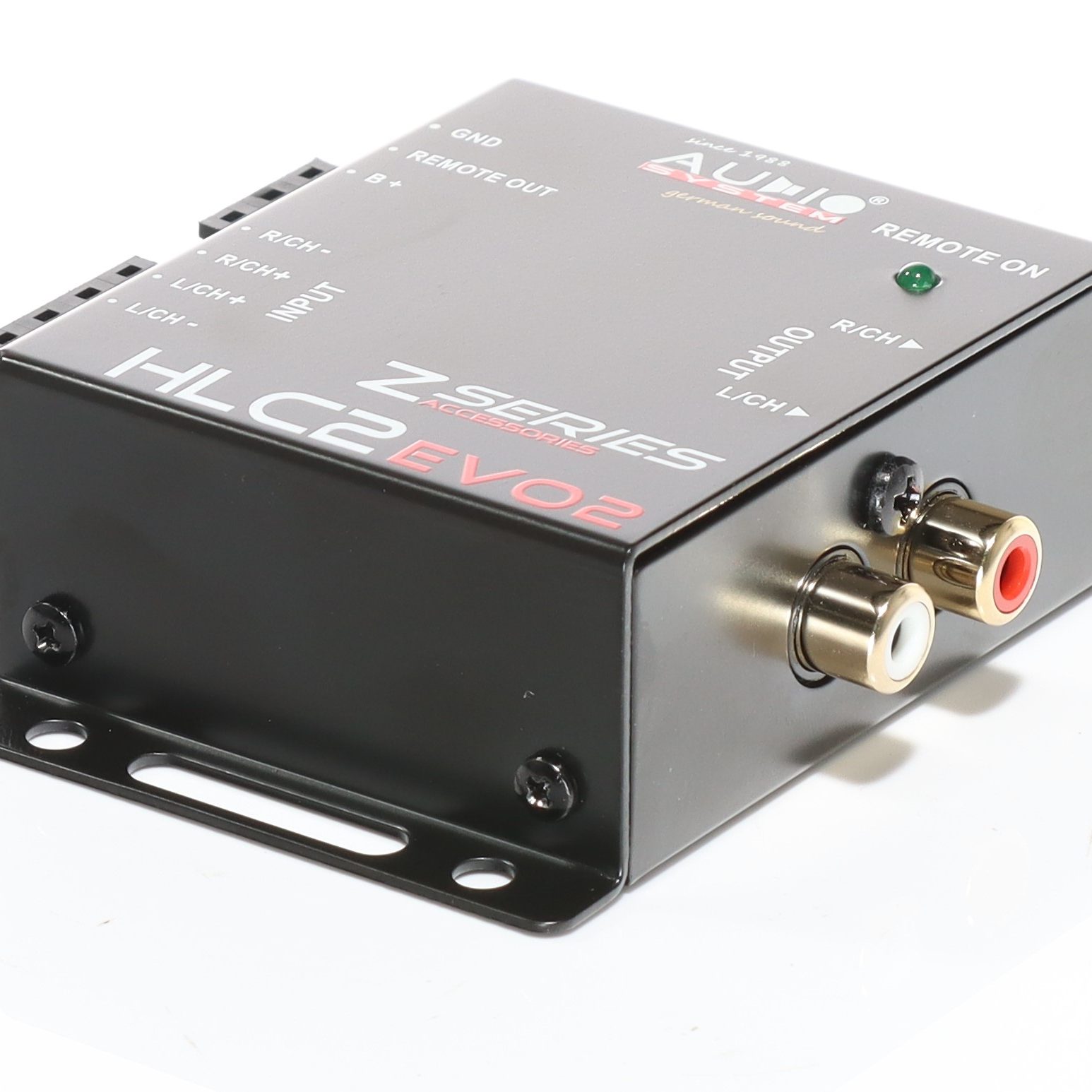

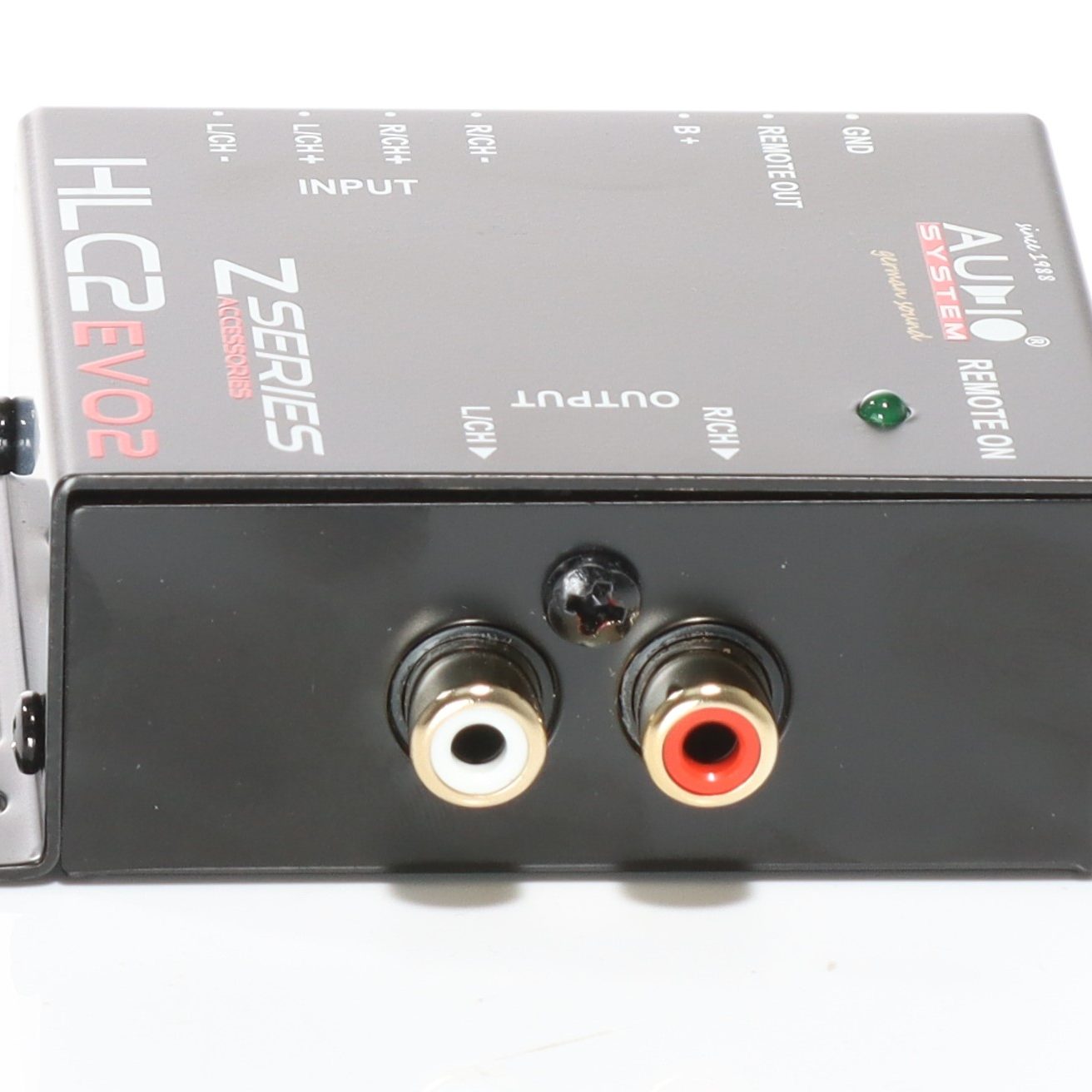

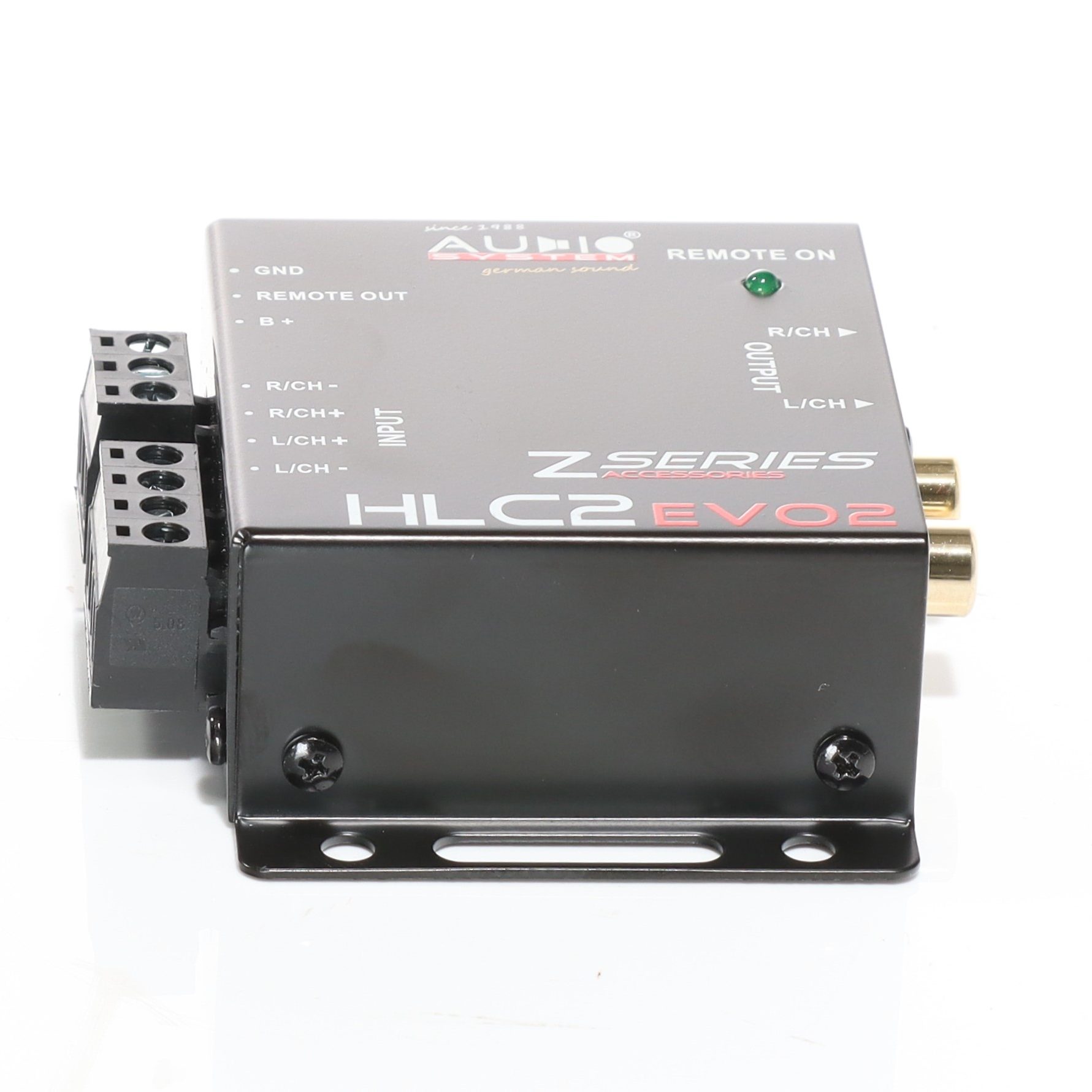

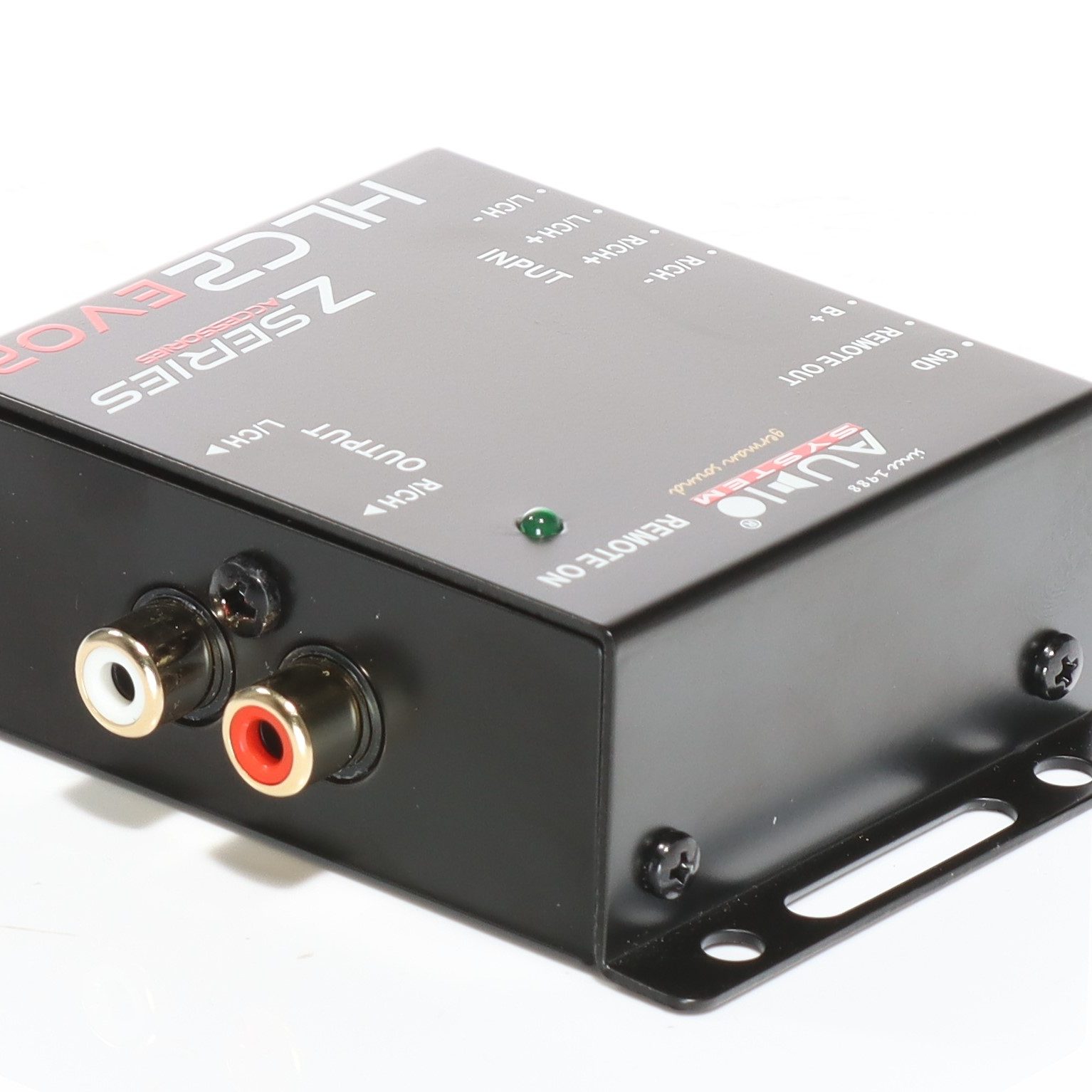

HLC2 EVO 2

Description

  • 2-Way High-Low Converter for OEM Heat Unit (8-30 VOLT)
  • no noise signal because of electrical isolation
  • very good soundquality through low distortion coils
  • generates a switch-on-signal (Remote)
  • pluggable connection terminal
  • HIGH POWER up to 75 WATT
  • operation voltage: 8-30 Volt
  • size: 82x27x57 mm

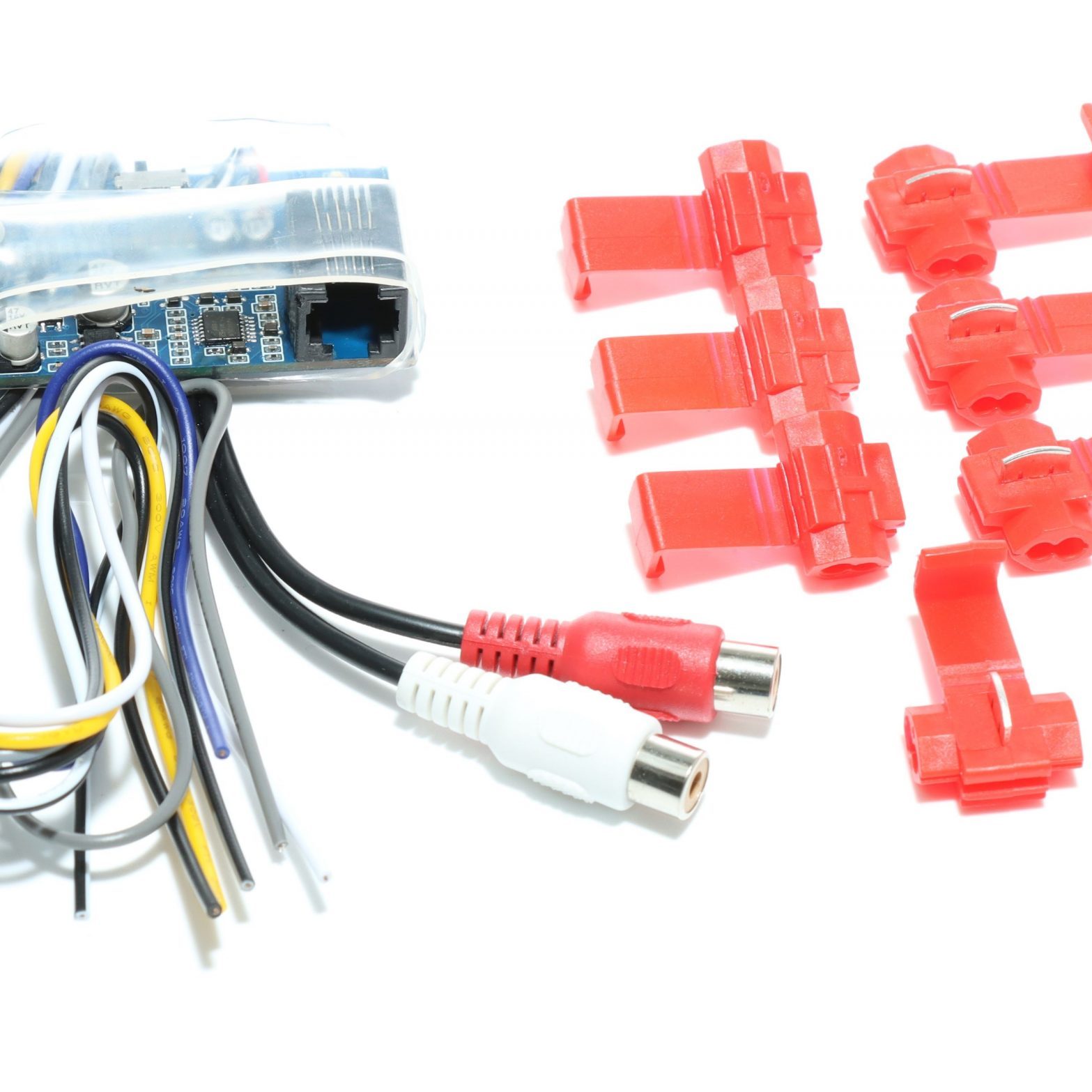

HLC 2 EM RTC 12/24V

Description

  • 2-Way High-Low Converter for OEM-Heat Unit/Amplifier
  • HIGH POWER INPUT up to 100 WATT
  • generates a switch-on-signal(Remote)
  • outstanding soundquality through LOW-NOSE-AMPS(5V)
  • automatically BTL-and music recognition over PTC input
  • speaker PRS resistor simulation(Phantom Resistor Simulation)
  • adjustable output level over RTC, operation voltage: 8-30 Volt
  • including cable junction quick connectors
  • size: 55x15x37 mm

HLC 4 EM

Description

  • 4-Way High-Low Converter for OEM-Heat Unit/Amplifier
  • HIGH POWER INPUT up to 100 WATT with ISO-connector
  • generates a switch-on-signal(Remote)
  • outstanding soundquality through LOW-NOSE-AMPS(5V)
  • automatically BTL-and music recognition over PTC input
  • speaker PRS resistor simulation(Phantom Resistor Simulation)
  • including cable junction quick connectors
  • size: 43x26x35 mm

HLC2 RTC POWER QUADLOCK 52

Description

  • 2-Way High-Low Converter incl.POWER QUADLOCK 52
  • HLC2 EM RTC 12/24V incl. POWER Quadlock connector 52 pin
  • for OEM connections as SUBWOOFER or FRONT tap
  • lenght: 350mm
  • 750mm to HLC2 EM RTC 12/24V

Compability

BRAND MODEL TYPE YEAR FROM YEAR TO REMARKS
Audi A1 8X 2010 2018 *OS
Audi A1 GB 2018 – *OS
Audi A3 8V 2012 2020 *OS
Audi A3 8Y 2020 – *OS
Audi A4 8K 2007 2015 *OS
Audi A4 8W 2015 – *OS
Audi A5 8F / 8T 2007 2016 *OS
Audi A5 F5 2016 – *OS
Audi A6 4G (C7) 2011 2018 *OS
Audi A6 4K (C8) 2018 – *OS
Audi A7 4G (C7) 2010 2018 *OS
Audi A7 4K (C8) 2018 – *OS
Audi Q2 GA 2016 – *OS
Audi Q3 8U 2011 2018 *OS
Audi Q3 F3 2018 – *OS
Audi Q5 8R 2008 2016 *OS
Audi Q5 FY 2017 – *OS
Seat Alhambra 7N 2012 – *OS
Seat Arona 2017 – *OS
Seat Ateca 5FP 2016 – *OS
Seat Ibiza 6P 2015 2017 *OS
Seat Ibiza 6F 2017 – *OS
Seat Leon 5F 2012 2020 *OS
Seat Leon KL 2020 – *OS
Seat Tarraco 2018 – *OS
Skoda Enyac iV 2020 – *OS
Skoda Fabia NJ 2014 2021 *OS
Skoda Fabia IV 2021 – *OS
Skoda Kamiq 2019 – *OS
Skoda Karoq 2017 – *OS
Skoda Kodiac 2017 – *OS
Skoda Octavia 5E 2012 2020 *OS
Skoda Octavia IV 2020 – *OS
Skoda Scala 2019 – *OS
Skoda Superb 3V 2015 – *OS
Volkswagen up! 2016 – *OS
Volkswagen Polo 6C 2014 2017 *OS
Volkswagen Polo AW 2017 – *OS
Volkswagen Taigo CS 2021 – *OS
Volkswagen T-Cross C1 2018 – *OS
Volkswagen ID.3 E1 2019 – *OS
Volkswagen ID.4 E2 2020 – *OS
Volkswagen ID.5 2021 – *OS

Volkswagen Golf 7 (AU) 2012 2020 *OS
Volkswagen Golf 8 (CD) 2019 – *OS
Volkswagen T-Roc A1 2017 – *OS
Volkswagen Touran 5T 2015 – *OS
Volkswagen Tiguan AD1 2016 – *OS
Volkswagen Passat 3G 2014 – *OS
Volkswagen Arteon 3H 2017 – *OS
Volkswagen Sharan 7N 2016 – *OS
Volkswagen Touareg 7P 2010 2018 *OS
Volkswagen Touareg CR 2018 – *OS
Volkswagen Caddy 2K 2015 2020 *OS
Volkswagen Caddy SB 2020 – *OS
Volkswagen T6 SG / SH 2015 2019 *OS
Volkswagen T6.1 SG / SH 2019 2021 *OS
Volkswagen T7 ST 2021 – *OS

++++
*OS only for vehicles without OEM upgrade system

HLC2 RTC QUADLOCK 40

Description

  • 2-Way High-Low Converter including QUADLOCK 40
  • HLC2 EM incl. QUADLOCK connector 40 pin occupied
  • for OEM connections as SUBWOOFER or FRONT tap
  • lenght: 350mm
  • 750mm to HLC2 EM RTC 12/24V

Compatibility

BRAND MODEL TYPE YEAR FROM YEAR TO REMARKS
BMW 1-Series E81 / E82 / E87 / E88 2004 2013 *SH
BMW 1-Series F20 / F21 2011 2019 *SH
BMW 2-Series F22 / F23 / F45 / F46 / F87 2013 2021 *SH
BMW 3-Series E46 2004 2006 *SH
BMW 3-Series E90 / E91 / E92 / E93 2005 2013 *SH
BMW 3-Series F30 / F31 / F34 2011 2019 *SH
BMW 4-Series F32 / F33 / F36 2013 2021 *SH
BMW 5-Series E39 2003 2004 *SH
BMW 5-Series E60 / E61 2003 2010 *SH
BMW 5-Series F10 / F11 / F18 2010 2017 *SH
BMW 6-Series E63 / E64 2003 2010 *SH
BMW 6-Series F06 / F12 / F13 2011 2018 *SH
BMW 7-Series E65 / E66 / E67 / E68 2001 2008 *SH
BMW 7-Series F01 / F02 / F03 / F04 2008 2015 *SH
BMW X1 E84 2009 2015 *SH
BMW X1 F12 2015 2022 *SH
BMW X3 E83 2003 2010 *SH
BMW X3 F25 2010 2017 *SH
BMW X4 F26 2014 2018 *SH
BMW X5 E53 2005 2006 *SH
BMW X5 E70 2006 2013 *SH
BMW X5 F15 2013 2018 *SH
BMW X6 E71 2008 2014 *SH
BMW X6 F16 2014 2019 *SH
BMW Z4 E85 2006 2008 *SH
BMW Z4 E89 2009 2016 *SH
Ford C-Max C214 2003 2010 *OS
Ford Fiesta JH1 / JD3 2006 2008 *OS
Ford Focus MK2 (DA3) 2004 2011 *OS
Ford Fusion 2005 2012 *OS
Ford Galaxy MK2(WA6) 2006 2015 *OS
Ford Kuga DM2 2008 2012 *OS
Ford Mondeo BA7 2004 2014 *OS
Ford Mondeo MK3 (B4Y / B5Y / BWY / BA7) 2004 2014 *OS
Ford S-Max 1. Generation 2006 2014 *OS
Ford Transit 4. Generation 2006 2013 *OS / *POF
Ford Transit Connect 1. Generation 2004 2013 *OS
Mercedes A-Class W169 2004 2012 *OS
Mercedes A-Class W176 2012 2018 *OS
Mercedes B-Class T245 2005 2011 *OS
Mercedes B-Class W242 / W246 2011 2018 *OS
Mercedes B-Class W247 2018 2022 *OS
Mercedes C-Class W203 2004 2007 *OS / *POF

Mercedes C-Class W204 2007 2015 *OS
Mercedes C-Class W205 2018 2021 *OS
Mercedes CLA C117 2013 2020 *OS
Mercedes CLK W209 2004 2009 *OS
Mercedes E-Class W211 2003 2009 *OS
Mercedes E-Class W212 2009 2016 *OS
Mercedes E-Class W213 2016 2022 *OS
Mercedes GL X164 2006 2010 *OS
Mercedes GLA X156 2013 2020 *OS
Mercedes GLE W166 2015 2018 *OS
Mercedes M-Class W166 2011 2015 *OS
Mercedes ML W164 2005 2011 *OS
Mercedes R-Class W251 2005 2017 *OS
Mercedes SL R230 2003 2012 *OS
Mercedes SL R231 2012 2020 *OS
Mercedes SLC R172 2011 2020 *OS
Mercedes SLK R171 2004 2011 *OS
Mercedes Sprinter W906 2006 2018 *OS
Mercedes Viano W447 2014 2022 *OS
Mercedes Viano W639 2003 2014 *OS
Mercedes Vito W447 2014 2022 *OS
Mercedes Vito W639 2003 2014 *OS
Opel Agila A 2005 2007 *OS
Opel Antara 2006 2015 *OS
Opel Astra H 2004 2010 *OS
Opel Combo C 2006 2011 *OS
Opel Corsa C / D 2009 2014 *OS
Opel Meriva A 2006 2009 *OS
Opel Signum 2005 2008 *OS
Opel Tigra TwinTop 2004 2009 *OS
Opel Vectra C 2004 2008 *OS
Opel Vivaro A 2006 2010 *OS
Opel Zafira BA7 2005 2014 *OS
Seat Alhambra 1. Generation 2005 2010 *OS
Seat Alhambra 2. Generation 2010 2015 *OS
Seat Altea 2004 2015 *OS
Seat Ibiza 6J / 6P 2008 2017 *OS
Seat Leon 1P 2005 2012 *OS
Seat Mii 2011 2017 *OS / *PRF
Seat Toledo 5P 2004 2009 *OS
Seat Toledo 2012 2014 *OS
Skoda Citigo 2011 2017 *OS / *PRF
Skoda Fabia 5J 2007 2014 *OS

Skoda Octavia 1Z 2004 2013 *OS
Skoda Rapid NH 2012 2017 *OS / *PRF
Skoda Roomster 5J 2008 2015 *OS
Skoda Superb 3T 2008 2013 *OS
Skoda Yeti 5L 2009 2014 *OS
Volkswagen Amarok 2H 2010 2016 *OS / *PRF
Volkswagen Beetle 5C 2011 2016 *OS / *PRF
Volkswagen Caddy 2K 2003 2015 *OS / *PRF
Volkswagen Crafter 2012 2014 *OS
Volkswagen EOS 1F 2006 2015 *OS
Volkswagen Fox 5Z 2005 2011 *OS
Volkswagen Golf 5 (1K) 2003 2008 *OS
Volkswagen Golf 6 (1K) 2008 2012 *OS
Volkswagen Jetta 5 (1K2) 2005 2010 *OS
Volkswagen Jetta 6 (1K2) 2010 2014 *OS
Volkswagen Passat 3B (B5) 2003 2005 *OS / *R
Volkswagen Passat B6 2005 2010 *OS
Volkswagen Passat B7 2010 2015 *OS
Volkswagen Passat CC 2008 2015 *OS
Volkswagen Polo 6R 2009 2014 *OS
Volkswagen Polo 9N3 2005 2009 *OS
Volkswagen Scirocco III 2008 2014 *OS
Volkswagen Sharan 7N 2010 2015 *OS
Volkswagen T5 7H 2003 2015 *OS
Volkswagen Tiguan 5N 2007 2014 *OS
Volkswagen Touareg 7L 2002 2010 *OS
Volkswagen Touareg 7P 2010 2014 *OS
Volkswagen Touran 1T 2003 2015 *OS
Volkswagen up! AA 2011 2016 *OS

++++
*OS only for vehicles without OEM upgrade system
*POF only vehicles after facelift
*PRF only vehicles before facelift
*R not compatible to all radios
*SH only STEREO and HIFI OEM option / HIFI only subwoofer out

HLC2 EM HYUNDAI 73

Description

  • 2-Way High-Low Converter including HYUNDAI 73
  • HLC2 EM incl. Hyundai connector 73 pin occupied
  • for OEM connections as SUBWOOFER or FRONT tap
  • lenght: 750mm to HLC2 EM / 350 mm

Compatibility

BRAND MODEL TYPE YEAR FROM YEAR TO REMARKS
Hyundai i20 2016 – *OS
Hyundai i30 2016 – *OS
Hyundai i40 VF 2016 – *OS
Hyundai ix20 JC 2016 – *OS
Hyundai H350 2016 – *OS
Hyundai Tucson TL 2016 – *OS
Hyundai Santa Fe TM 2016 – *OS
Kia Cee’d 2016 – *OS
Kia Forte 2016 – *OS
Kia Niro 2016 – *OS
Kia Optima 2016 – *OS
Kia Picanto 2016 – *OS
Kia Pro-Cee’d 2016 – *OS
Kia Rio 2016 – *OS
Kia Sportage 2016 – *OS

++++
*OS only for vehicles without OEM upgrade system

Z-MD-ISO2-1.5M

Description

  • 2-CHANNEL M-AMP-MD HIGH-LOW-ADAPTER-CABLE
  • length 1.5m with 1,5mm² speaker cable(output)
  • 2-channel PLUG and PLAY ISO to MD-MOLEX connector

Z-MD-ISO2-3.0M

Description

  • 2-CHANNEL M-AMP-MD HIGH-LOW-ADAPTER-CABLE
  • length 3.0m with 1,5mm² speaker cable(output)
  • 2-channel PLUG and PLAY ISO to MD-MOLEX connector

Z-MD-ISO4-1.5M

Description

  • 4-CHANNEL M-AMP-MD HIGH-LOW-ADAPTER-CABLE
  • length 1.5m with 1,5mm² speaker cable(output)
  • 4-channel PLUG and PLAY ISO to MD-MOLEX connector

Z-MD-ISO4-3.0M

Description

  • 4-CHANNEL M-AMP-MD HIGH-LOW-ADAPTER-CABLE
  • length 3.0m with 1,5mm² speaker cable(output)
  • 4-channel PLUG and PLAY ISO to MD-MOLEX connector

Z-MD-QUAD4-1.5M

Description

  • 4-CHANNEL M-AMP-MD HIGH-LOW-ADAPTER-CABLE
  • length 1.5m with 1,5mm² speaker cable(output)
  • 4-channel PLUG and PLAY QUAD to MD-MOLEX connector

Z-X-MD-ISO5-1.5M

Description

  • 5-CHANNEL X-AMP-MD HIGH-LOW-ADAPTER-CABLE
  • length 1.5m with 1,5mm² speaker cable(output)
  • 5-channel PLUG and PLAY ISO to MD-MOLEX connector

Z-X-MD-ISO5-3.0M

Description

  • 5-CHANNEL X-AMP-MD HIGH-LOW-ADAPTER-CABLE
  • length 3.0m with 1,5mm² speaker cable(output)
  • 5-channel PLUG and PLAY ISO to MD-MOLEX connector

Z-X-MD-ISO5-6.0M

Description

  • 5-CHANNEL X-AMP-MD HIGH-LOW-ADAPTER-CABLE
  • length 6.0m with 1,5mm² speaker cable(output)
  • 5-channel PLUG and PLAY ISO to MD-MOLEX connector

Z-X-MD-QUAD5-1.5M

Description

  • 5-CHANNEL X-AMP-MD HIGH-LOW-ADAPTER-CABLE
  • length 1.5m with 1,5mm² speaker cable(output)
  • 5-channel PLUG and PLAY QUAD to MD-MOLEX connector
