HX 165 PHASE EVO 3
Description
- HX-SERIES PHASE 2-Way System
- 165 mm 2-way HIGH END Compo System with Phase Plug
consisting of: - 2x HS 30 PHASE EVO
- 2x FWHX EVO
- 2x EX 165 PHASE EVO 3
Performance Data
- impedance: 3 Ohm
- power: 2x 250/175 Watt
Dimensions
- installation depth: 67 mm
- installation diameter: 146 mm
HX 130 PHASE EVO 3
Description
- HX-SERIES PHASE 2-Way System
- 130 mm 2-way HIGH END Compo System with Phase Plug
consisting of: - 2x HS 30 PHASE EVO
- 2x FWHX EVO
- 2x EX 130 PHASE EVO 3
Performance Data
- impedance: 3 Ohm
- power: 2x 160/125 Watt
Dimensions
- installation depth: 60 mm
- installation diameter: 120 mm

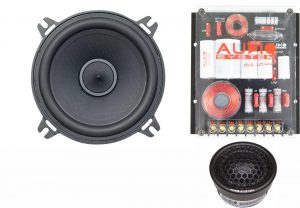

HX 100 PHASE EVO 3
Description
- HX-SERIES PHASE 2-Way System
- 130 mm 2-way HIGH END Compo System with Phase Plug
consisting of: - 2x HS 30 PHASE EVO
- 2x FWHX EVO
- 2x EX 100 PHASE EVO 3
Performance Data
- impedance: 3 Ohm
- power: 2x 140/110 Watt
Dimensions
- installation depth: 49,5 mm
- installation diameter: 93 mm
HX SERIES EVO DUST COMPO SYSTEM
HX 165 DUST EVO 3
Description
NEW!
- HX-SERIES DUST 2-Way System
- 165 mm 2-way HIGH END Compo System
consisting of: - 2x HS 25 DUST EVO
- 2x FWHX EVO
- 2x EX 165 DUST EVO 3
Performance Data
- impedance: 3 Ohm
- power: 2x 250/175 Watt
Dimensions
- installation depth: 67 mm
- installation diameter: 146 mm
HX 130 DUST EVO 3
Description
NEW!
- HX-SERIES DUST 2-Way System
- 130 mm 2-way HIGH END Compo System
consisting of: - 2x HS 25 DUST EVO
- 2x FWHX EVO
- 2x EX 130 DUST EVO 3
Performance Data
- impedance: 3 Ohm
- power: 2x 160/125 Watt
Dimensions
- installation depth: 60 mm
- installation diameter: 120 mm
HX 100 DUST EVO 3
Description
NEW!
- HX-SERIES DUST 2-Way System
- 100 mm 2-way HIGH END Compo System
consisting of: - 2x HS 25 DUST EVO
- 2x FWHX EVO
- 2x EX 100 DUST EVO 3
Performance Data
- impedance: 3 Ohm
- power: 2x 140/110 Watt
Dimensions
- installation depth: 49,5 mm
- installation diameter: 93 mm
HX 165 DUST-4 EVO 3
Description
- HX-SERIES DUST 2-Way Double Compo System
- 165 mm 2-way HIGH END Compo System
consisting of: - 2x HS 25 DUST EVO
- 2x FWHX EVO
- 4x EX 165 DUST EVO 3
Performance Data
- impedance: 2 Ohm
- power: 2x 500/350 Watt
Dimensions
- installation depth: 67 mm
- installation diameter: 146 mm
HX SERIES EVO SQ COMPO SYSTEM
HX 165 SQ EVO 3
Description
- HX-SERIES SQ 2-Way System
- 165 mm 2-way HIGH END Compo System
consisting of: - 2x HS 25 EVO 2
- 2x FWX EVO 2
- 2x EX 165 SQ EVO 3
Performance Data
- impedance: 3 Ohm
- power: 2x 140/120 Watt
Dimensions
- installation depth: 63 mm
- installation diameter: 143 mm
HX 130 SQ EVO 3
Description
- HX-SERIES SQ 2-Way System
- 130 mm 2-way HIGH END Compo System
consisting of: - 2x HS 25 EVO 2
- 2x FWX EVO 2
- 2x EX 130 SQ EVO 3
Performance Data
- impedance: 3 Ohm
- power: 2x 130/100 Watt
Dimensions
- installation depth: 56 mm
- installation diameter: 113 mm
HX 100 SQ EVO 3
Description
- HX-SERIES SQ 2-Way System
- 130 mm 2-way HIGH END Compo System
consisting of: - 2x HS 25 EVO 2
- 2x FWX EVO 2
- 2x EX 100 SQ EVO 3
Performance Data
- impedance: 3 Ohm
- power: 2x 120/90 Watt
Dimensions
- installation depth: 51 mm
- installation diameter: 91 mm
HX 165 SQ-4 EVO 3
Description
- HX-SERIES SQ 2-Way Double Compo System
- 165 mm 2-way HIGH END Compo System
consisting of: - 2x HS 25 EVO 2
- 2x FWX EVO 2
- 4x EX 165 SQ EVO 3
Performance Data
- impedance: 2 Ohm
- power: 2x 280/220 Watt
Dimensions
- installation depth: 63 mm
- installation diameter: 143 mm
HX 200 SQ EVO 3
Description
- HX-SERIES SQ 2-Way NEODYM Set
- 200 mm 2-way HIGH END Compo System
consisting of: - 2x HS 25 EVO 2
- 2x FWX EVO 2
- 2x EX 200 SQ EVO 3
Performance Data
- Impedance: 3 Ohm
- power: 2x 220/150 Watt
Dimensions
- installation depth: 67 mm
- installation diameter: 176 mm
HX 406 SQ EVO 3
Description
- HX-SERIES SQ 2-Way NEODYM Set
- 4×6 2-way HIGH END Compo System
consisting of: - 2x HS 25 EVO 2
- 2x FWX EVO 2
- 2x EX 406 SQ EVO 3
Performance Data
- Impedance: 3 Ohm
- power: 2x 125/95 Watt
Dimensions
- installation depth: 46 mm
- installation diameter: 145/88 mm

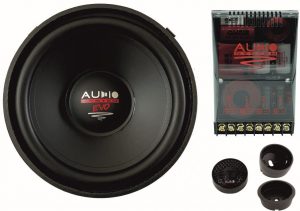

HX 120 SQ EVO 3
Description
- HX-SERIES SQ 2-Way NEODYM Set
- 120 mm 2-way HIGH END Compo System
consisting of: - 2x HS 25 EVO 2
- 2x FWX EVO 2
- 2x EX 120 SQ EVO 3
Performance Data
- Impedance: 3 Ohm
- power: 2x 125/95 Watt
Dimensions
- installation depth: 46 mm
- installation diameter: 109 mm
HX 200 SQ EM EVO 3
Description
- HX-SERIES 2-Way System NEODYM Set
- 200 mm EASY MOUNTING Compo System
consisting of: - 2x HS 25 INSTALL EVO 2 + univesal holder
- 2x FWK TWEVO plug and play crossover with 3-times adjustment
- 2x FWK MW plug and play crossover
- 2x EX 200 SQ EVO3
Performance Data
- Impedance: 3 Ohm
- power: 2x 210/145 Watt
Dimensions
- installation depth: 67 mm
- installation diameter: 176 mm
HX 165 SQ EM EVO 3
Description
- HX-SERIES 2-Way System NEODYM Set
- 165 mm EASY MOUNTING Compo System
consisting of: - 2x HS 25 INSTALL EVO 2 + univesal holder
- 2x FWK TW EVO plug and play crossover with 3-times adjustment
- 2x FWK MW plug and play crossover
- 2x EX 165 SQ EVO3
Performance Data
- Impedance: 3 Ohm
- power: 2x 140/120 Watt
Dimensions
- installation depth: 64 mm
- installation diameter: 143 mm
HX 130 SQ EM EVO 3
Description
- HX-SERIES 2-Way System NEODYM Set
- 130 mm EASY MOUNTING Compo System
consisting of: - 2x HS 25 INSTALL EVO 2 + univesal holder
- 2x FWK TW EVO plug and play crossover with 3-times adjustment
- 2x FWK MW plug and play crossover
- 2x EX 130 SQ EVO3
Performance Data
- Impedance: 3 Ohm
- power: 2x 130/100 Watt
Dimensions
- installation depth: 56 mm
- installation diameter: 113 mm
HX 100 SQ EM EVO 3
Description
- HX-SERIES 2-Way System NEODYM Set
- 100 mm EASY MOUNTING Compo System
consisting of: - 2x HS 25 INSTALL EVO 2 + univesal holder
- 2x FWK TW EVO plug and play crossover with 3-times adjustment
- 2x FWK MW plug and play crossover
- 2x EX 100 SQ EVO3
Performance Data
- Impedance: 3 Ohm
- power: 2x 120/90 Watt
Dimensions
- installation depth: 51 mm
- installation diameter: 91 mm
HX 120 SQ EM EVO 3
Description
- HX-SERIES 2-Way System NEODYM Set
- 120 mm EASY MOUNTING Compo System
consisting of: - 2x HS 25 INSTALL EVO 2 + univesal holder
- 2x FWK TW EVO plug and play crossover with 3-times adjustment
- 2x FWK MW plug and play crossover
- 2x EX 120 SQ EVO3
Performance Data
- Impedance: 3 Ohm
- power: 2x 125/95 Watt
Dimensions
- installation depth: 46 mm
- installation diameter: 109 mm
HX 406 SQ EM EVO 3
Description
- HX-SERIES SQ 2-Way NEODYM Set
- 4×6 2-way EASY MOUNTING Compo System
consisting of: - 2x HS 25 INSTALL EVO 2 + univesal holder
- 2x FWK TW EVO plug and play crossover with 3-times adjustment
- 2x FWK MW plug and play crossover
- 2x EX 406 SQ EVO3
Performance Data
- Impedance: 3 Ohm
- power: 2x 120/90 Watt
Dimensions
- installation depth: 46 mm
- installation diameter: 145/88 mm
