M-SERIES AMPLIFIER

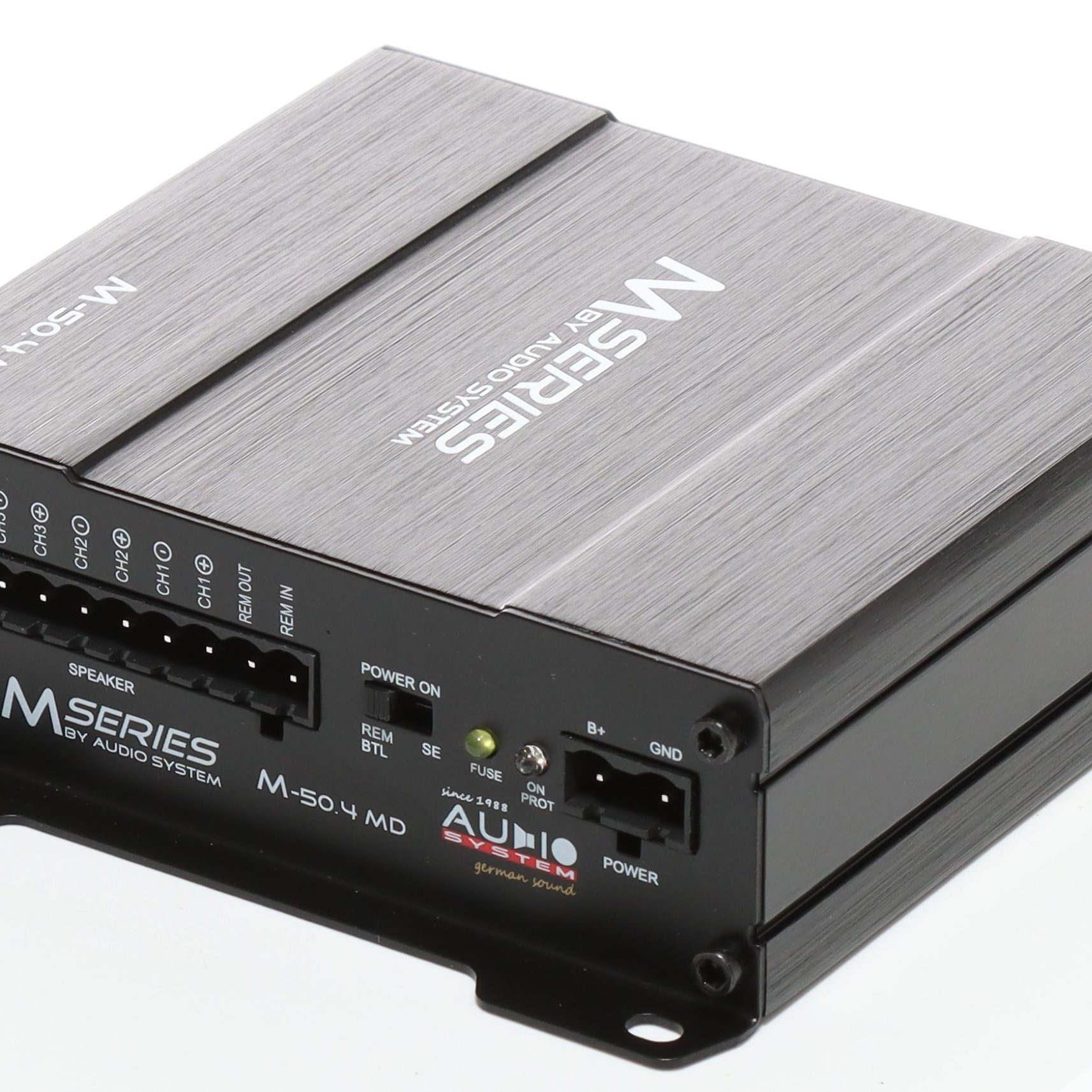

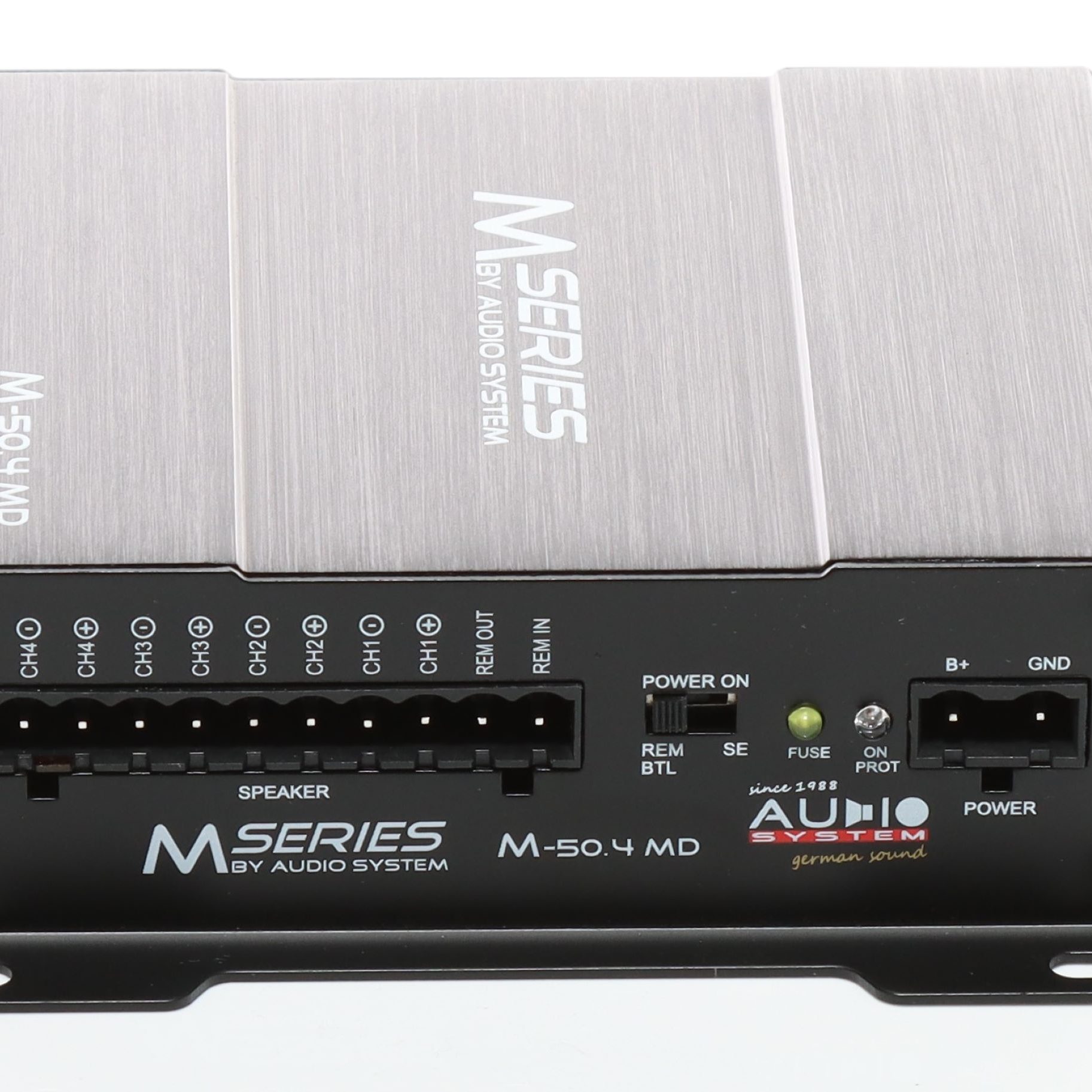

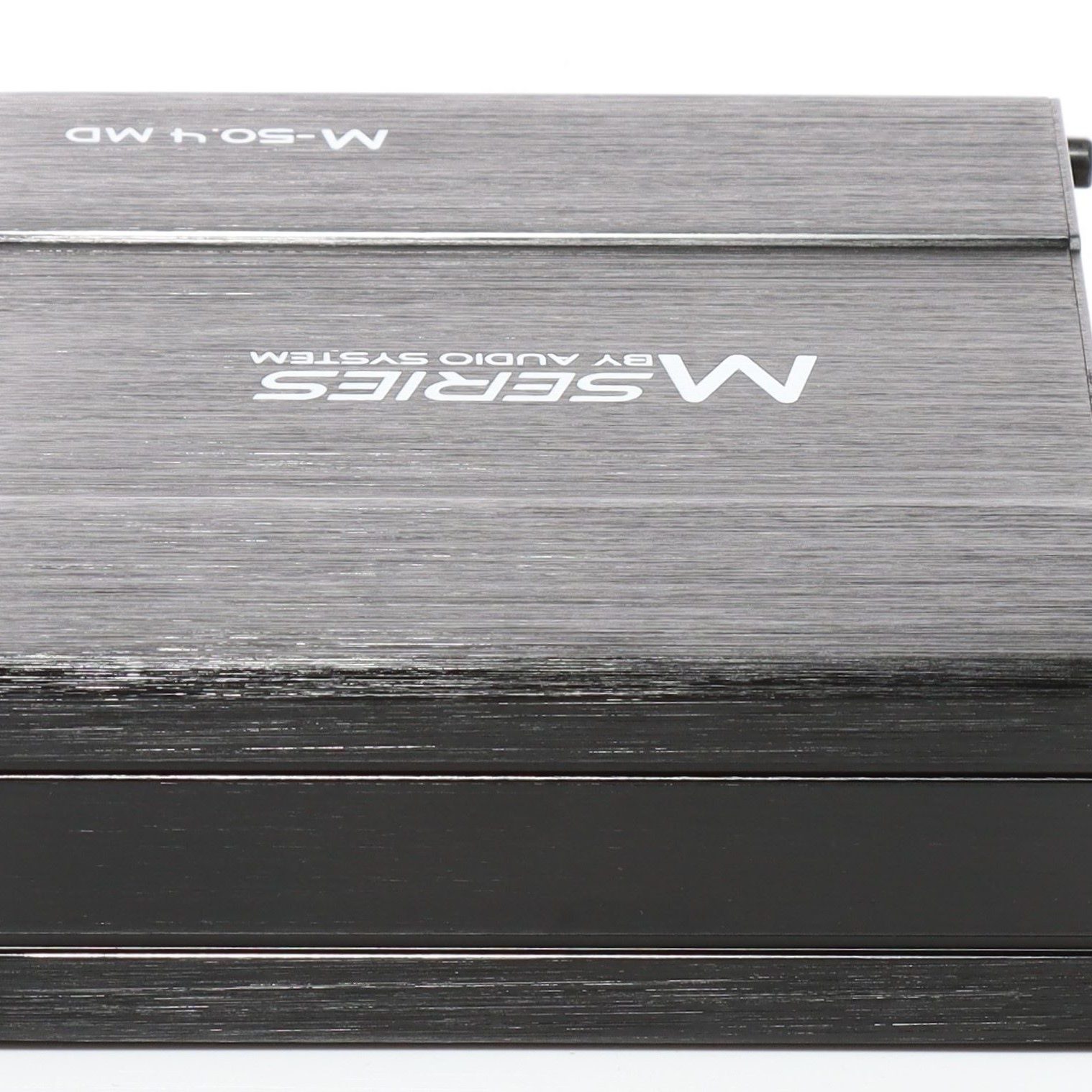

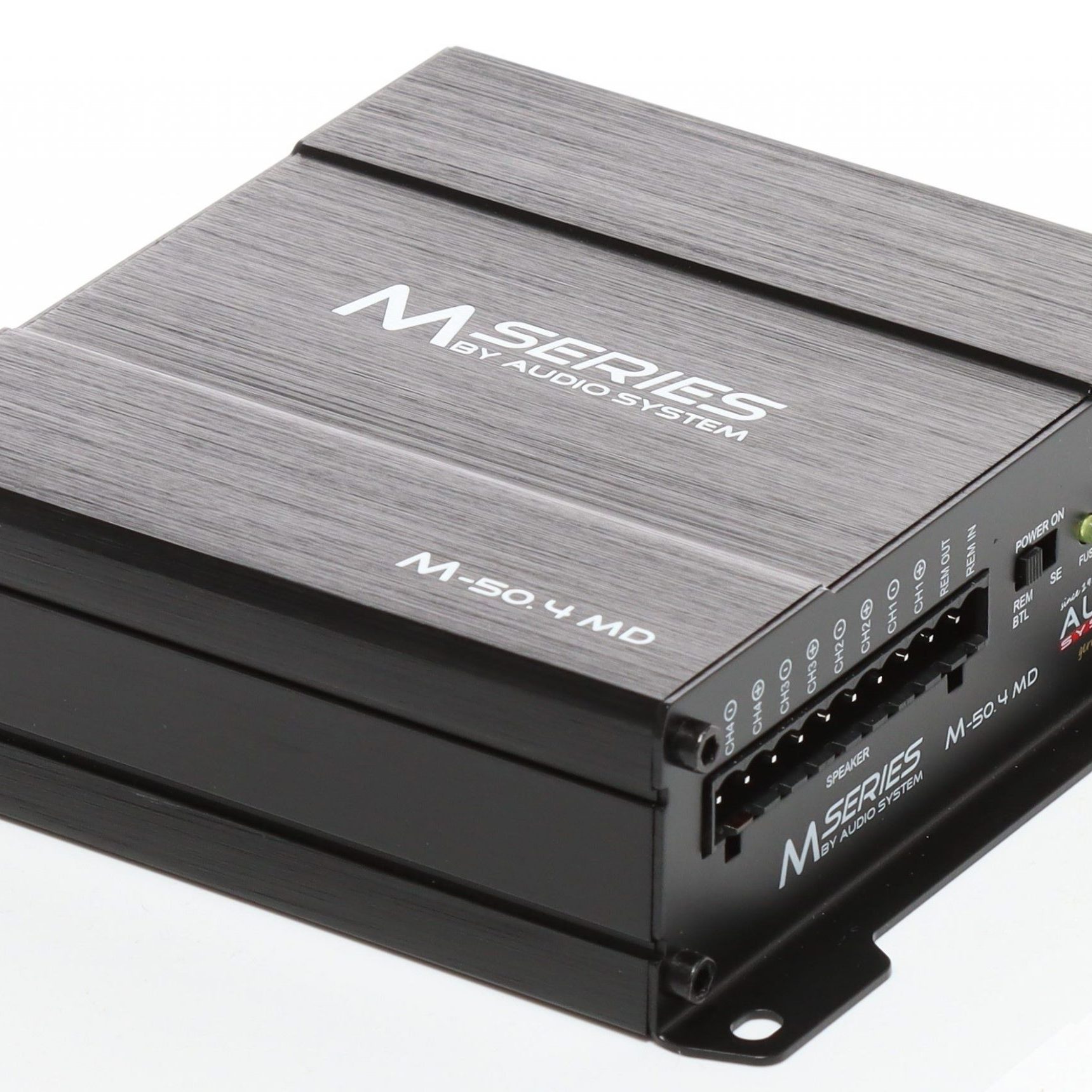

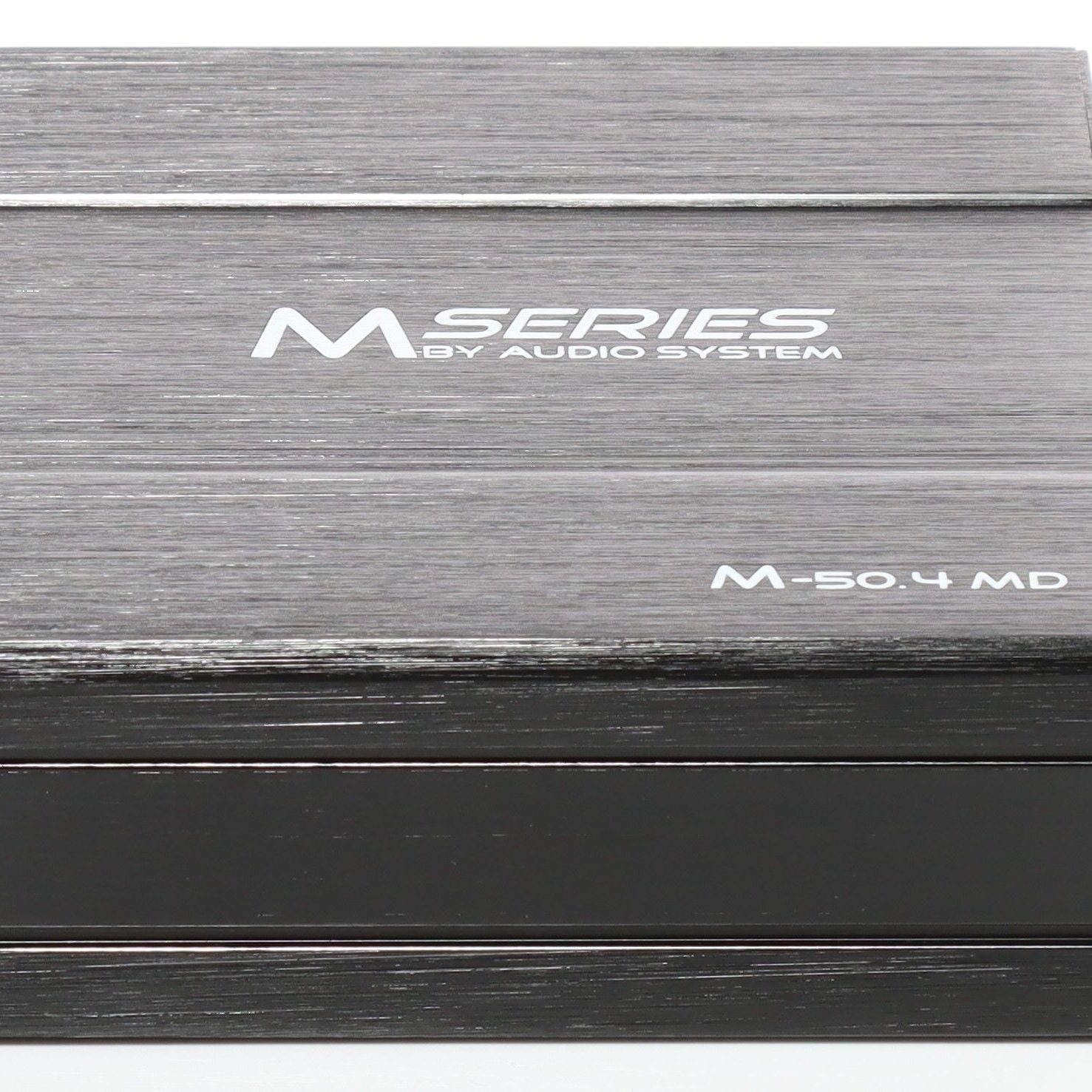

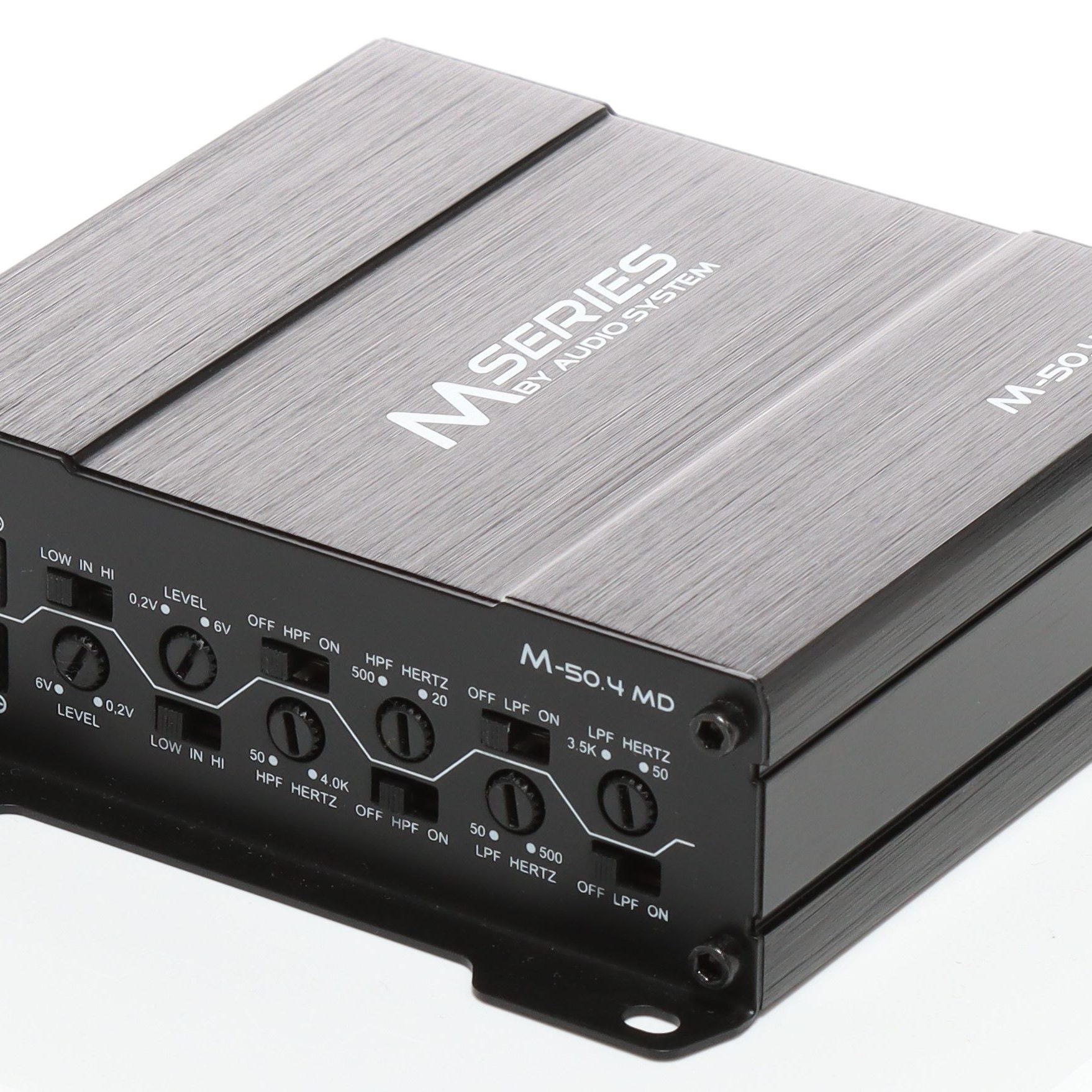

M-50.4 MD

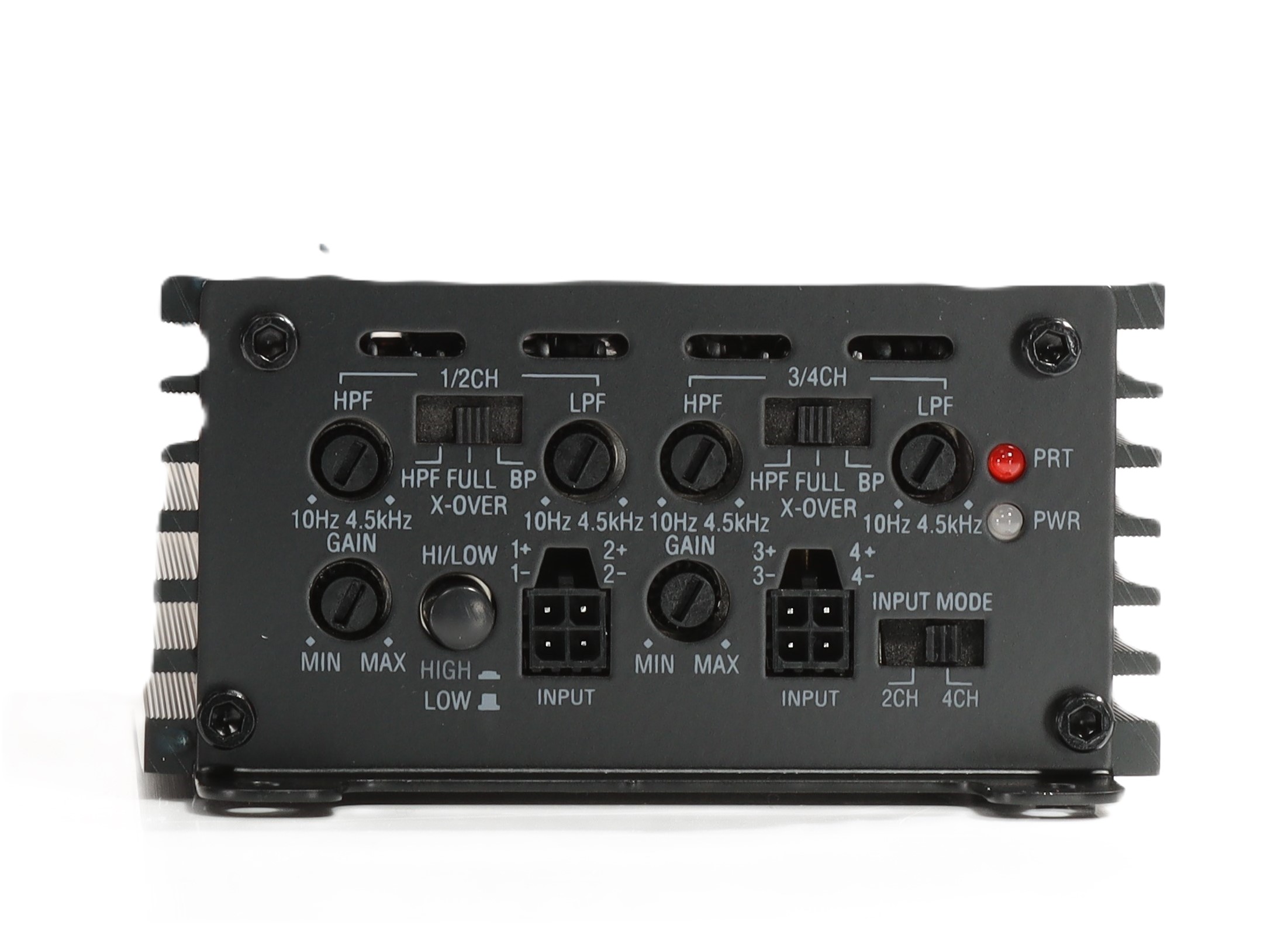

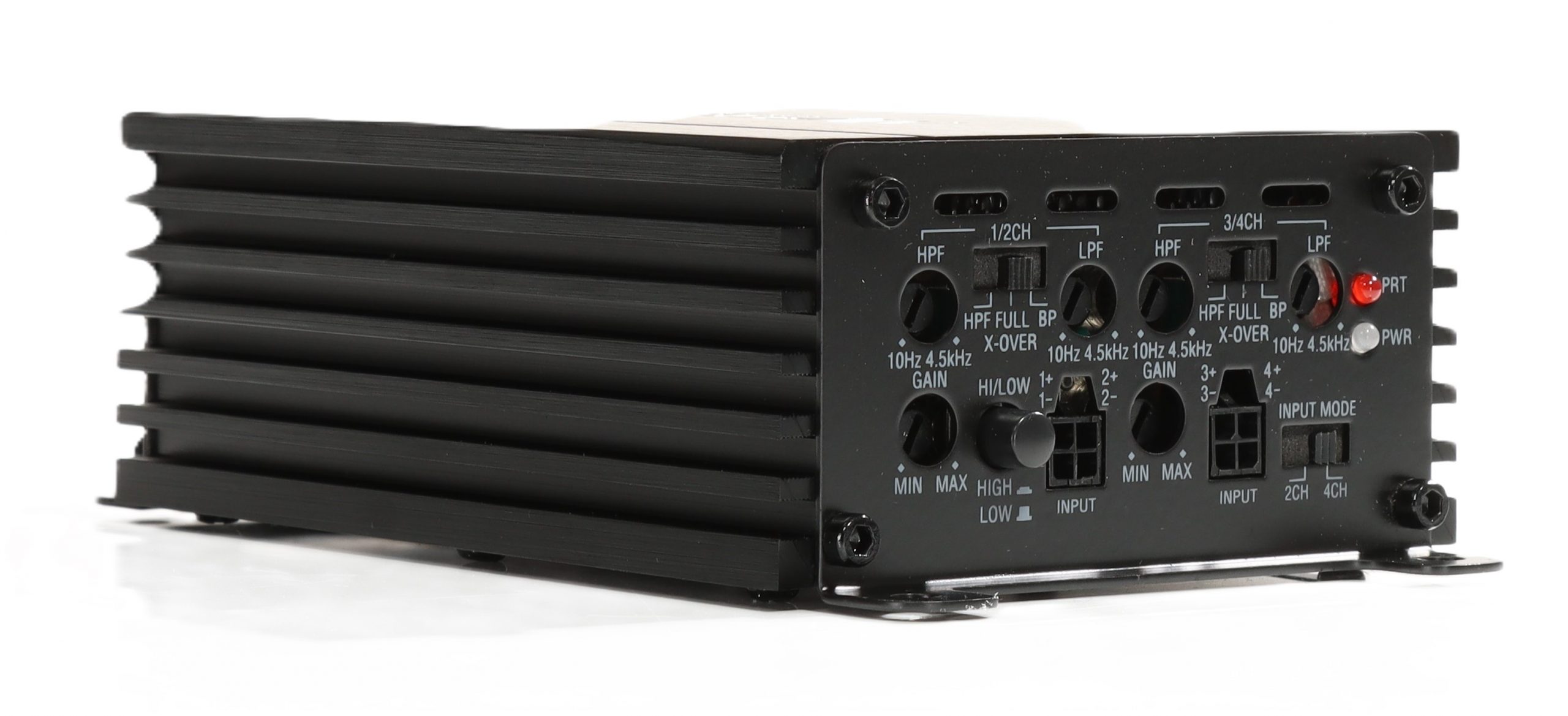

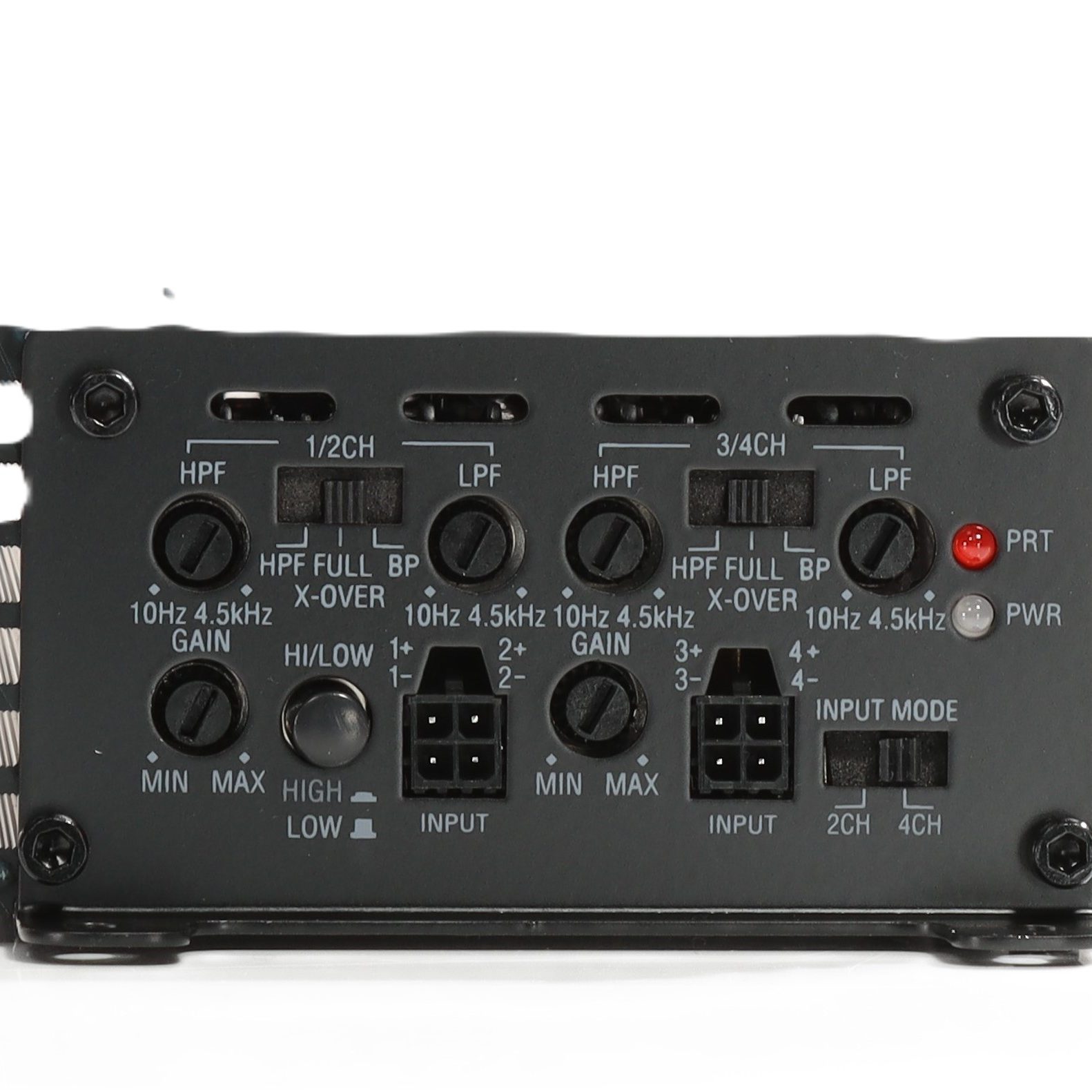

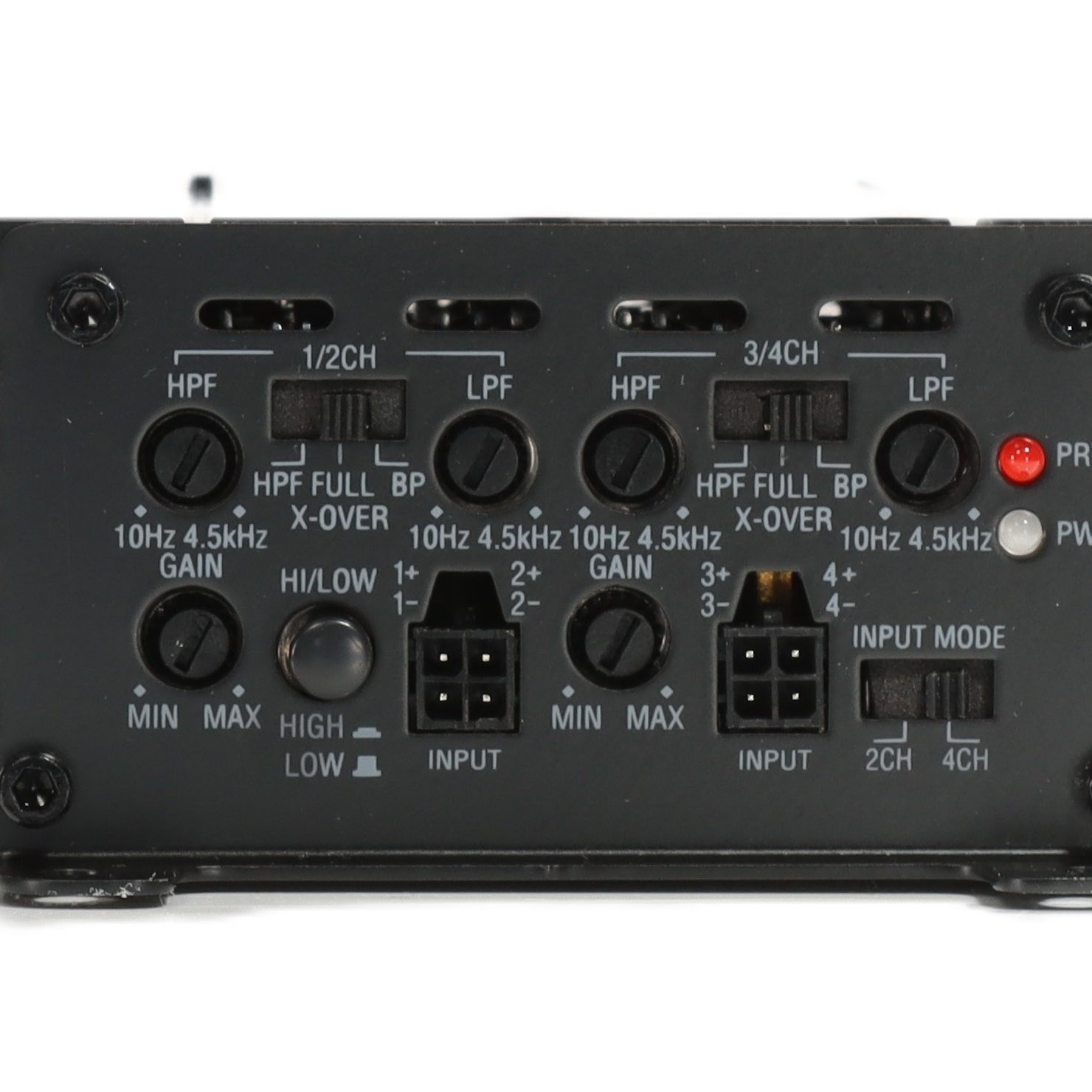

Description

  • 4-Channel MICRO-Digital-Amplifier
  • 4-channel Digital high power-amplifier with SMD technology
  • variable switchable Subsonic
  • HP, LP, BP filter and full active mode possible
  • high-level-input or signal dedection with automatically „TURN ON“

Performance Data

  • 4x 50 WRMS at 4 Ohm
  • 4x 100 WRMS at 2 Ohm

Dimensions

  • 113 x 38 x 100 mm

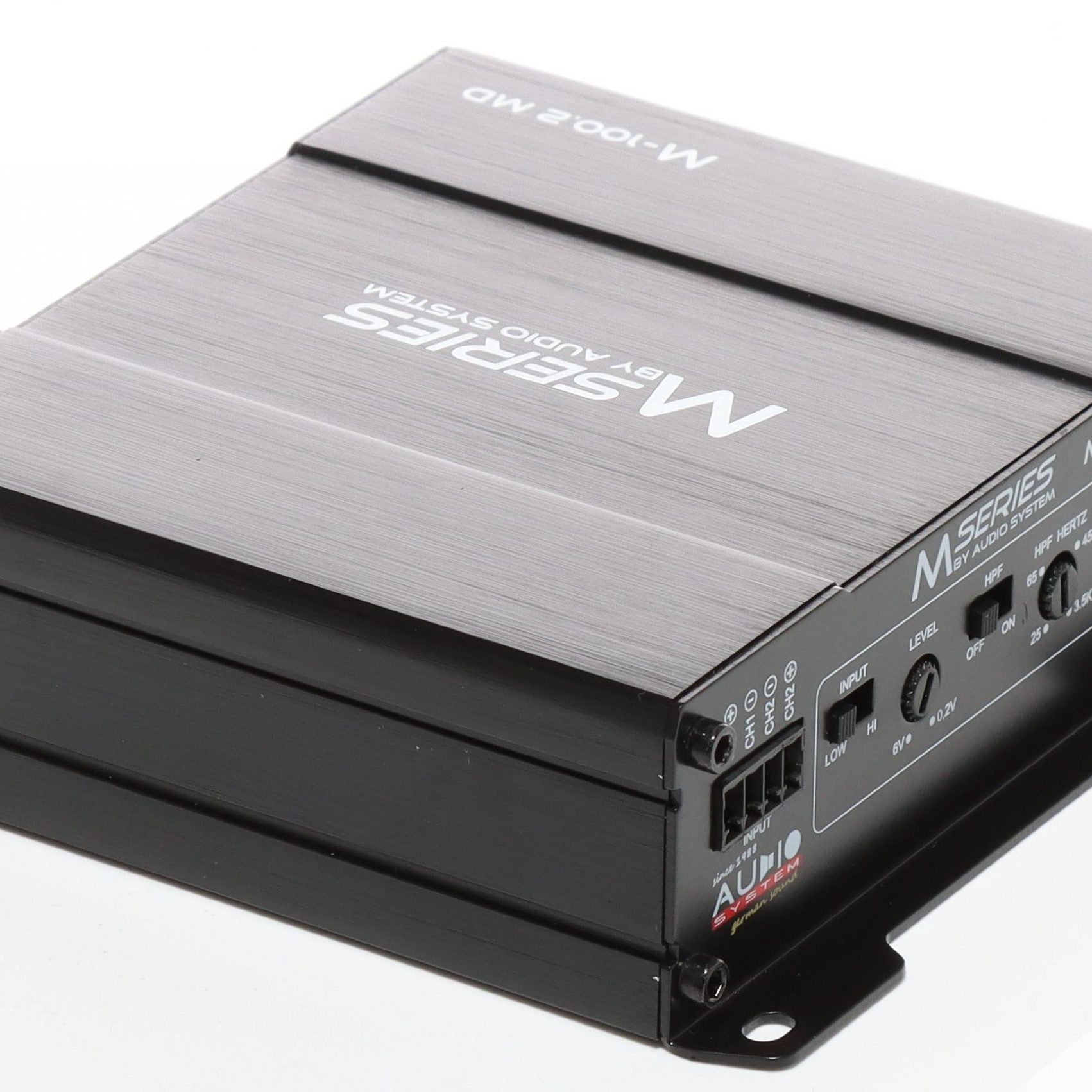

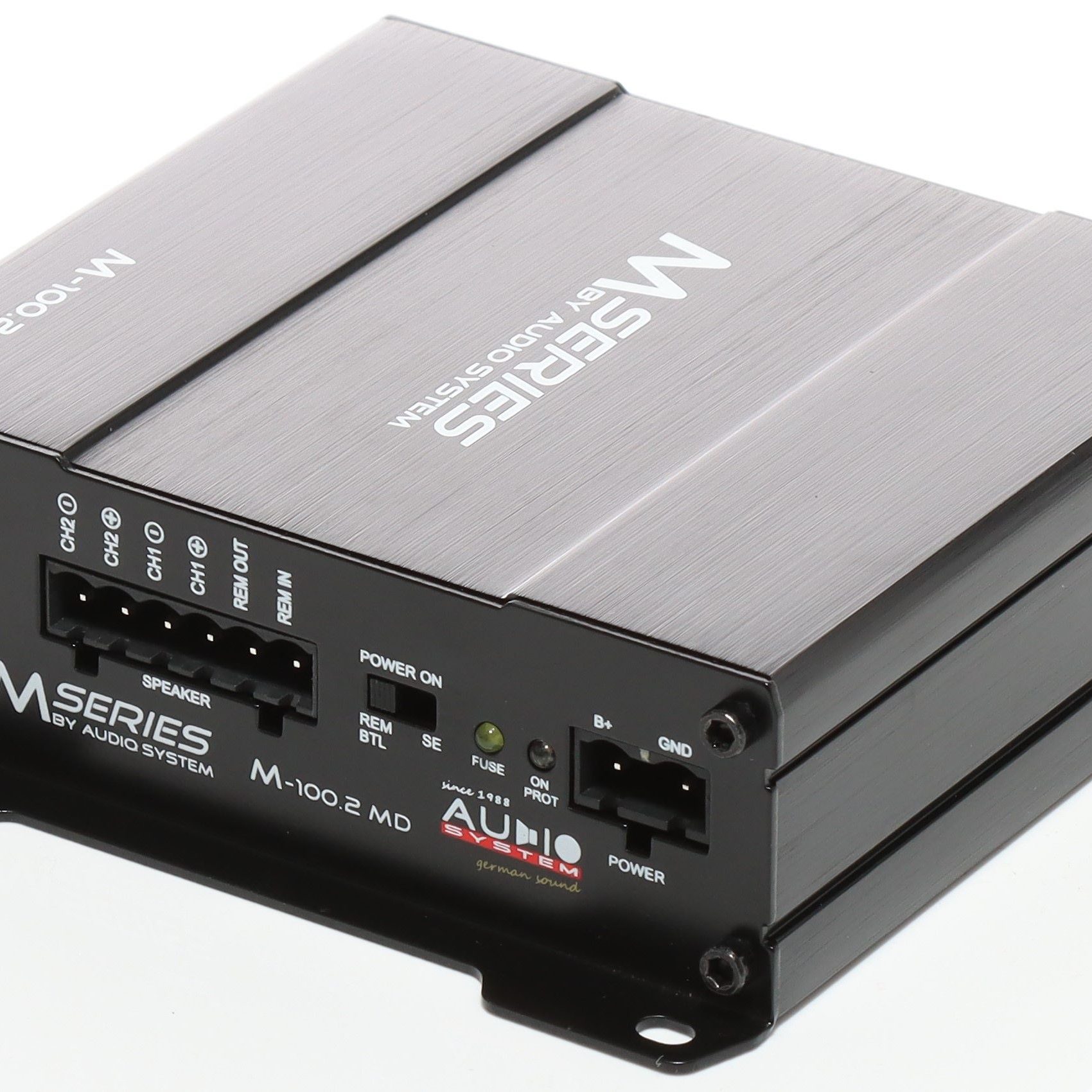

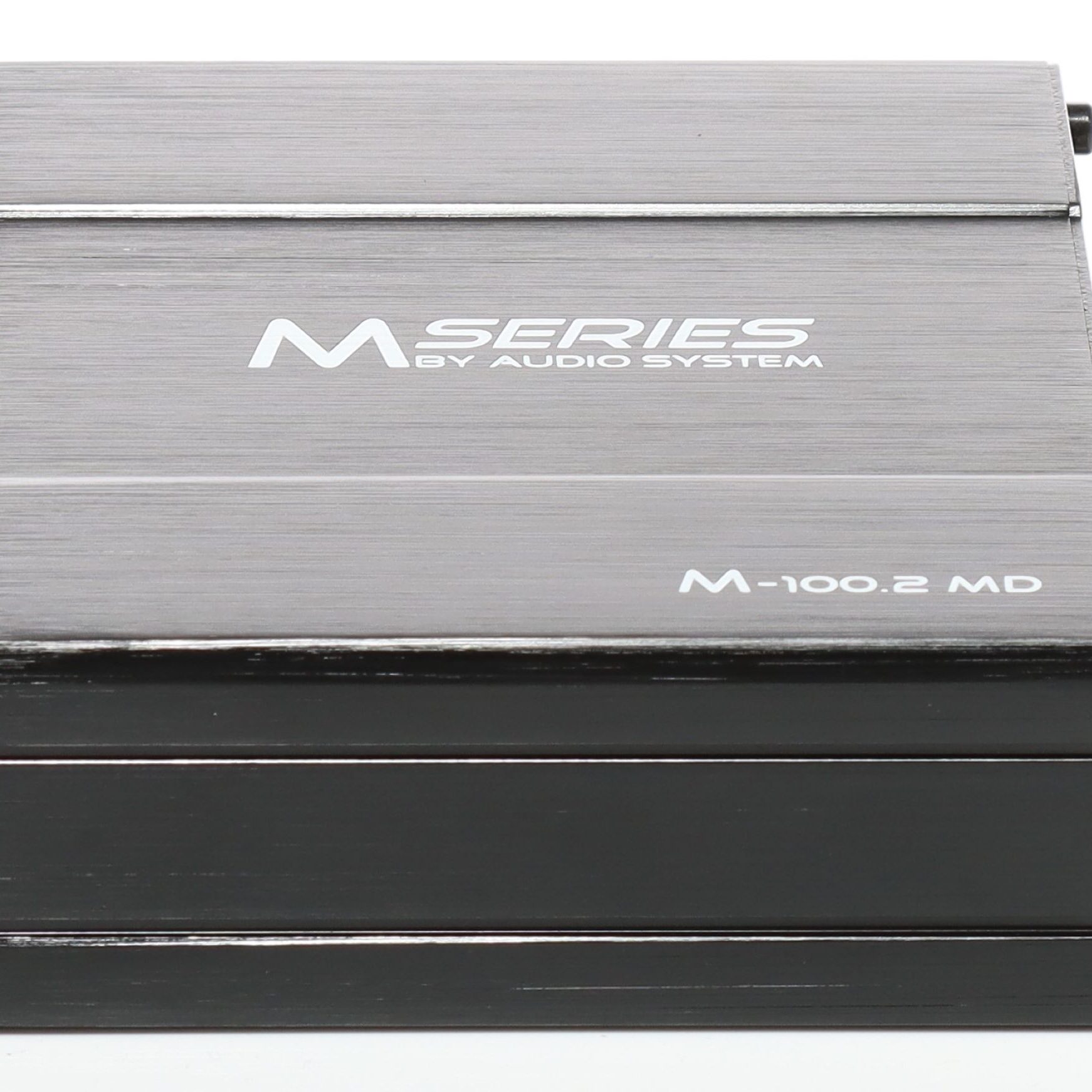

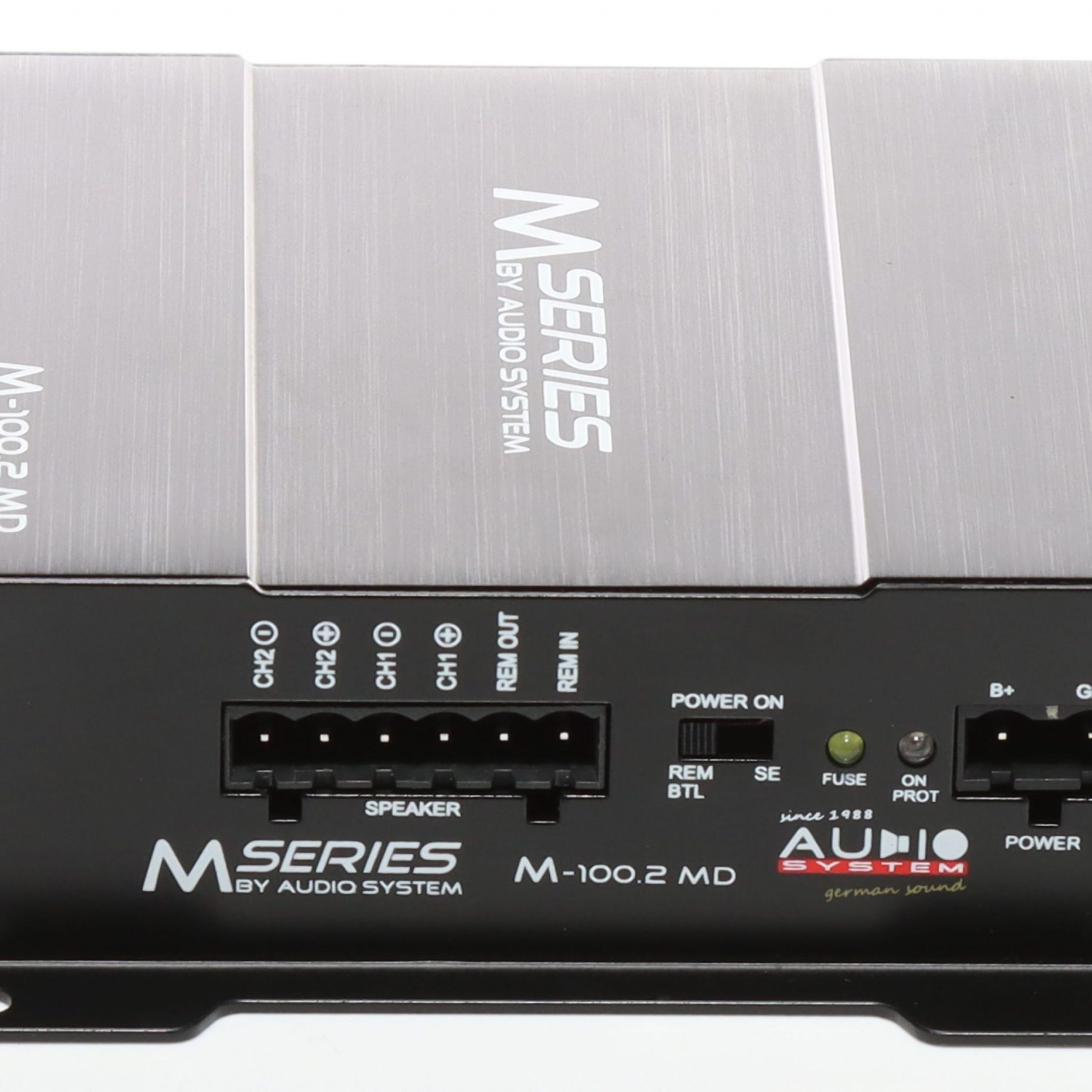

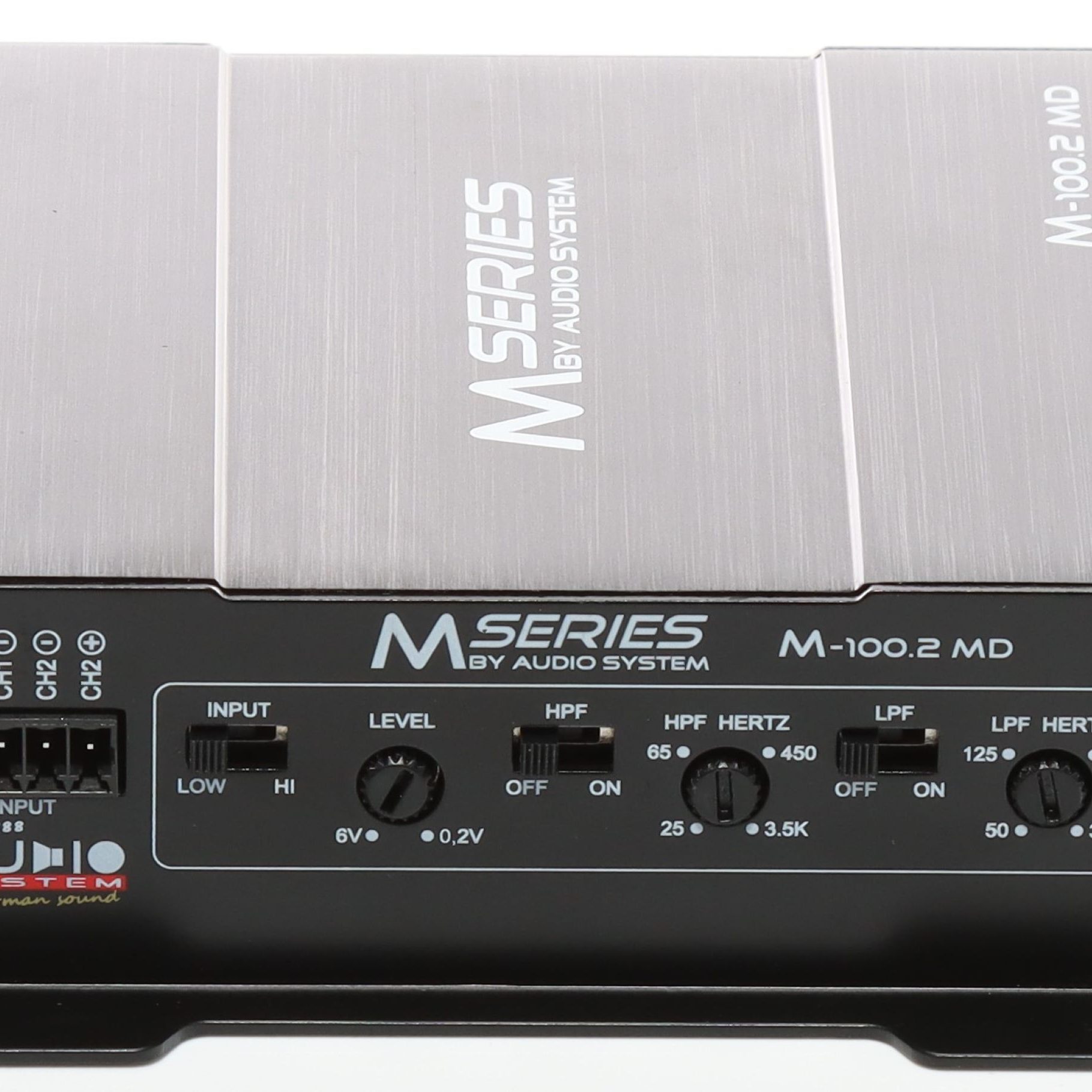

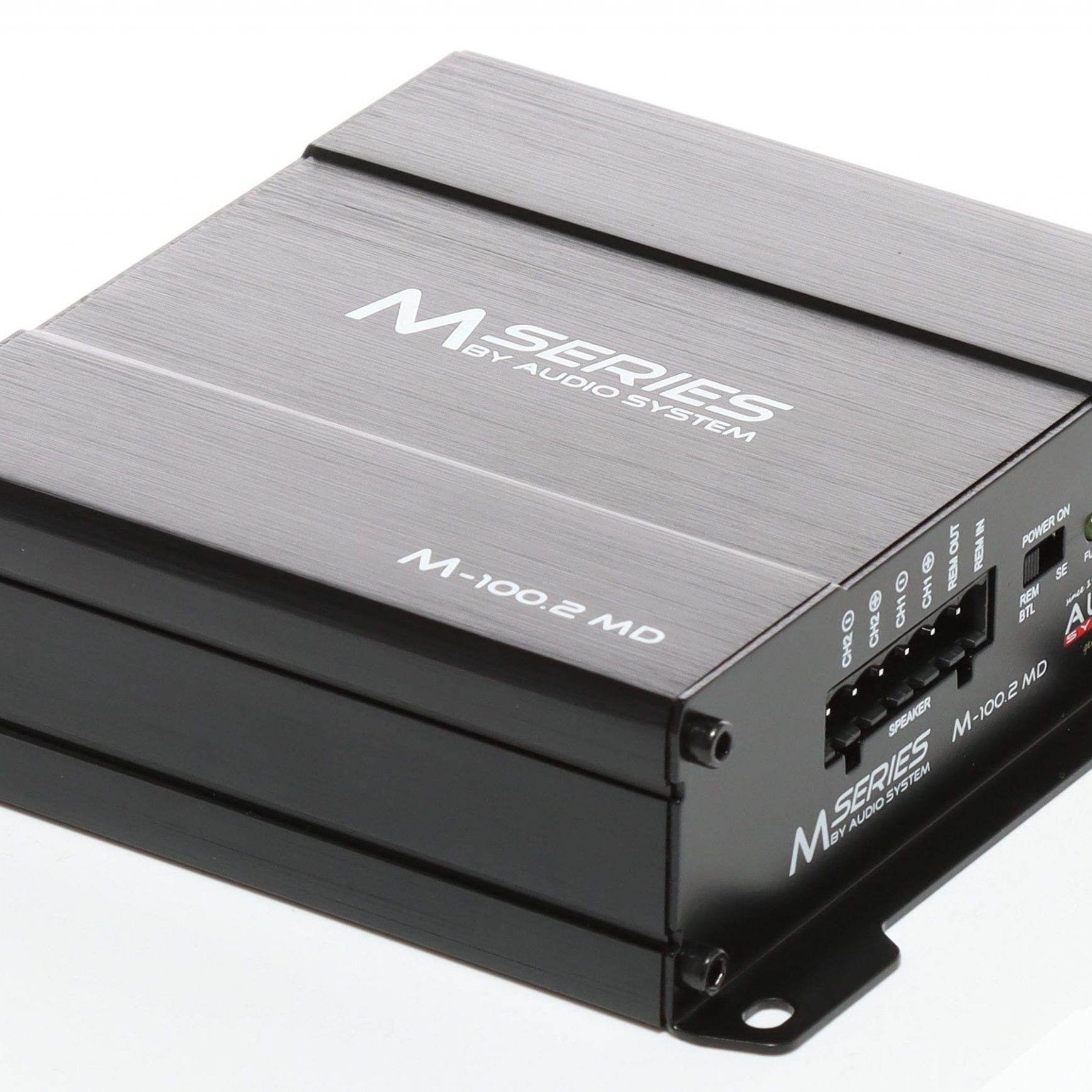

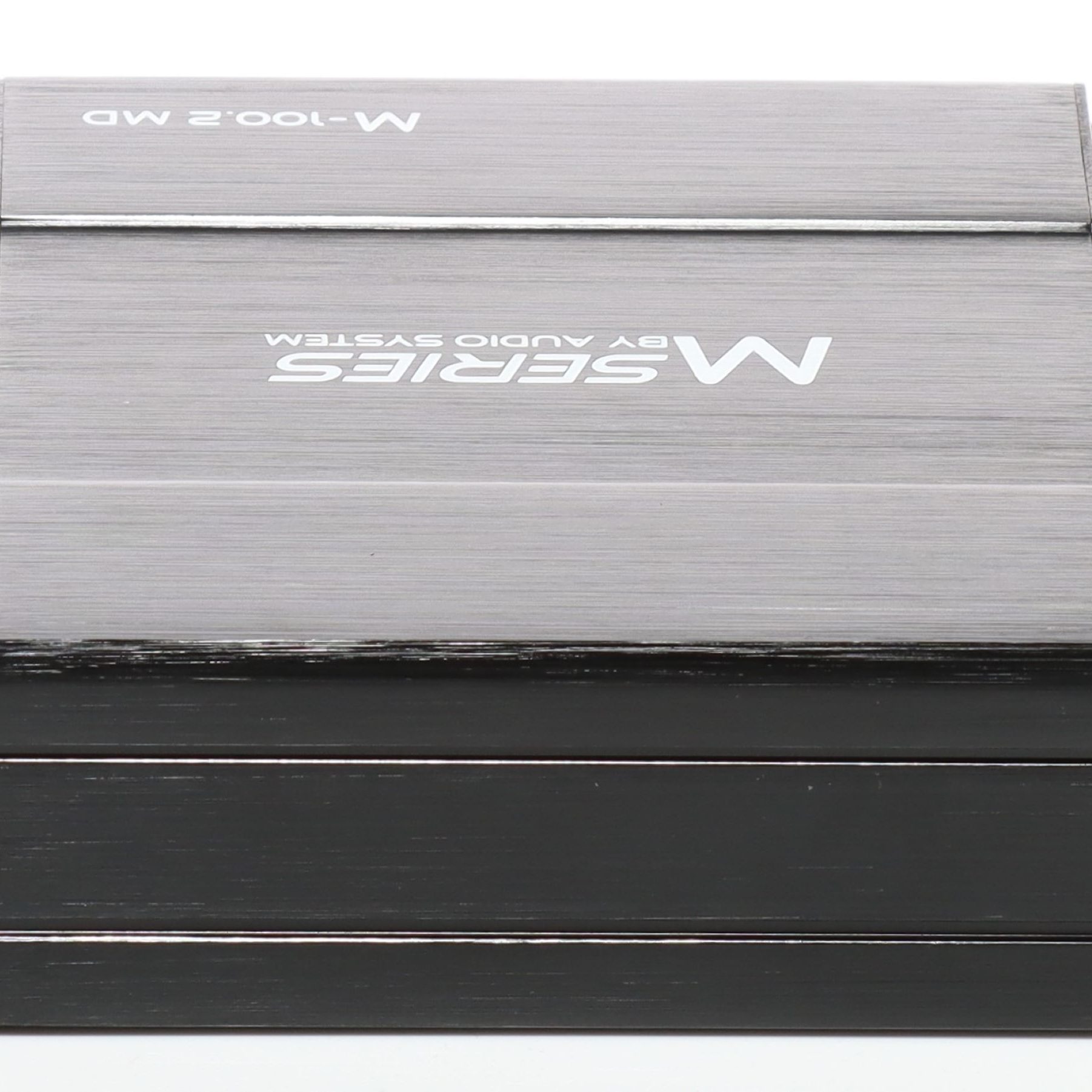

M-100.2 MD

Description

  • 2-channel MICRO-Digital-Amplifier
  • 2-channel Digital high power-amplifier with SMD technology
  • variable switchable Subsonic
  • HP, LP, BP filter and full active mode possible
  • high-level-input or signal dedection with automatically „TURN ON“
  • remote control RTC (optional)

Performance Data

  • 2x 100 WRMS at 4 Ohm
  • 2x 150 WRMS at 2 Ohm

Dimensions

  • 113 x 38 x 100 mm

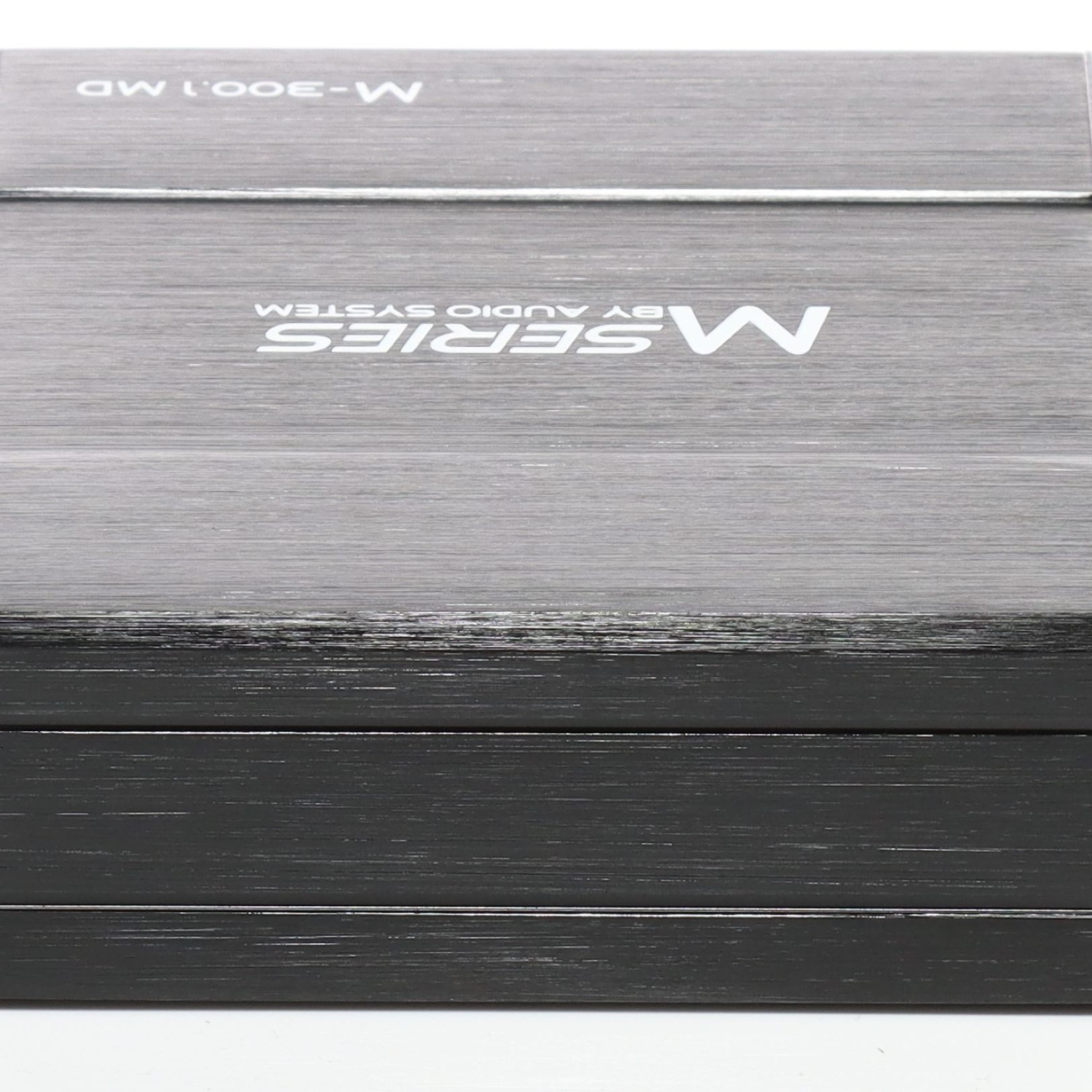

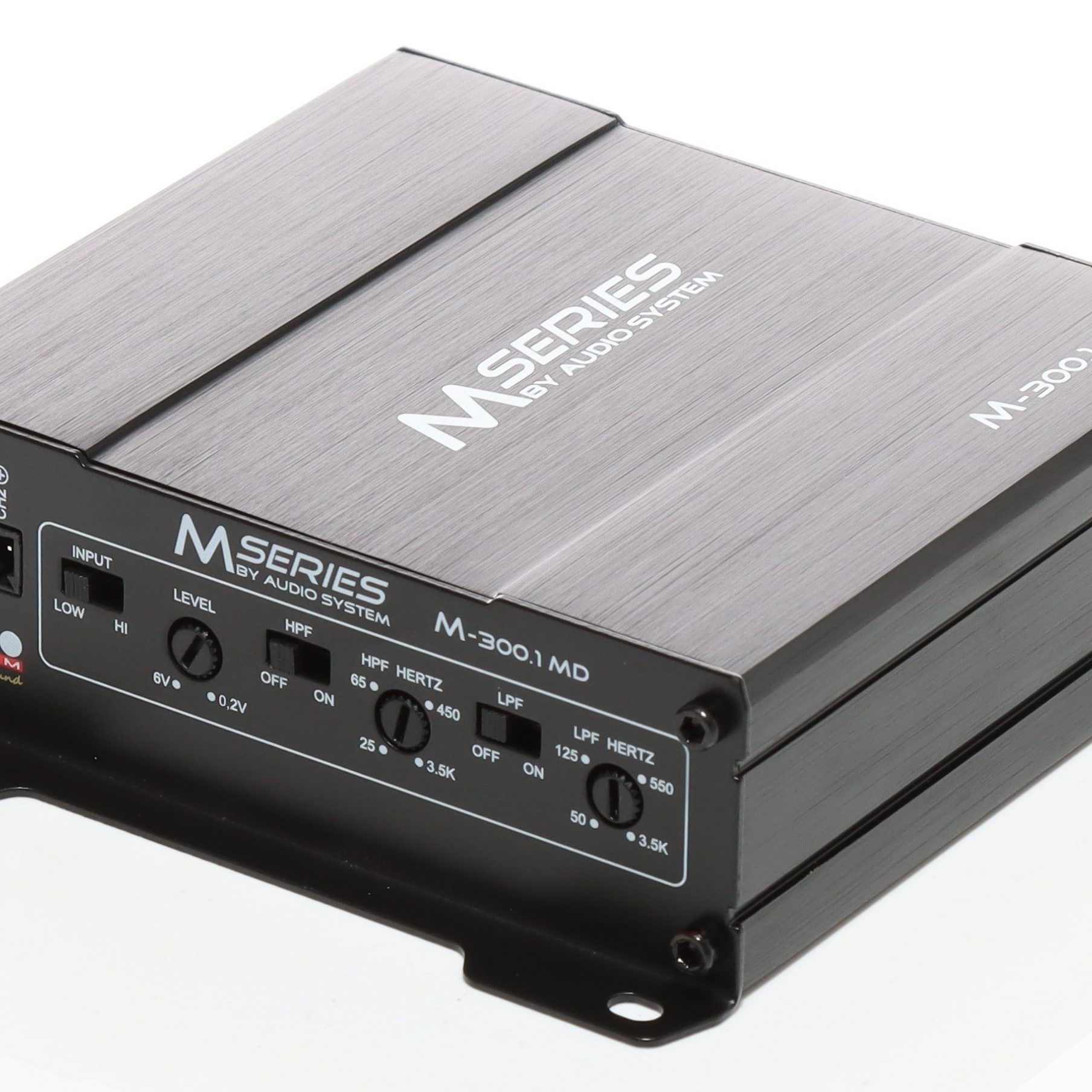

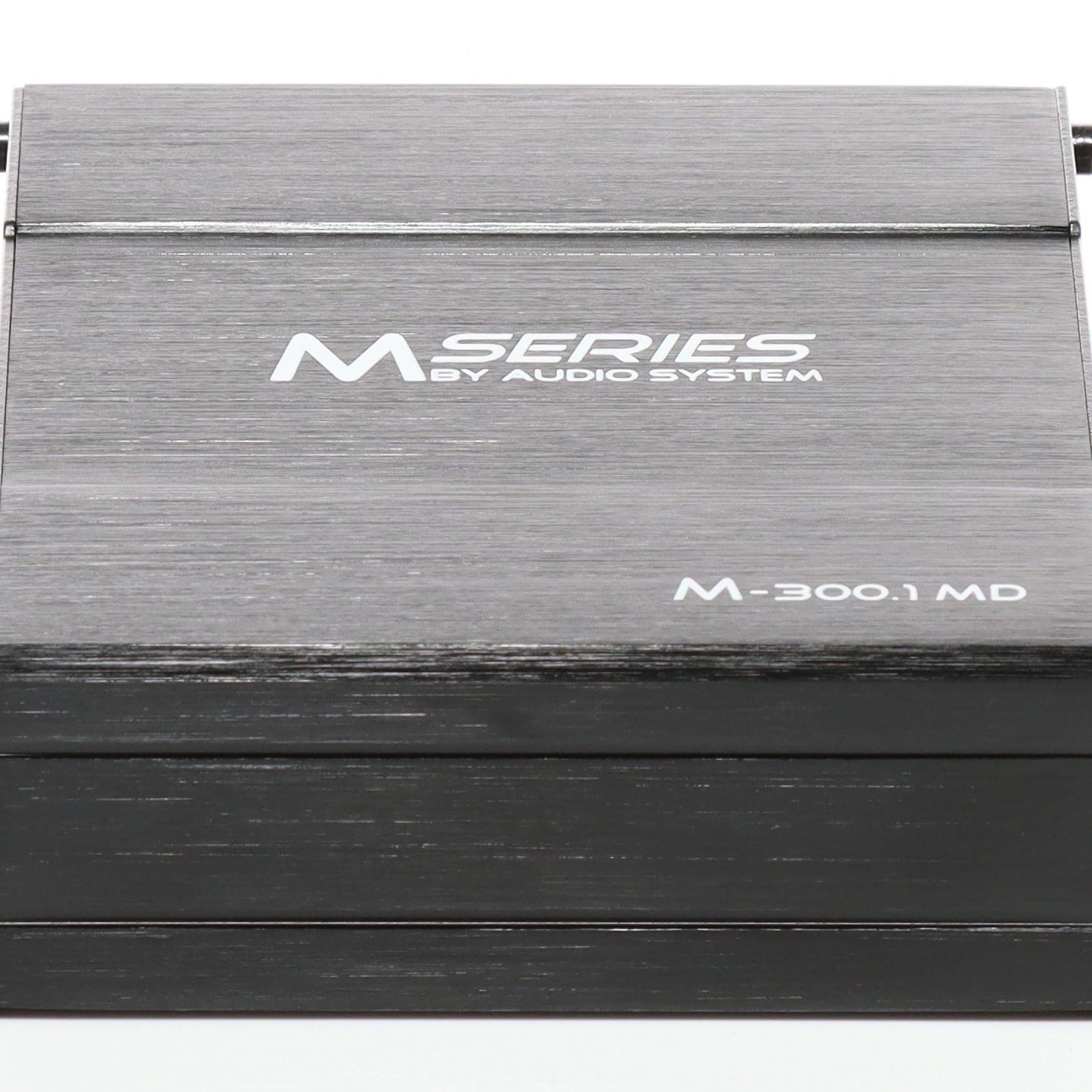

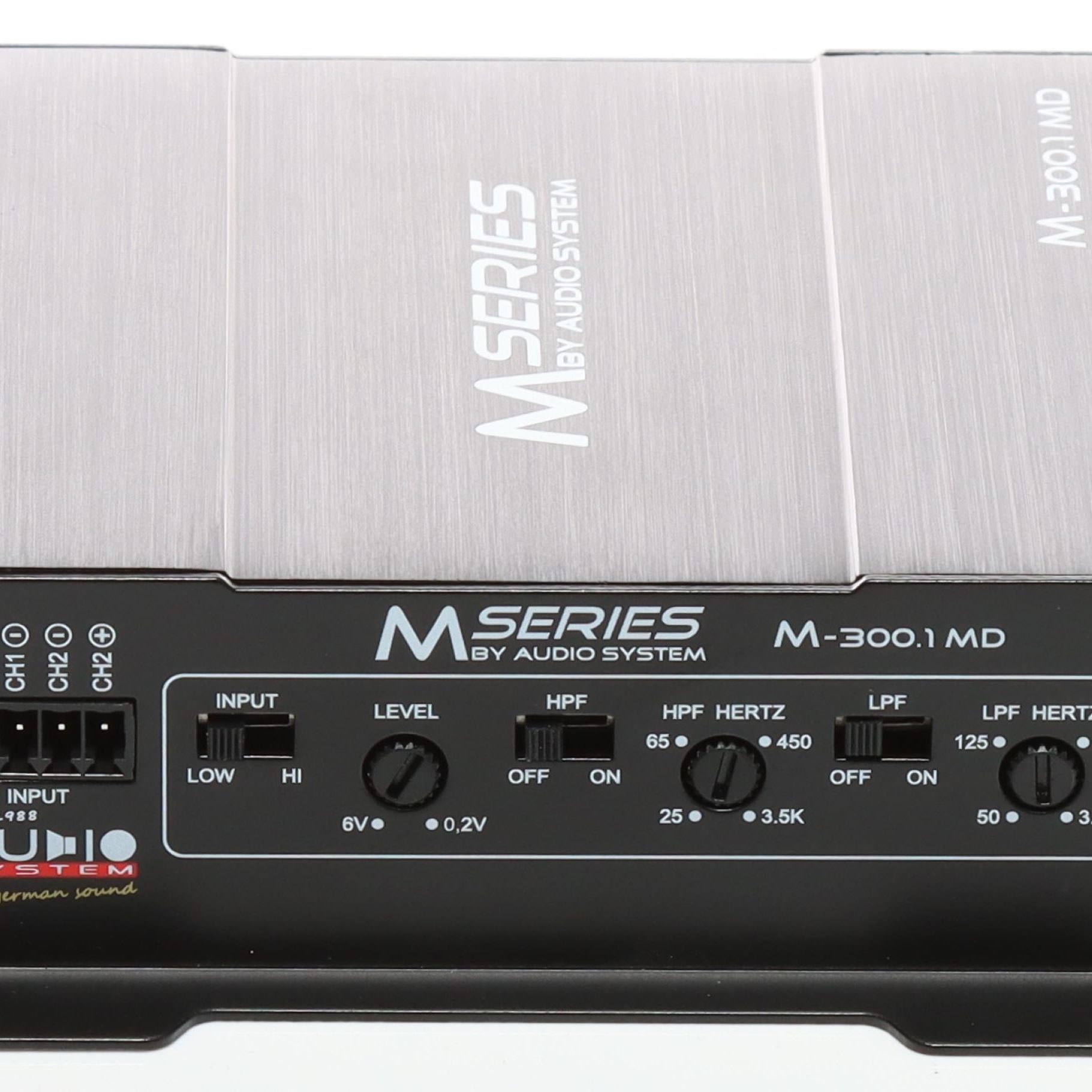

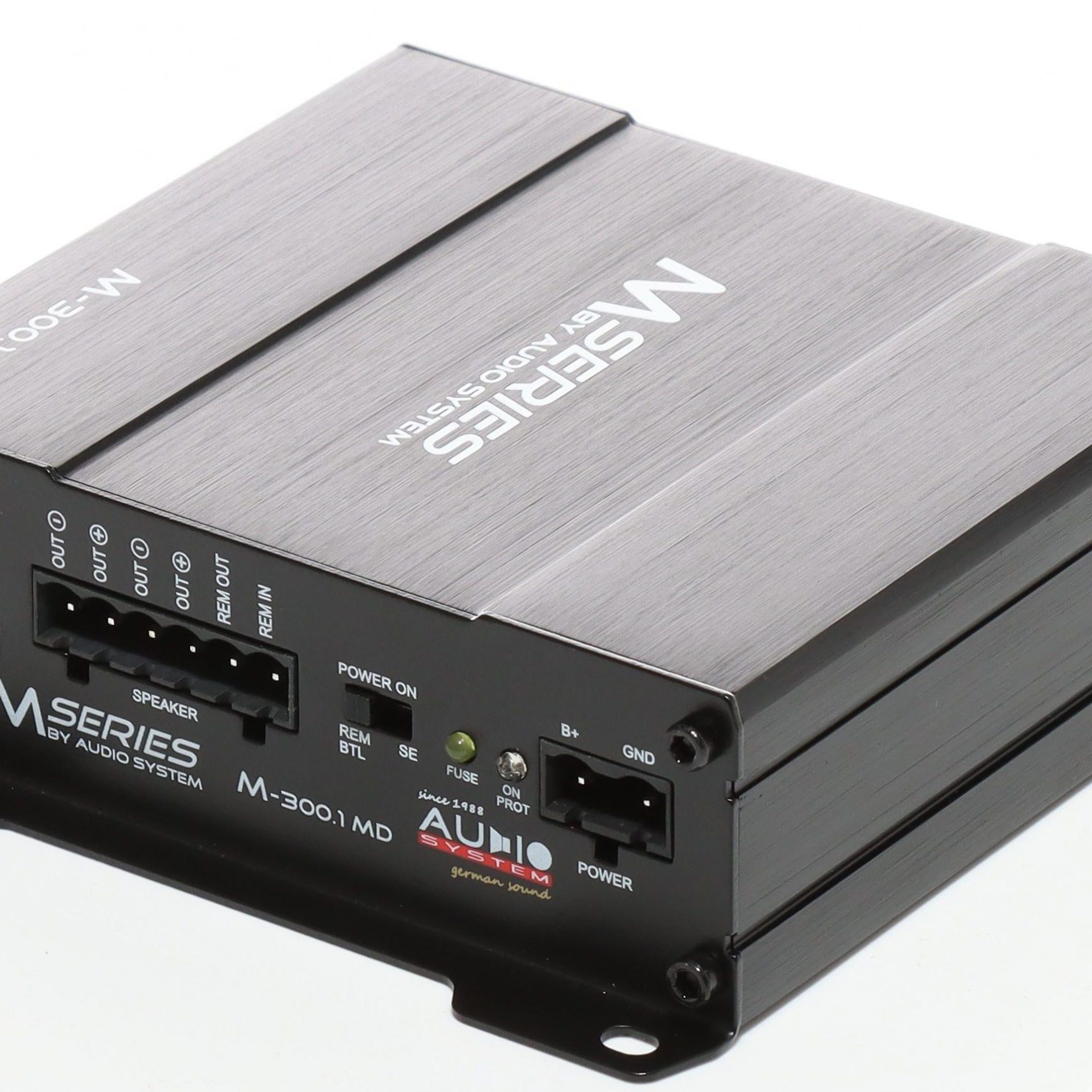

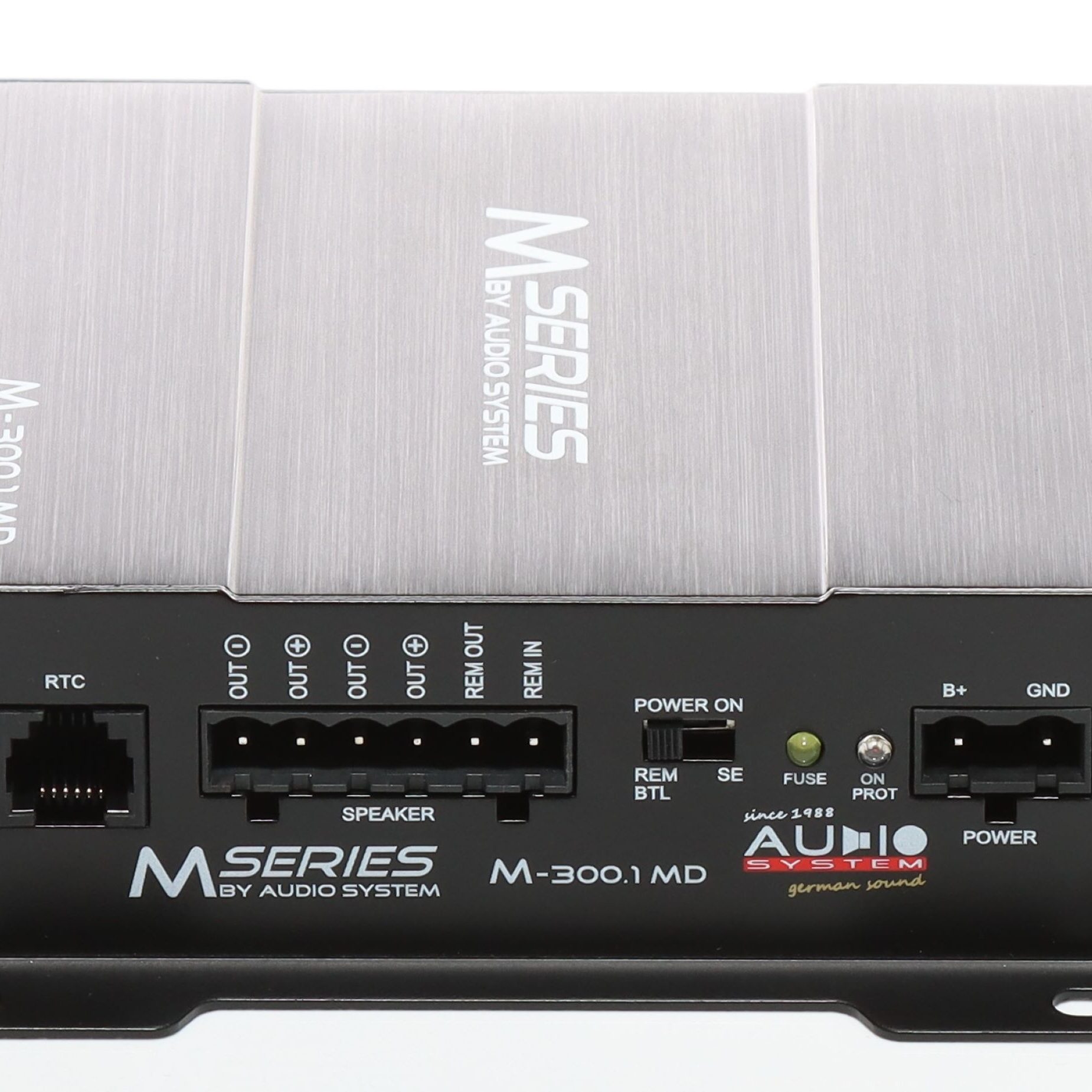

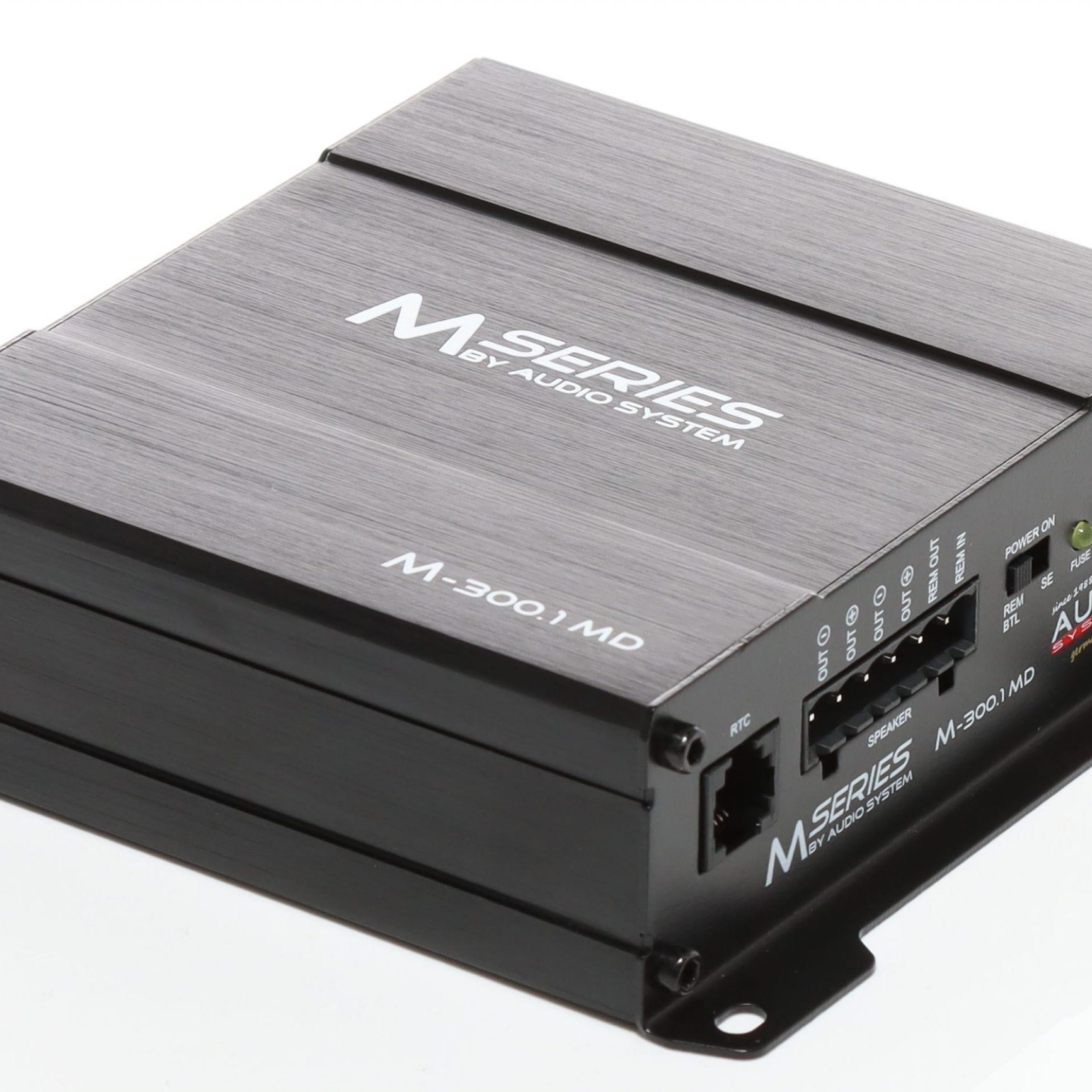

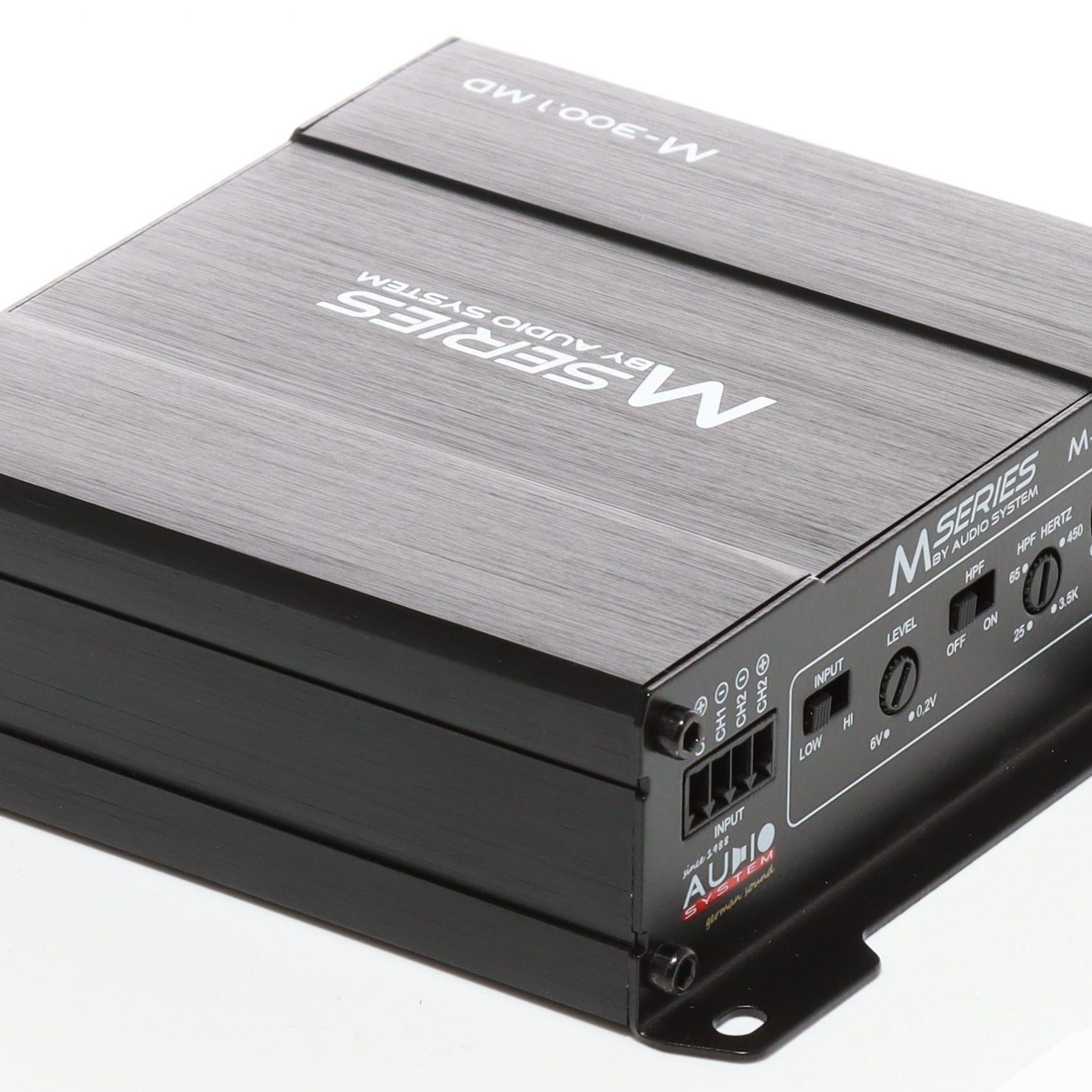

M-300.1 MD

Description

  • 1-Channel MICRO-Digital-Amplifier
  • digital MONO high power-amplifier with SMD technology
  • variable switchable Subsonic
  • HP, LP, BP filter
  • high-level-input or signal dedection with automatically „TURN ON“
  • remote control RTC inclusive

Performance Data

  • 1x 200 WRMS at 4 Ohm
  • 1x 300 WRMS at 2 Ohm

Dimensions

  • 113 x 38 x 100 mm

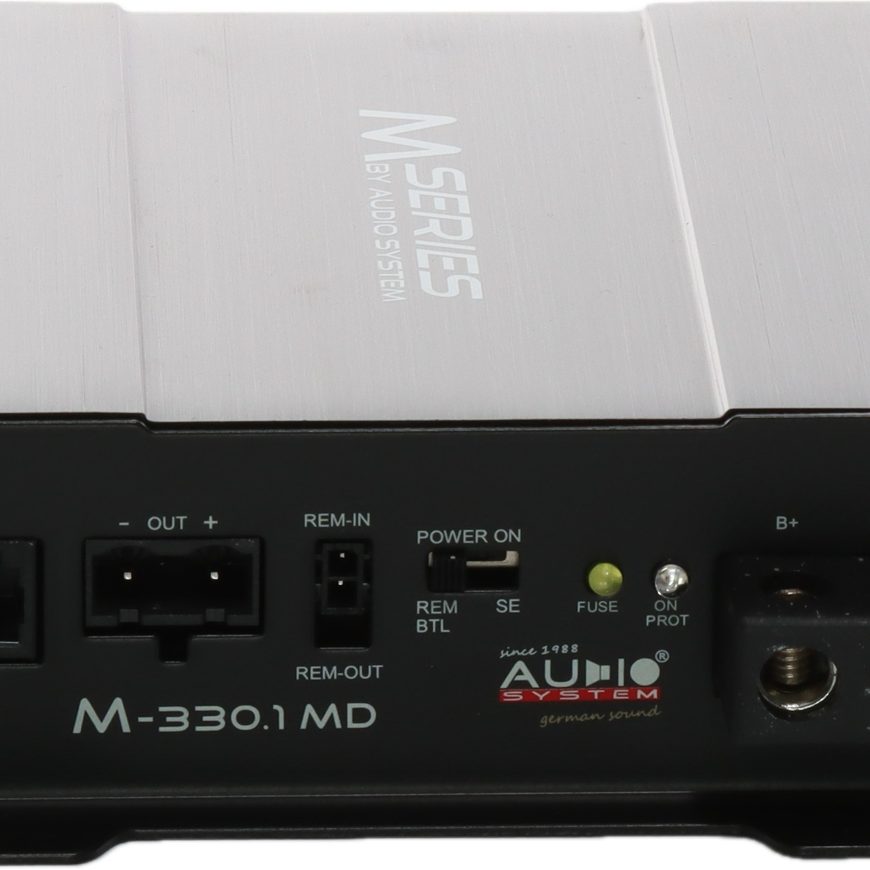

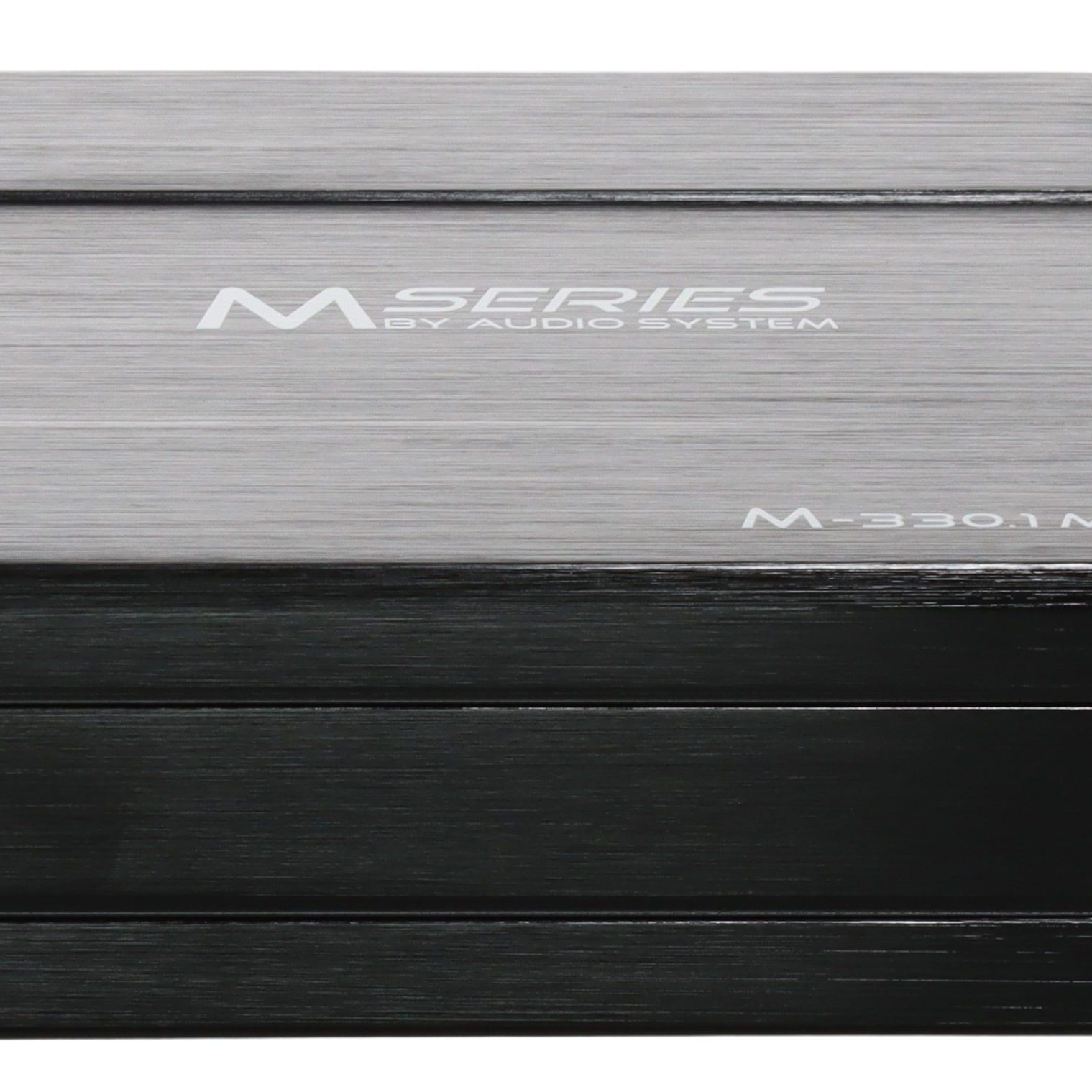

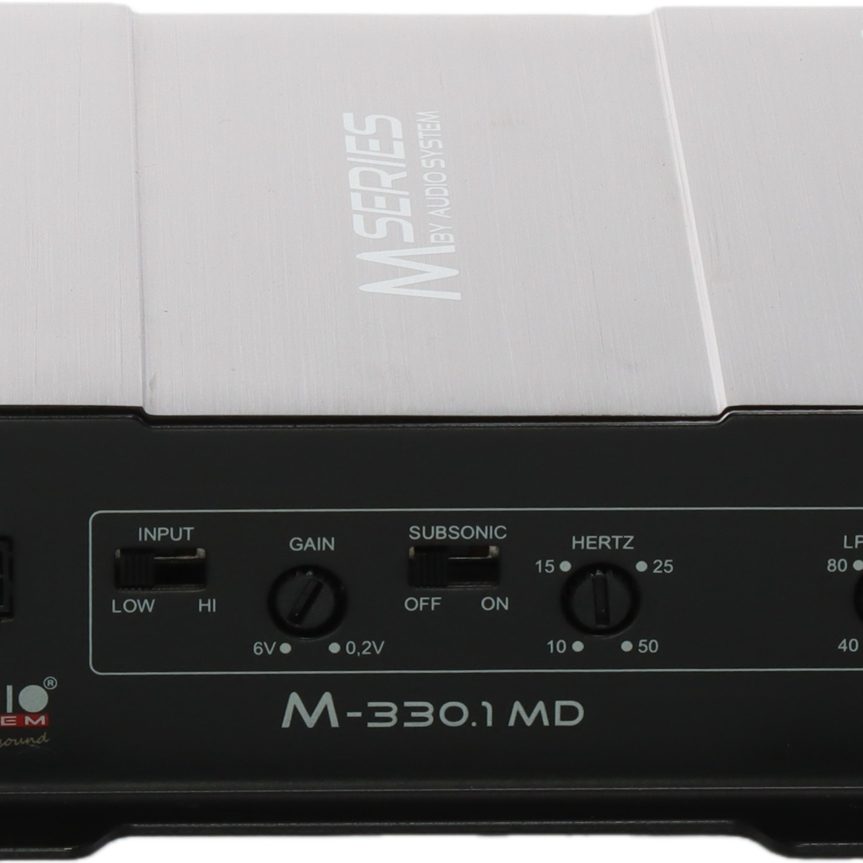

M-330.1 MD

Description

  • 1-Channel MICRO-Digital-Amplifier
  • digital MONO high power-amplifier with SMD technology
  • variable switchable Subsonic
  • HP, LP, BP filter
  • high-level-input or signal dedection with automatically „TURN ON“
  • remote control RTC inclusive

Performance Data

  • 1x 220 WRMS at 4 Ohm
  • 1x 330 WRMS at 2 Ohm

Dimensions

  • 113 x 38 x 100 mm

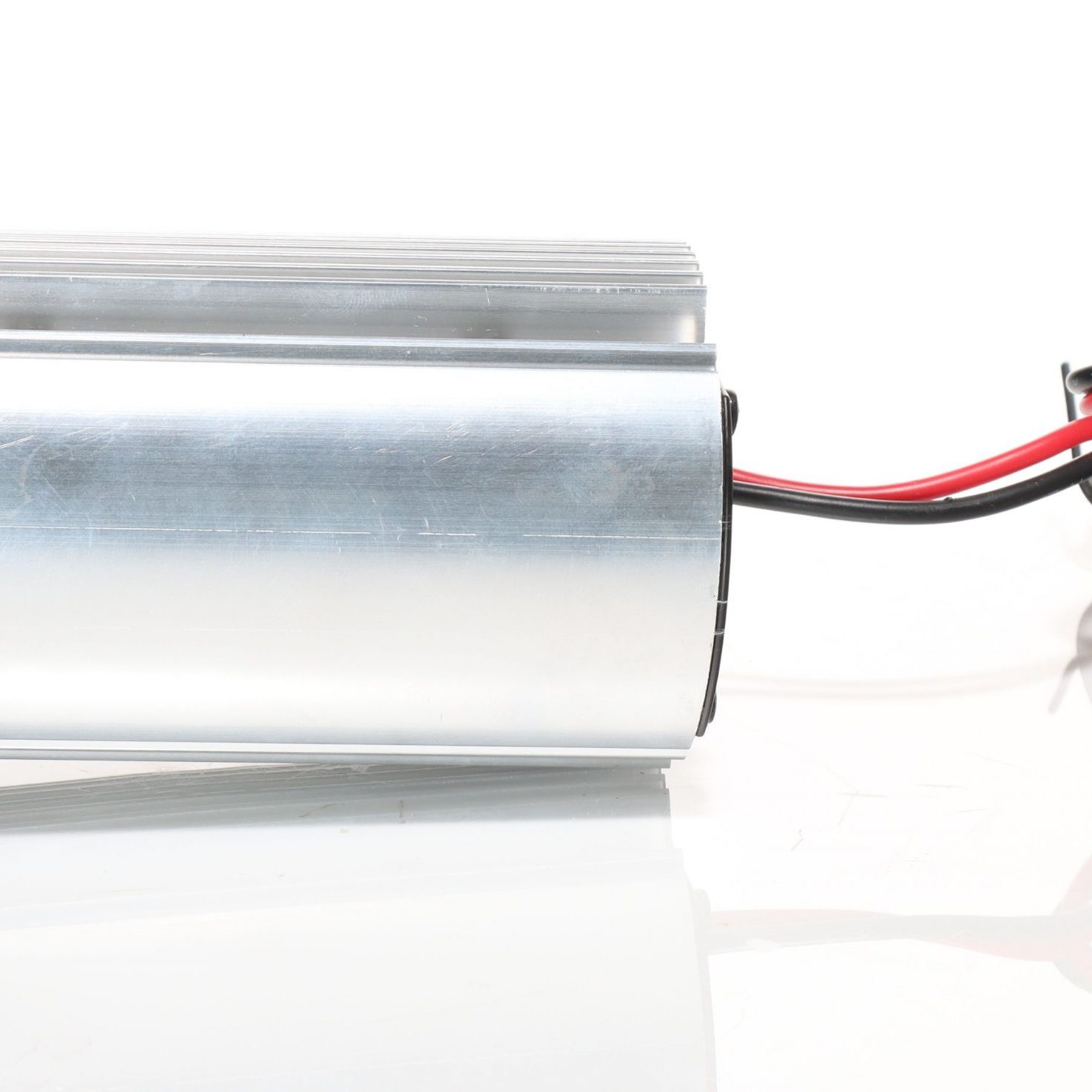

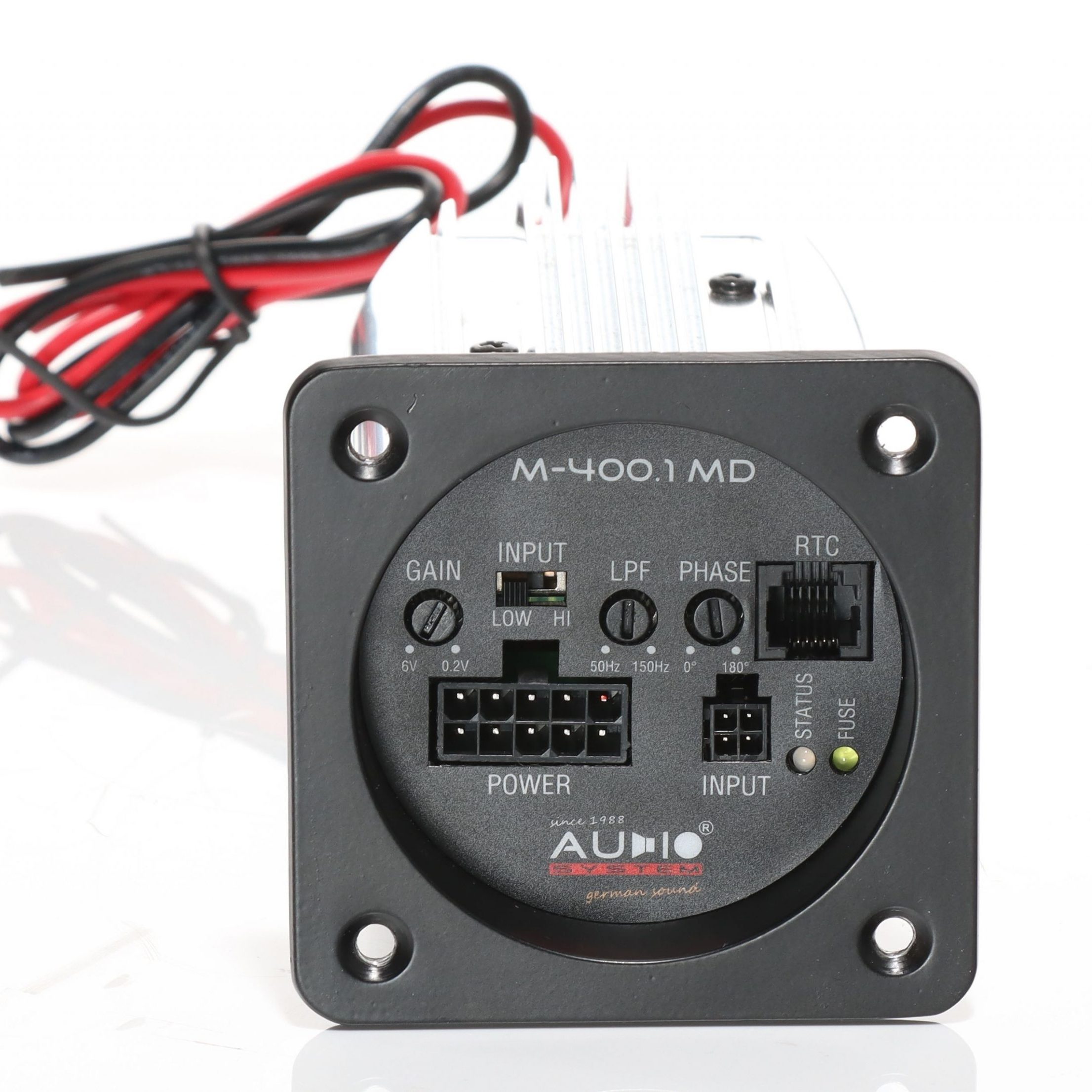

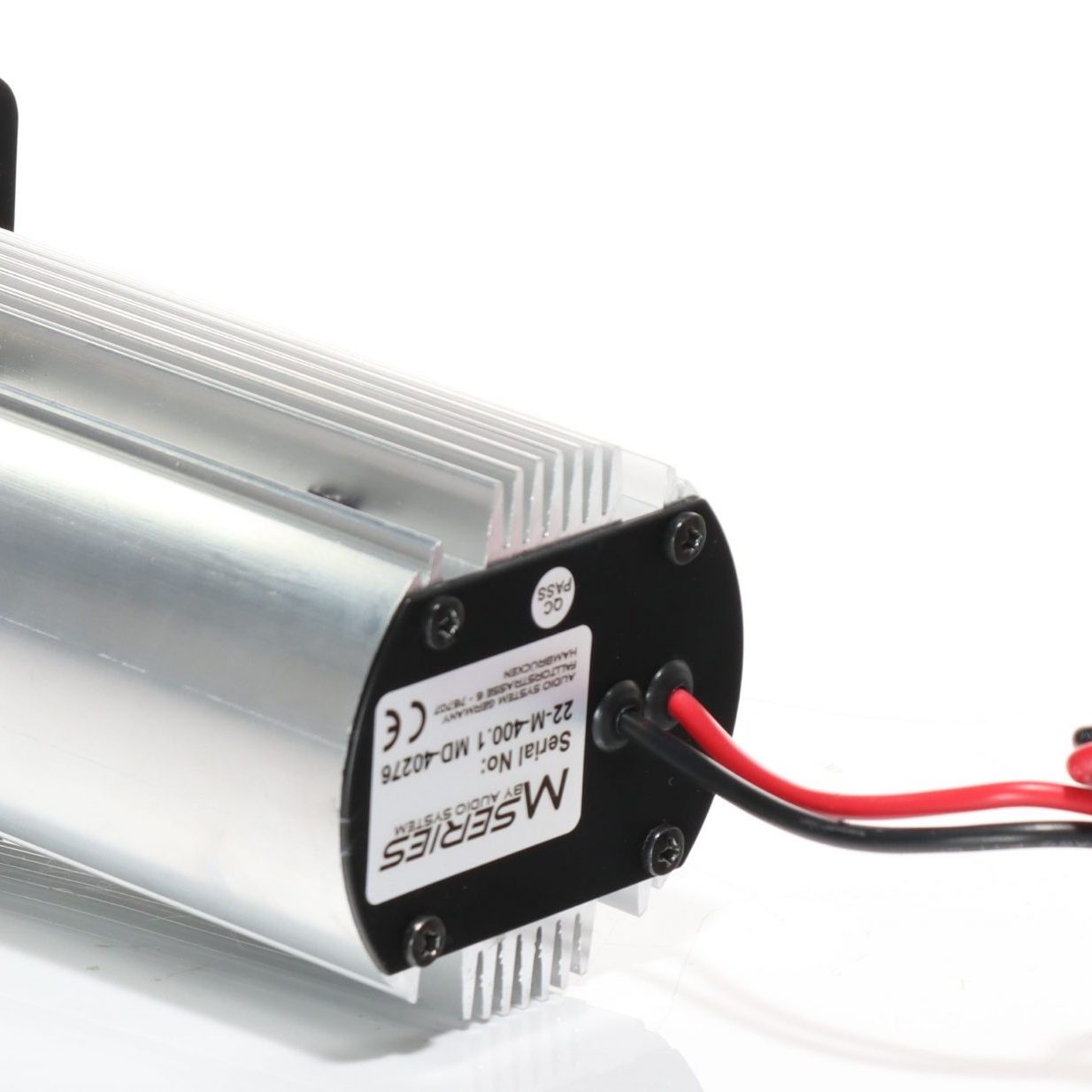

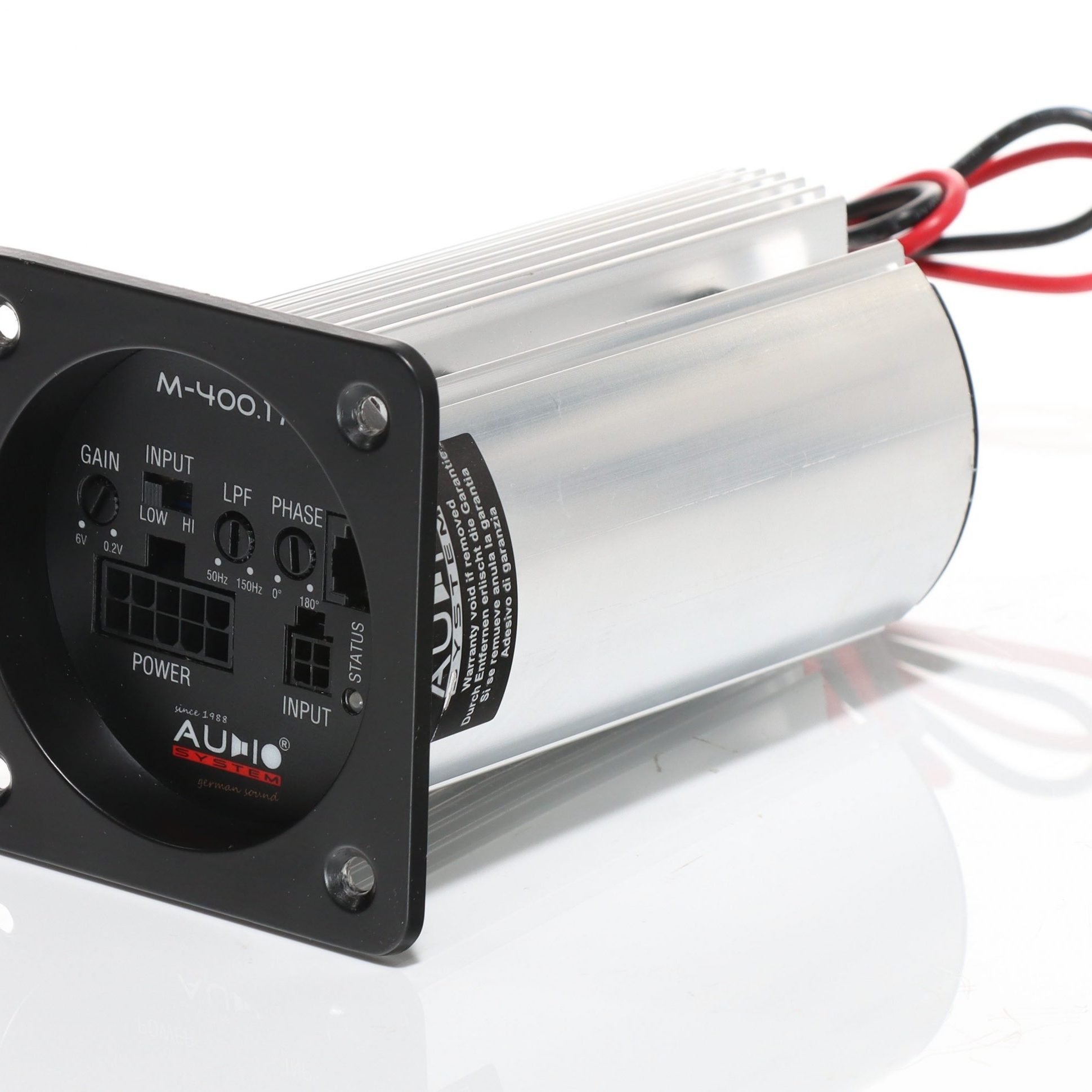

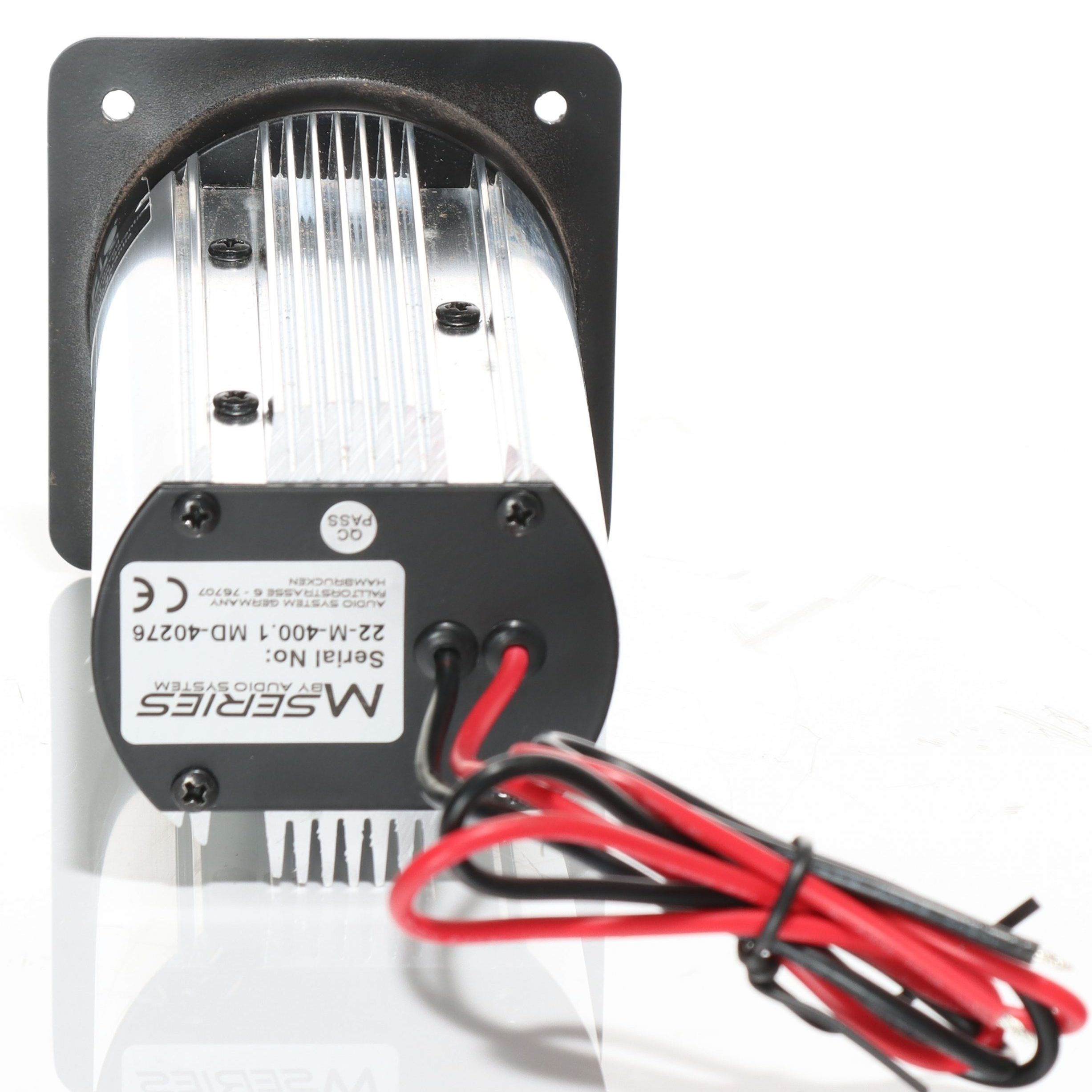

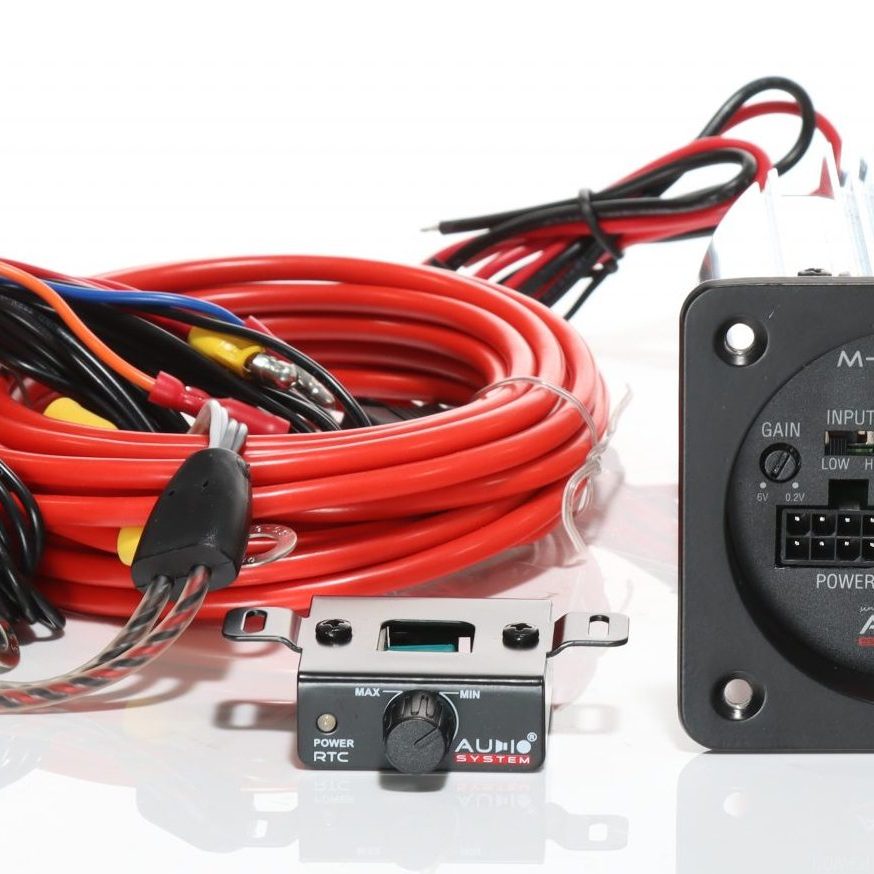

M-400.1 MD

Description

  • M-SERIES 1-Channel Digital Terminal Amplifier
  • with SMD technology
  • variable LP-Filter
  • Subsonic-Filter
  • RTC (included)
  • RCA- and High-Level-Input with automatically BTL or Signal dedection and automatically „TURN ON“
  • continuously adjustable 0-180° Phaseshift,
  • up to 90% efficiency

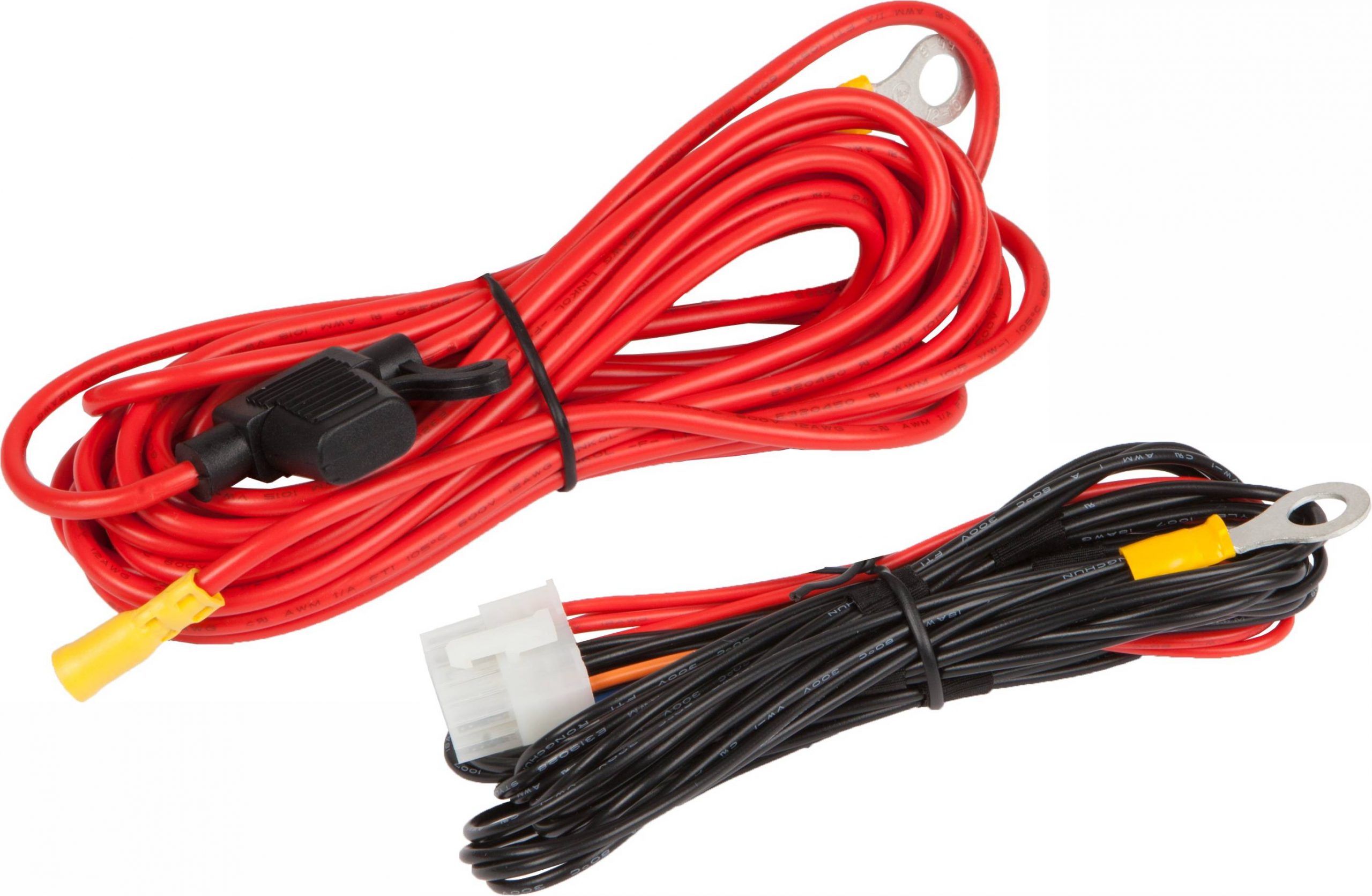

  • 6mm² power cable set(5,5m)

Performance Data

  • 1x 200 WRMS at 4 Ohm
  • 1x 400 WRMS at 2 Ohm

Dimensions

  • front plate 80×80 mm
  • installation size:68×127(depth) mm

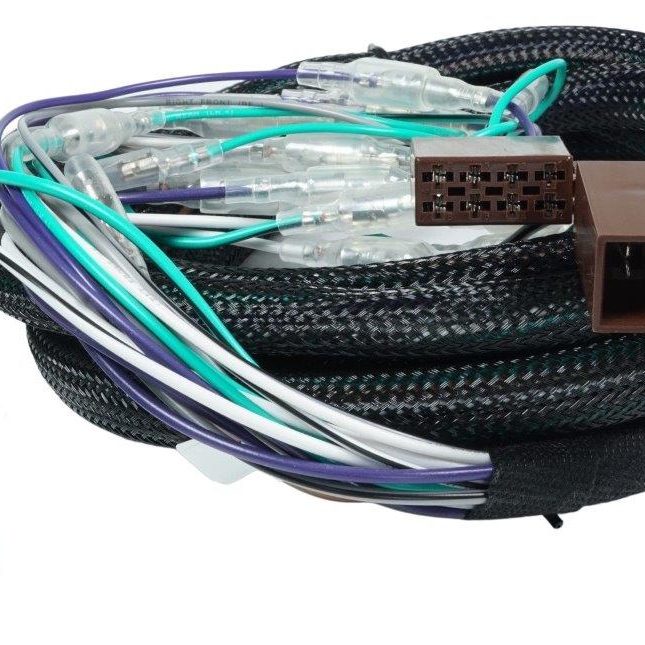

MD-HIGH/POWER CONNECTOR

Description

  • 1x Strom + 1x High Input Stecker für M-50.4 MD /M-100.2 MD / M-300.1 MD

MD-SPEAKER CONNECTOR

Description

  • 1x 6-Pin + 1x 10 Pin Lautsprecher Stecker für M-50.4 MD/ M-100.2 MD / M-300.1 MD

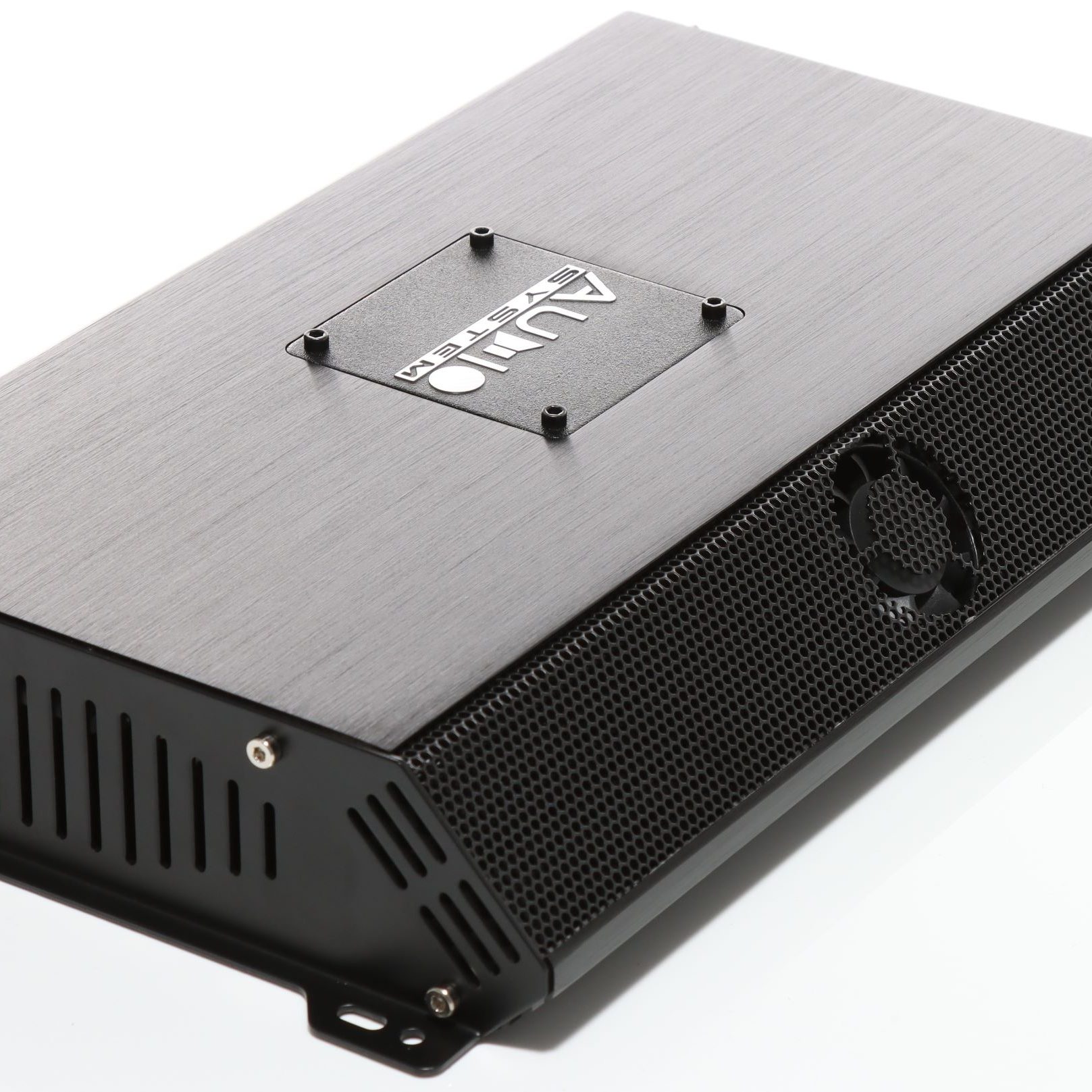

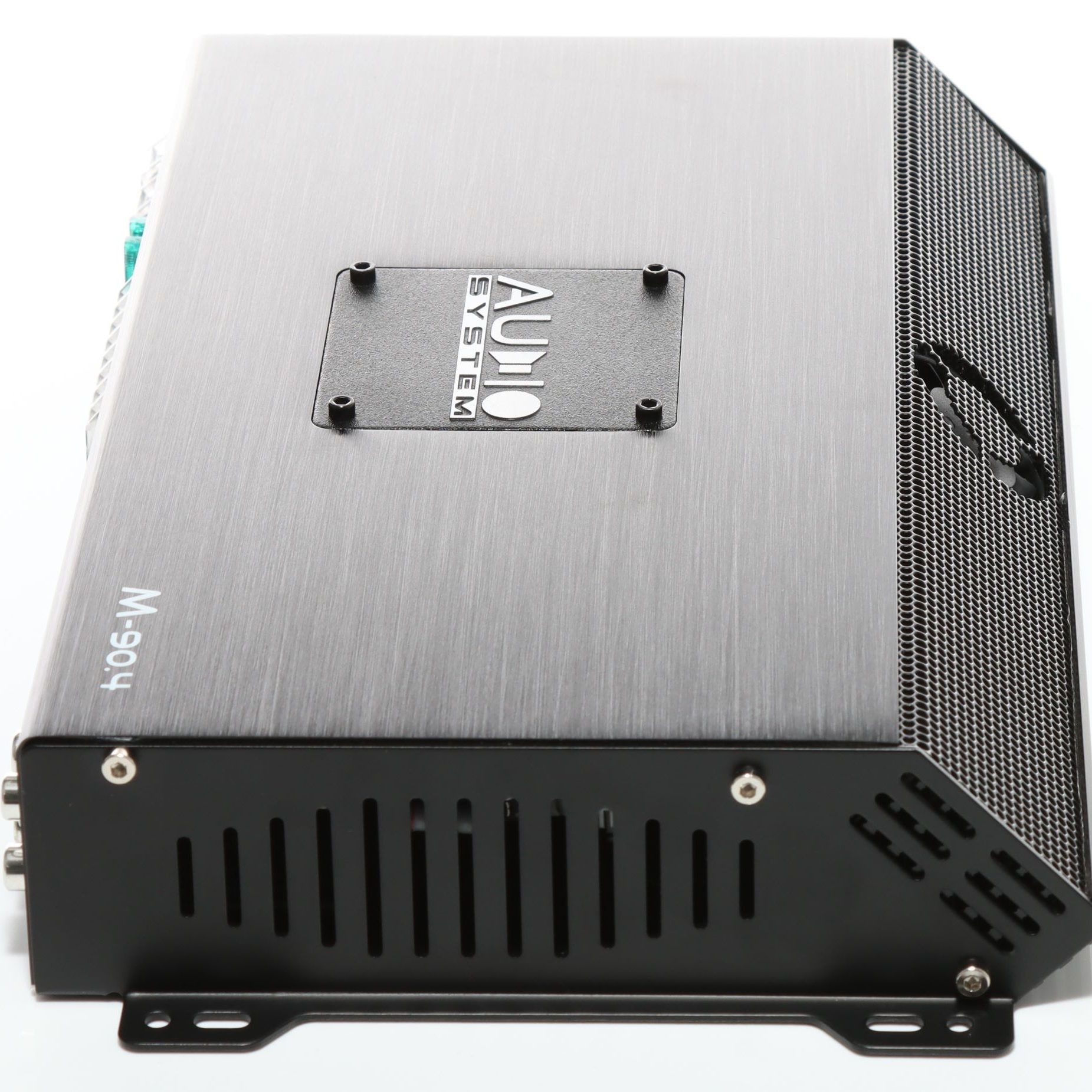

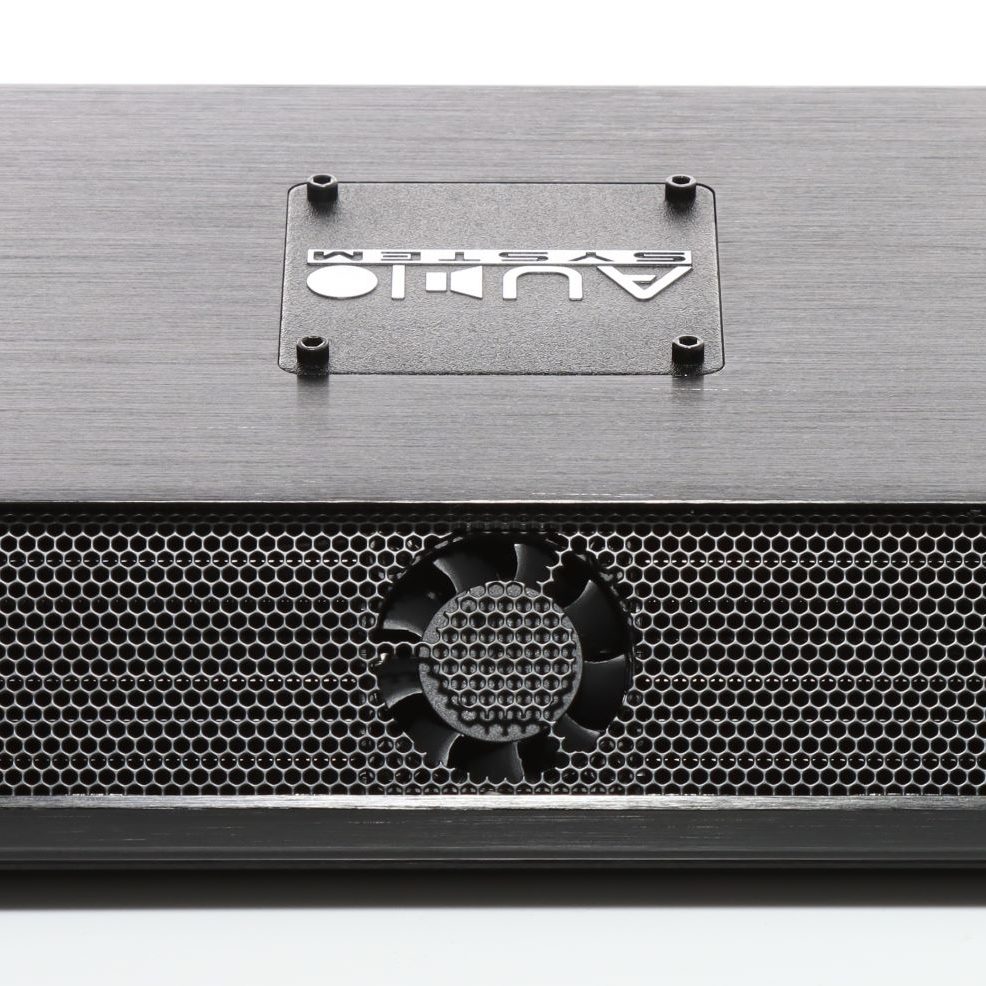

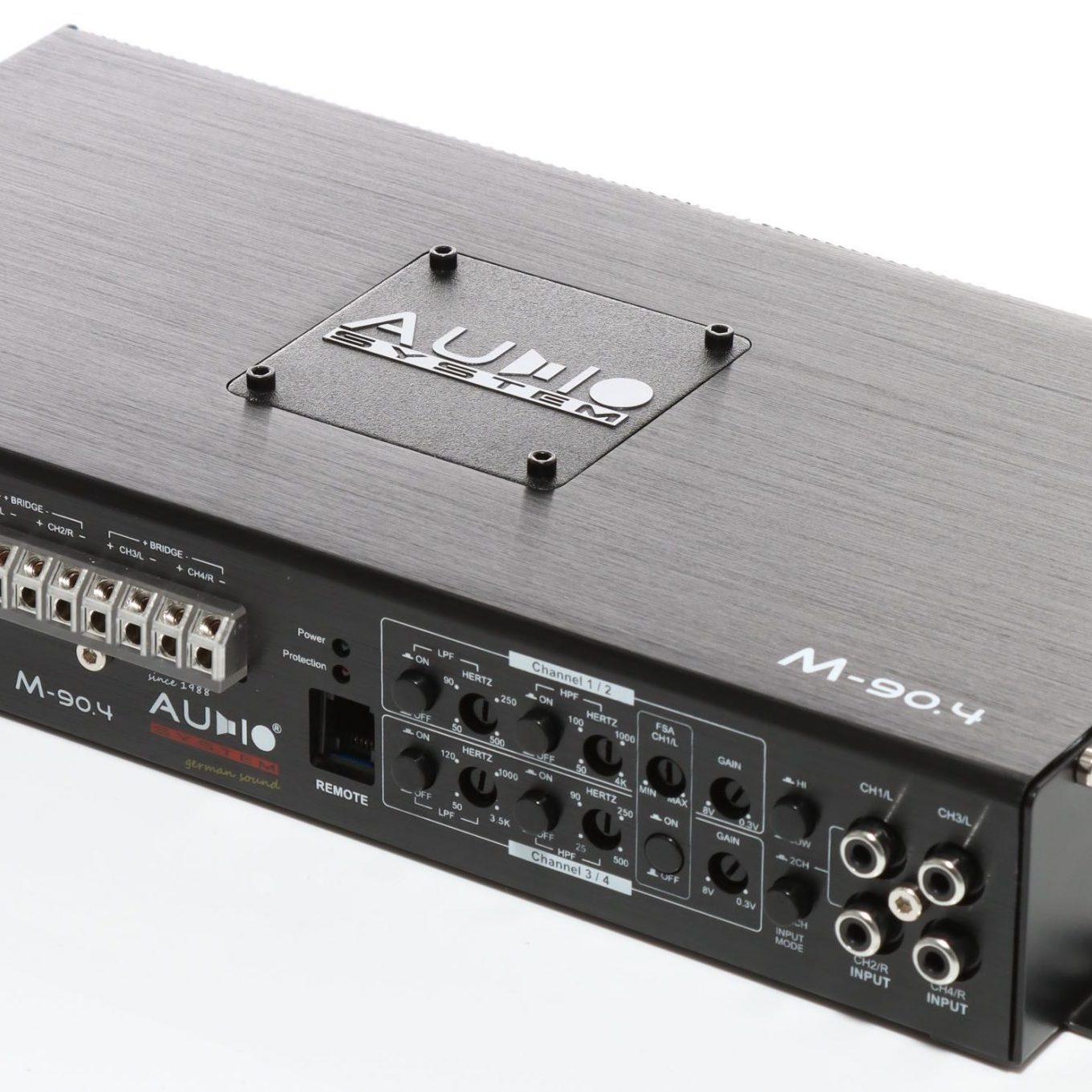

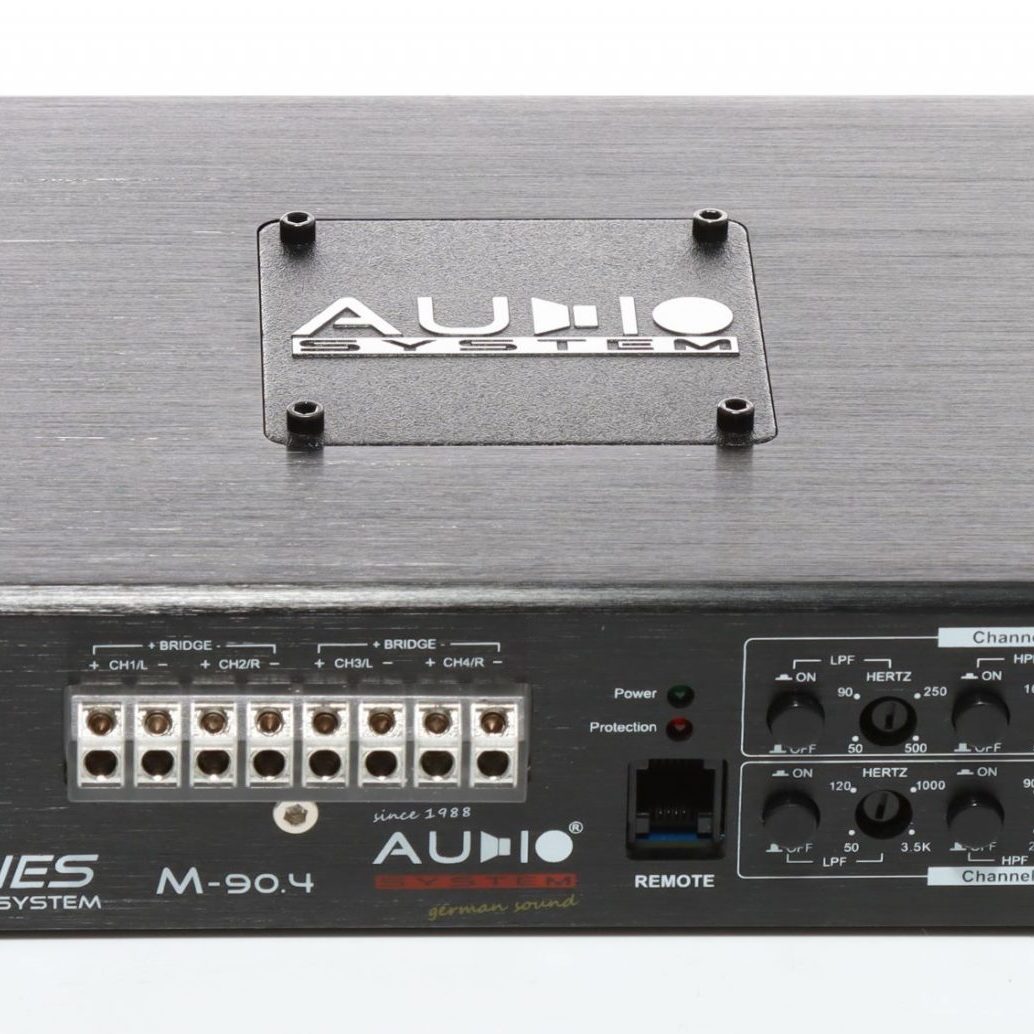

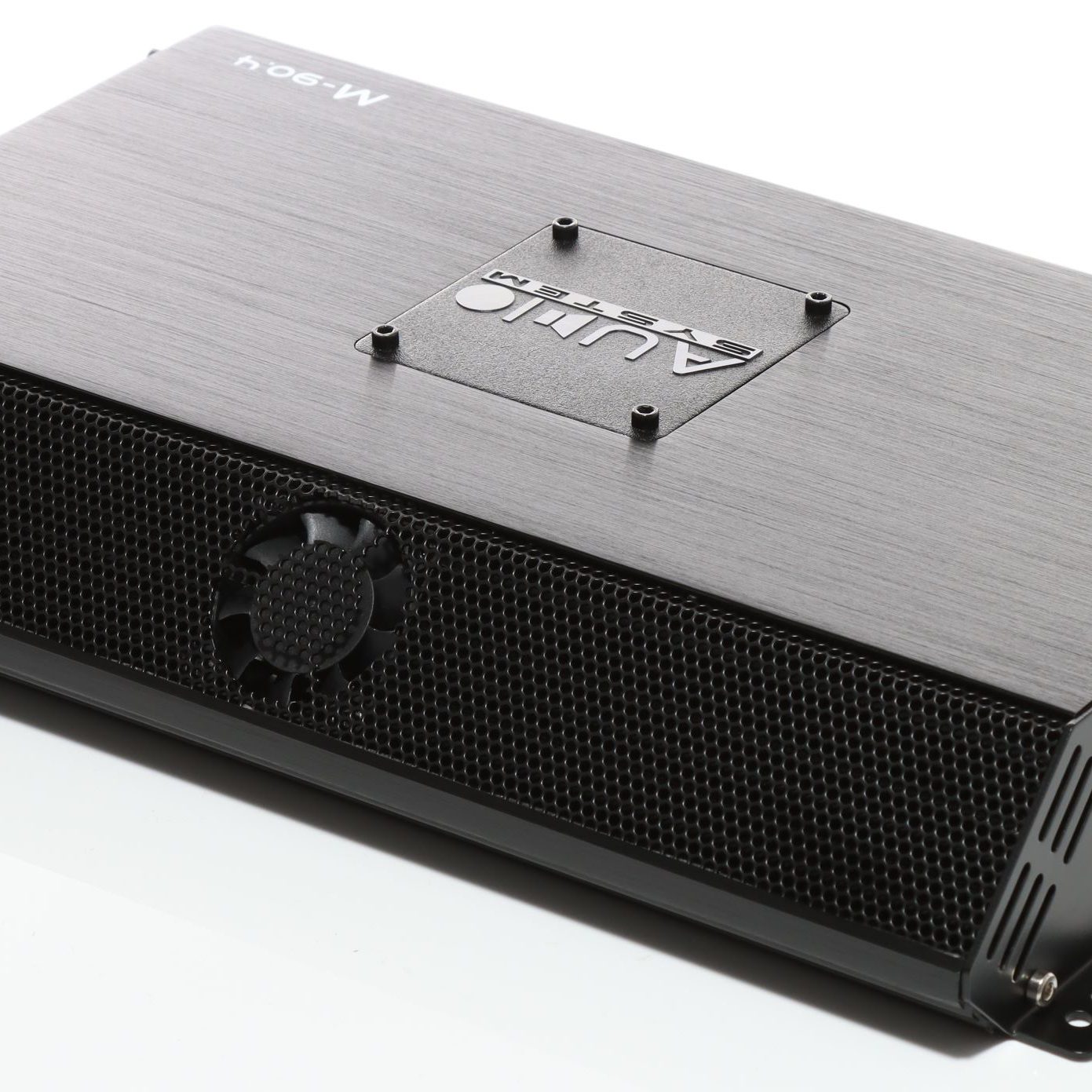

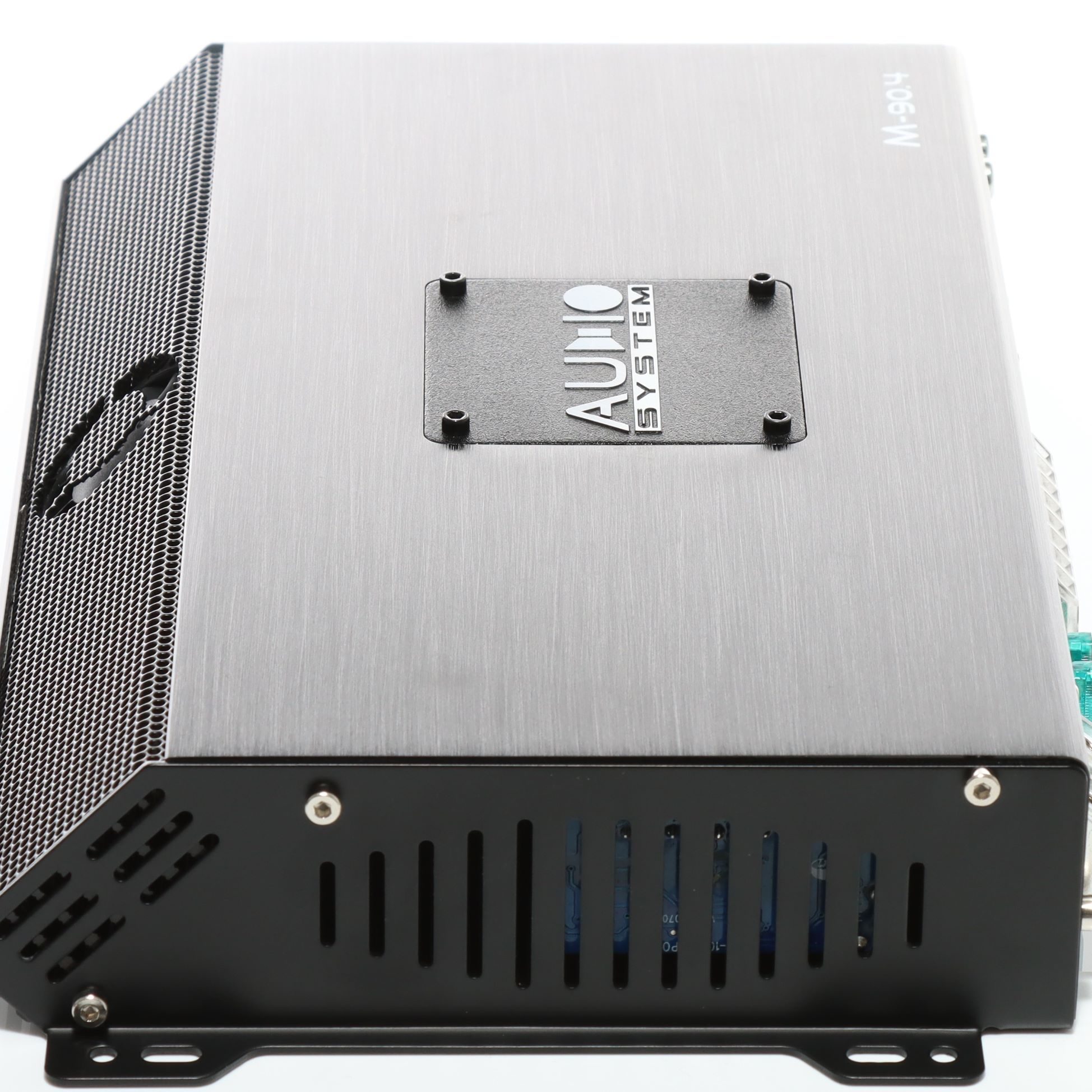

M-90.4

Description

  • 4-Channel with Alu-Logo
  • 4-channel Class A/B high power-amplifier with SMD technology
  • variable switchable Subsonic
  • HP, LP, BP filter and full active mode possible
  • efficient 3-time ON TOP fan/cooling system
  • remote control RTC (optional)
  • FSA (Front-Stage Adjuster)
  • RCA-high-level-input or adjustable signal dedection with automatically „TURN ON“

Performance Data

  • 4x 90 WRMS at 4 Ohm
  • 4x 160 WRMS at 2 Ohm
  • 2x 320 WRMS mono at 4 Ohm

Dimensions

  • 295 x 50 x 185 mm

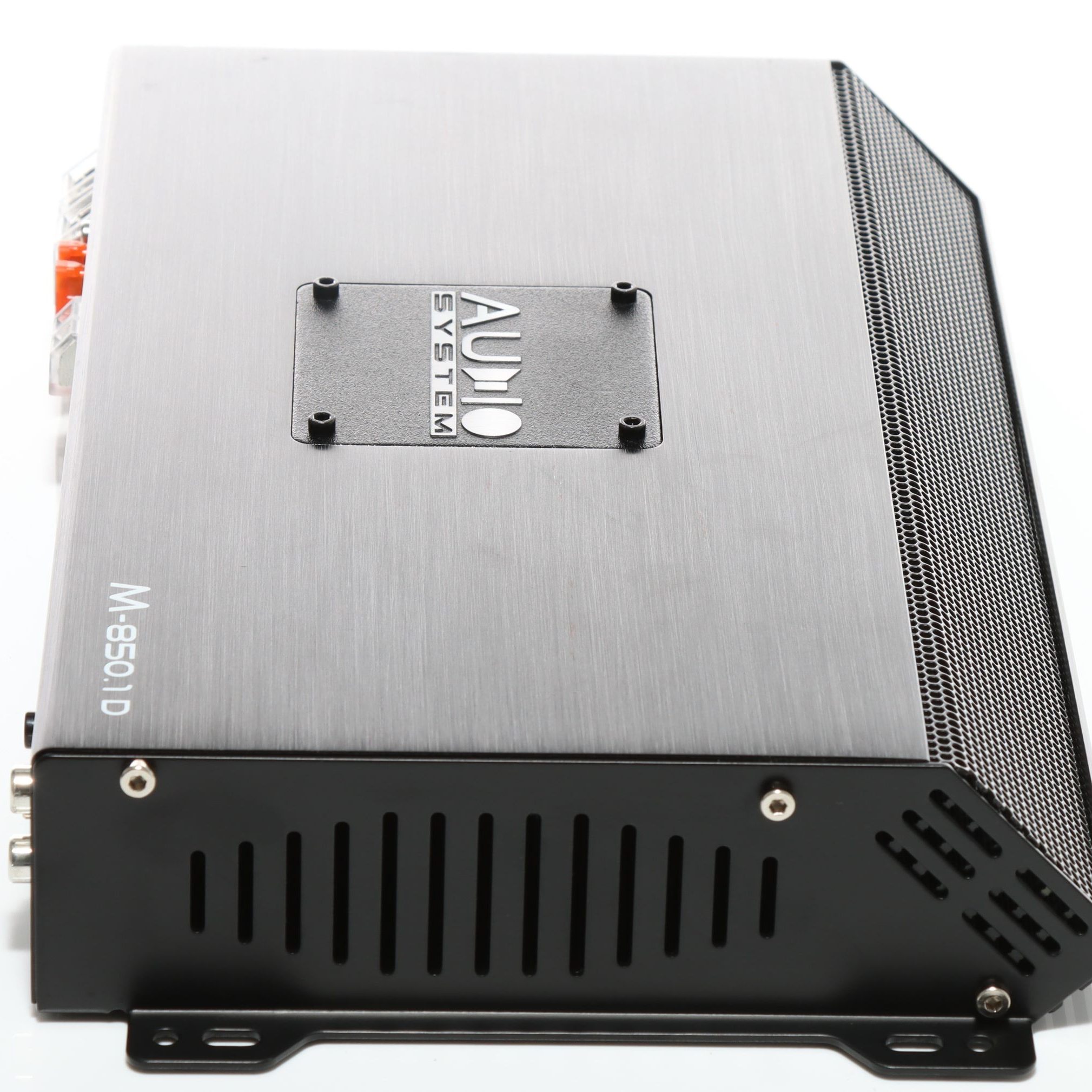

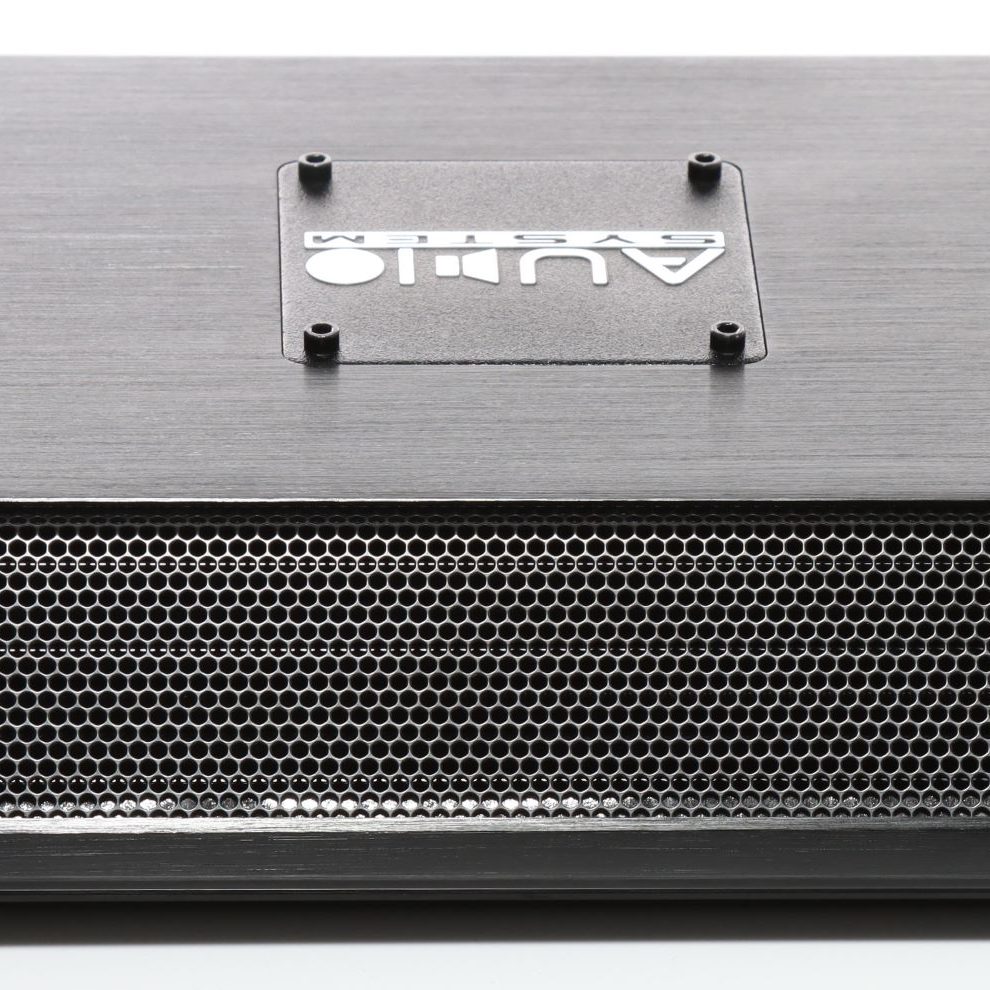

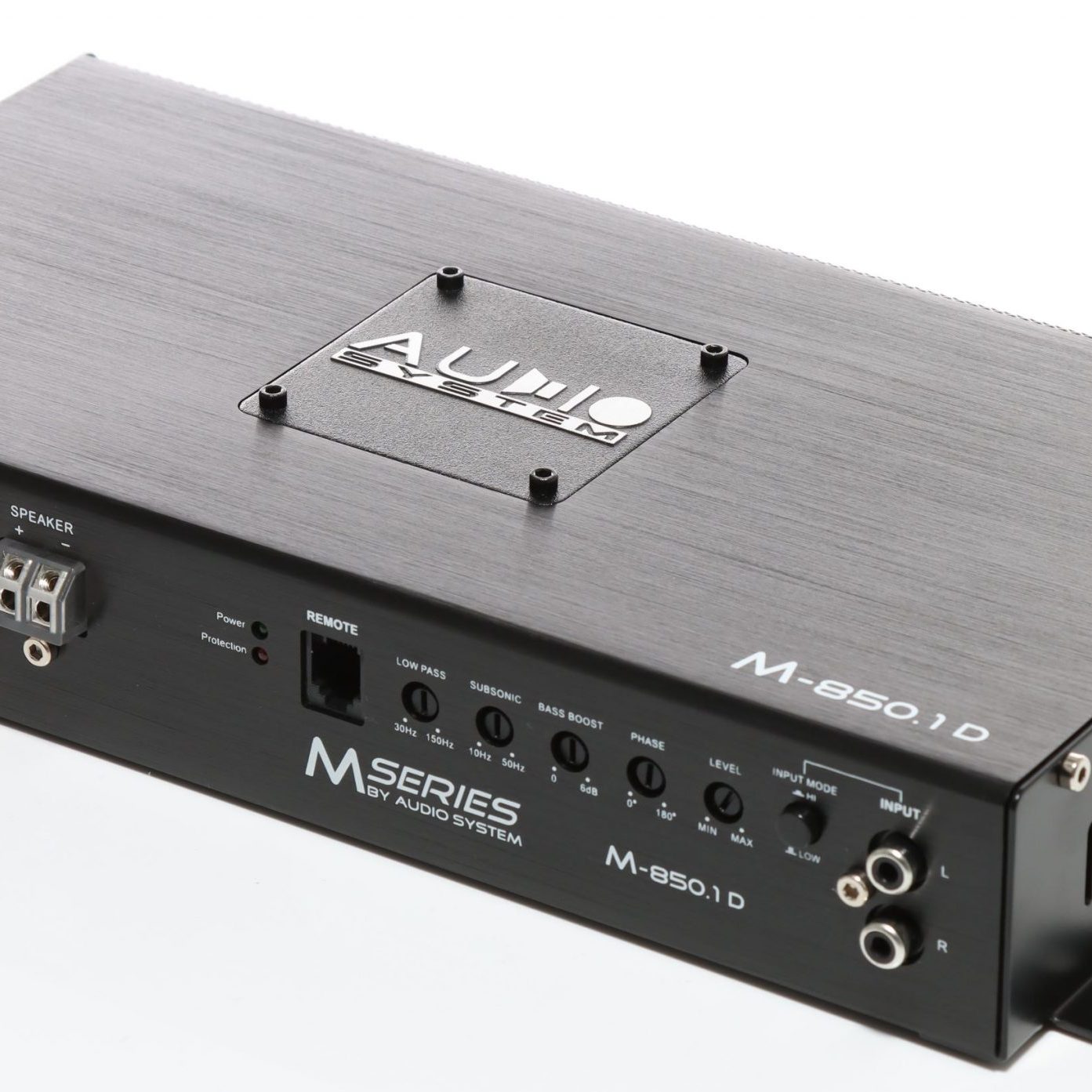

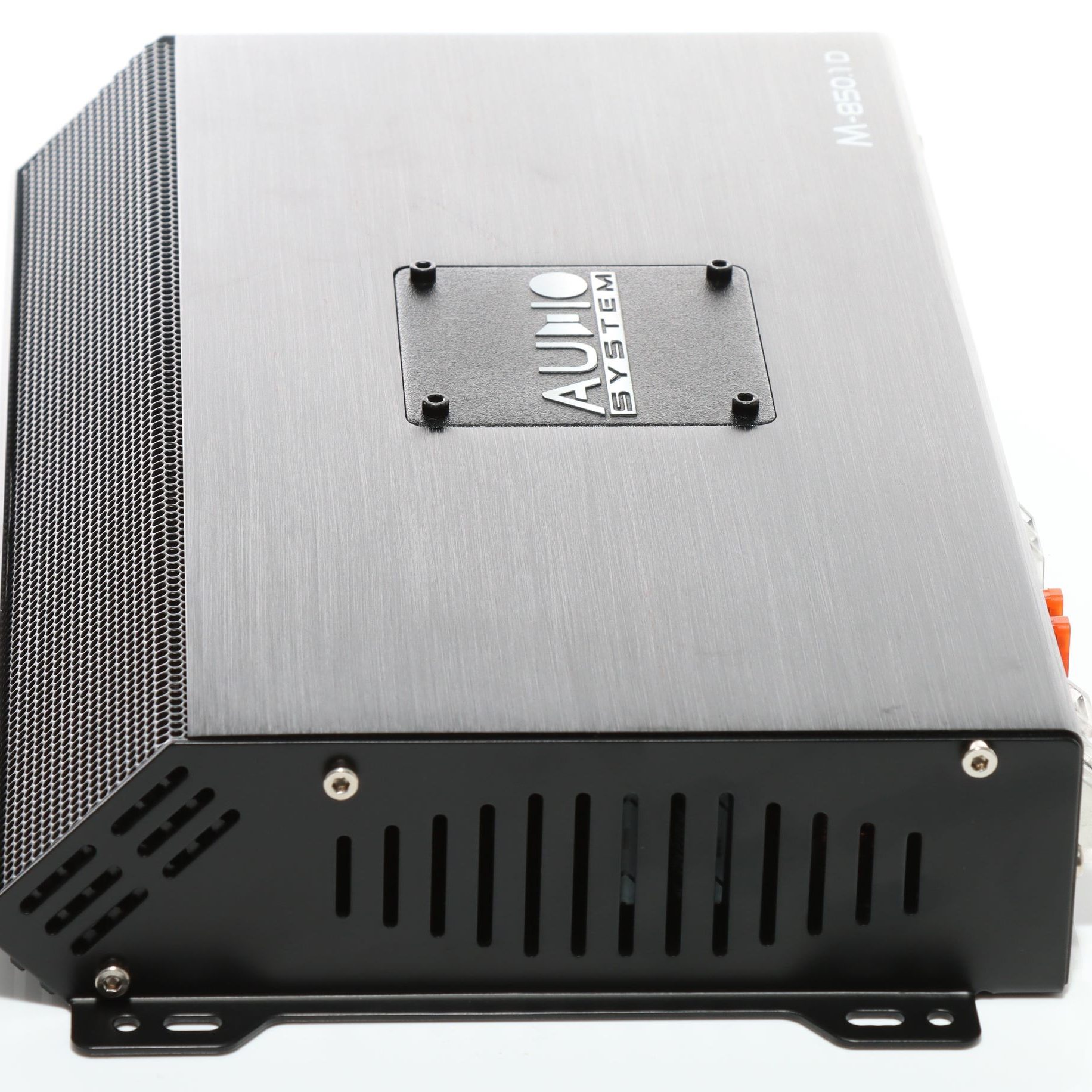

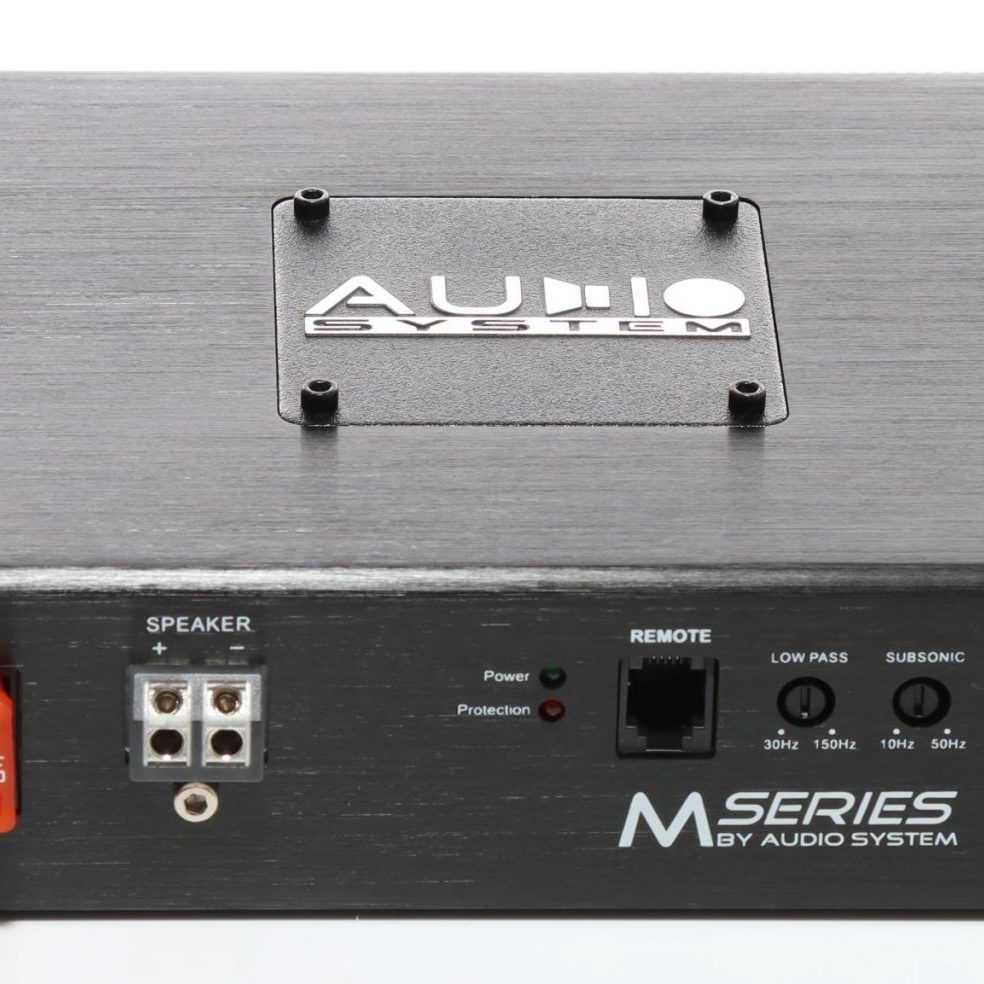

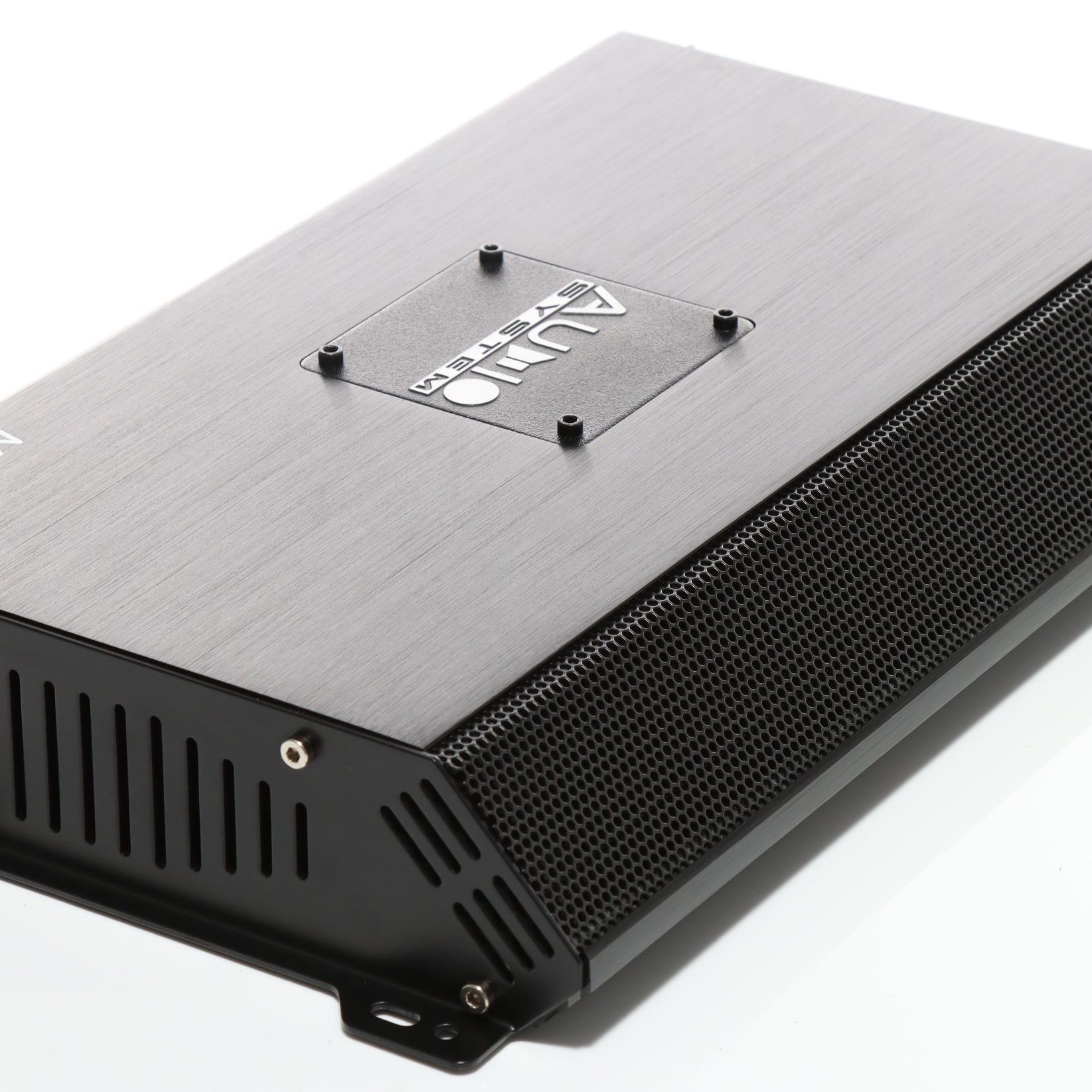

M-850.1 D

Description

  • 1-Channel with Alu-Logo
  • digital MONO high power-amplifier with SMD technology
  • Low Pass Filter
  • Subsonicfilter
  • continuously adjustable 0-180°Phaseshift
  • up to 85% effiency possible
  • RTC included
  • RCA-high-level-input with automatically „TURN ON“

Performance Data

  • 1x 550 WRMS an 4 Ohm
  • 1x 850 WRMS an 2 Ohm

Dimensions

  • 295 x 50 x 185 mm

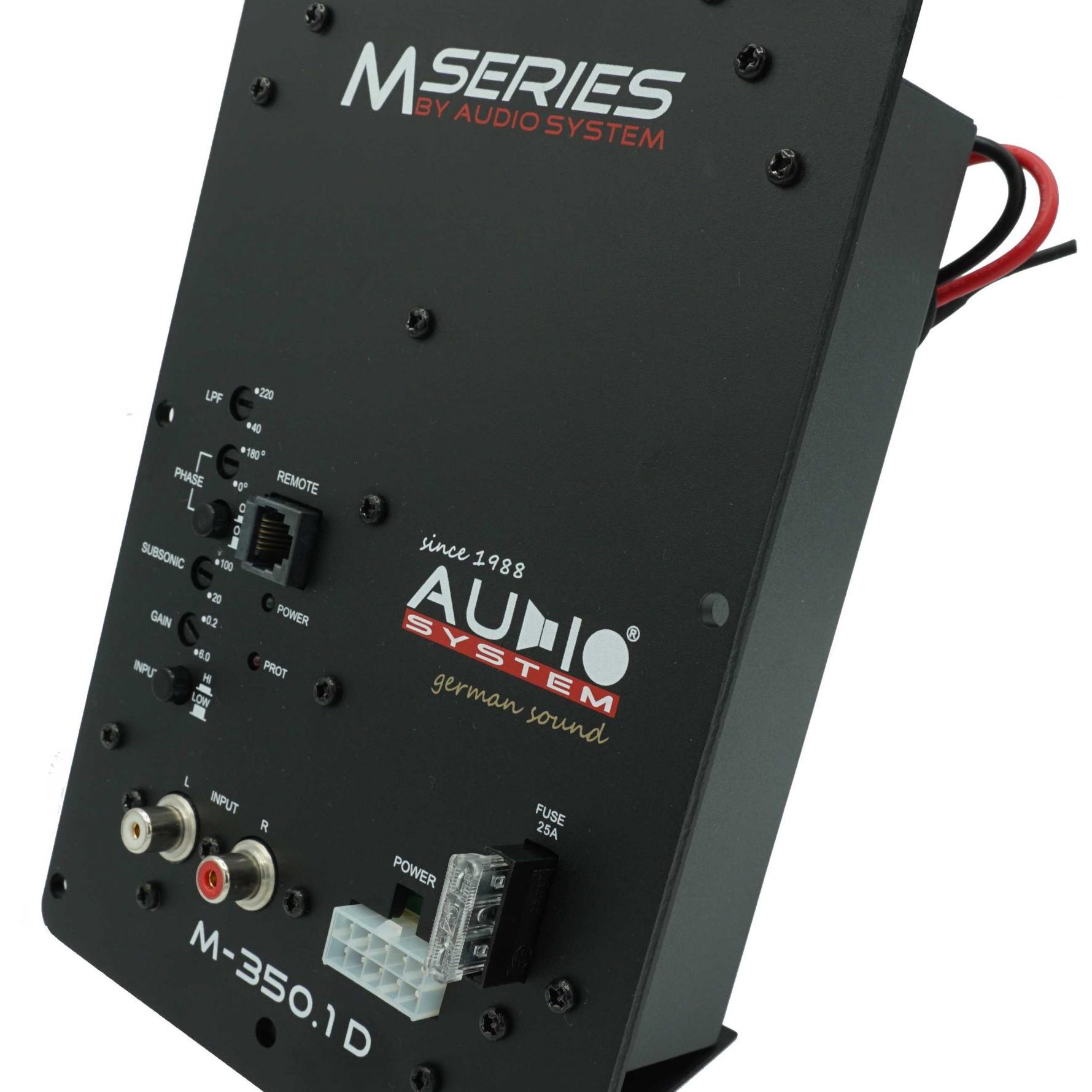

M-350.1 D

Description

  • M-SERIES 1-Channel Built-In Module amplifier
  • digital MONO high-power-amplifier and SMD technology
  • LP
  • Subsonic filter
  • continuously adjustable 0-180° Phaseshift
  • up to 89% efficiency possible
  • included RTC and 6mm² powercable set(5,5m)
  • RCA-high-level-input or 3-time signal dedection with automatically „TURN ON“

Performance Data

  • 1x 240 WRMS at 4 Ohm
  • 1x 350 WRMS at 2 Ohm

Dimensions

  • iron cover:210×135 mm
  • installation size:165x106x55 (depth)mm
