M-SERIES SUBWOOFER

• M-SERIES 300mm HIGH EFFICIENCY Subwoofer
• 2″ voice coil
• gold plated terminals
• multiple ventilation system
• improved T-Joke construction
• HPP cone (high pressed paper cone)
• PPTA connex spider
• pole piece hole
• very stable steelbasket in varnish finish
• reinforced dustcap
• LLE (Long Life Edge)

• impedance: 2×2 Ohm
• 2x 325/250 Watt

• installation depth: 132 mm
• installation Ø: 278 mm
• outer Ø: 320 mm

• M-SERIES 250mm HIGH EFFICIENCY Subwoofer
• 2″ voice coil
• gold plated terminals
• multiple ventilation system
• improved T-Joke construction
• HPP cone (high pressed paper cone)
• PPTA connex spider
• pole piece hole
• very stable steelbasket in varnish finish
• reinforced dustcap
• LLE (Long Life Edge)

• impedance: 2×2 Ohm
• 2x 200/150 Watt

• installation depth: 112 mm
• installation Ø: 227 mm
• outer Ø: 263 mm

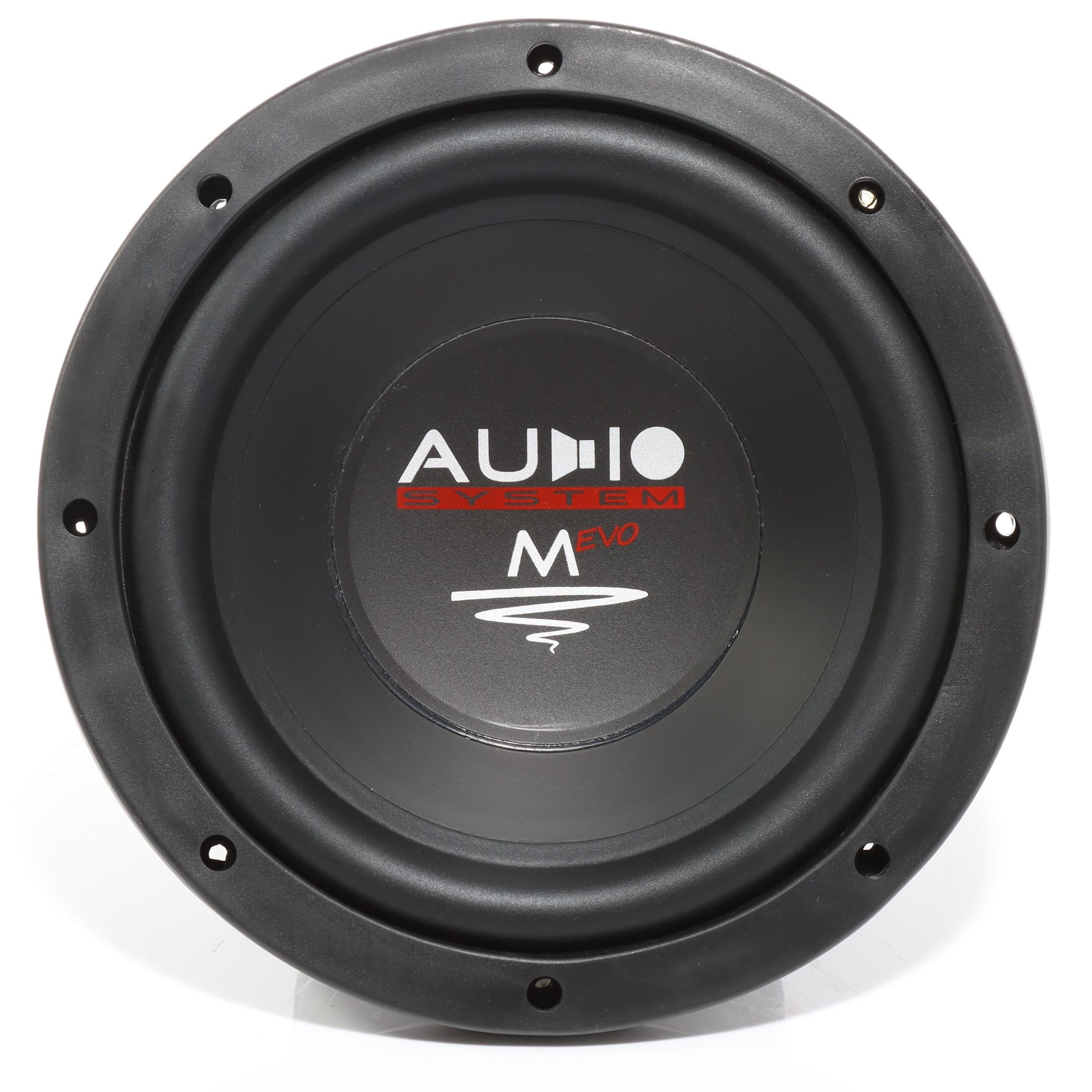

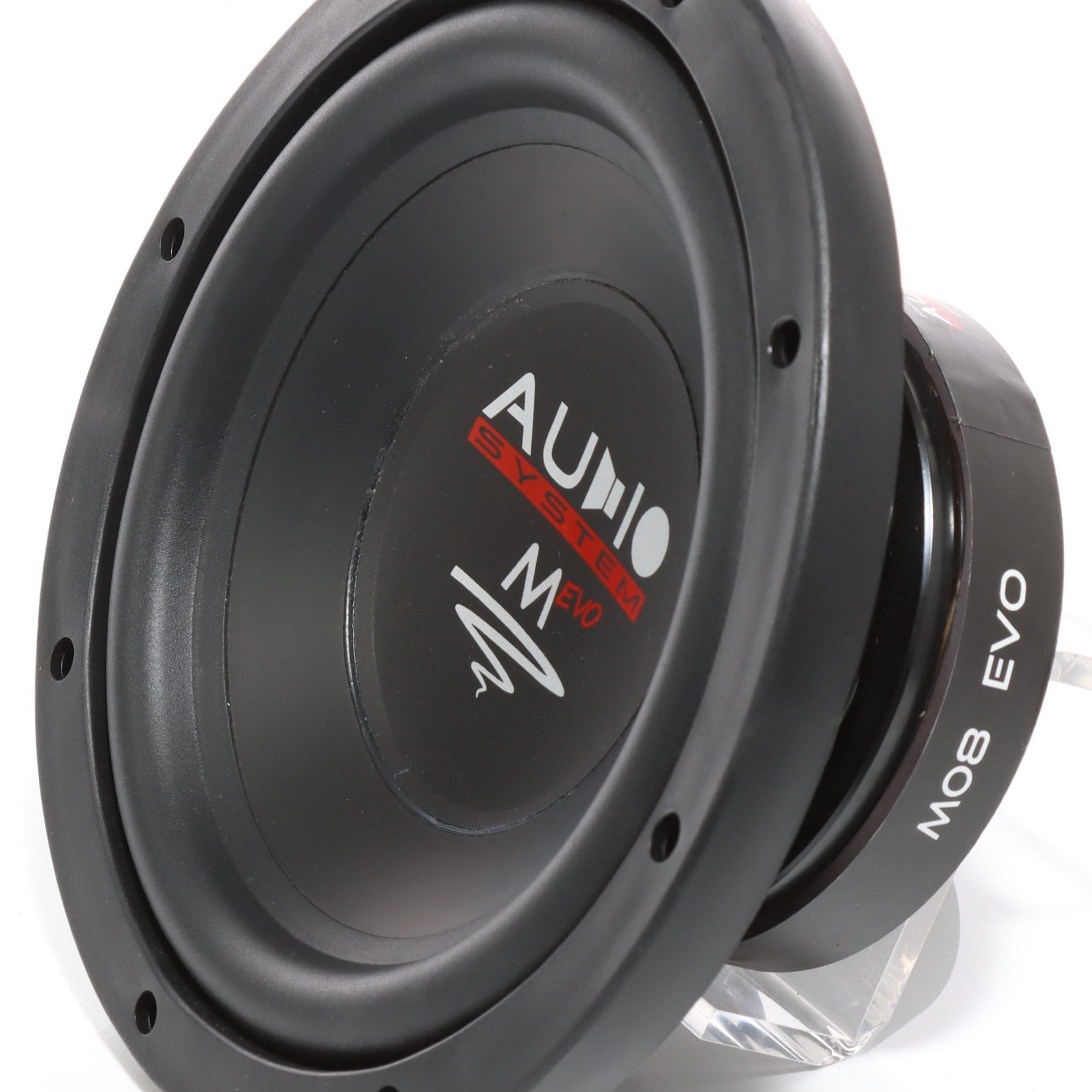

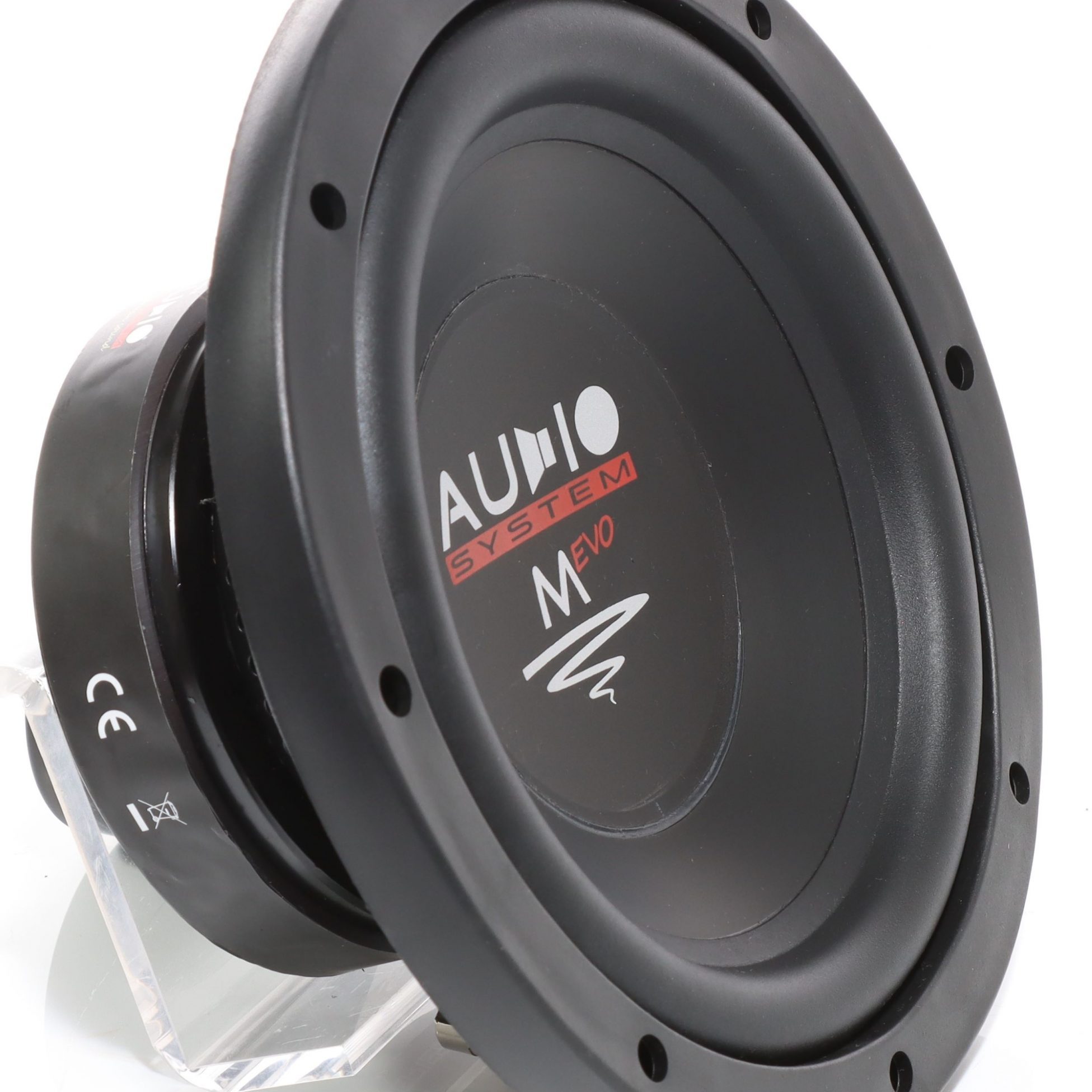

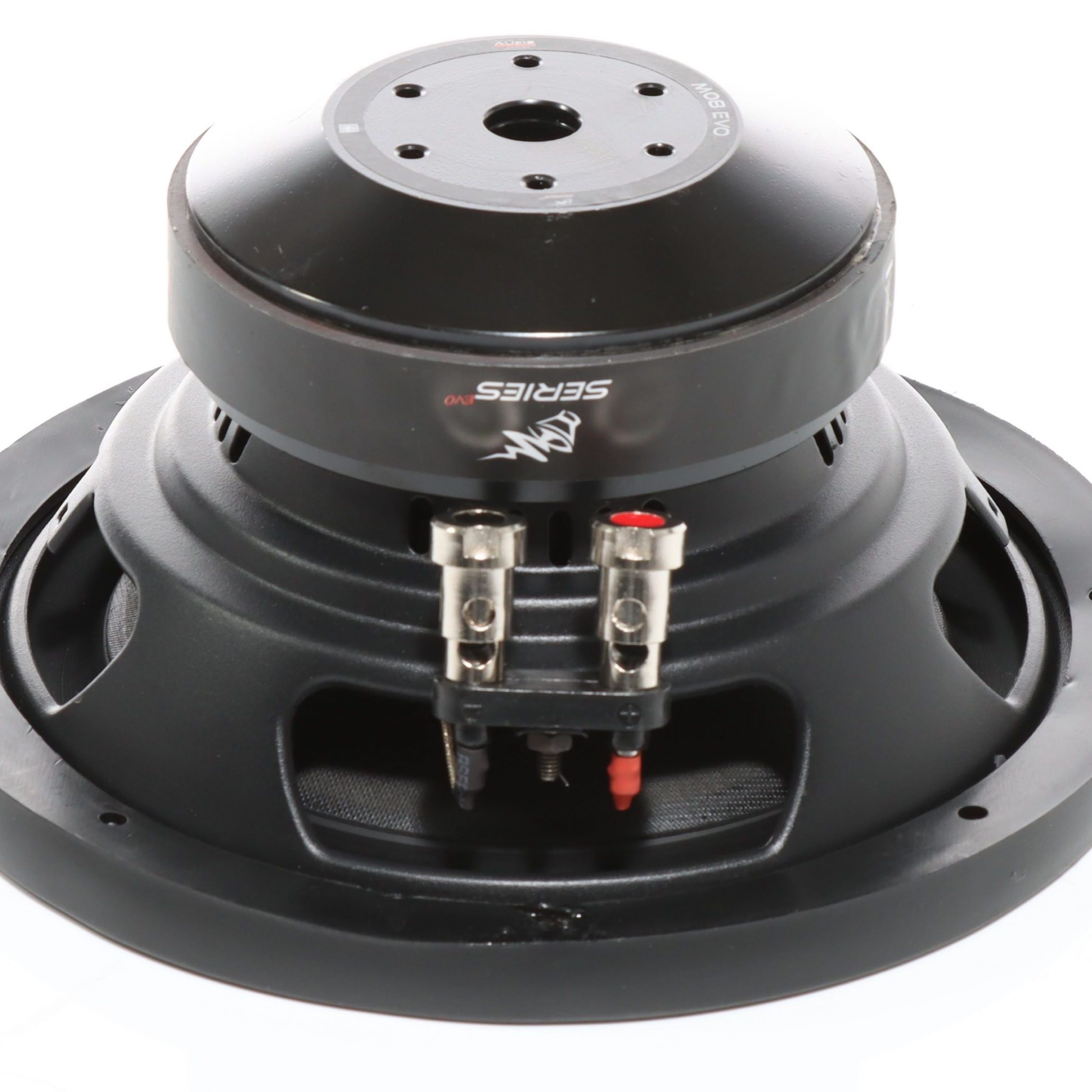

• M-SERIES EVO Woofer
• 200 mm HIGH EFFICIENCY Subwoofer
• 1,5″ voice coil
• gold plated terminals
• multiple ventilation system
• improved T-Joke construction
• HPP cone (high pressed paper cone)
• PPTA connex spider
• pole piece hole
• very stable steelbasket in varnish finish
• reinforced dustcap
• LLE (Long Life Edge)
• magnet protection

• impedance: 4 Ohm
• 300/200 Watt

• installation depth: 100 mm,
• installation Ø: 180 mm
• outer diameter: 214 mm

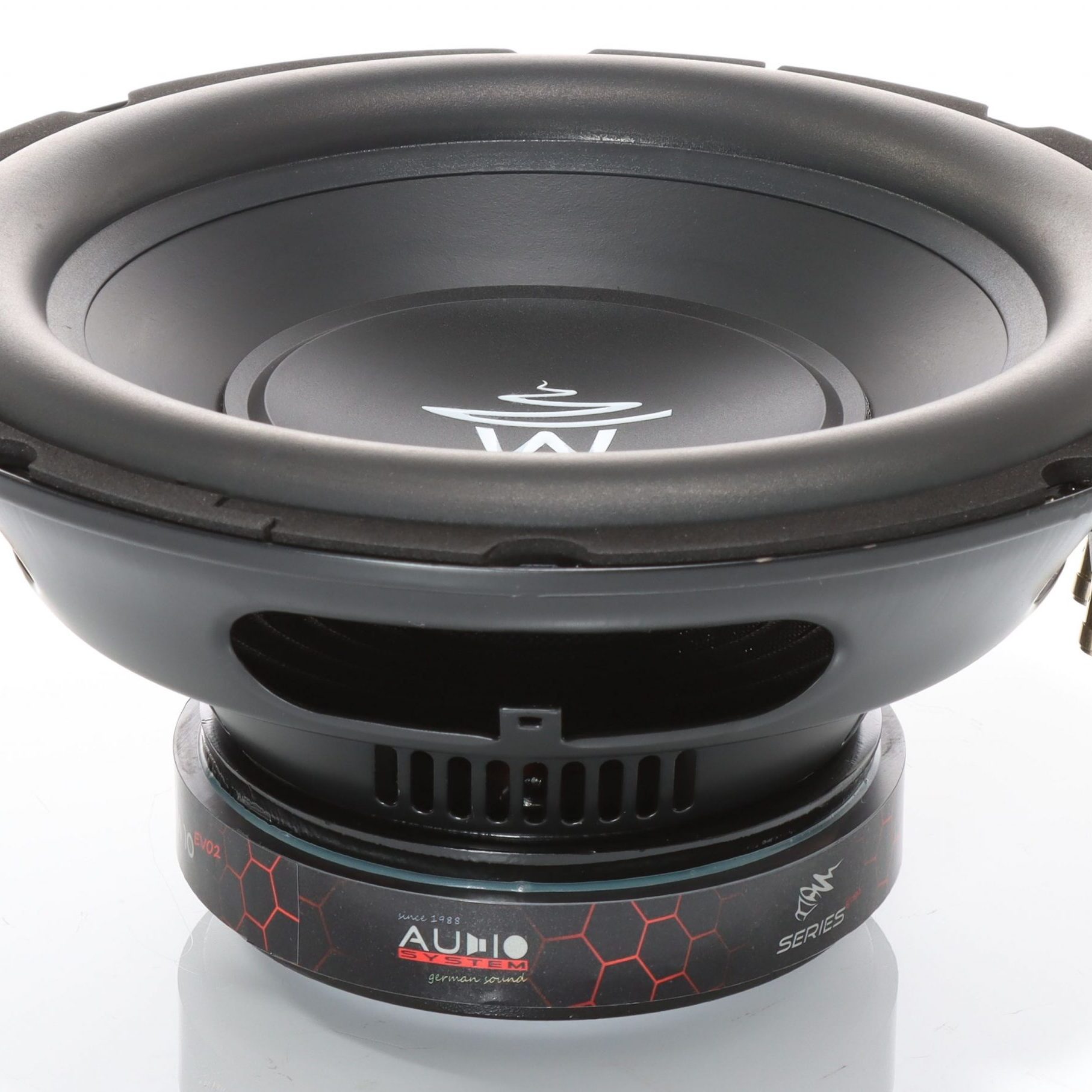

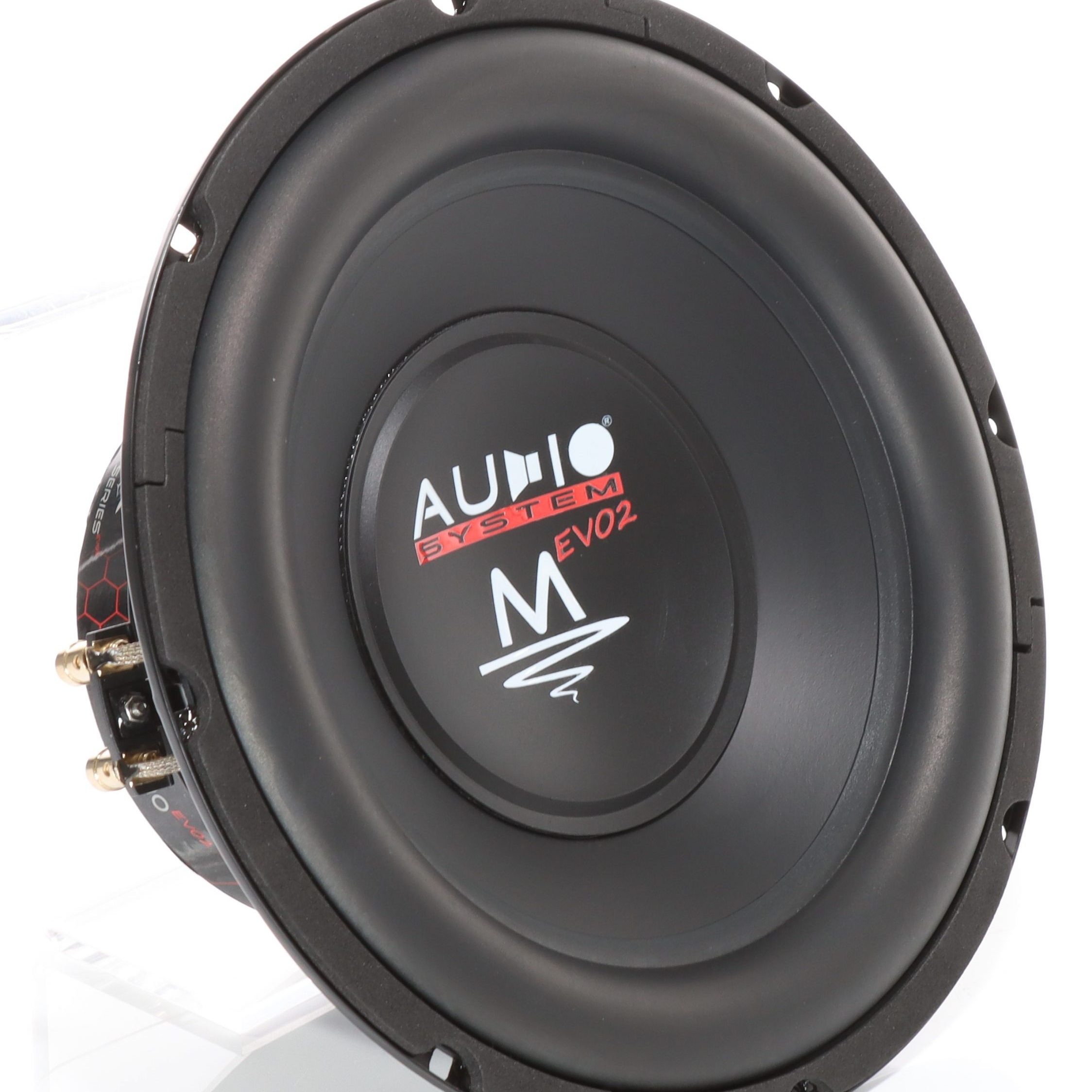

• M-SERIES 250mm HIGH EFFICIENCY Subwoofer
• 2″ voice coil
• gold plated terminals
• multiple ventilation system
• improved T-Joke construction
• HPP cone (high pressed paper cone)
• PPTA connex spider
• pole piece hole
• very stable steelbasket in varnish finish
• reinforced dustcap
• LLE (Long Life Edge)

• impedance: 2×4 Ohm
• 2x 200/150 Watt

• installation depth: 112 mm
• installation Ø: 227 mm
• outer Ø: 263 mm

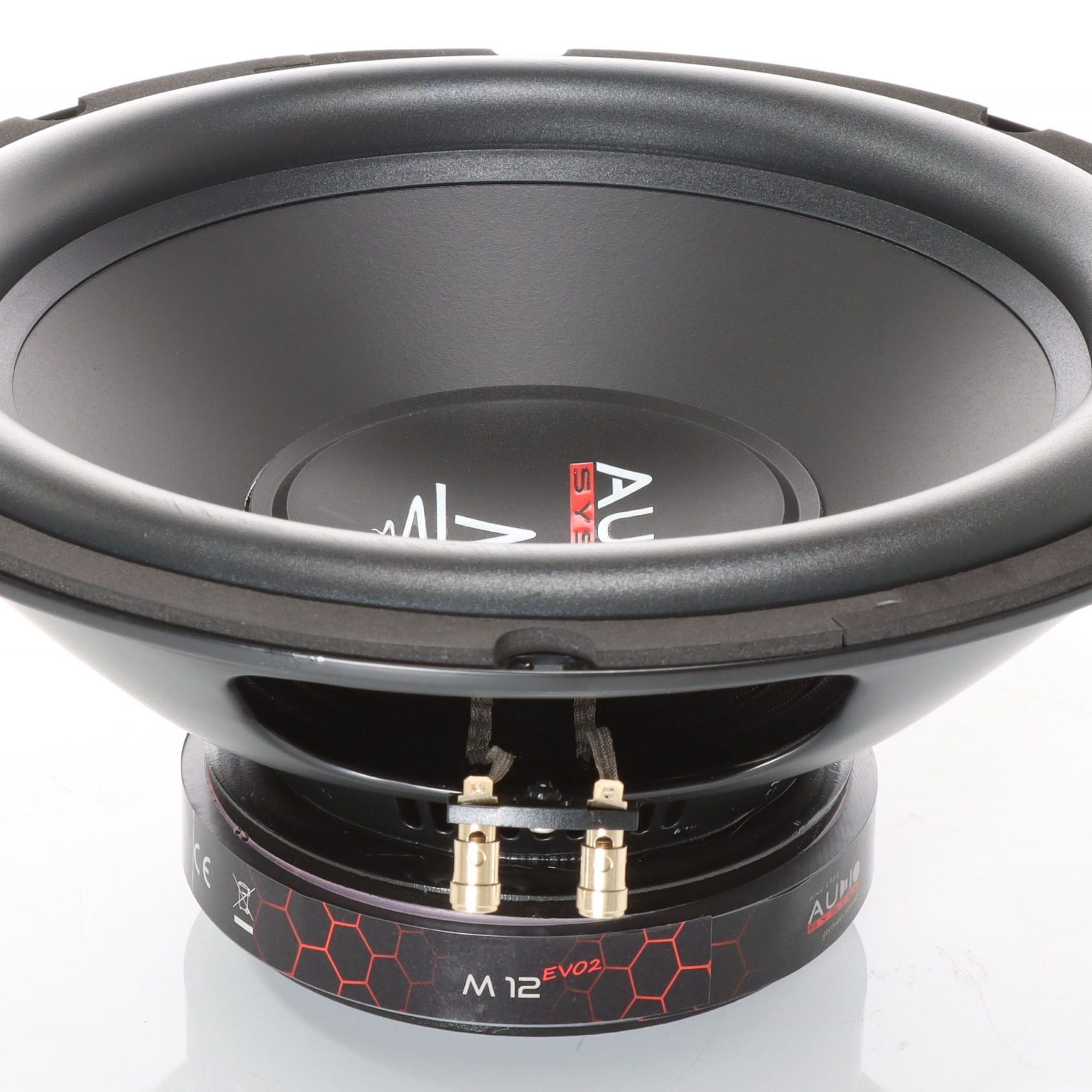

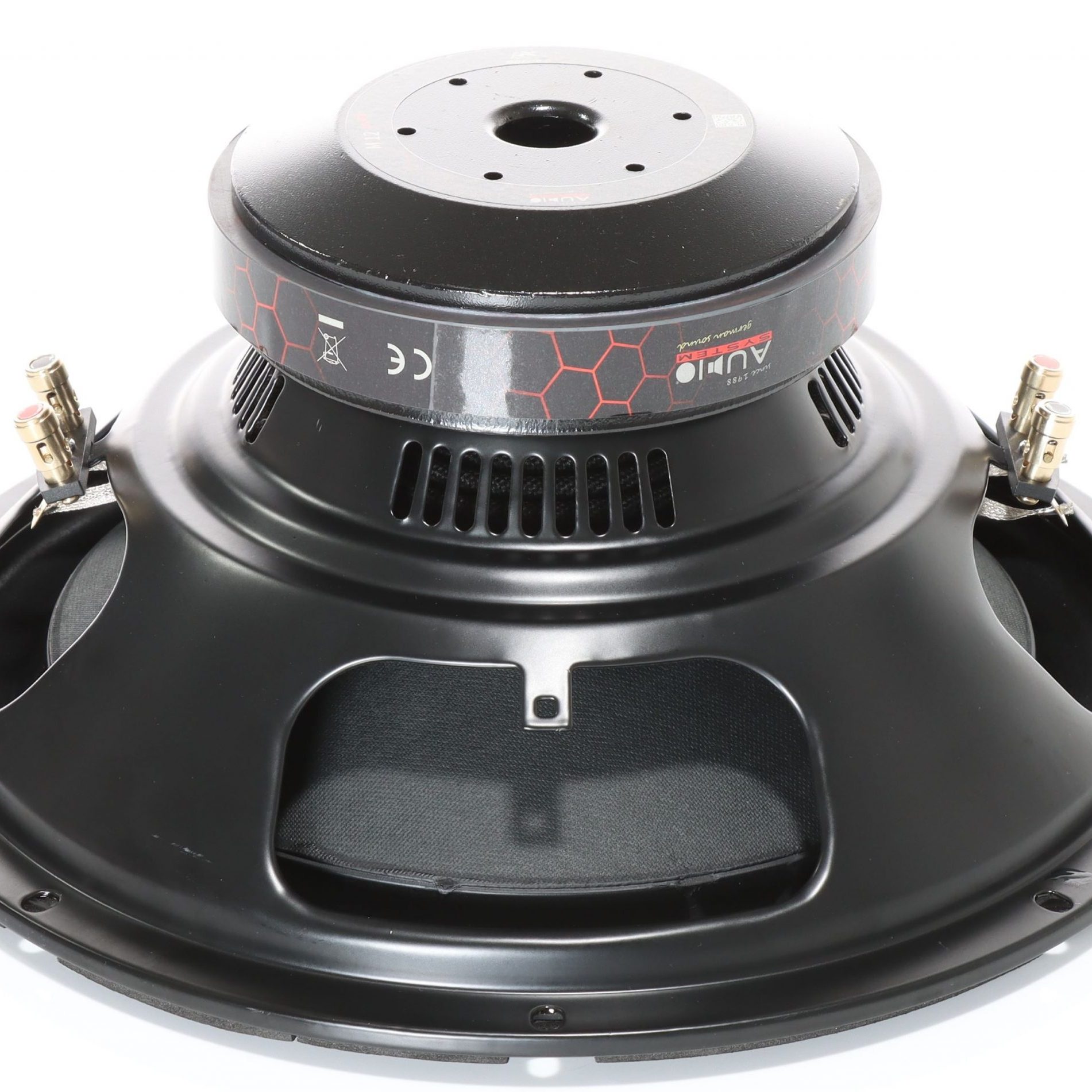

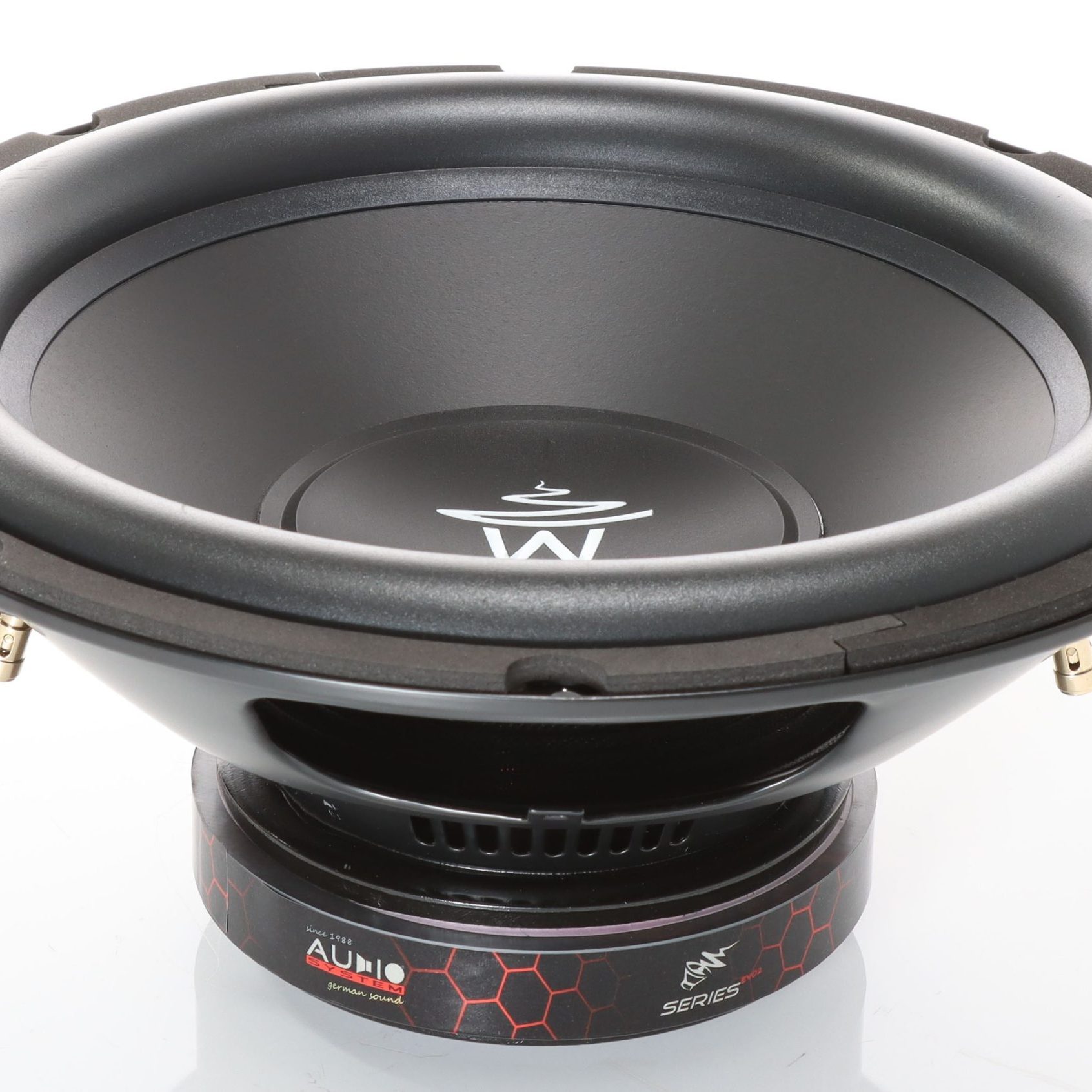

• M-SERIES 300mm HIGH EFFICIENCY Subwoofer
• 2″ voice coil
• gold plated terminals
• multiple ventilation system
• improved T-Joke construction
• HPP cone (high pressed paper cone)
• PPTA connex spider
• pole piece hole
• very stable steelbasket in varnish finish
• reinforced dustcap
• LLE (Long Life Edge)

• impedance: 2×4 Ohm
• 2x 325/250 Watt

• installation depth: 132 mm
• installation Ø: 278 mm
• outer Ø: 320 mm

• M-SERIES EVO 2 SPACE-SAVING

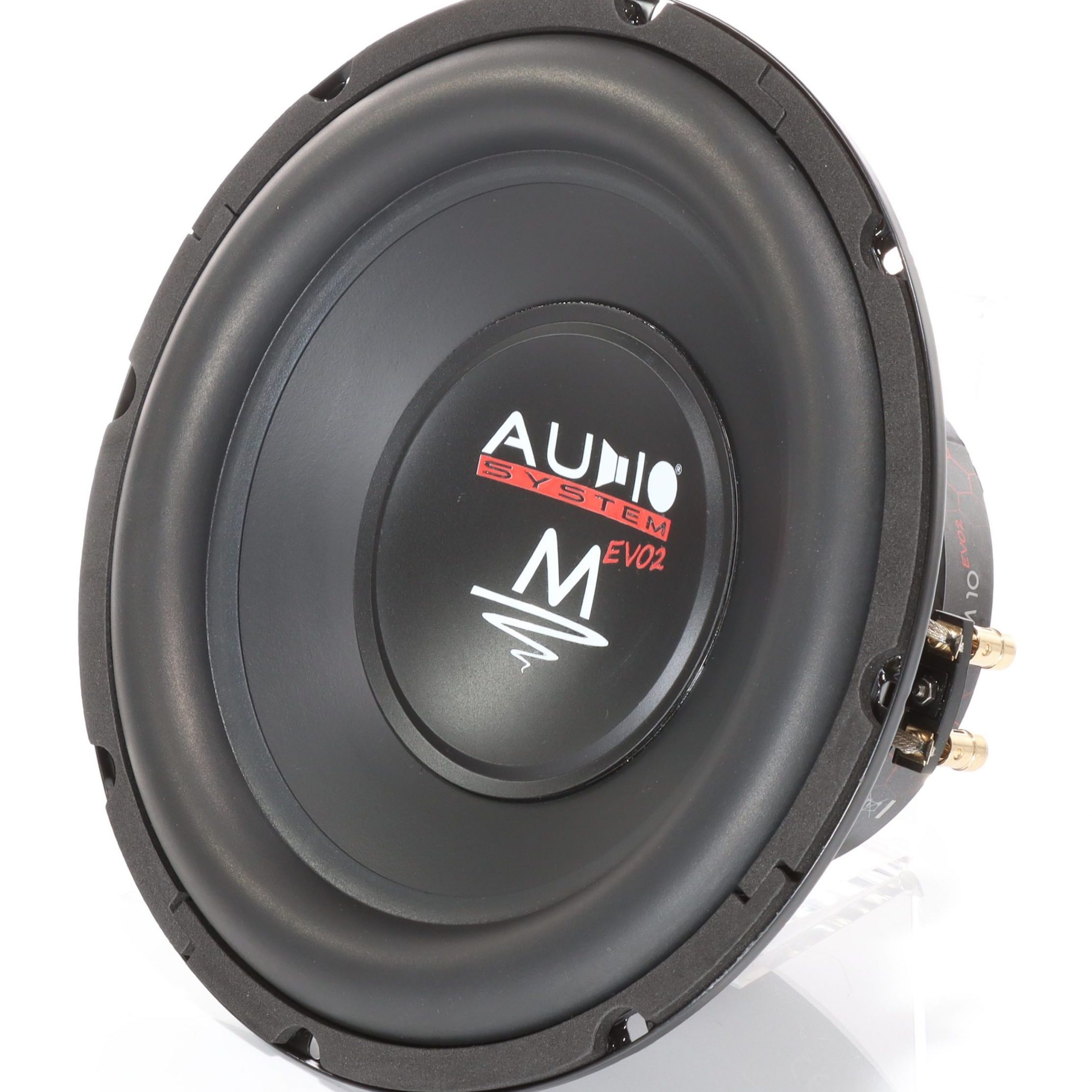

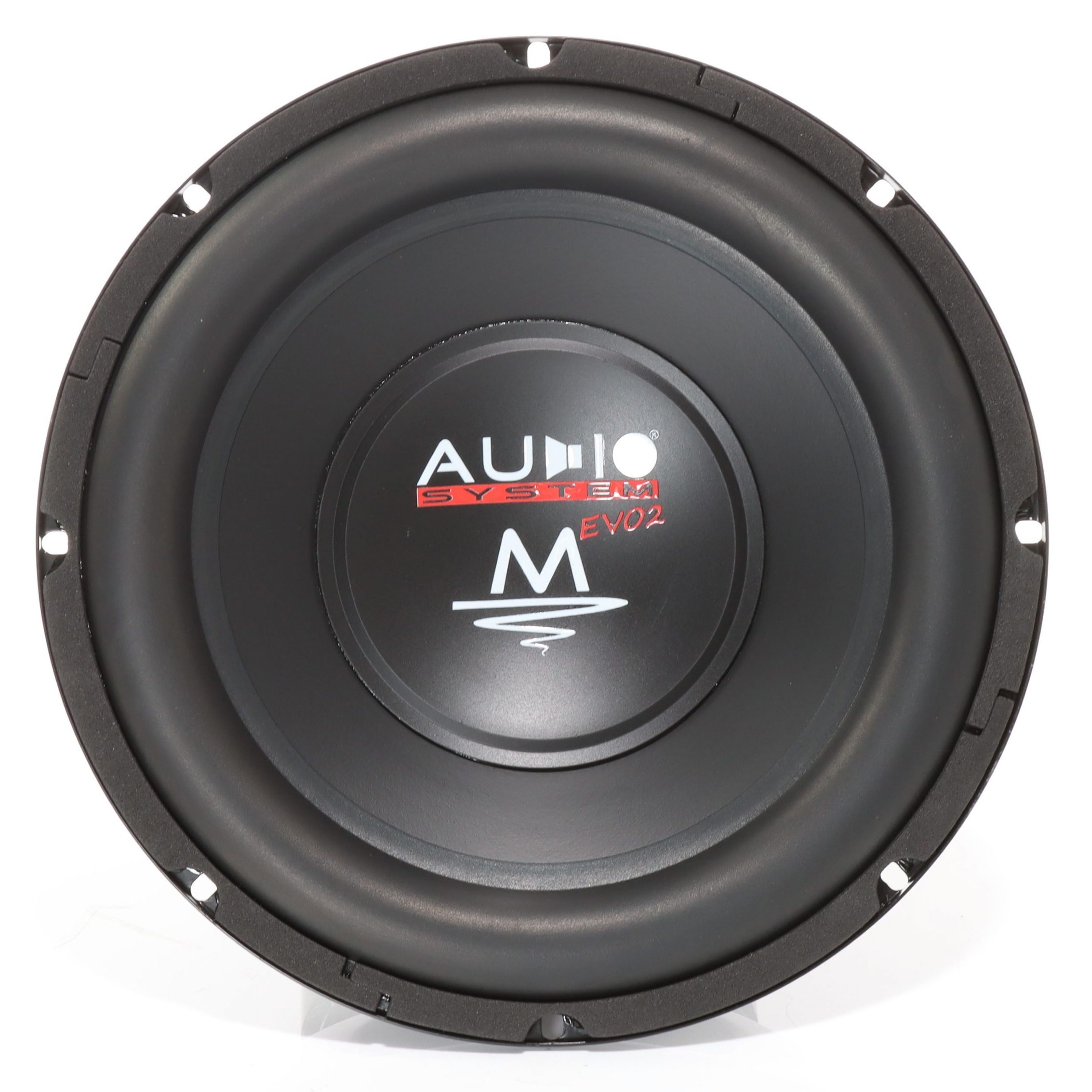

• 10,5 l sealed, space-saving box with M10 EVO2-D4
• very strong box made with MDF + 4x rubber feet

• impedance: 2 Ohm(internal 2x 4Ohm)
• 400/300 Watt

• l = 310 mm · b = 285 mm · h = 164 mm

• M-SERIES EVO 2 SPACE-SAVING
• 10,5 l sealed, space-saving box with SUBFRAME M10 EVO2-D4 GDF + CO-220.1
• very strong box made with MDF + 4x rubber feet

• impedance: 2 Ohm
• 300/220 Watt

• l = 310 mm · b = 285 mm · h = 164 mm

• M-SERIES EVO 2 SPACE-SAVING
• 10,5 l sealed, space-saving box with SUBFRAME M10-2 EVO2-D4 GDF + M-400.1 MD
• very strong box made with MDF + 4x rubber feet

• impedance: 2 Ohm
• 500/400 Watt

• l = 310 mm · b = 285 mm · h = 164 mm

• M-SERIES EVO HIGH EFFICIENCY

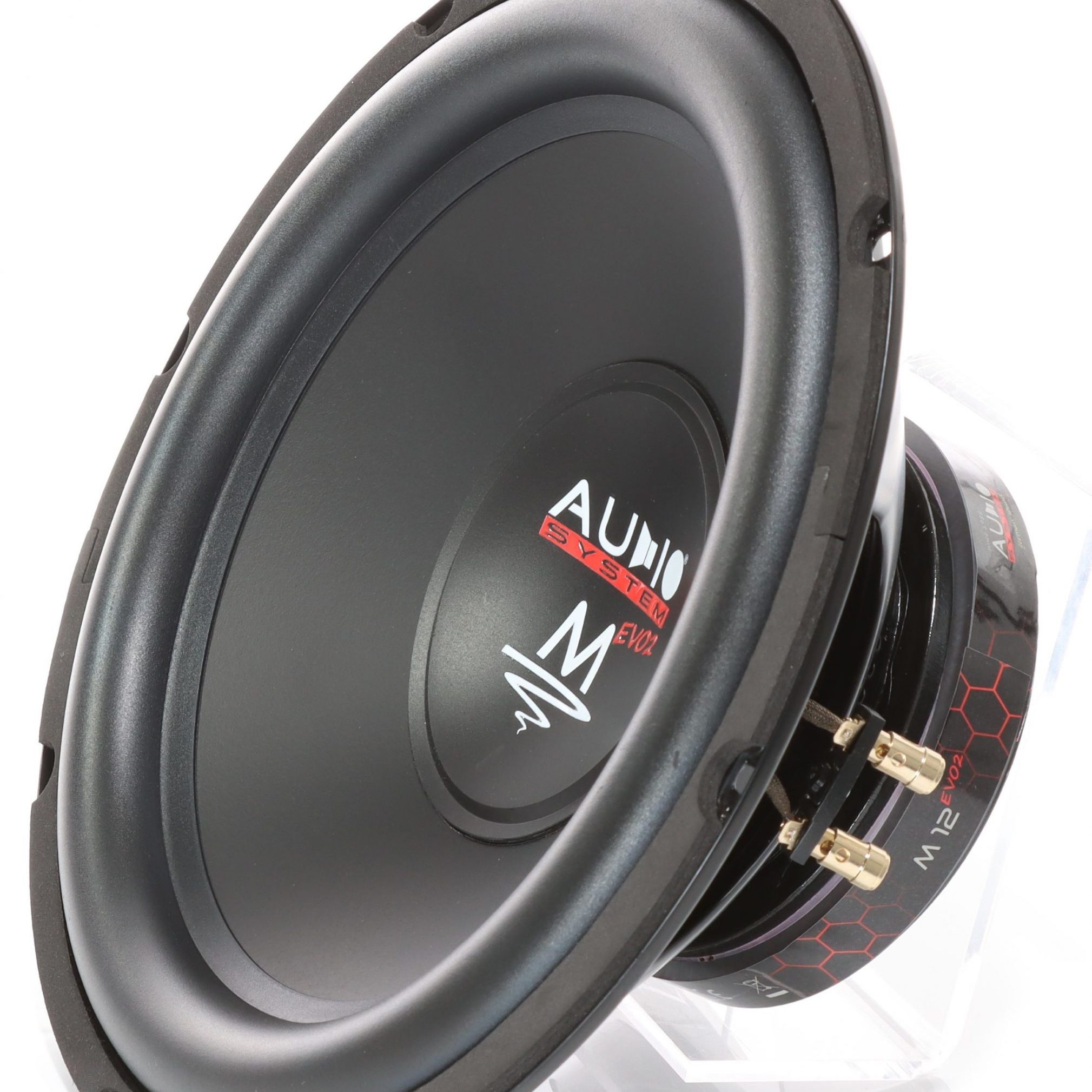

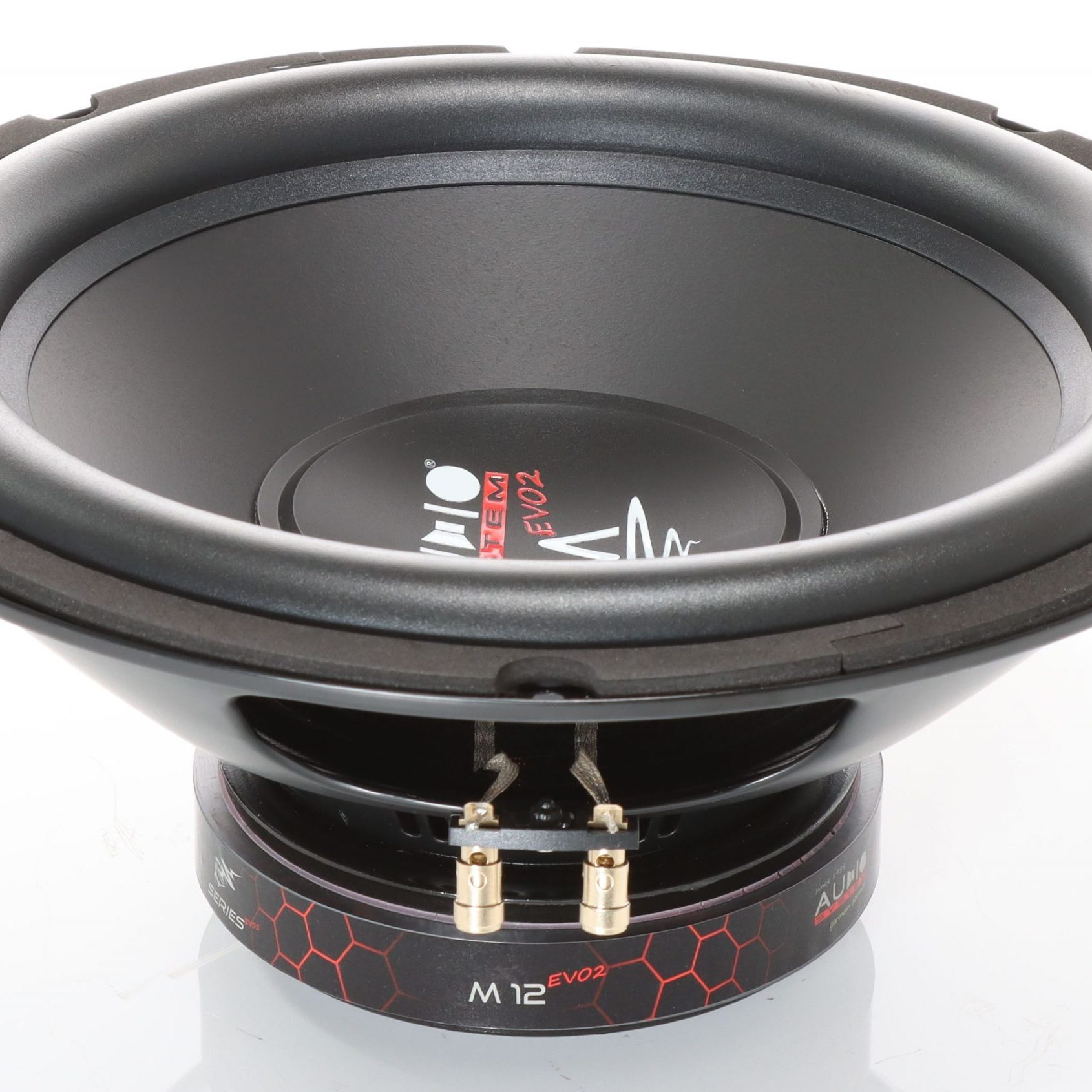

• 50 l vented box with  M12 EVO2-D4
• very strong box made with MDF and 33 mm double front panel

•  l = 620 mm · h = 380 mm · t1 = 260 mm · t2 = 390 mm

• M-SERIES EVO HIGH EFFICIENCY
• 50 l vented box with  M12 EVO2-D4 + CO-220.1
• very strong box made with MDF and 33 mm double front panel

•  l = 620 mm · h = 380 mm · t1 = 260 mm · t2 = 390 mm

• M-SERIES EVO HIGH EFFICIENCY
• 50 l vented box with  M12 EVO2-D4 + M-400.1 MD
• very strong box made with MDF and 33 mm double front panel

•  l = 620 mm · h = 380 mm · t1 = 260 mm · t2 = 390 mm

• M-SERIES EVO HIGH EFFICIENCY
• 30 l vented box with M10 EVO2-D4
• very strong box made with MDF and 33 mm double front panel

•  l = 550 mm · h = 360 m · t1 = 180 mm · t2 = 330 mm

• M-SERIES EVO HIGH EFFICIENCY
• 30 l vented box with M10 EVO2-D4 + CO-220.1
• very strong box made with MDF and 33 mm double front panel

•  l = 550 mm · h = 360 m · t1 = 180 mm · t2 = 330 mm

• M-SERIES EVO HIGH EFFICIENCY
• 30 l vented box with M10 EVO2-D4 + M-400.1 MD
• very strong box made with MDF and 33 mm double front panel

•  l = 550 mm · h = 360 m · t1 = 180 mm · t2 = 330 mm

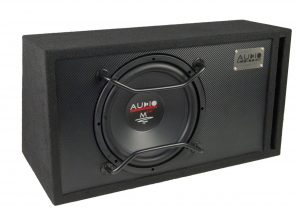

• M-SERIES EVO HIGH EFFICIENCY
• 50 l vented box with CARBON front design
• very strong box made with MDF and 33 mm double front panel

• Impedance: 4 Ohm
• 650/500 Watt

•  l = 620 mm · h = 380 mm · t1 = 260 mm · t2 = 390 mm

• M12 EVO2 BR + CO-220.1D

• Impedance: 4 Ohm
• 350/150 Watt

• M12 EVO2 BR + M-400.1 MD

• Impedance: 4 Ohm
• 450/200 Watt

COMING SOON!!!

• M-SERIES EVO HIGH EFFICIENCY
• 30 l vented box with CARBON front design
• very strong box made with MDF and 33 mm double front panel

• Impedance: 4 Ohm
• 400/300 Watt

•  l = 550 mm · h = 360 m · t1 = 180 mm · t2 = 330 mm

COMING SOON!!!

• M10 EVO2 BR + CO-220.1D

• Impedance: 4 Ohm
• 250/150 Watt

COMING SOON!!!

• M10 EVO2 BR + M-400.1 MD

• Impedance: 4 Ohm
• 400/200 Watt

• M-SERIES EVO HIGH EFFICIENCY
• 15 l vented box with M08 EVO and CARBON front design
• very strong box made with MDF and 33 mm double front panel

• impedance: 4 Ohm
• 300/200 Watt

• l = 370 mm
• h = 280 mm
• depth 1 = 210 mm
• depth 2 = 310 mm

COMING SOON!!!

• M08 EVO2 BR + CO-220.1 + Z-AD TERMINAL4

• Impedance: 4 Ohm
• 250/150 Watt

COMING SOON!!!

• M08 EVO2 BR + M-400.1 MD + Z-AD TERMINAL4

• Impedance: 4 Ohm
• 400/200 Watt

• M-SERIES EVO HIGH EFFICIENCY
• 2x 30 l vented box BR10-2 EVO + 2x M10 EVO2
• very strong box made with MDF and 25 mm front panel

• Impedance: 2x 4 Ohm
• 2x 400/300 Watt

• l = 760 mm · h = 360 mm · t1 = 240 mm · t2 = 370 mm

• M10 EVO2 BR-2 + CO-220.1D

• Impedanz: 2 Ohm
• 400/220 Wat

• M10 EVO2 BR-2 + M-400.1 MD

• Impedanz: 2 Ohm
• 700/400 Wat

• M-SERIES EVO HIGH EFFICIENCY
• 2x 42 l vented box BR12-2 EVO + 2x M12 EVO2
• very strong box made with MDF and 25 mm front panel

• Impedance: 2x 4 Ohm
• 2x 650/500 Watt

•  l = 880 mm · h = 360 mm · t1 = 340 mm · t2 = 470 m

• M12 EVO2 BR-2 + CO-220.1

• Impedanz: 2 Ohm
• 450/220 Watt

• M12 EVO2 BR-2 + M-400.1 MD

• Impedanz: 2 Ohm
• 750/400 Watt
