EMPTY BOXES

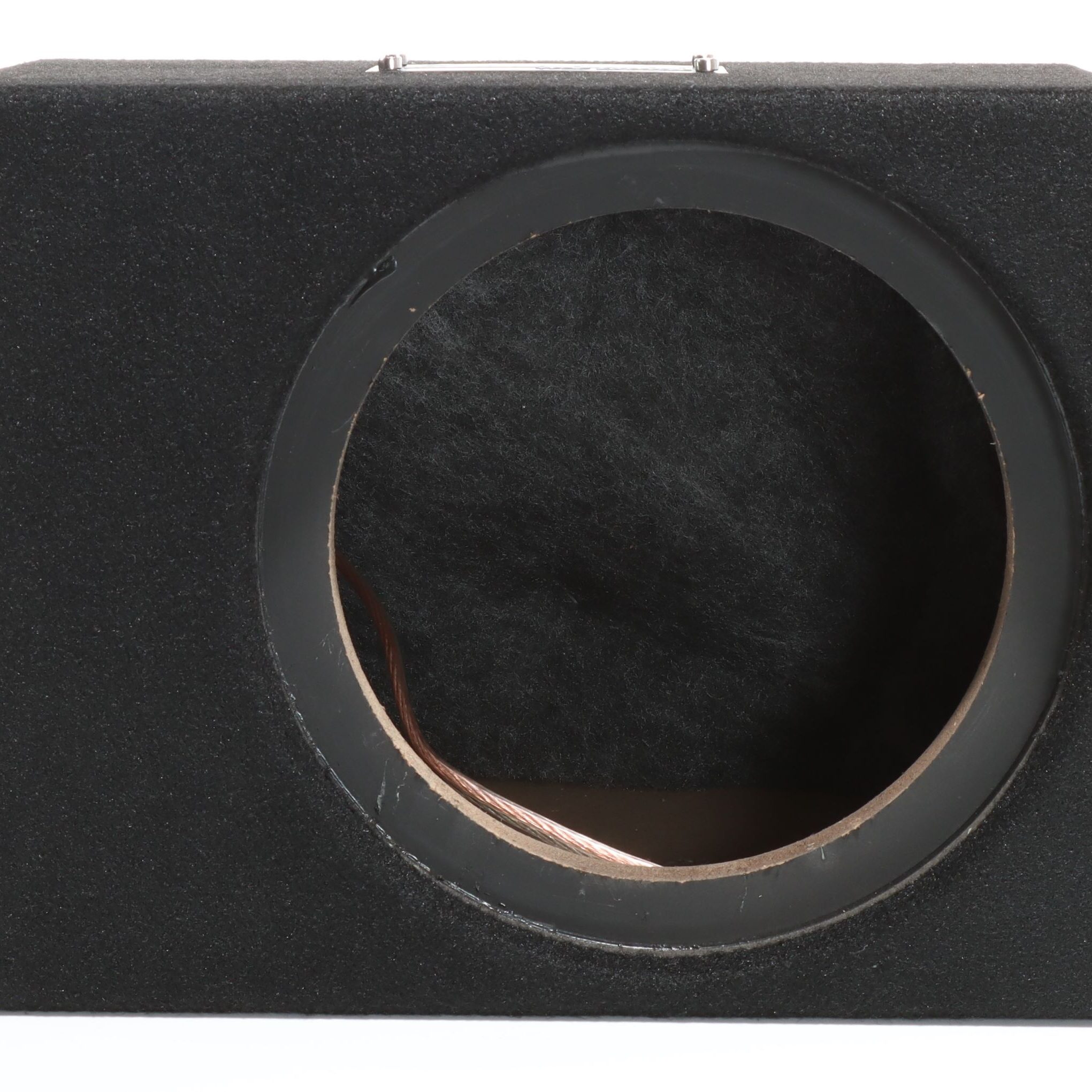

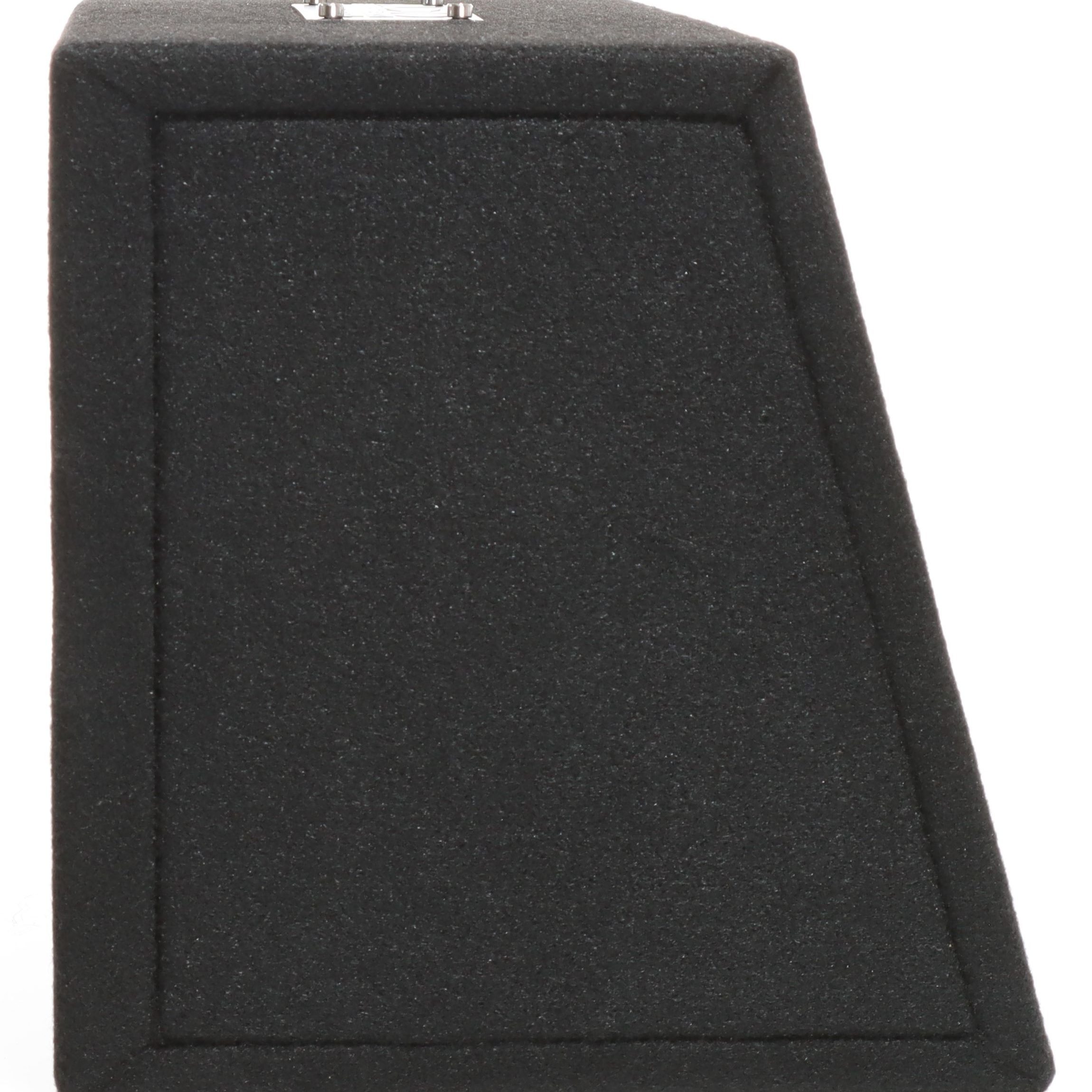

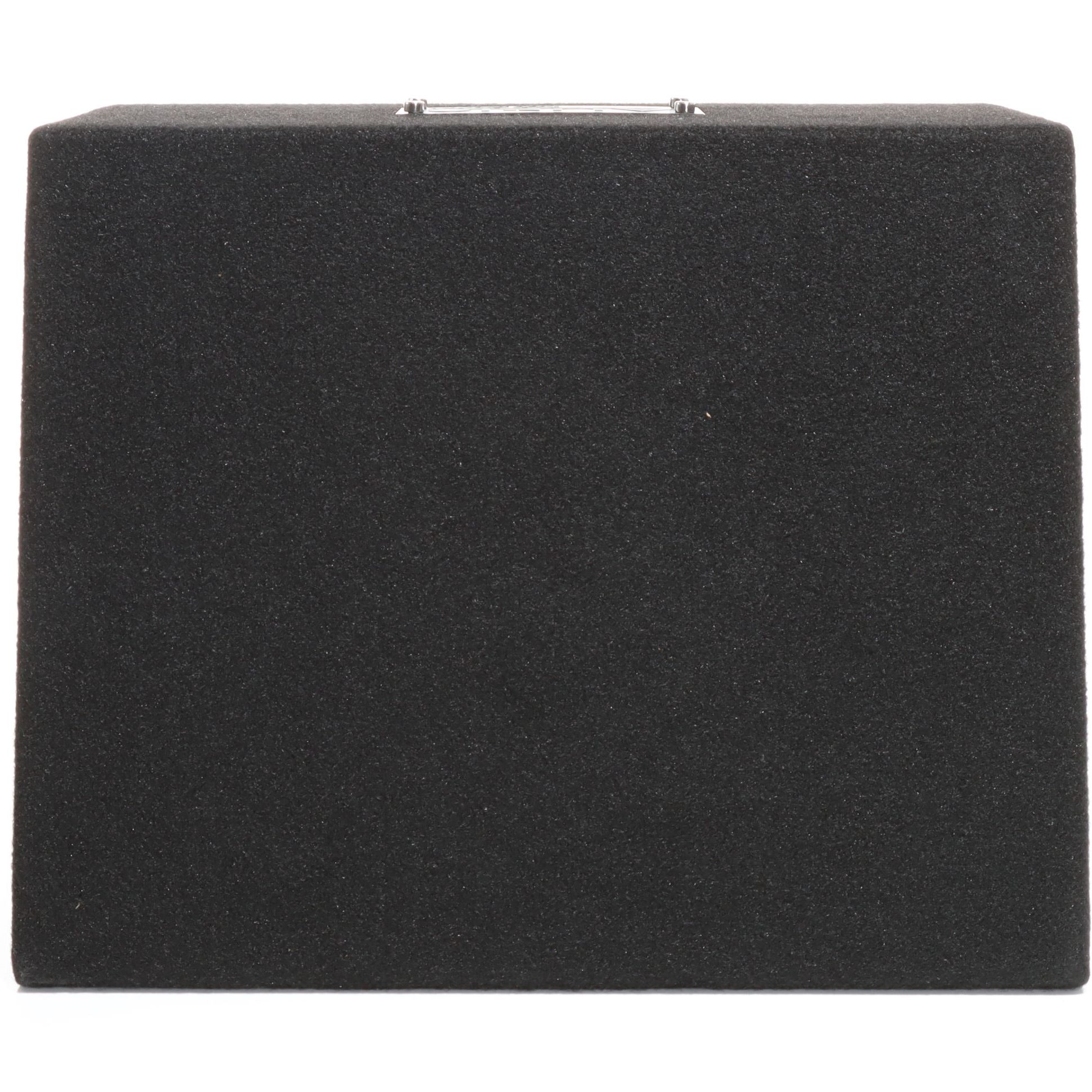

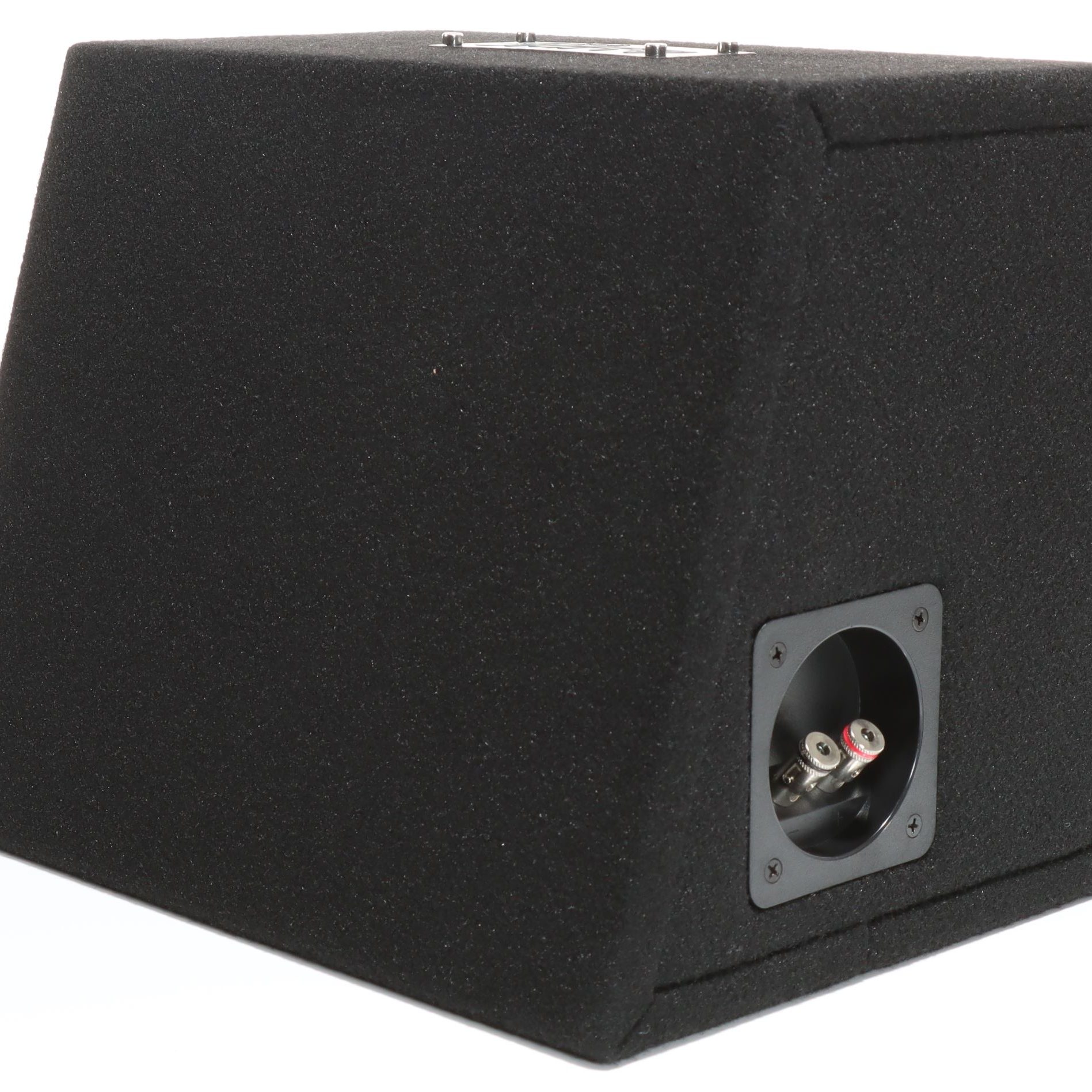

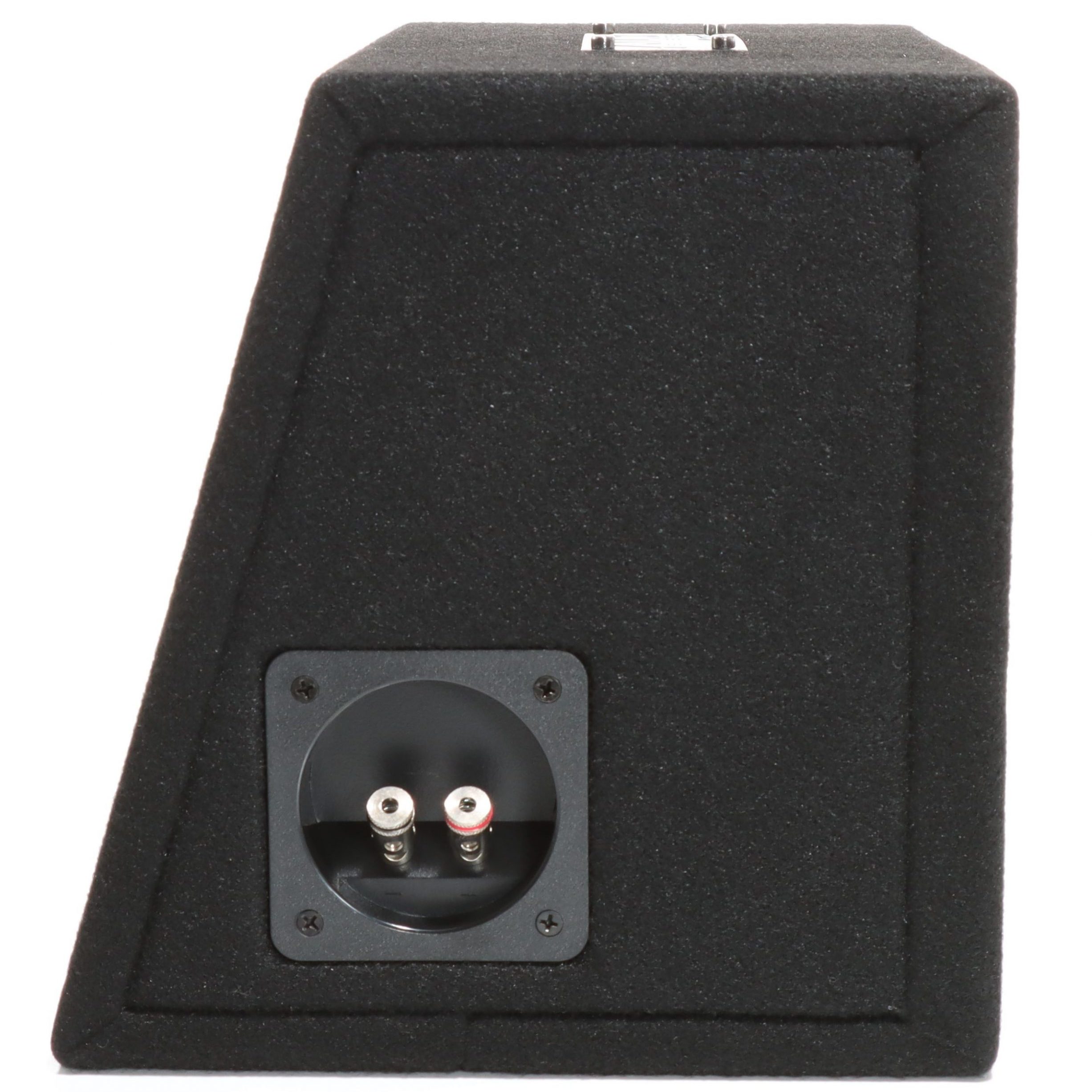

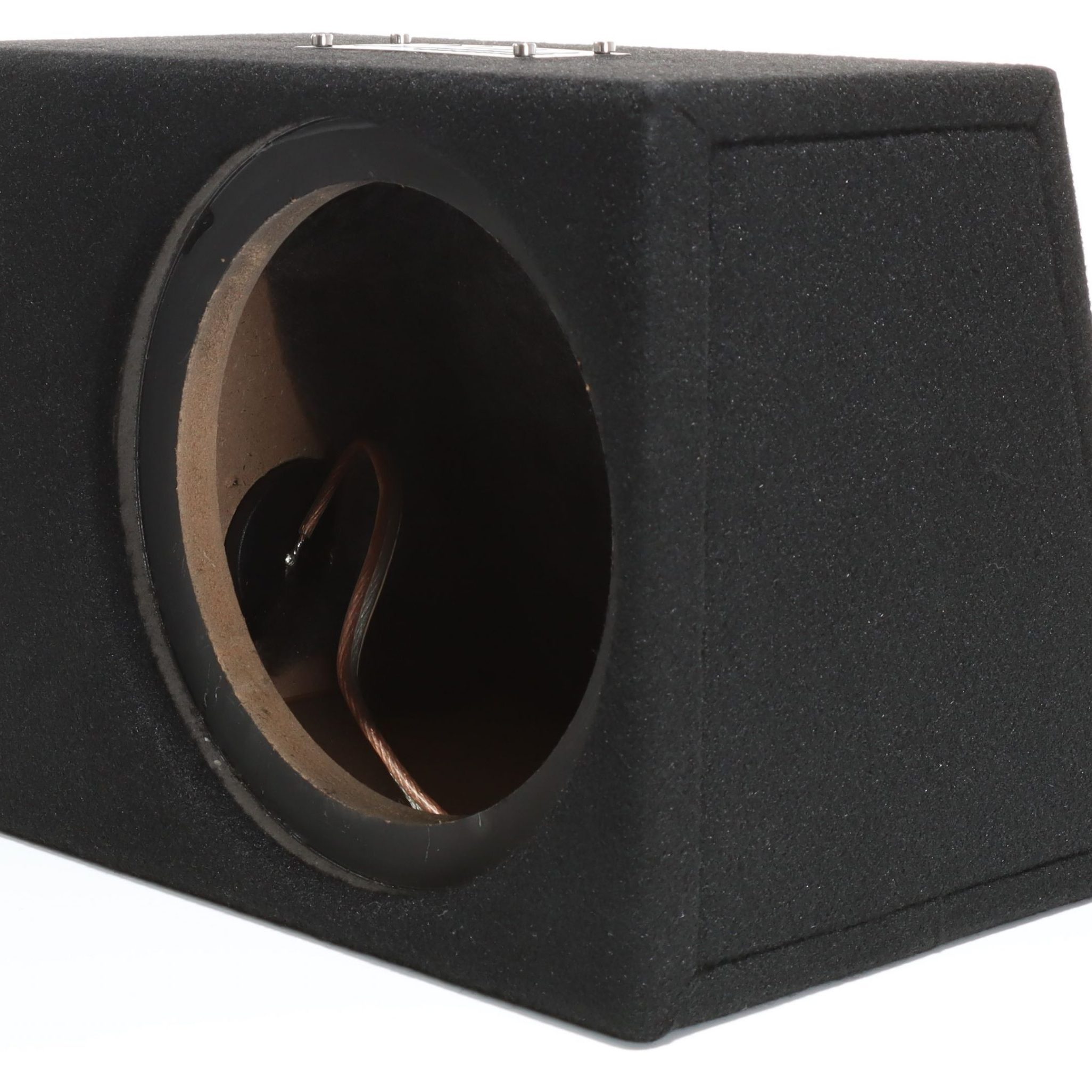

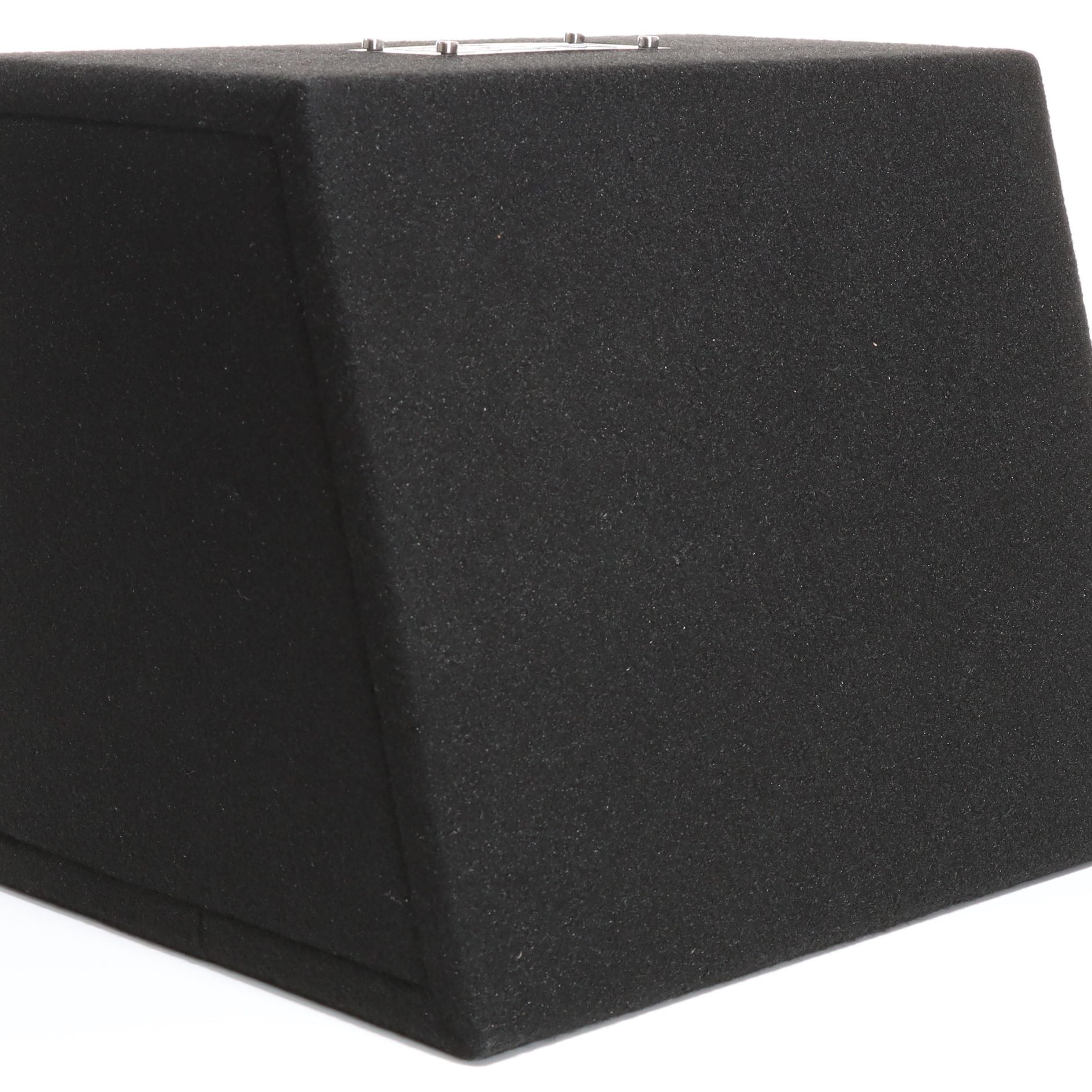

G 08 EVO

Description

  • AUDIO SYSTEM Empty Box
  • sealed box with 10 Liter for 20 cm Bass
  • 16 mm MDF box with terminal and 36 mm double-front panel

Dimensions

  • hole circle: 17,9 cm
  • size: l= 320 mm
  • h= 250 mm
  • t1= 170 mm
  • t2= 240 mm

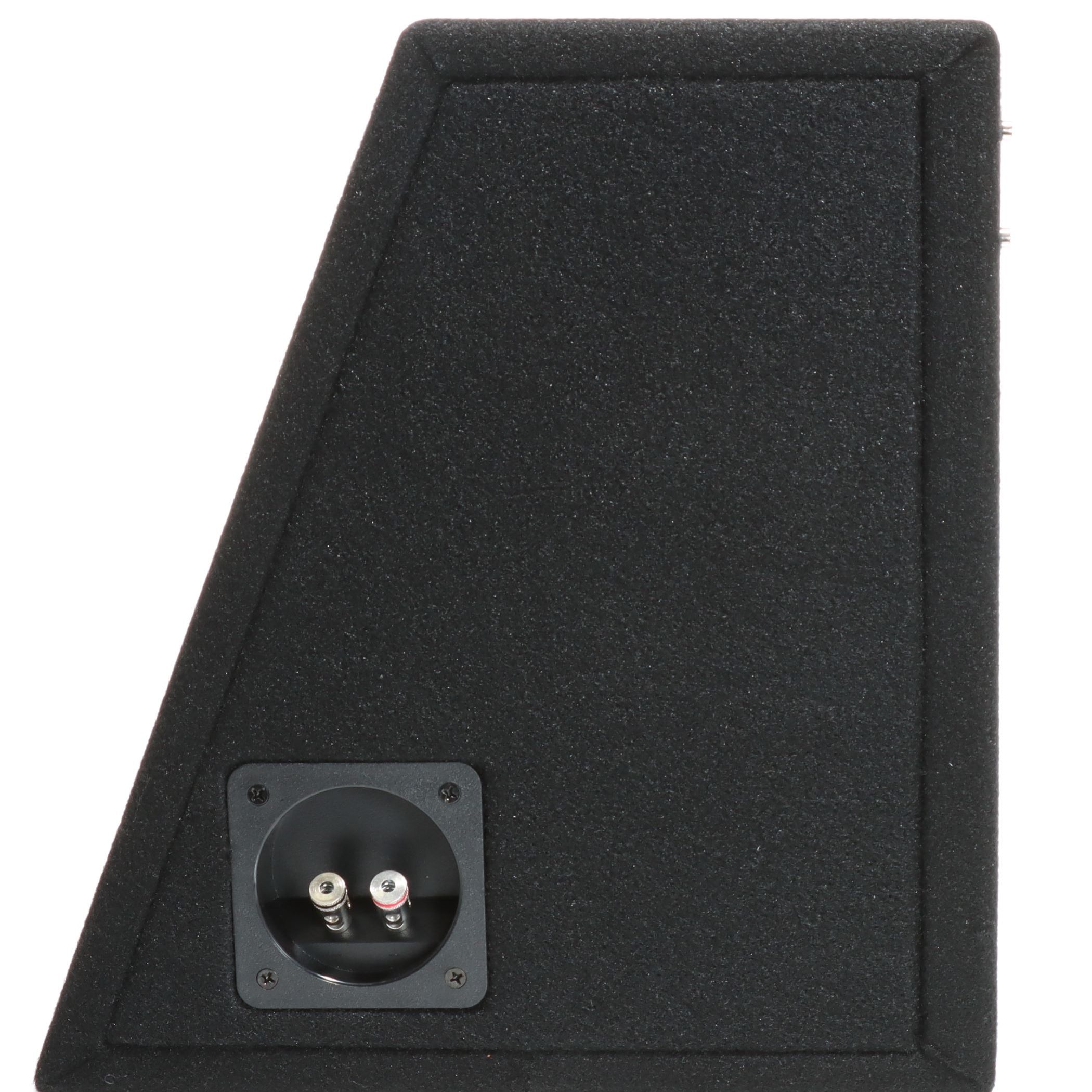

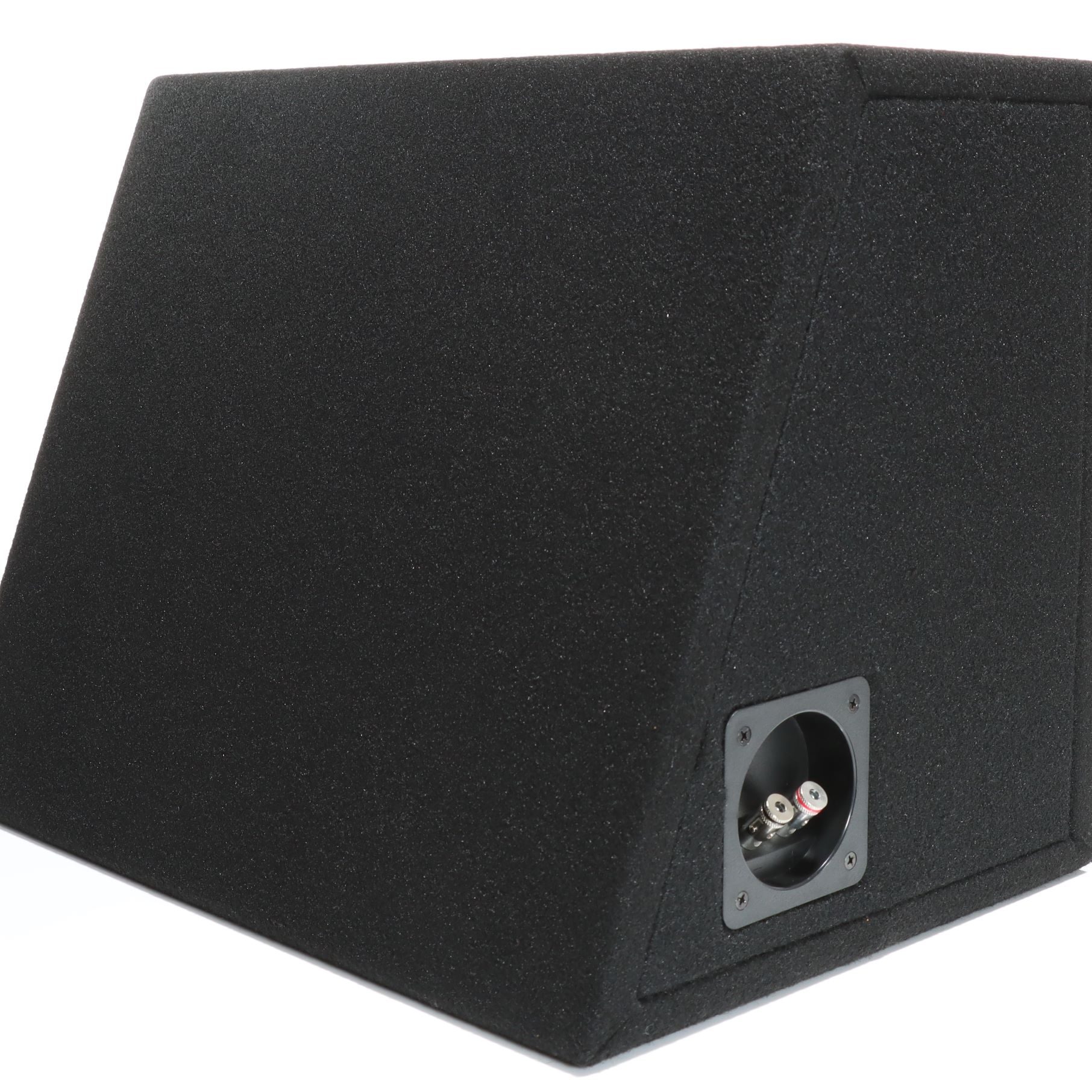

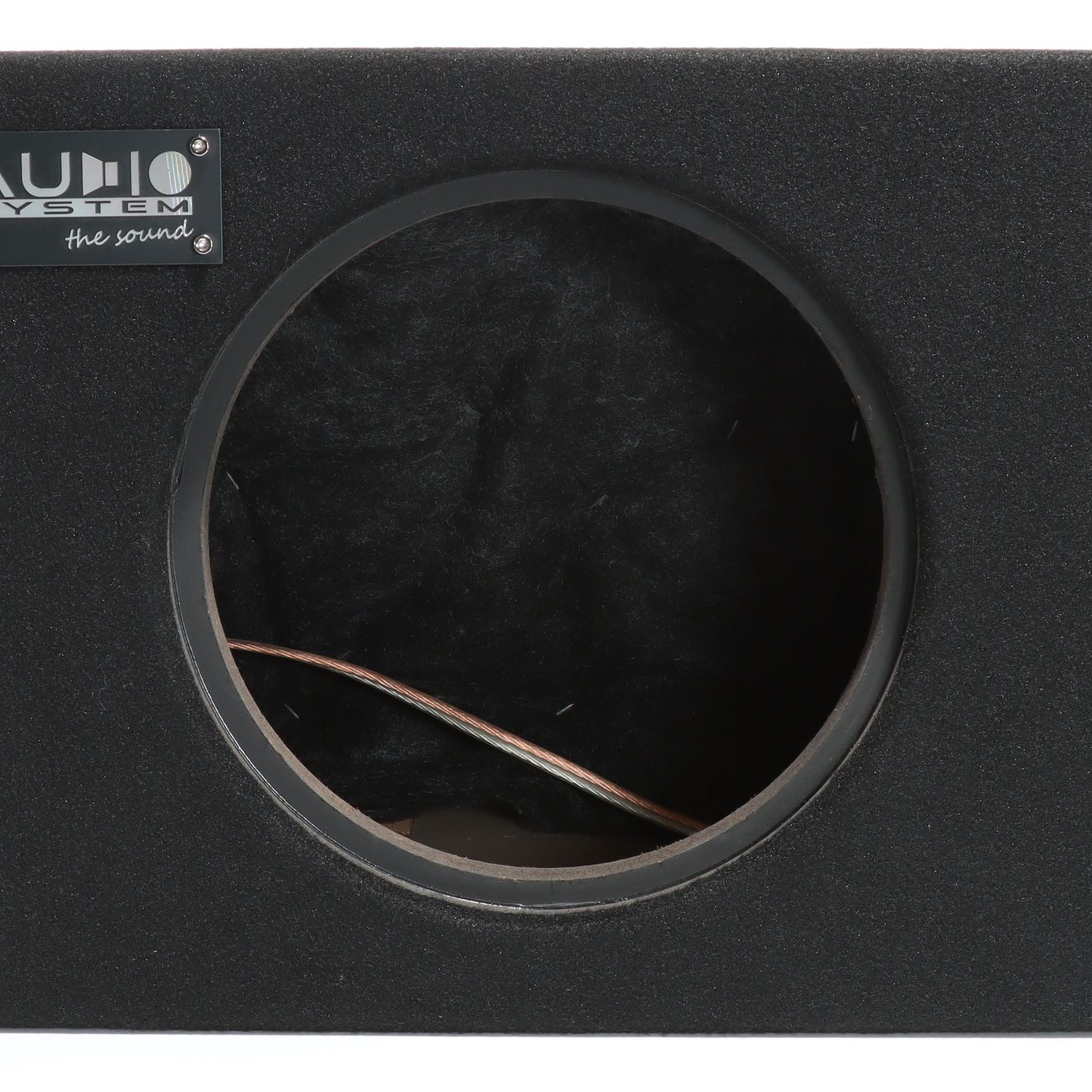

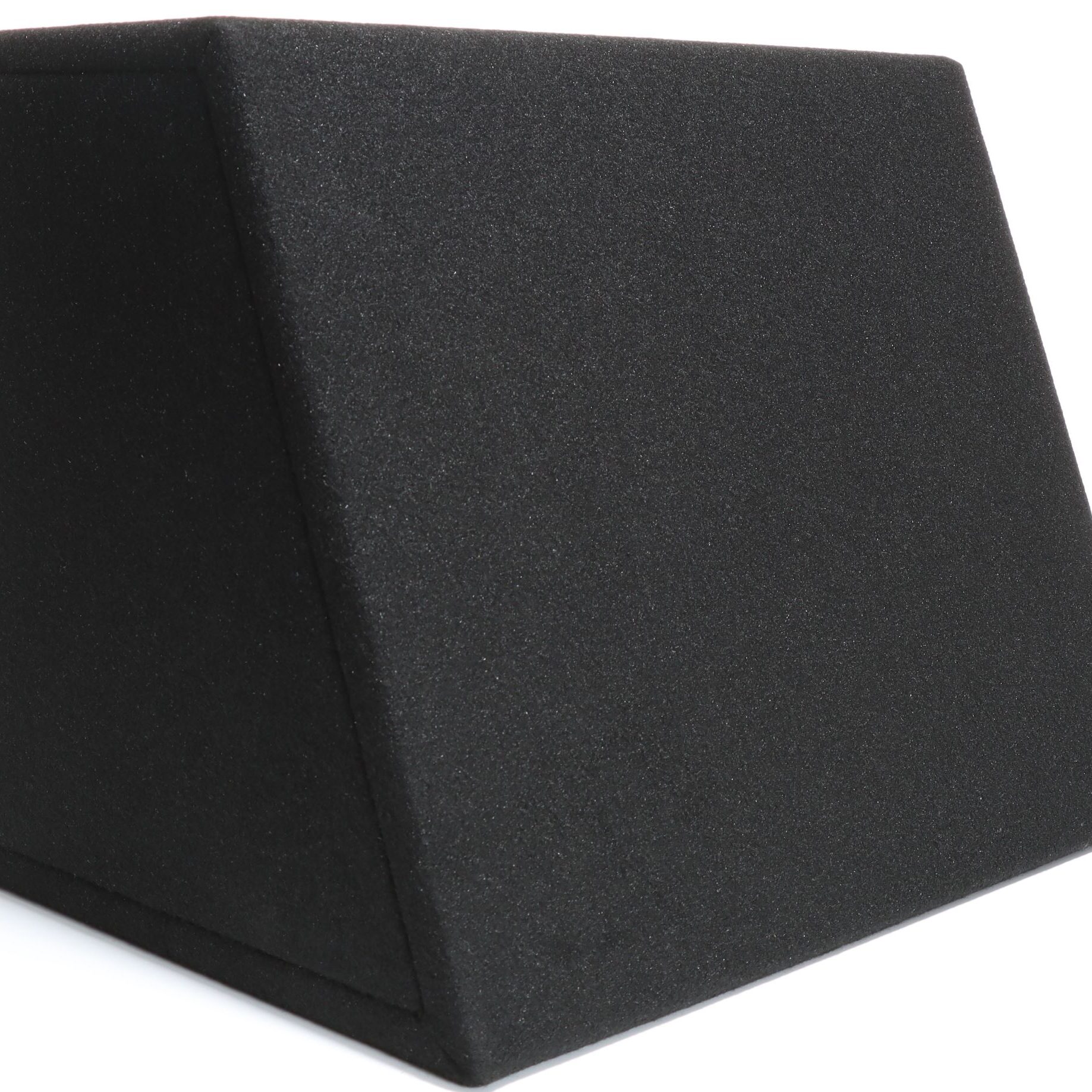

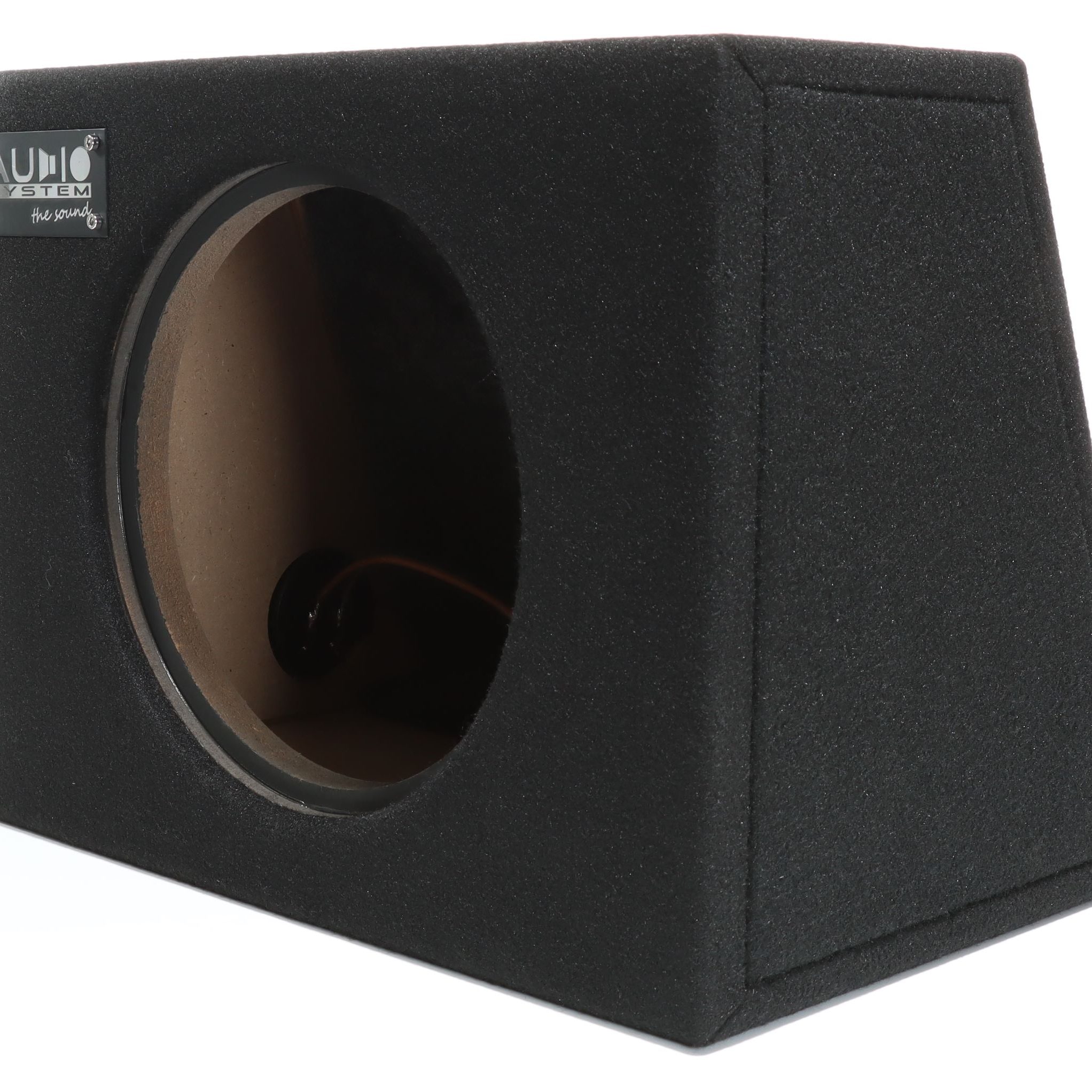

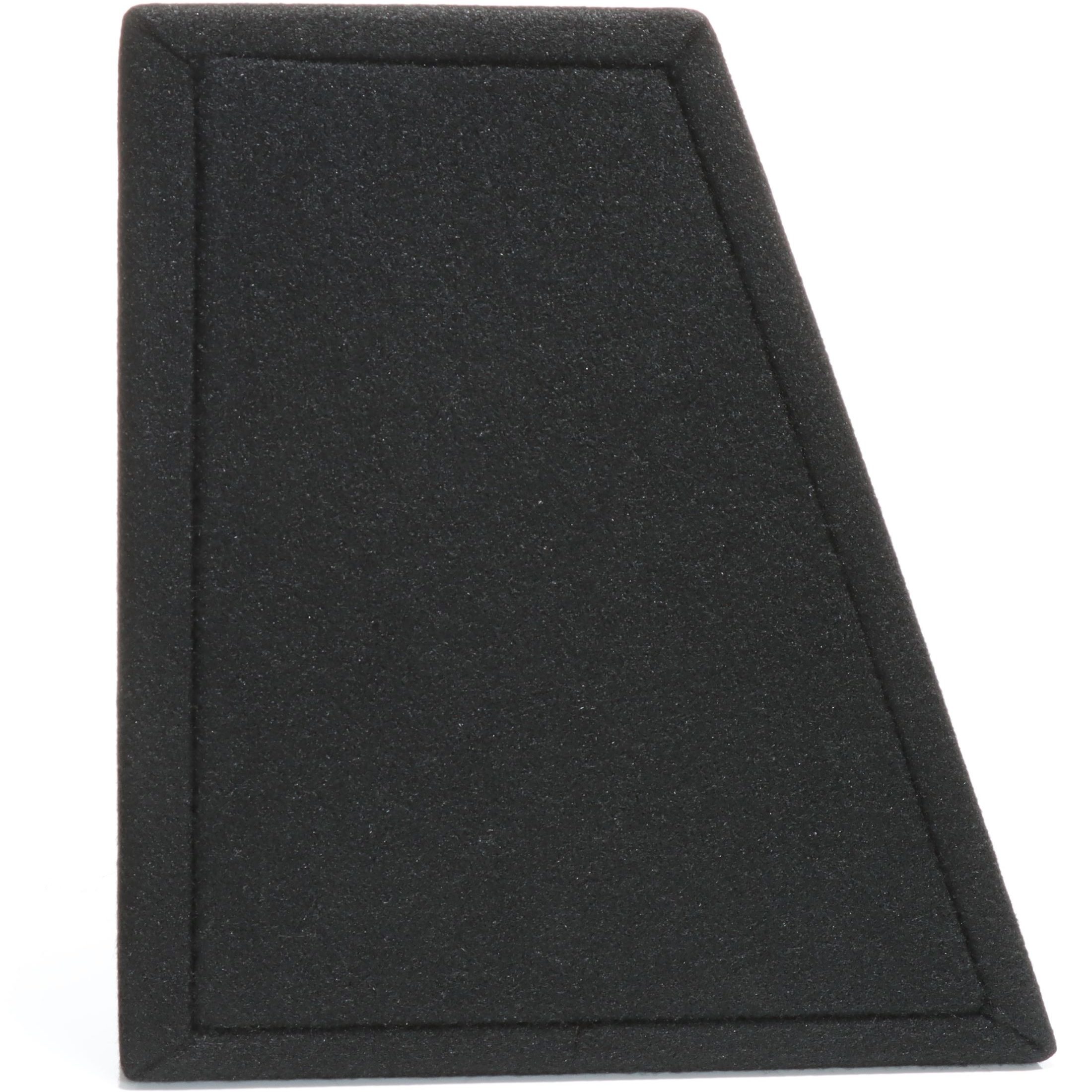

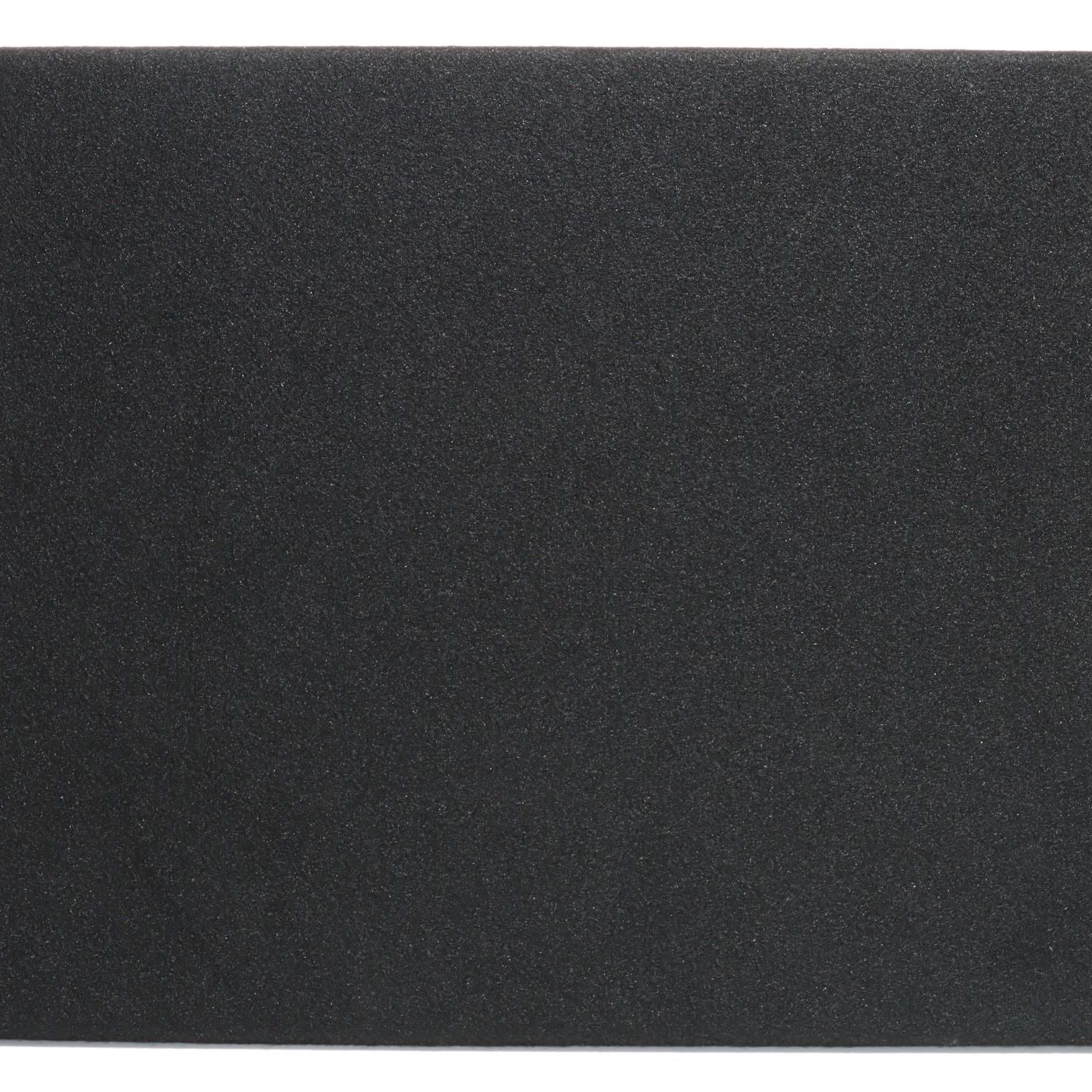

G 10 EVO

Description

  • AUDIO SYSTEM Empty Box
  • sealed box with 23 Liter for 25 cm Bass
  • 18 mm MDF box with terminal and 36 mm double-front panel

Dimensions

  • hole circle: 22,7/25,9 cm
  • l= 440 mm
  • h= 340 mm
  • t1= 180 mm
  • t2= 310 mm

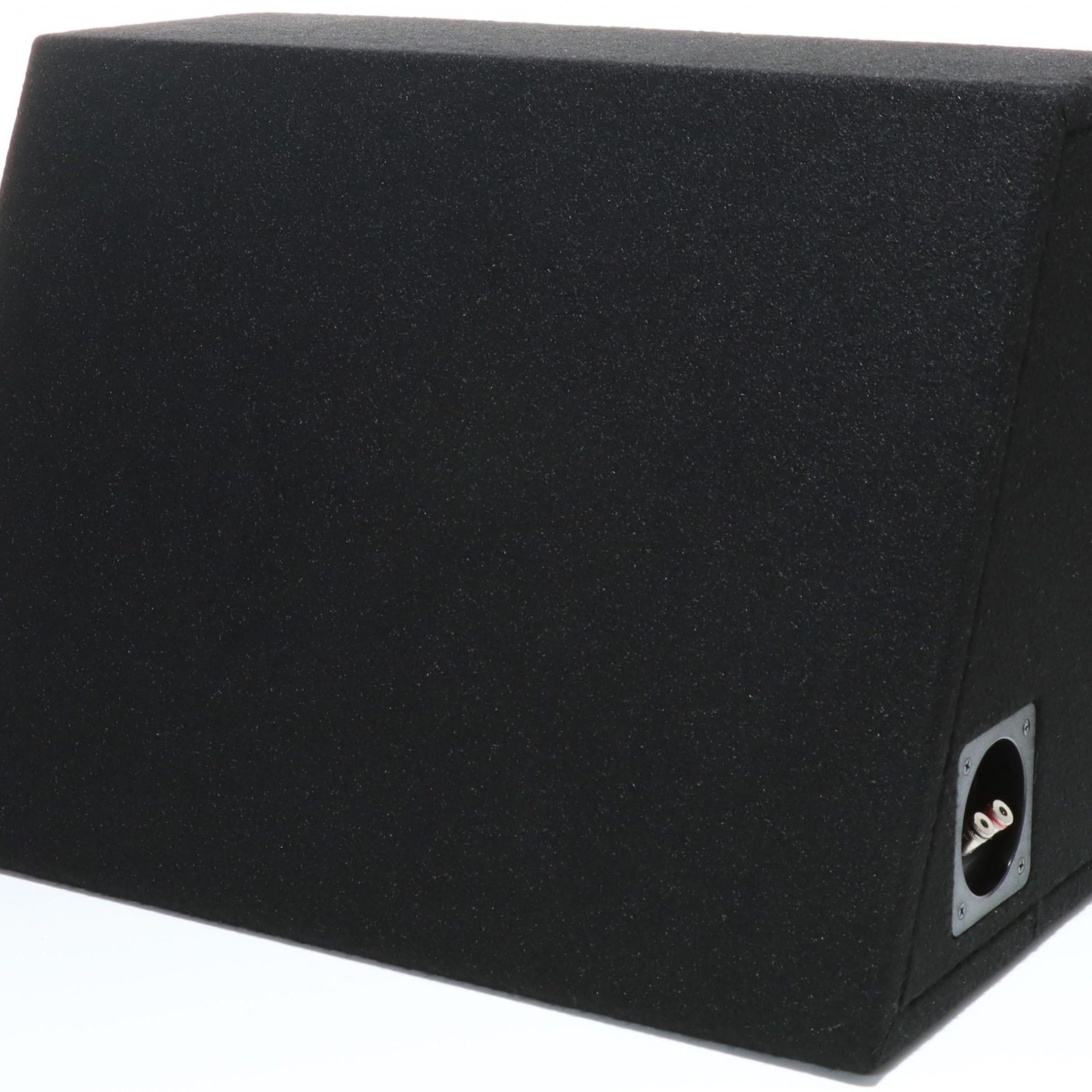

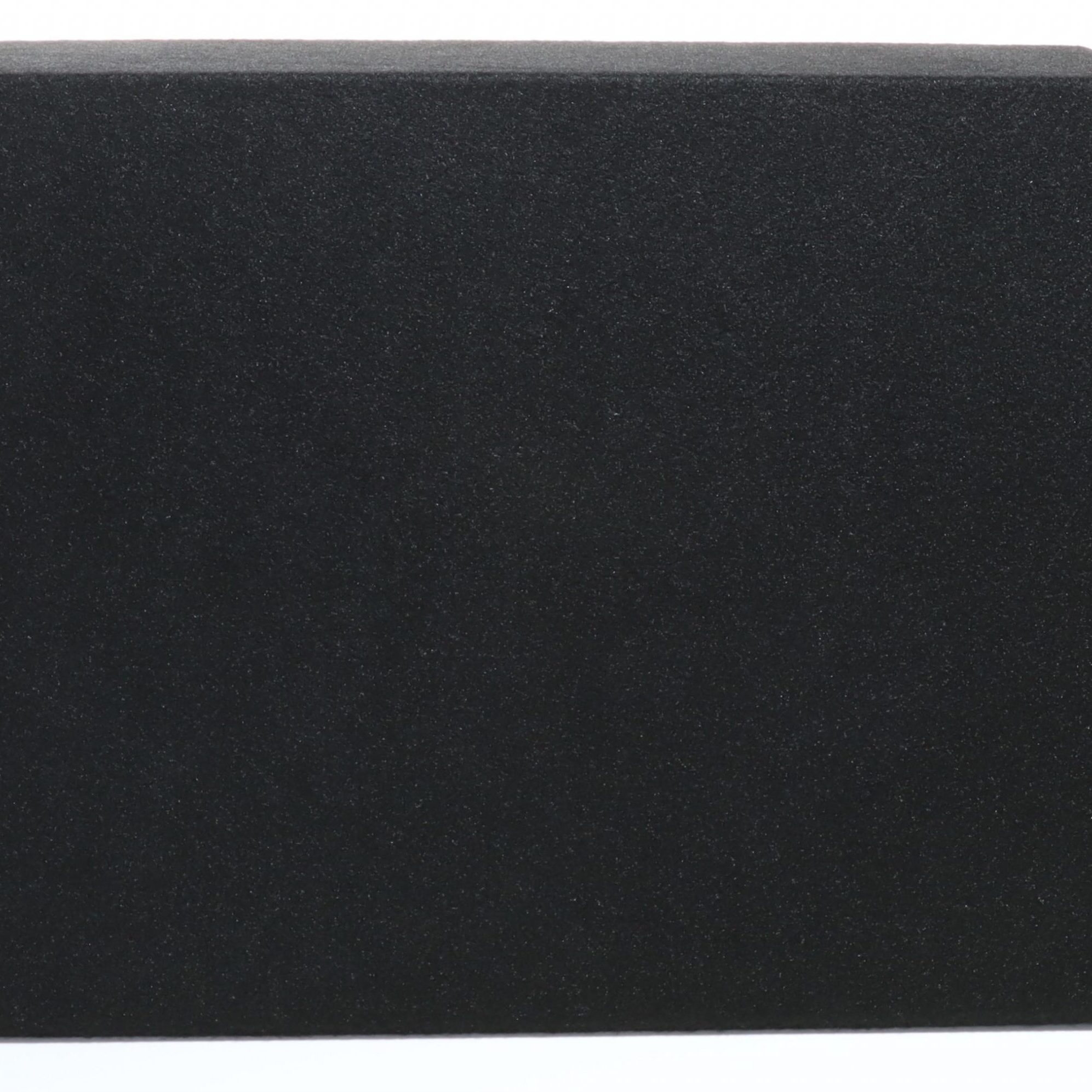

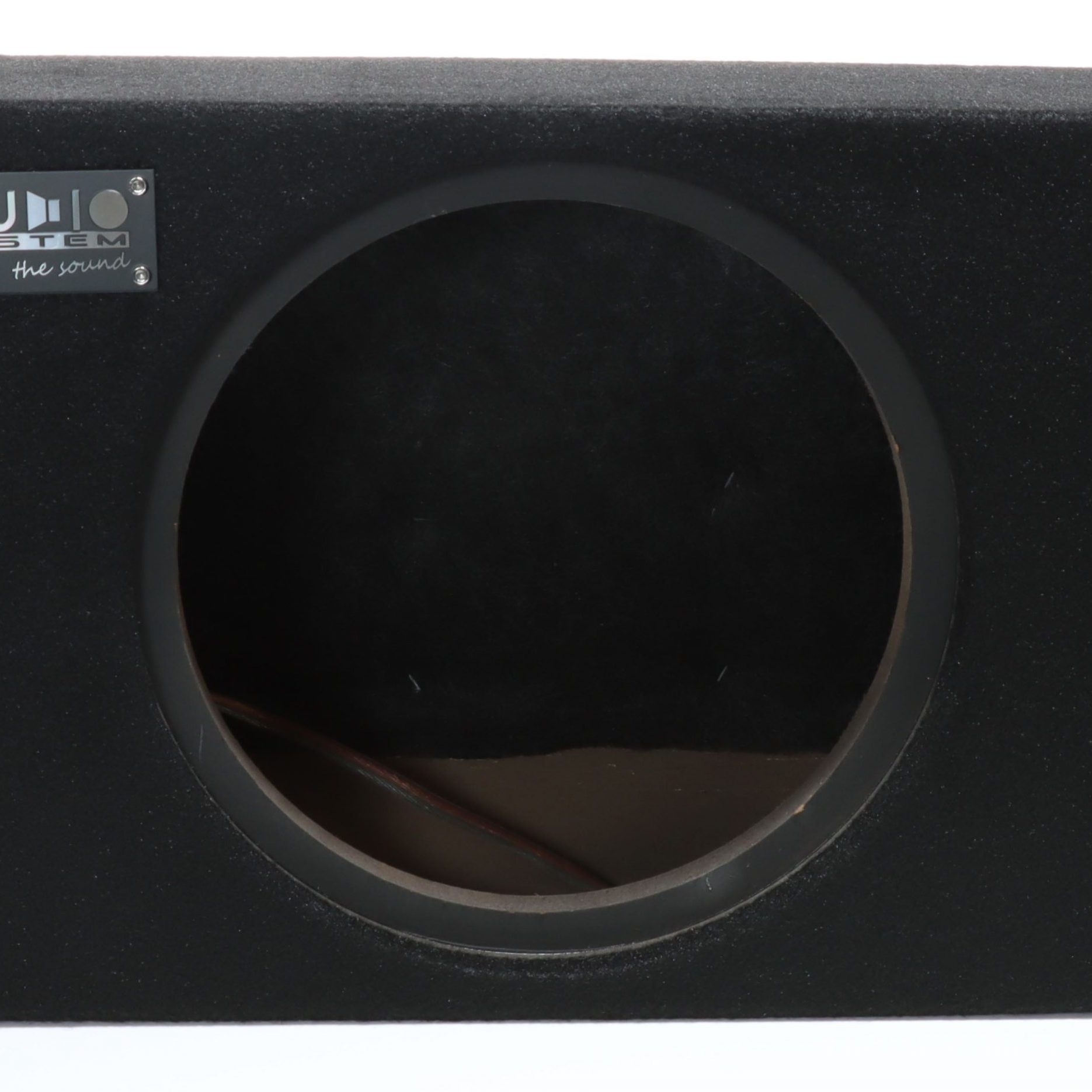

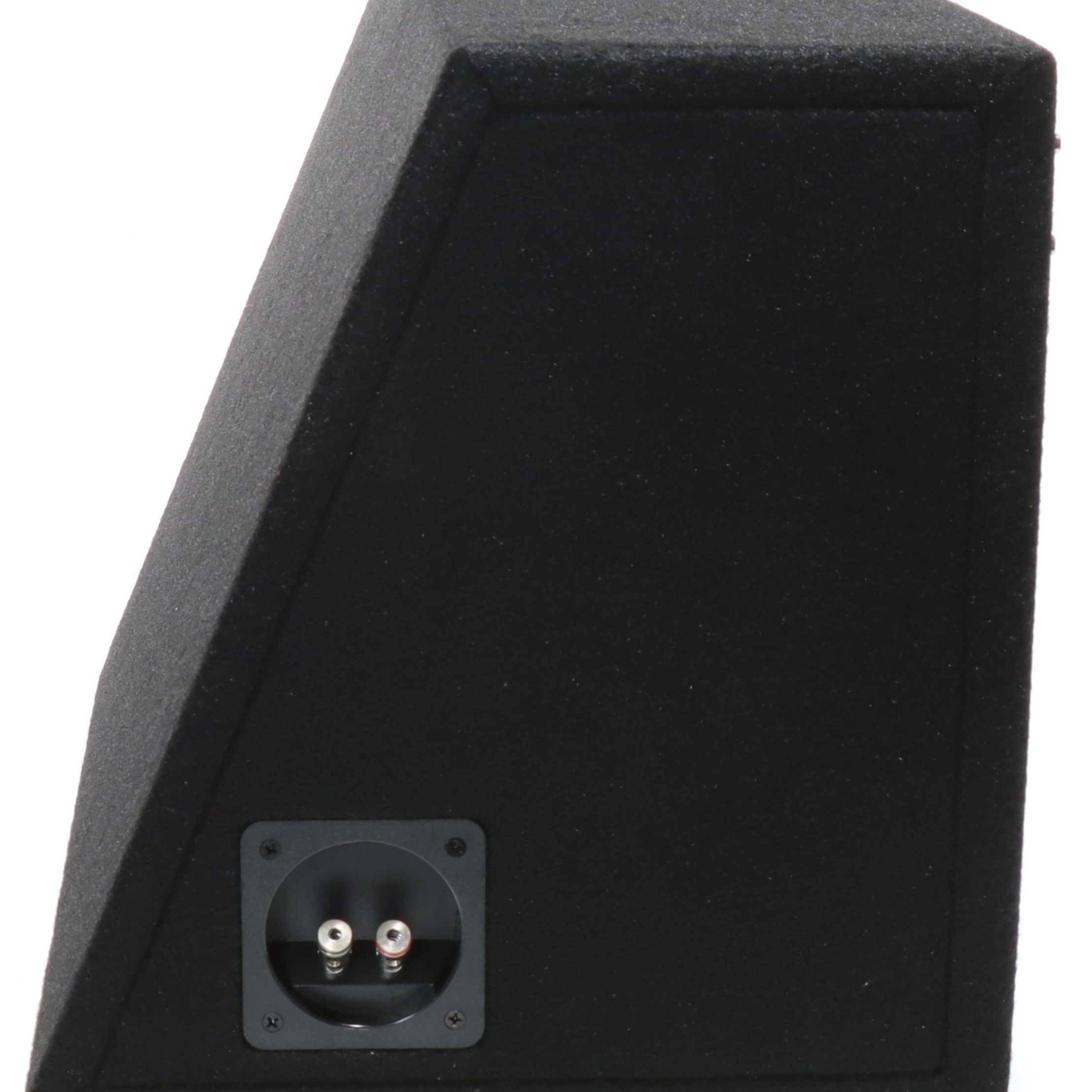

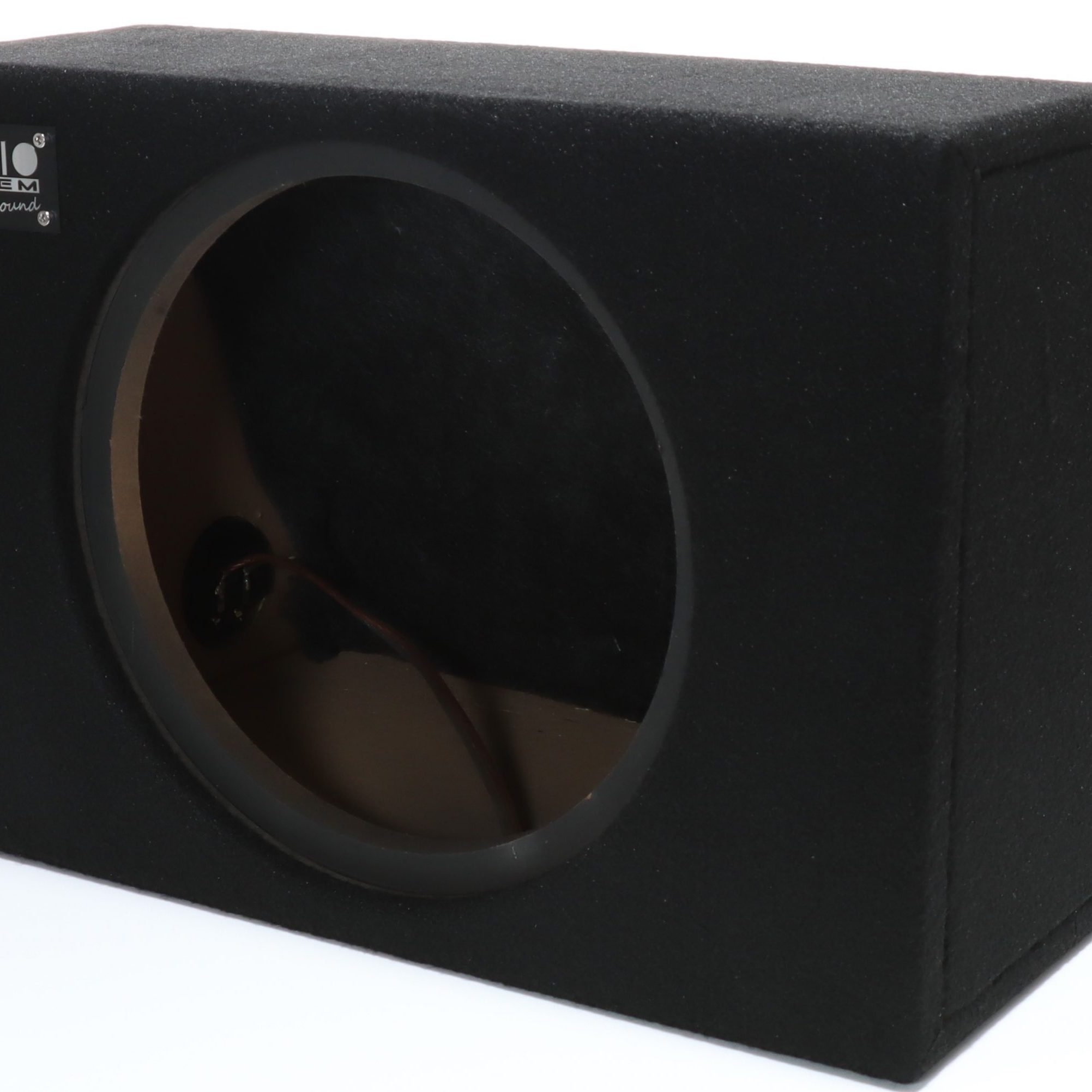

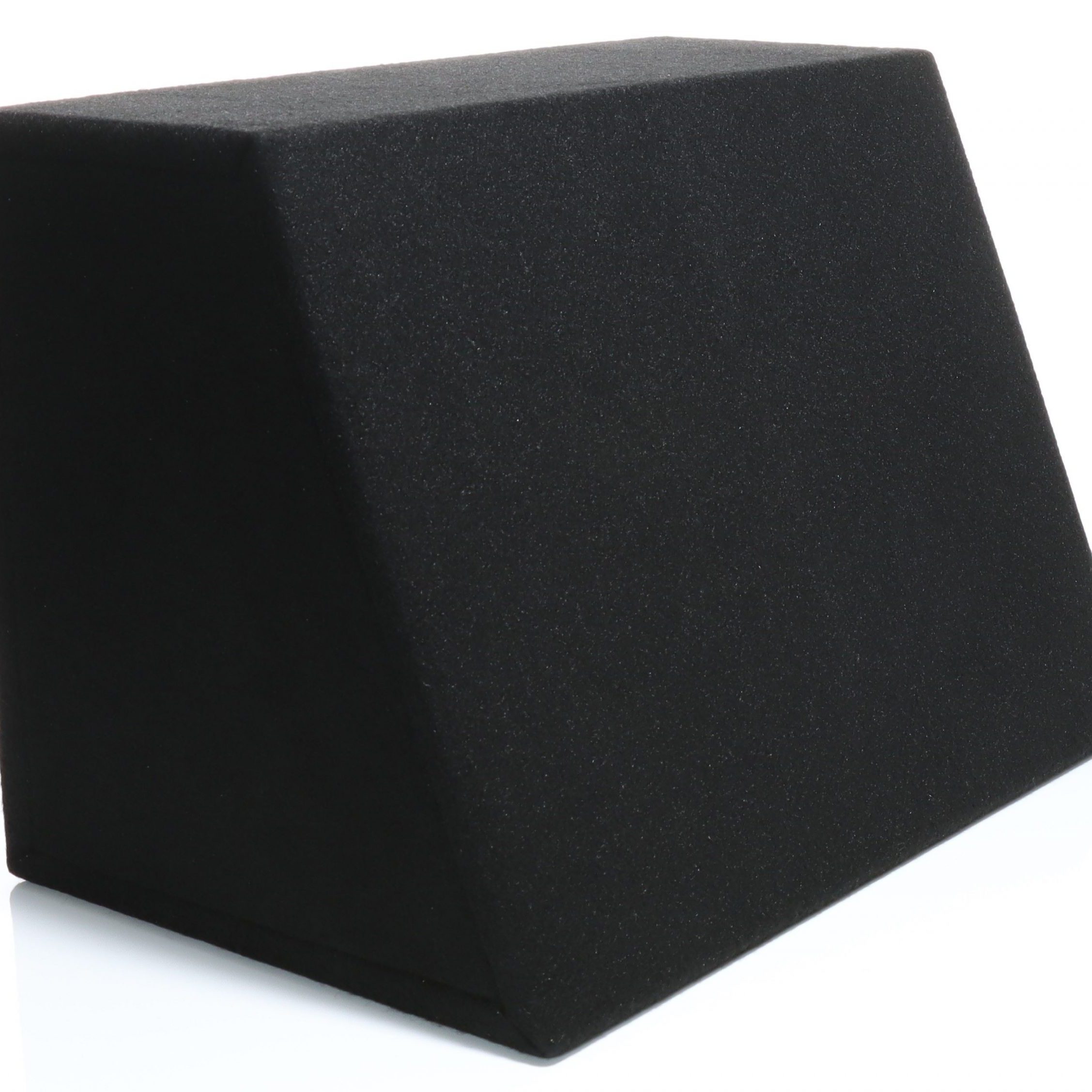

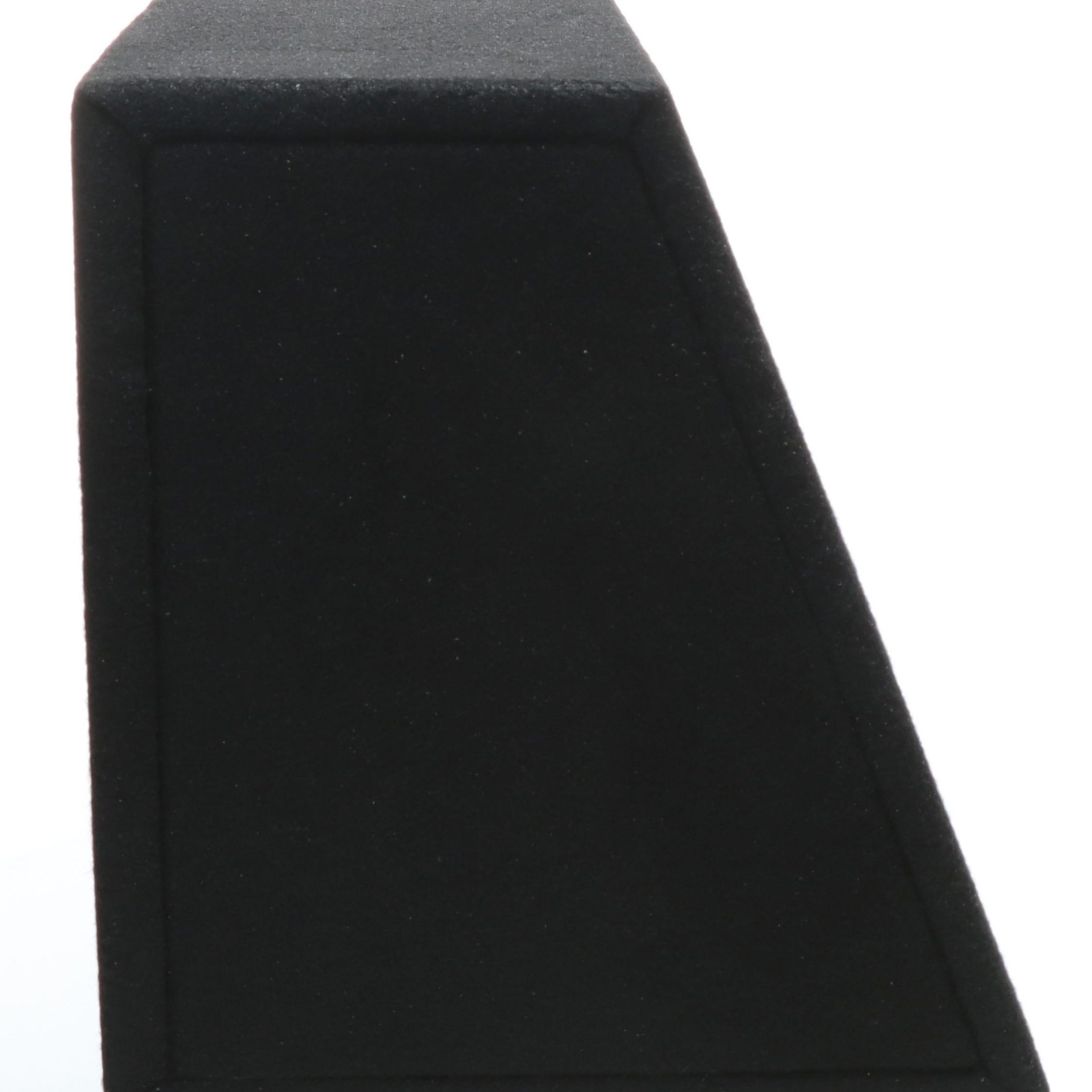

G 12 EVO

Description

  • AUDIO SYSTEM Empty Box
  • sealed box with 32 Liter for 30 cm Bass
  • 18 mm MDF box with terminal and 36 mm double-front panel

Dimensions

  • hole circle: 28/32,1 cm
  • l= 520 mm
  • h= 360 mm
  • t1= 190 mm
  • t2= 330 mm

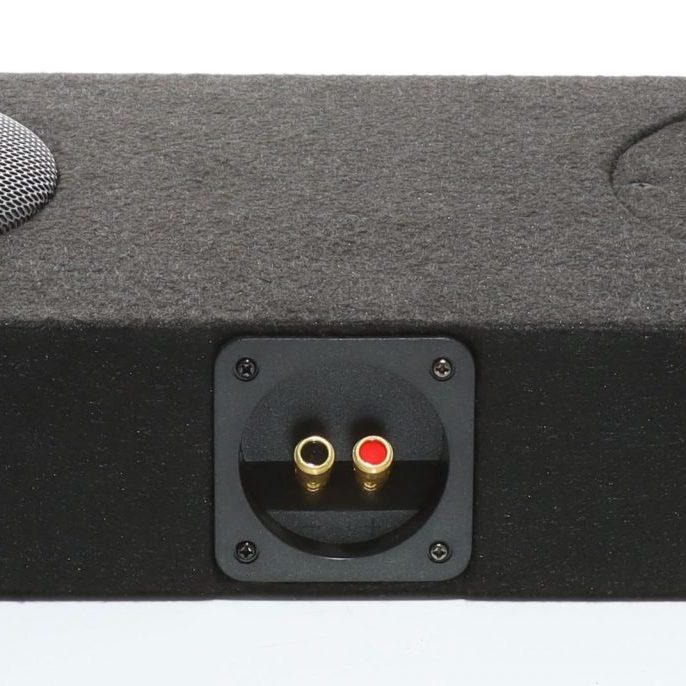

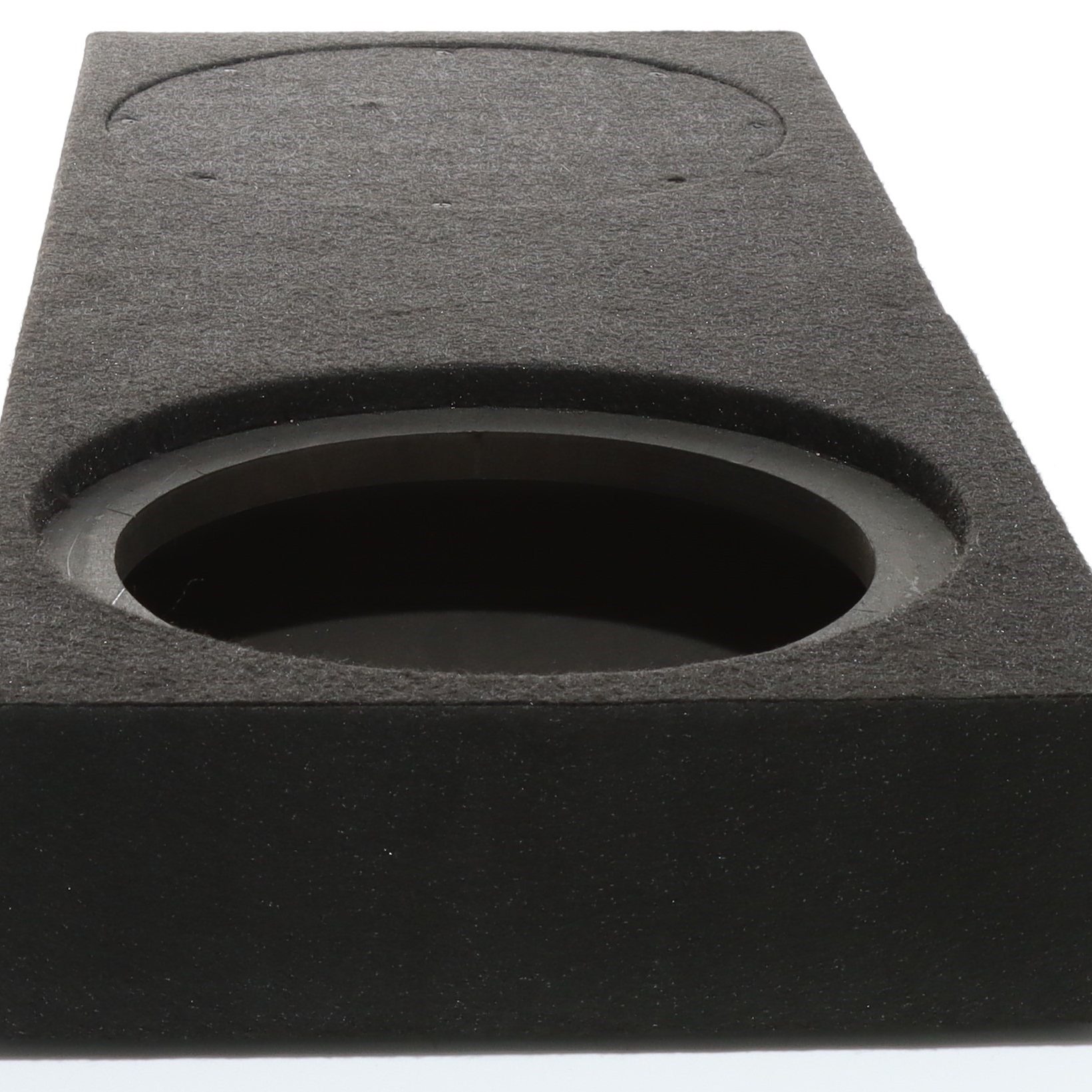

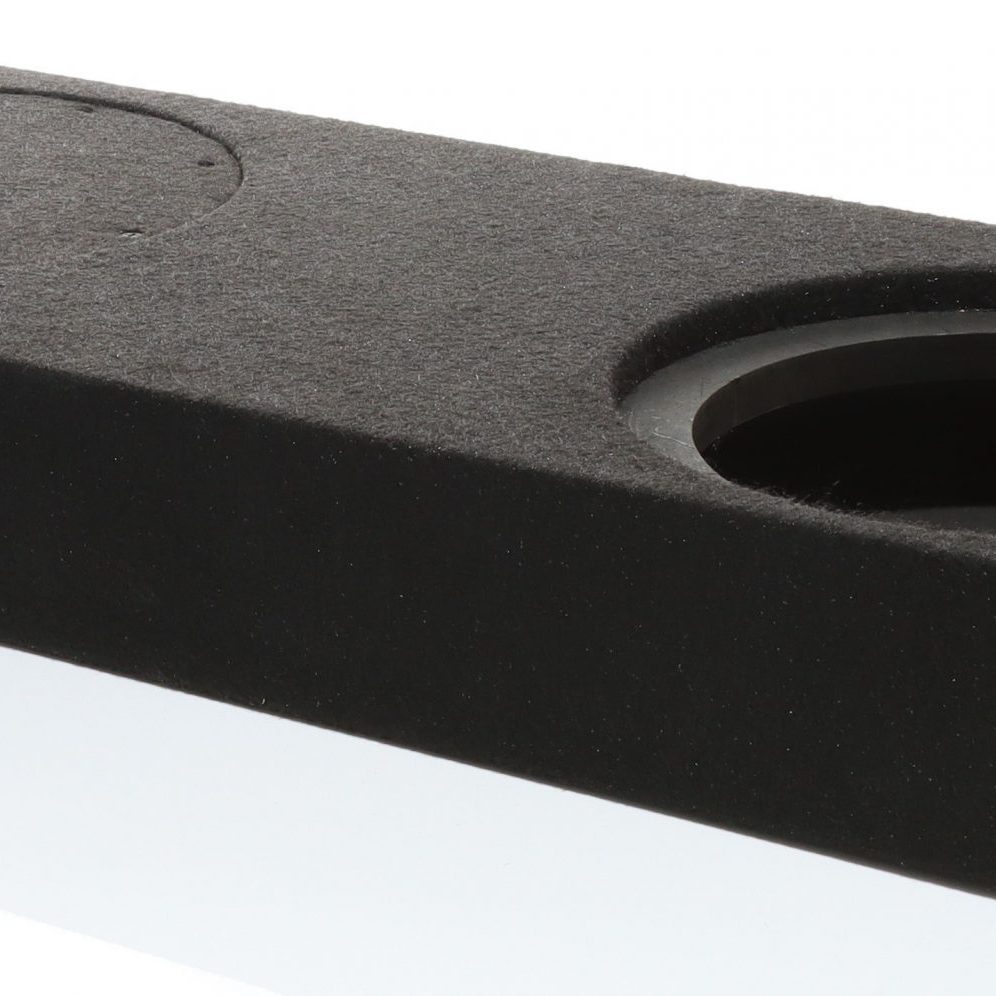

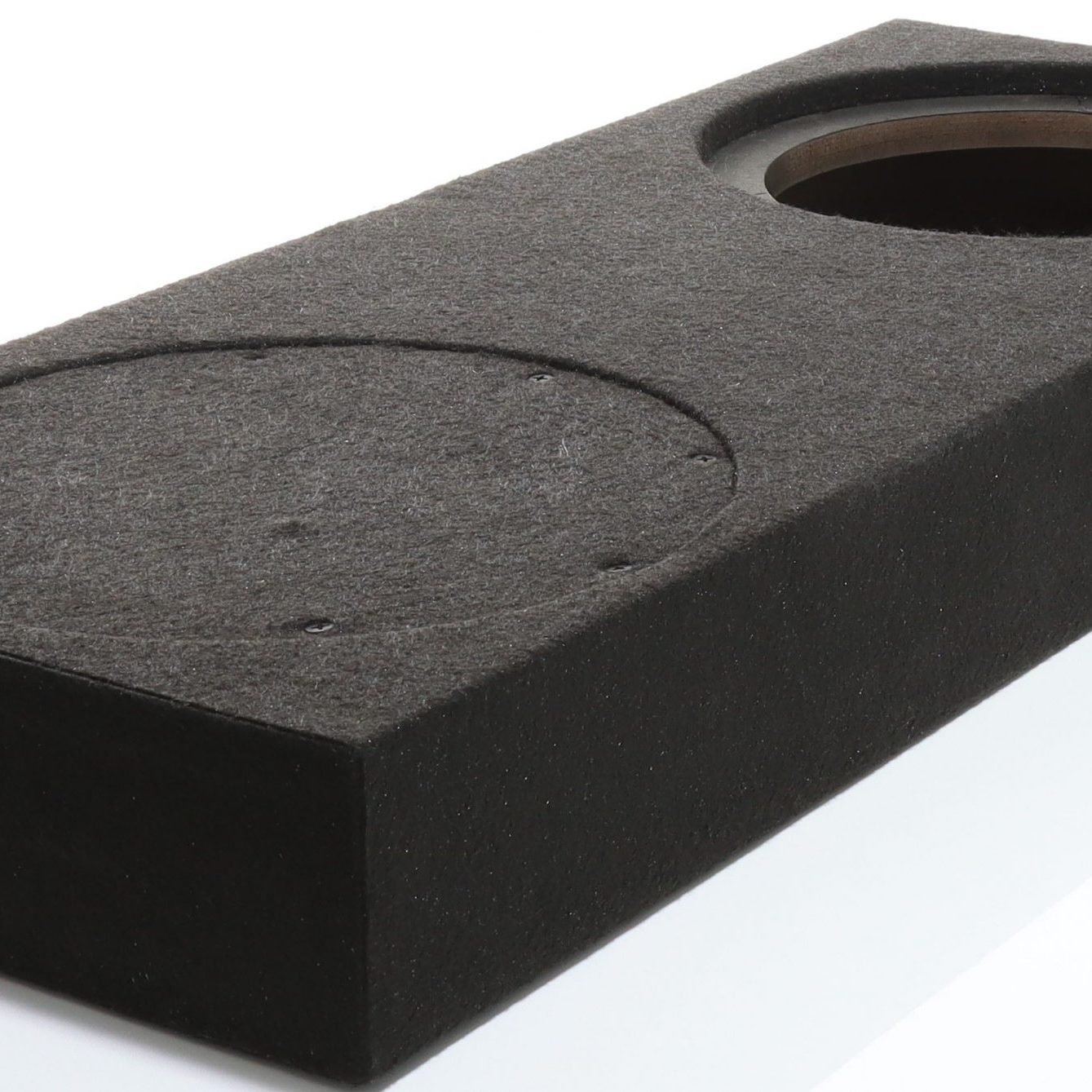

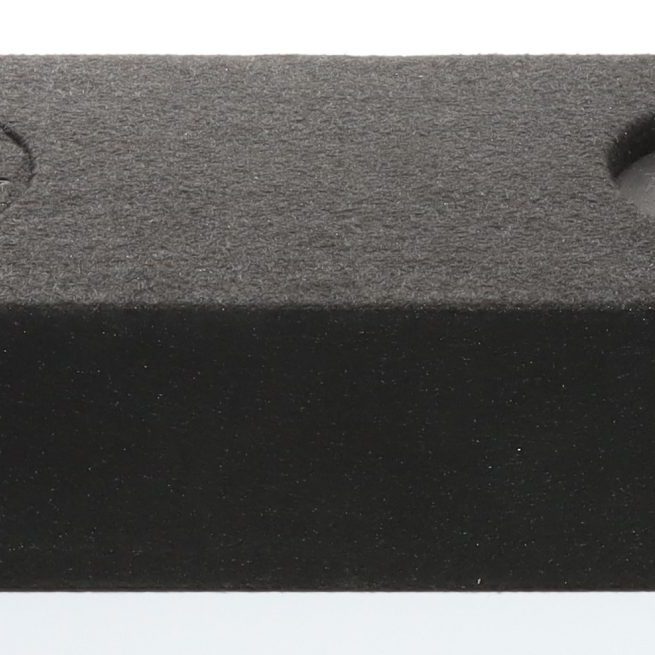

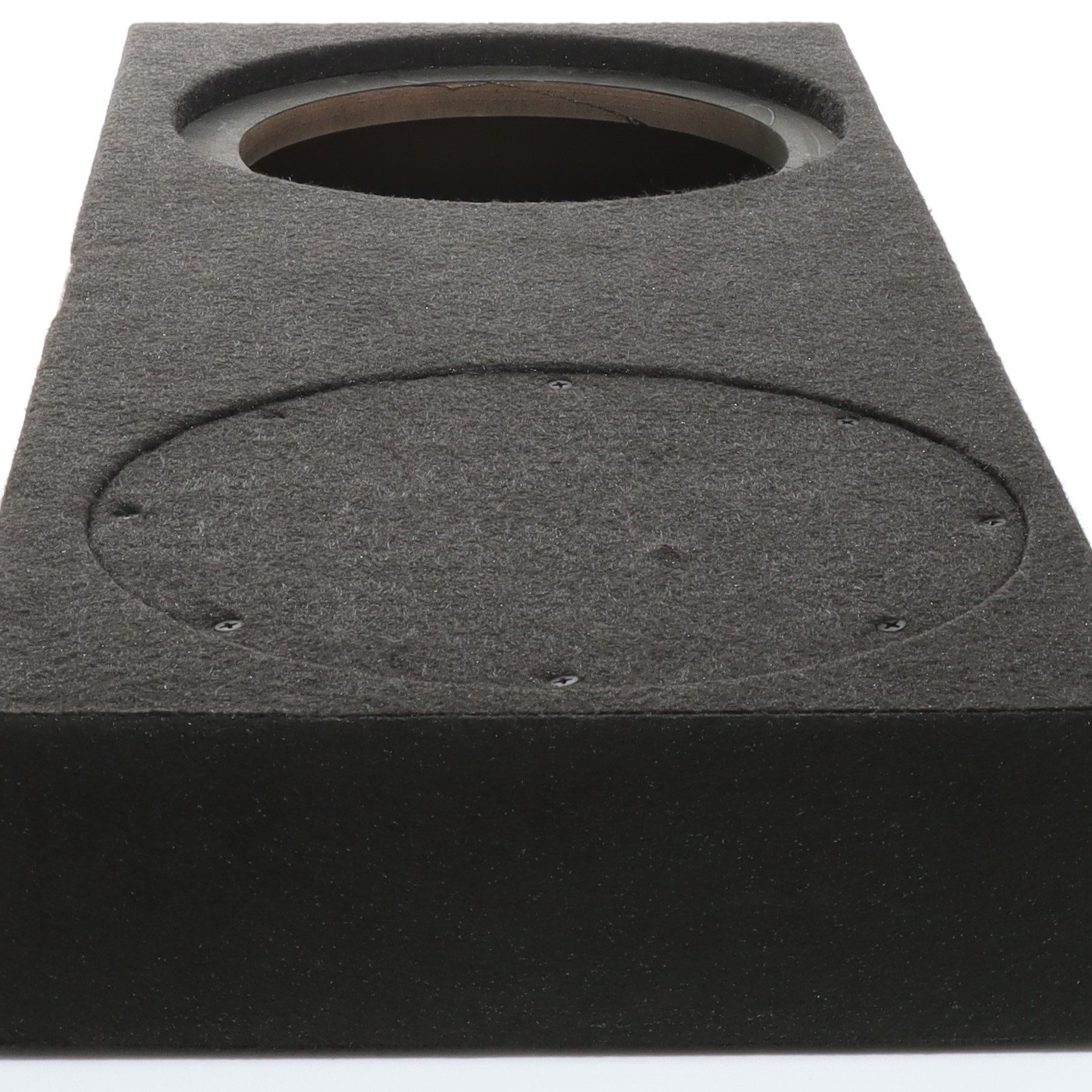

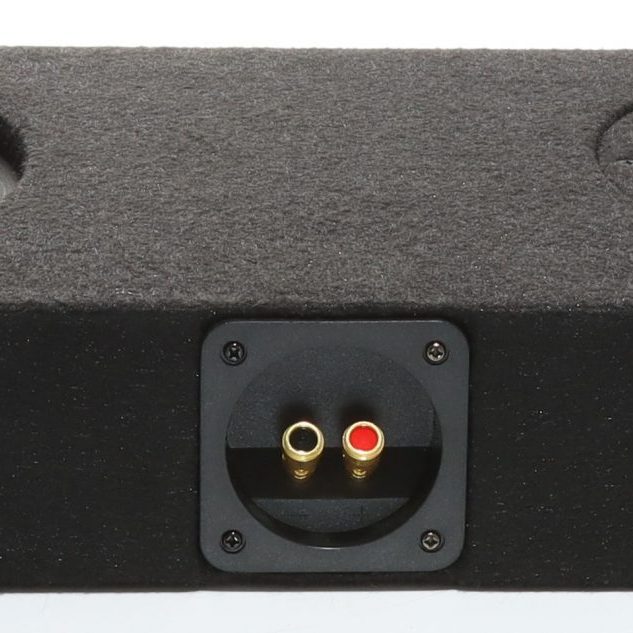

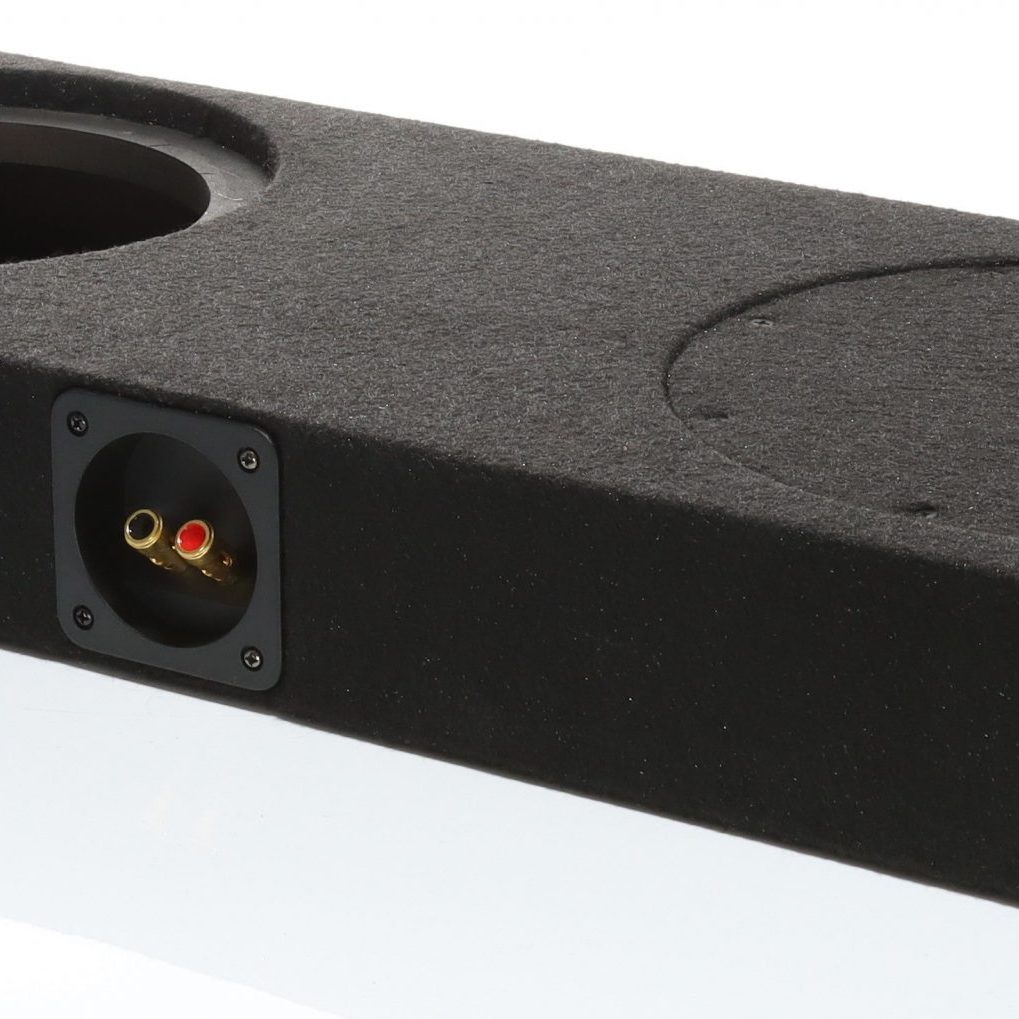

GDF 10-2

Description

  • AUDIO SYSTEM Double-Empty Box
  • sealed box with 2x 7 Liter for 2x 20 cm Bass
  • 12 mm MDF box with terminal and 39 mm front panel

Dimensions

  • hole circle: 21,2/26,4 cm
  • l= 750 mm
  • t= 300 mm
  • h= 86 mm

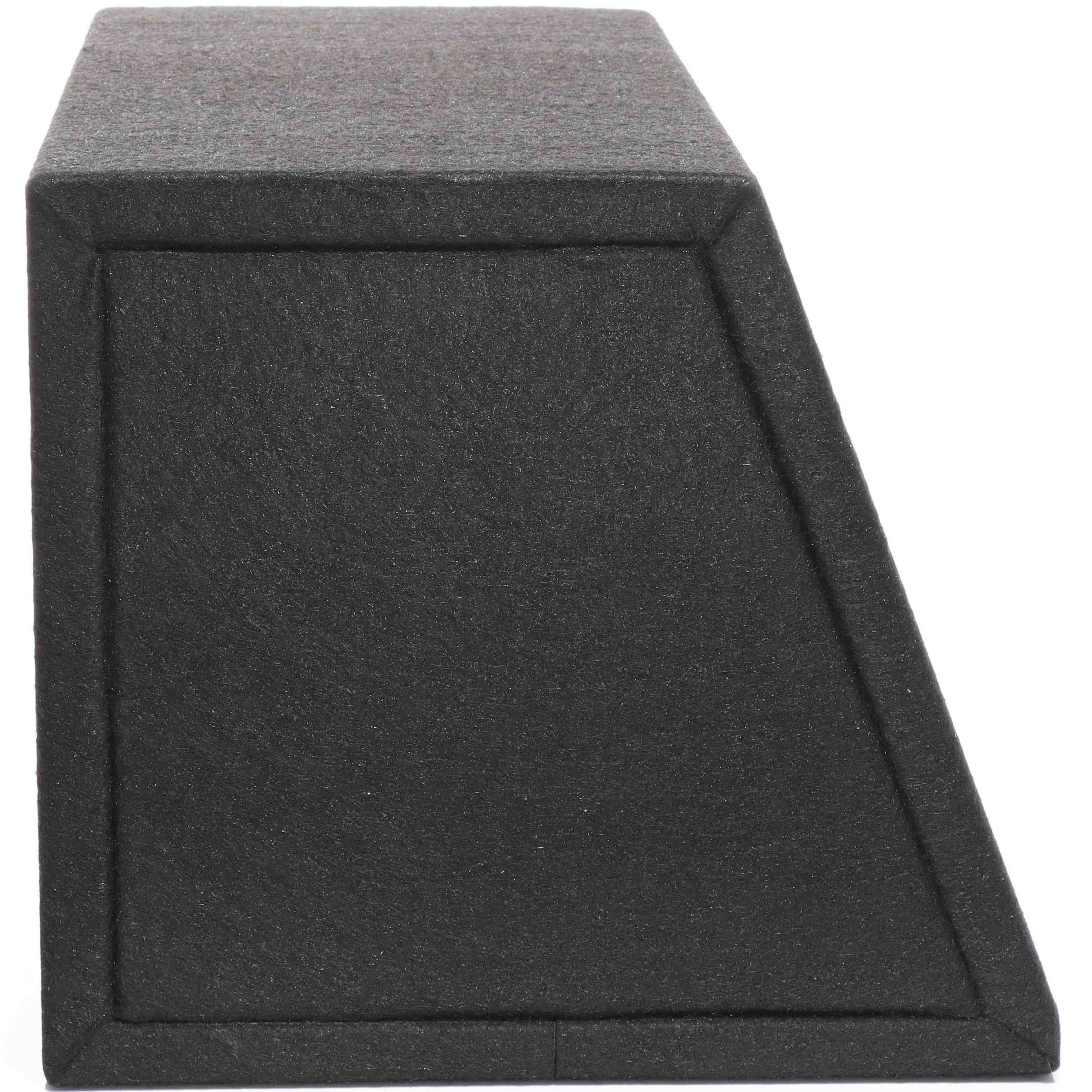

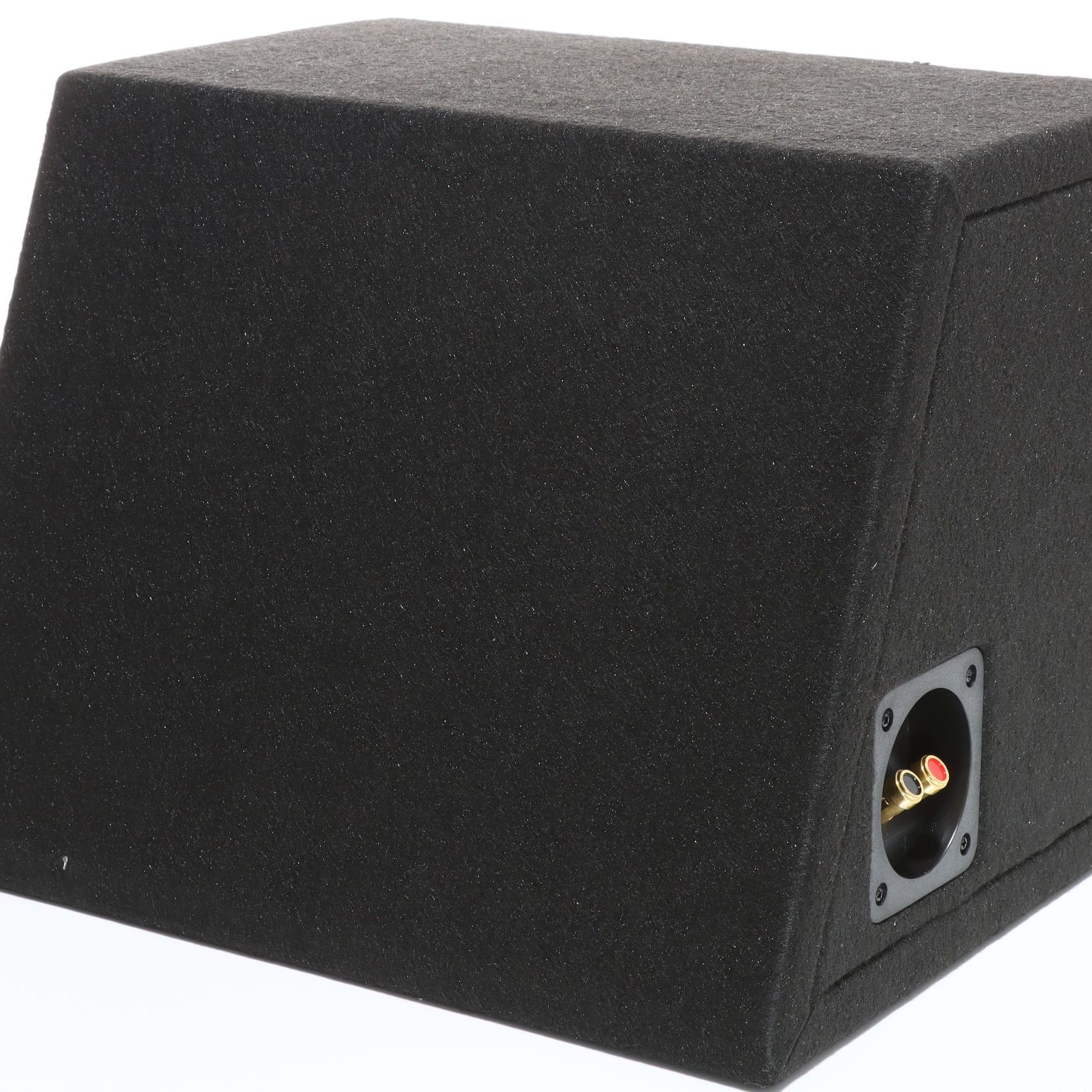

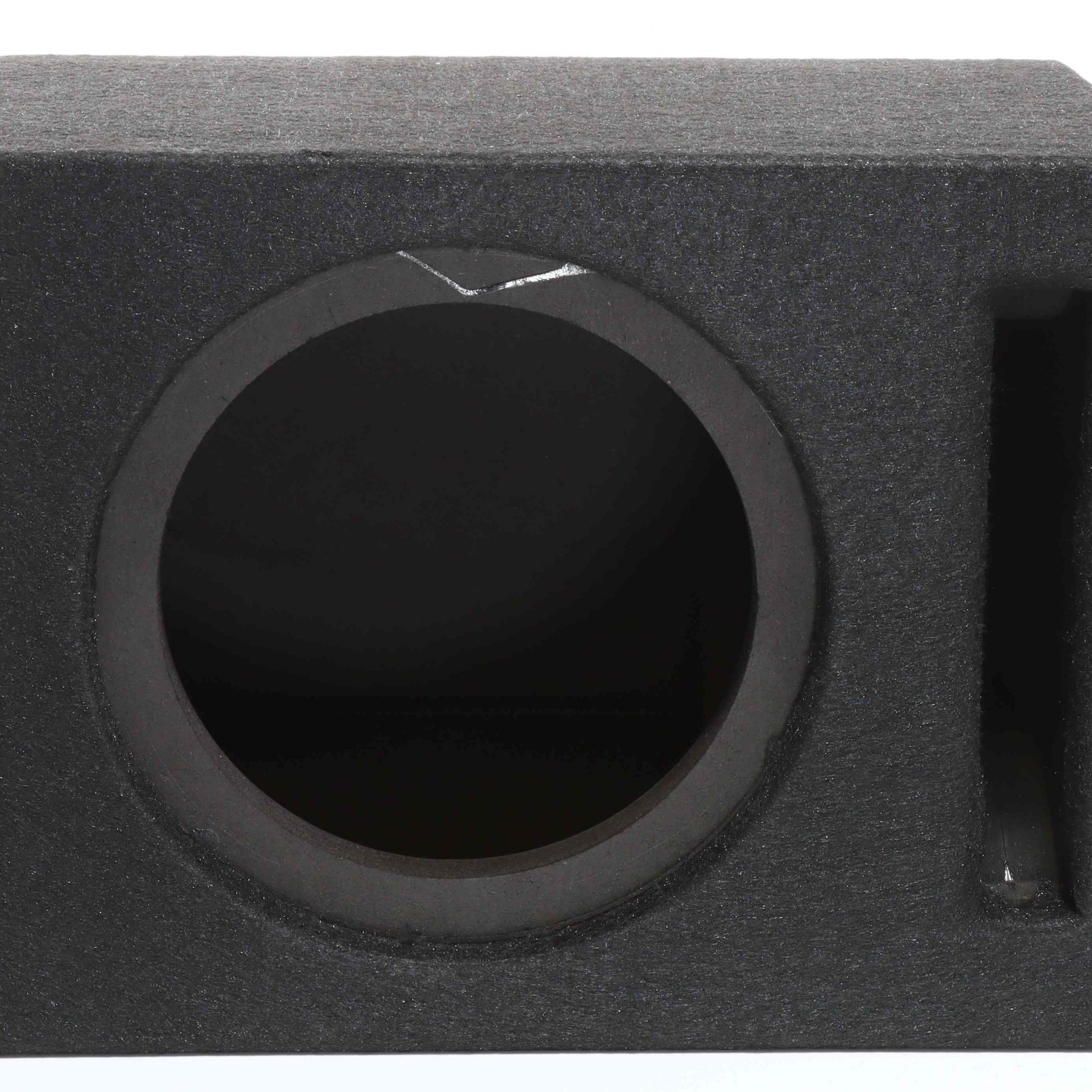

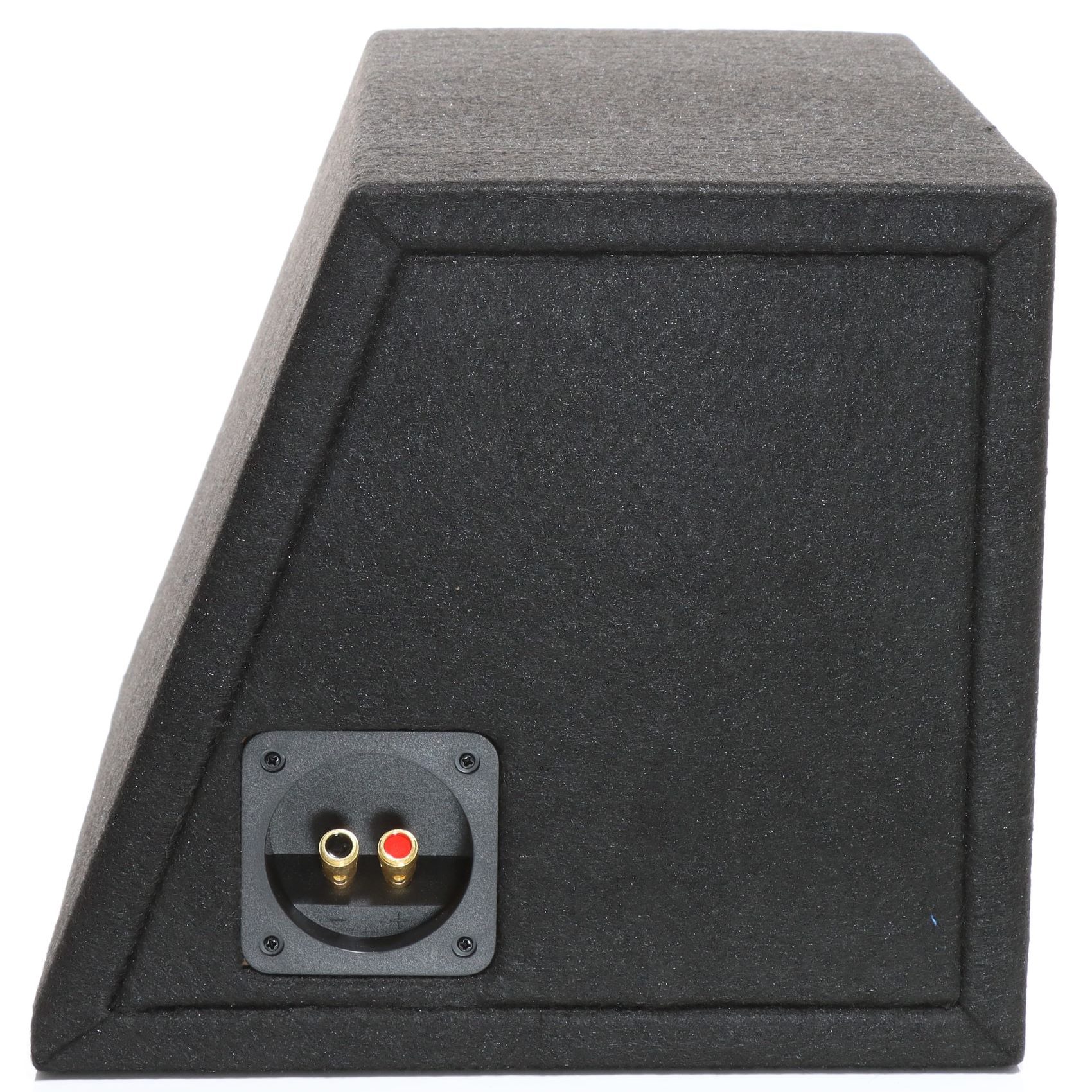

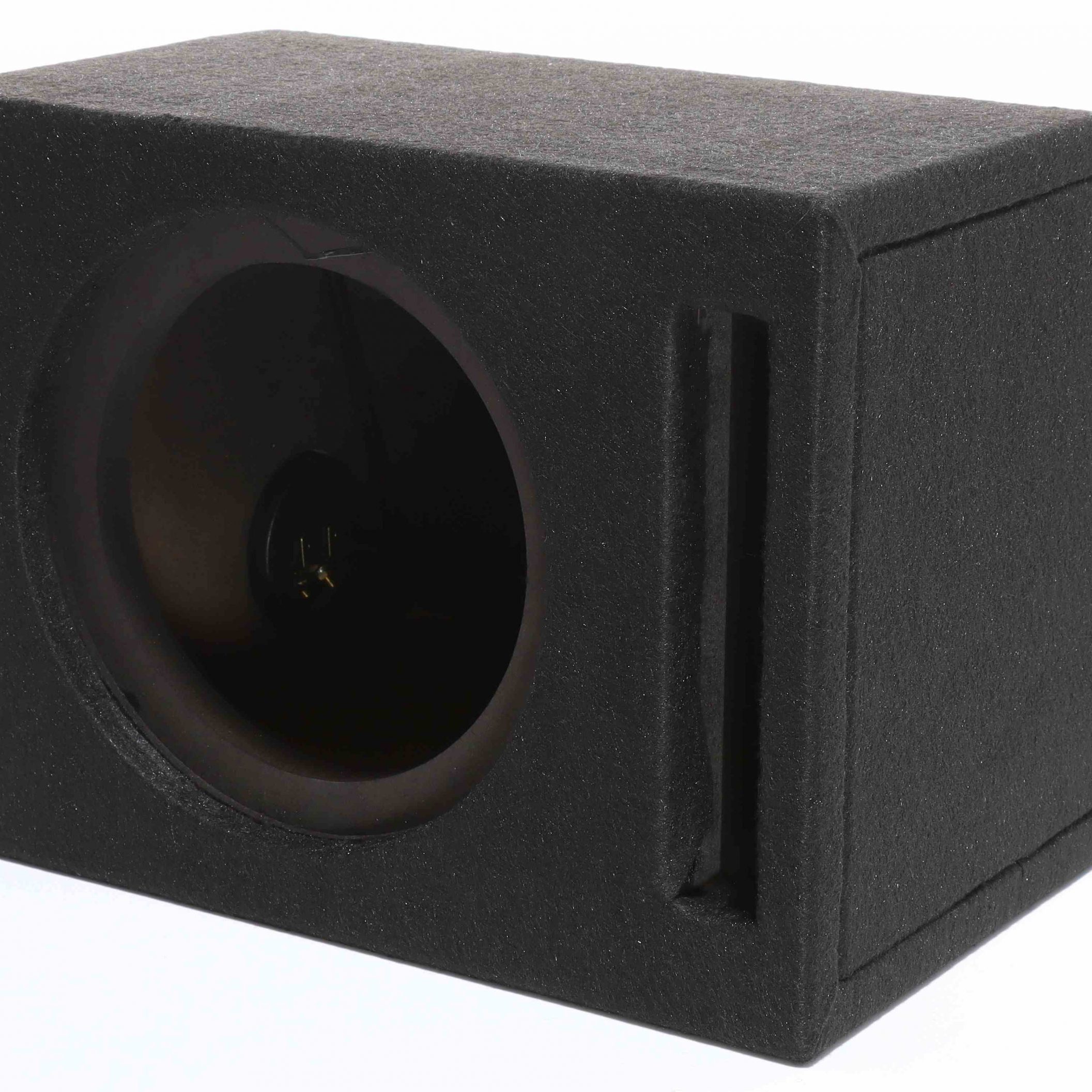

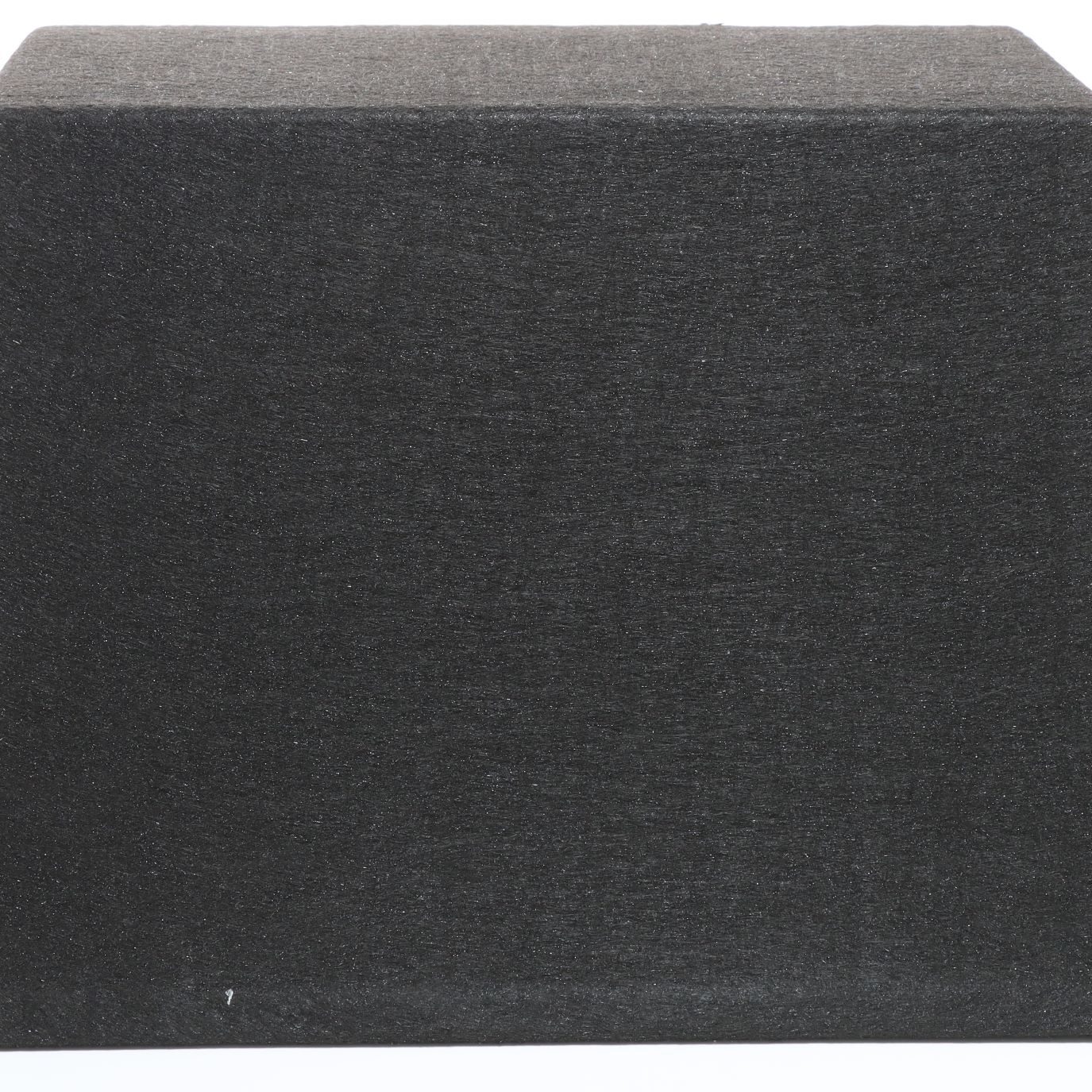

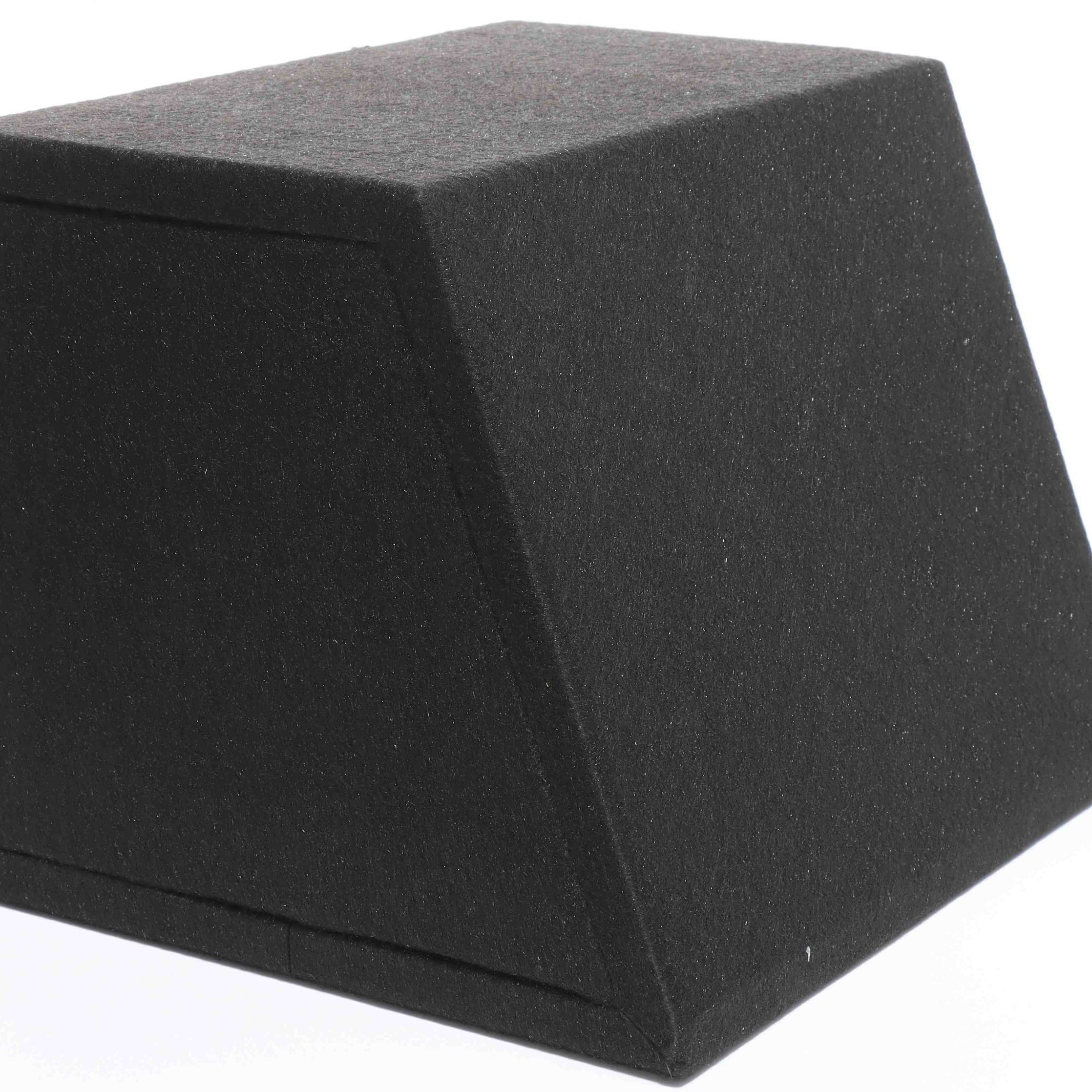

BR 08 EVO

Description

  • AUDIO SYSTEM Double-Empty Box
  • vented box with 15 Liter for 20 cm Bass
  • 18 mm MDF box with double terminal and 36 mm front panel

Dimensions

  • hole circle: 18,4/22,3 cm
  • l= 370 mm
  • h= 280 mm
  • t1= 210 mm
  • t2= 325 mm

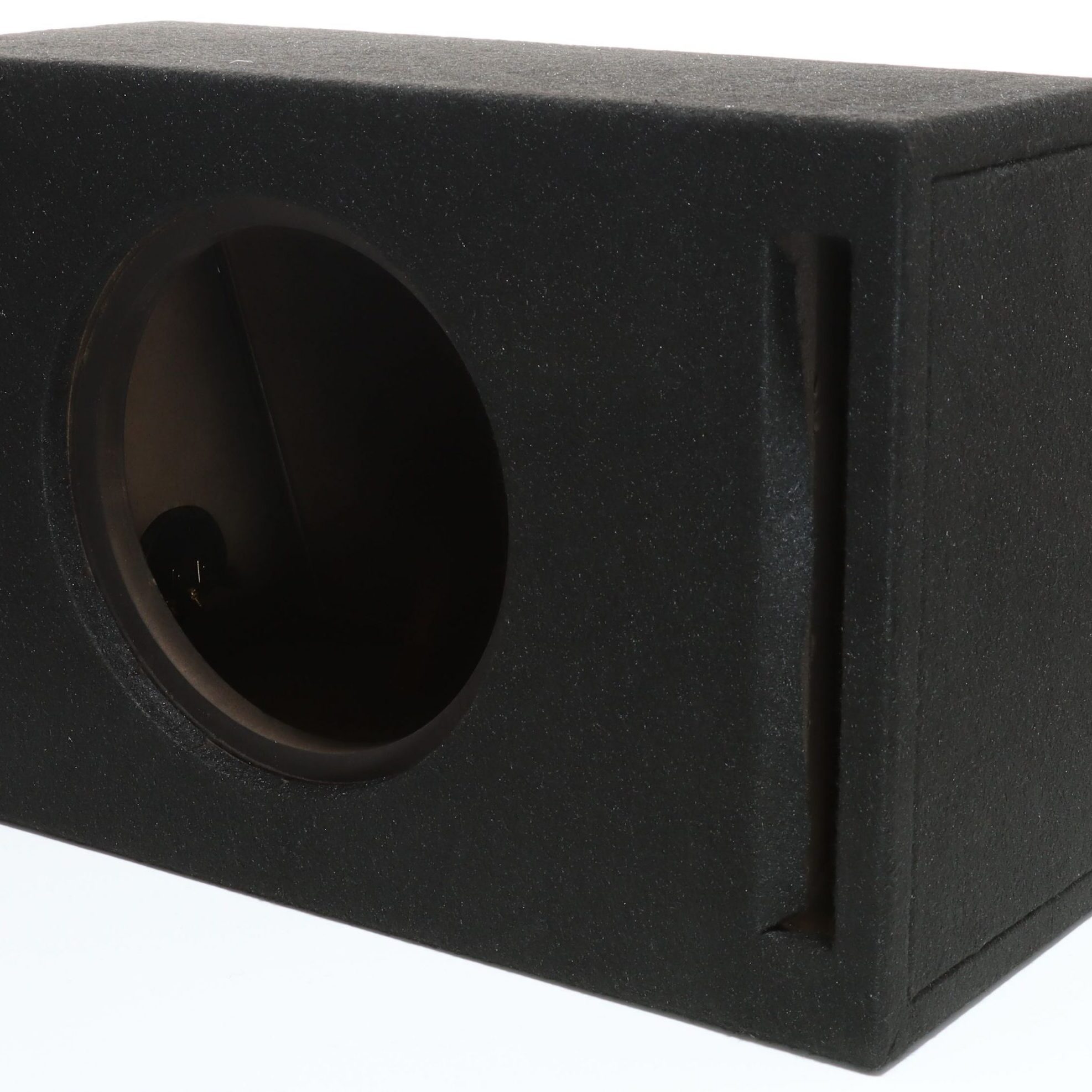

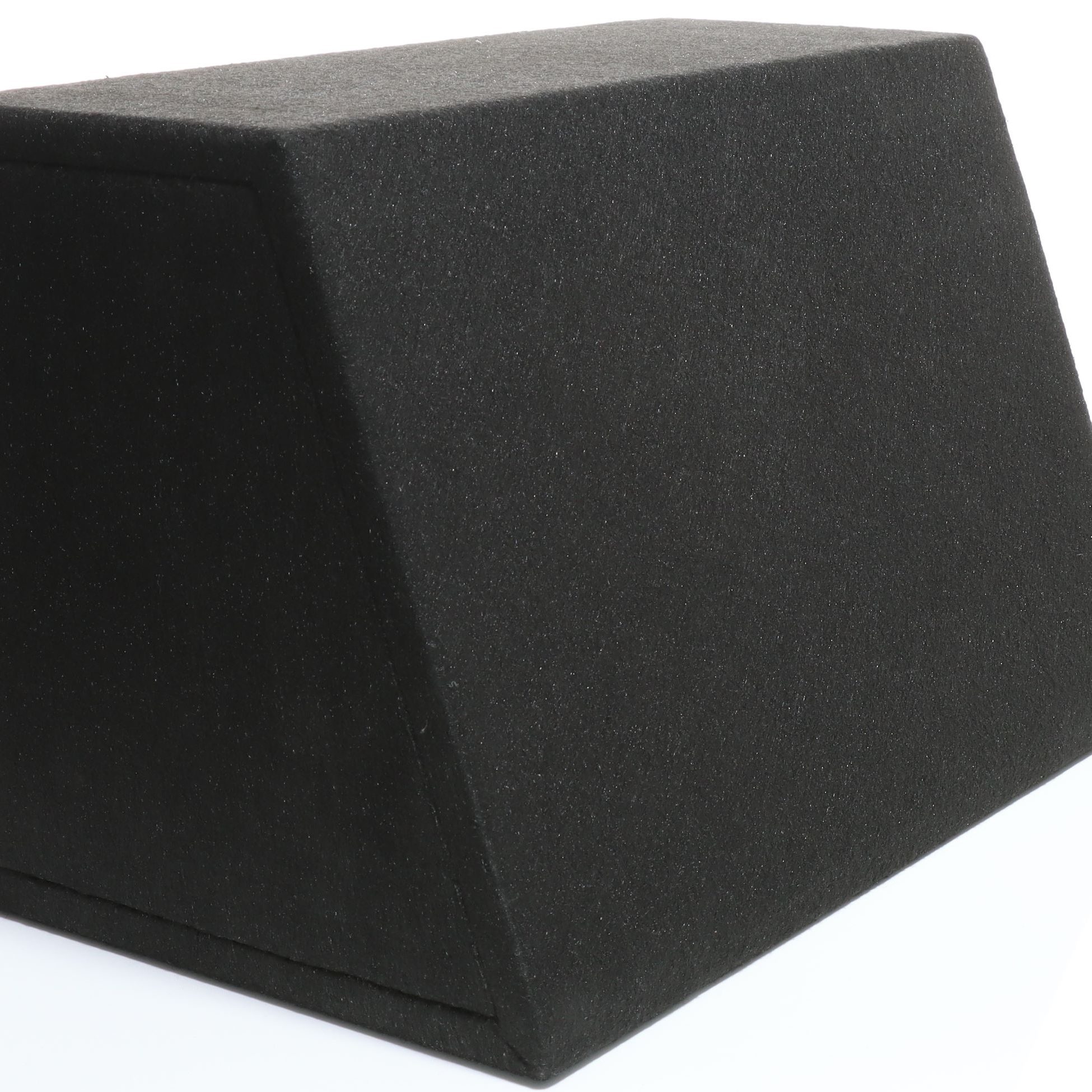

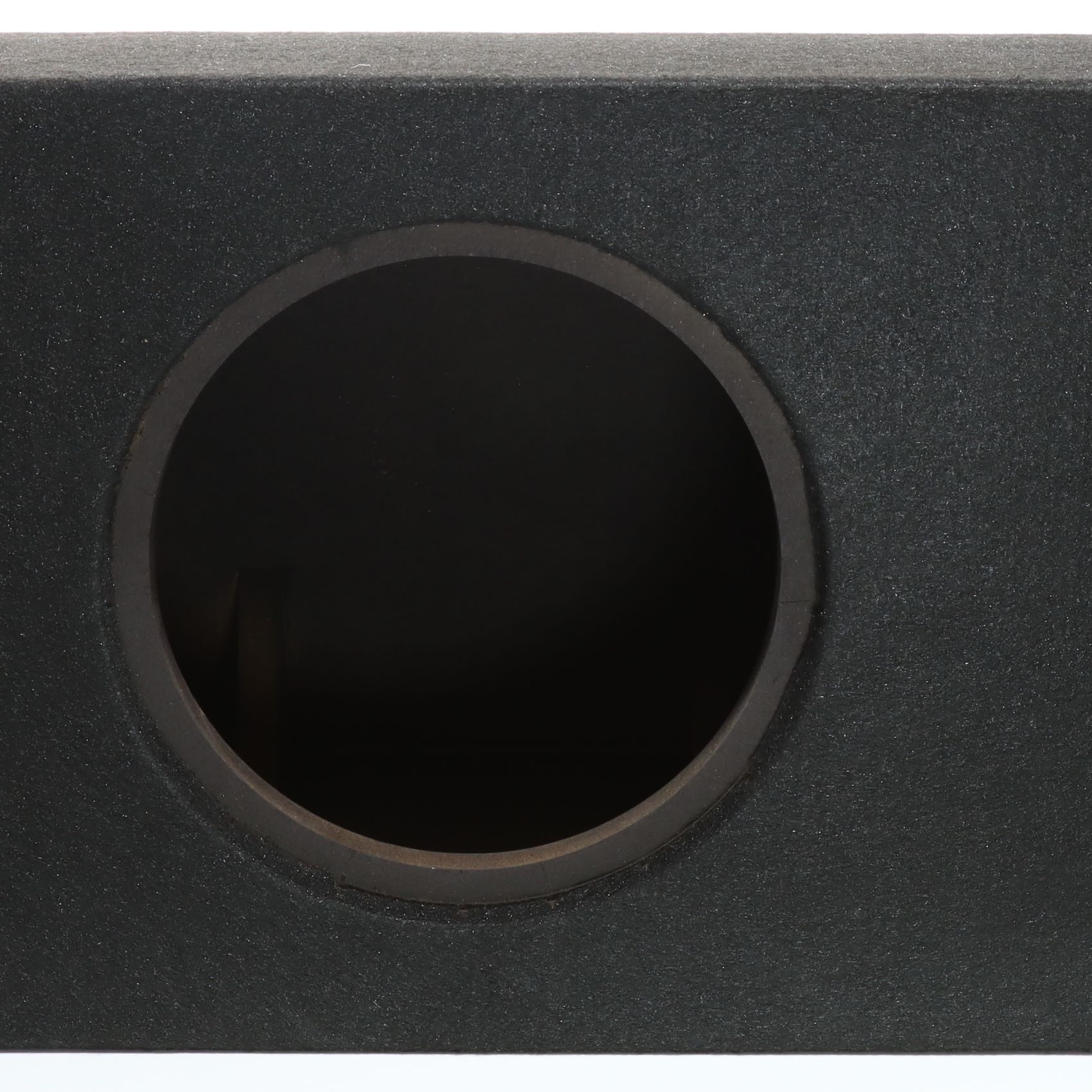

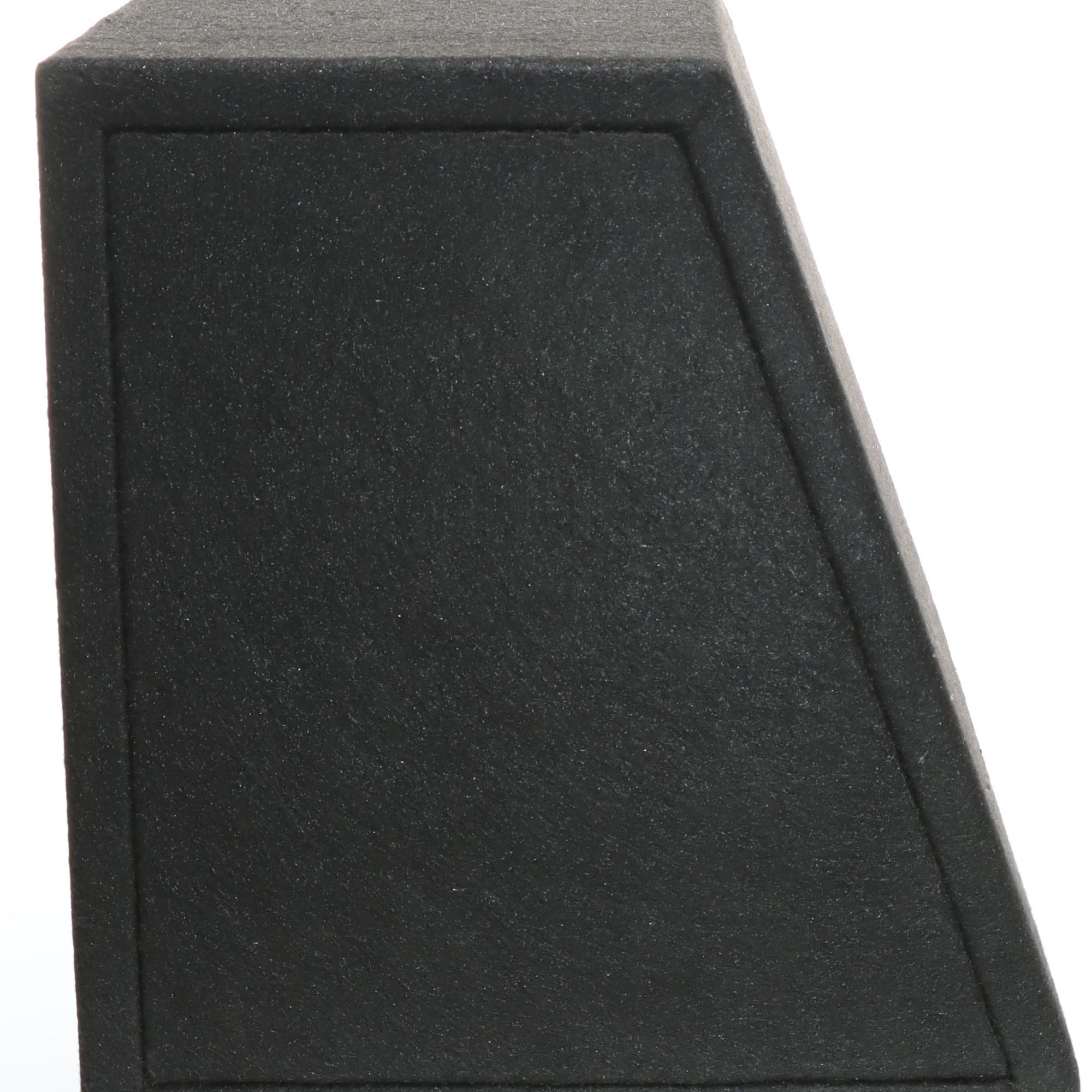

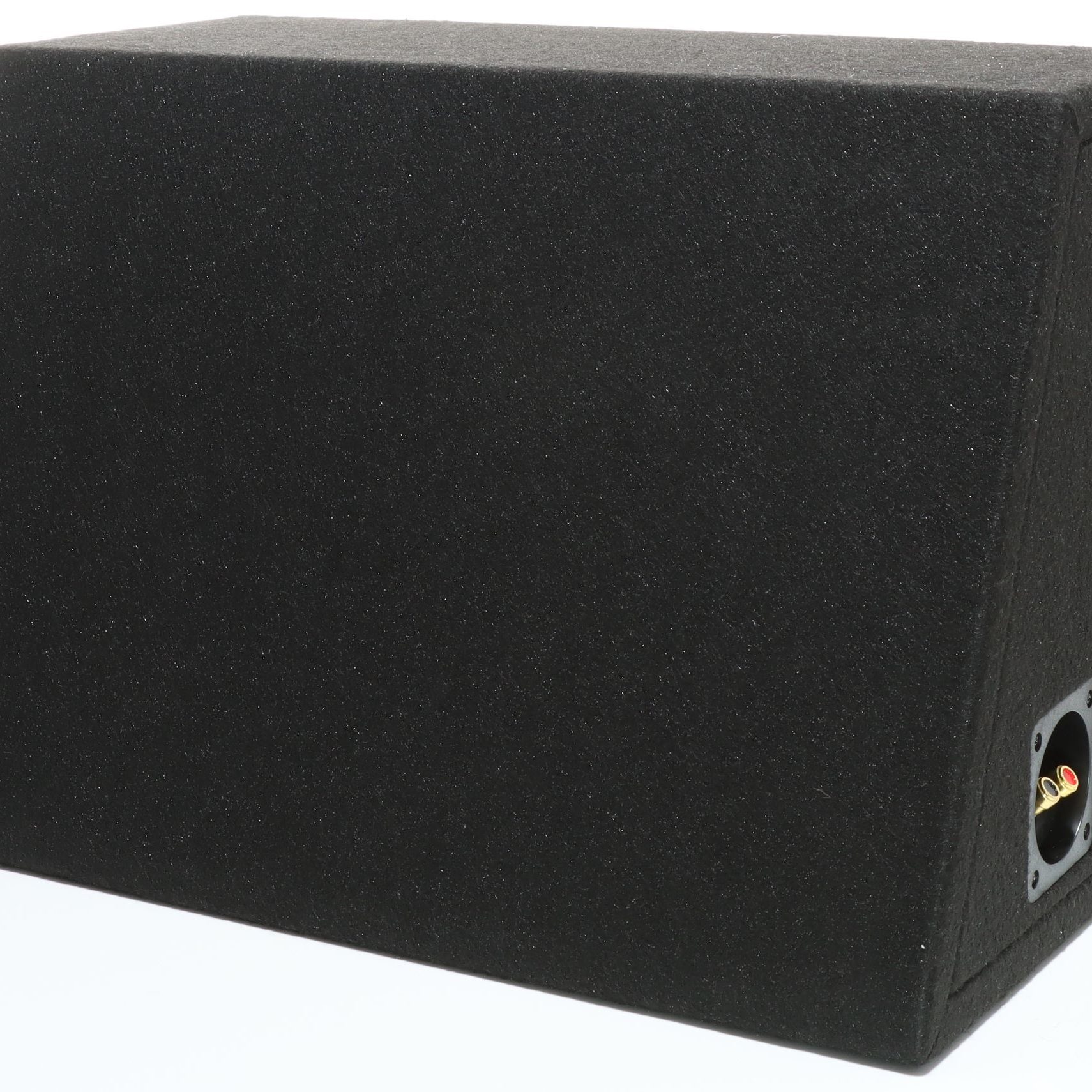

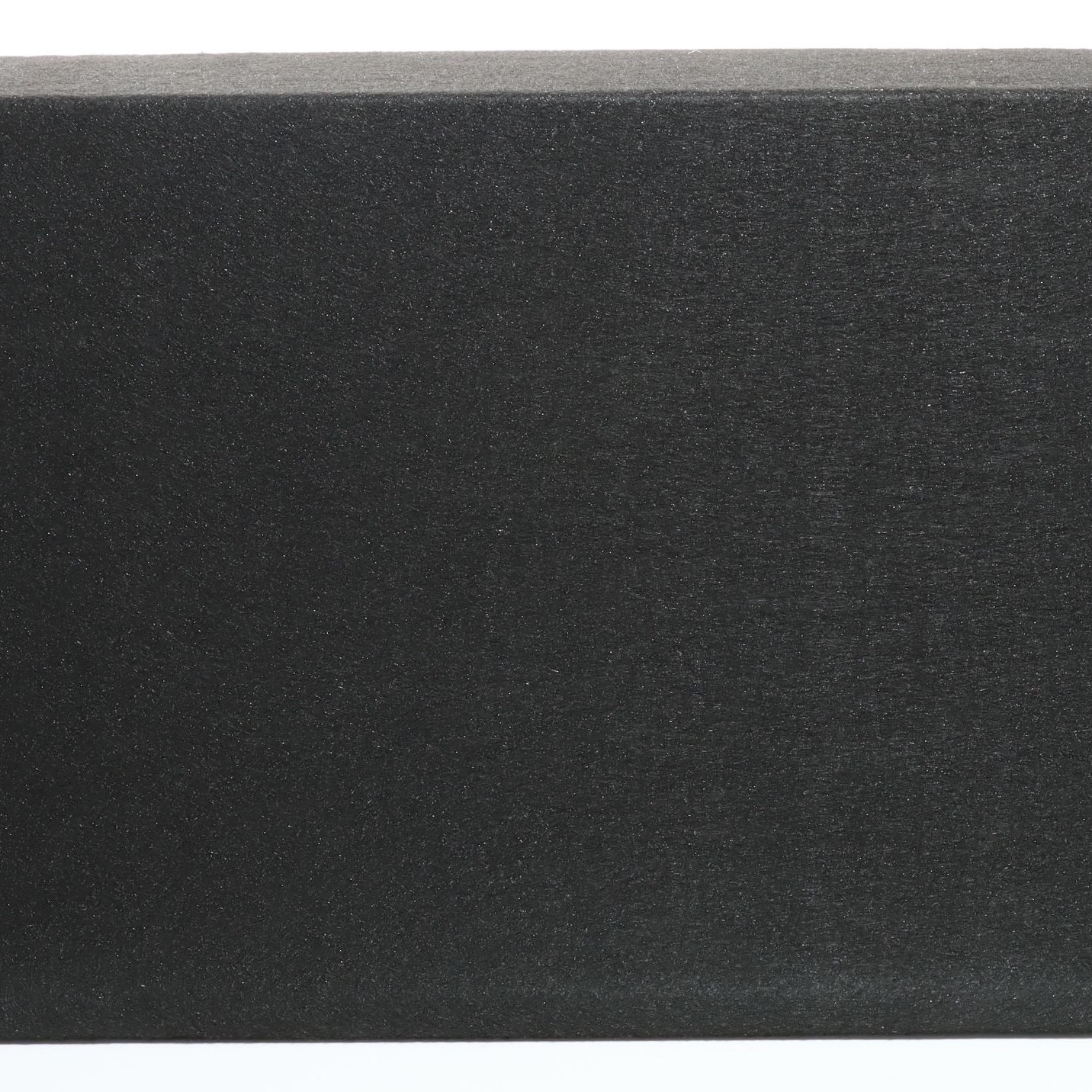

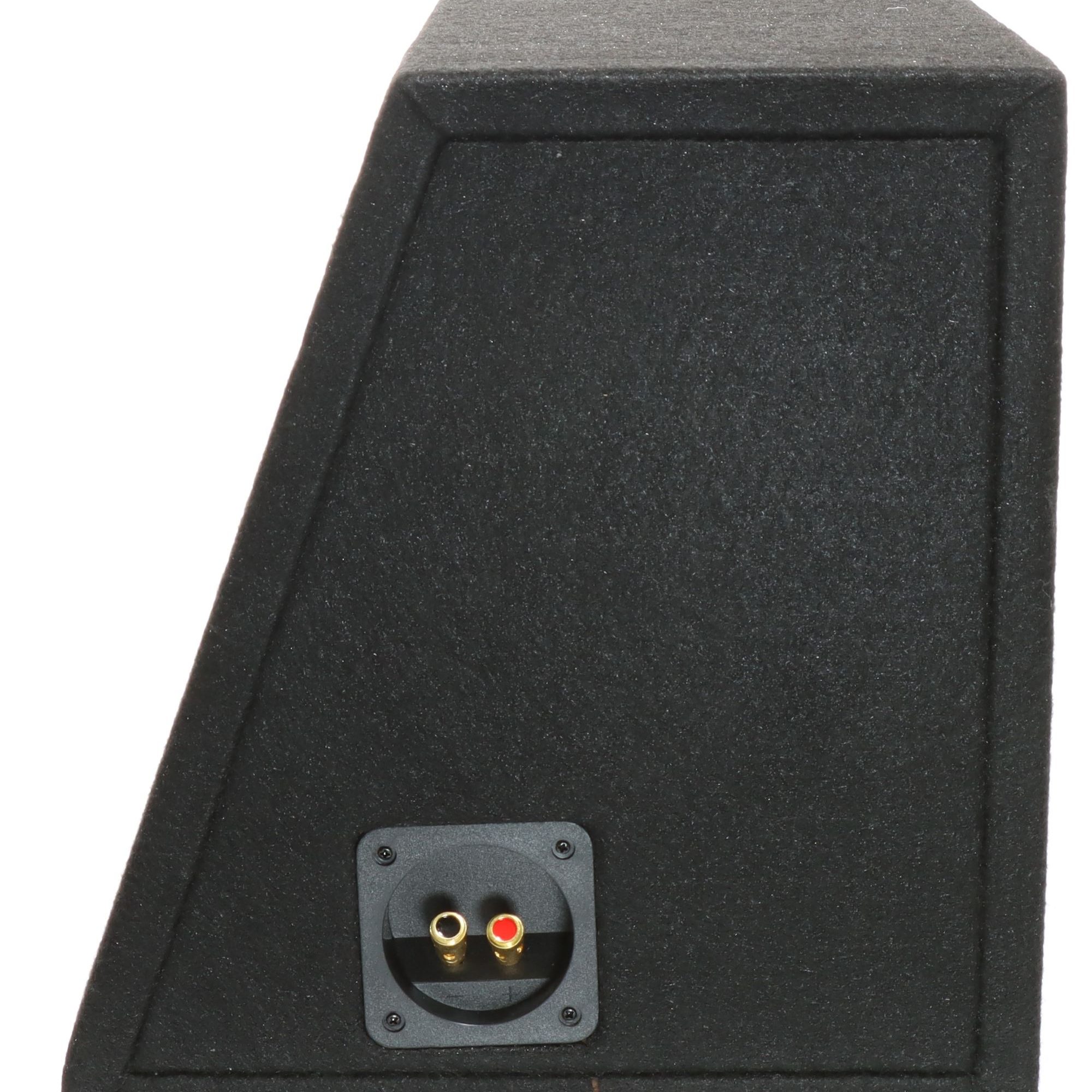

BR 10 EVO

Description

  • AUDIO SYSTEM Double-Empty Box
  • vented box with 32 Liter for 25 cm Bass
  • 18 mm MDF box with terminal and 36 mm front panel

Dimensions

  • hole circle: 23,3/26,6 cm
  • l= 550 mm
  • h= 360 mm
  • t1= 220 mm
  • t2= 330 mm

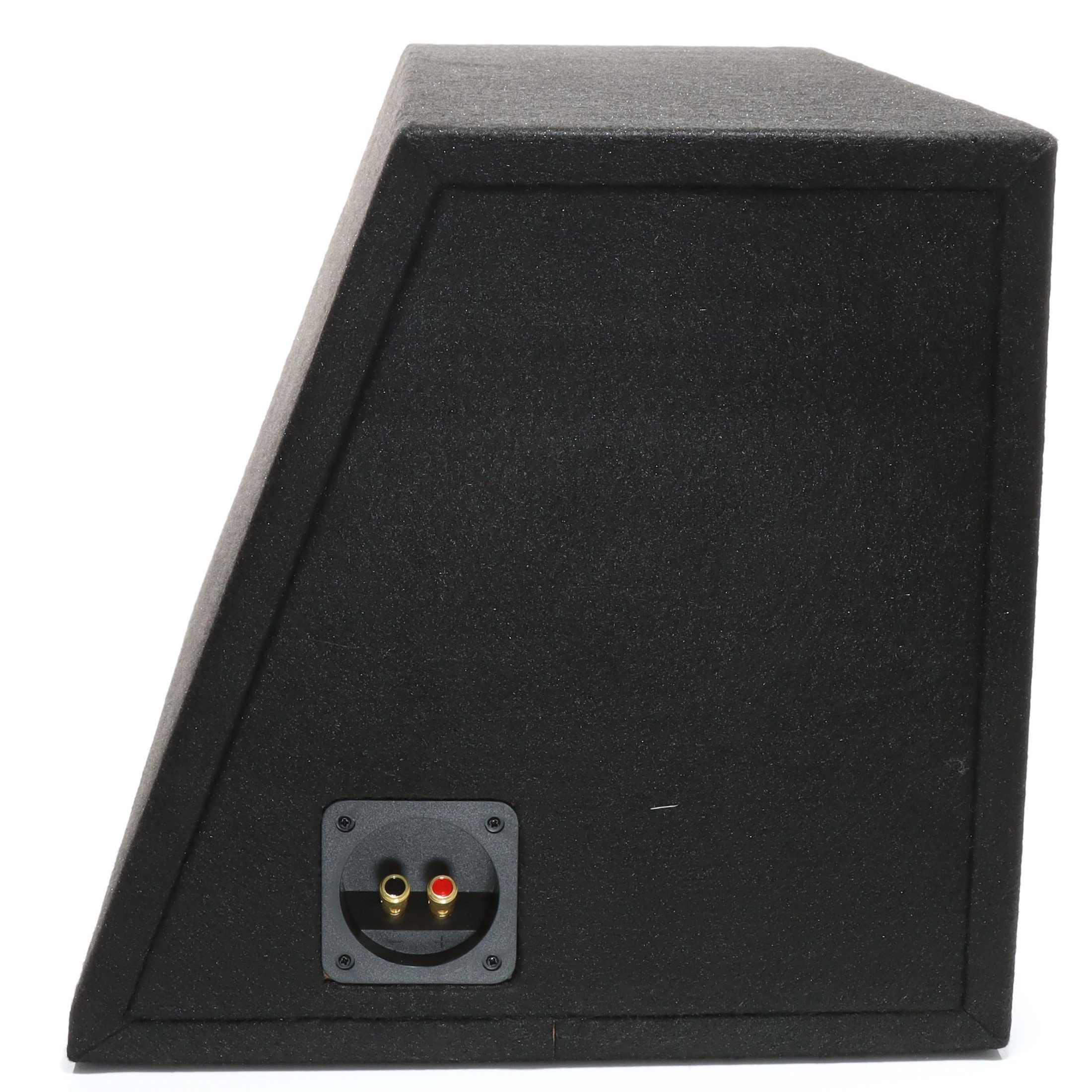

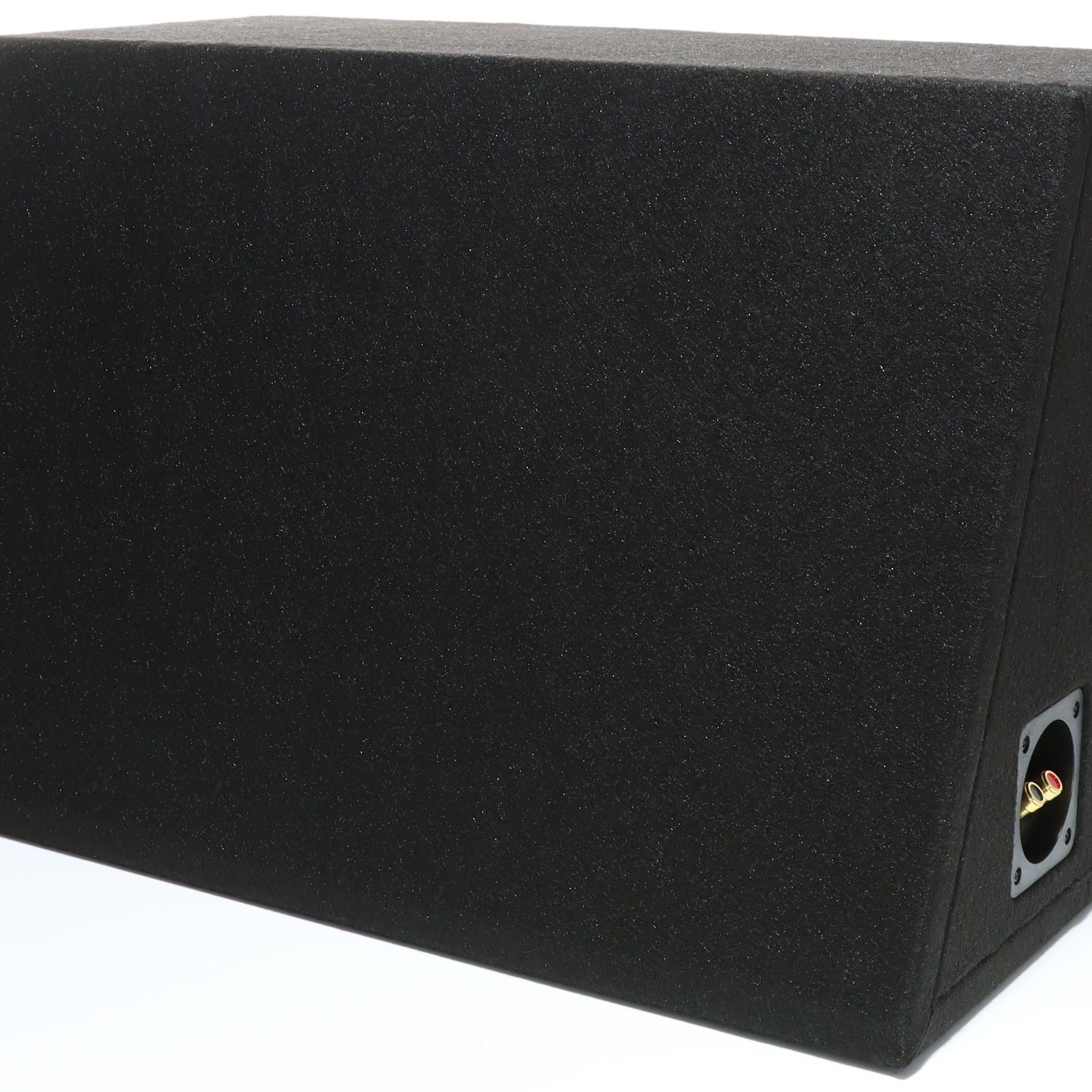

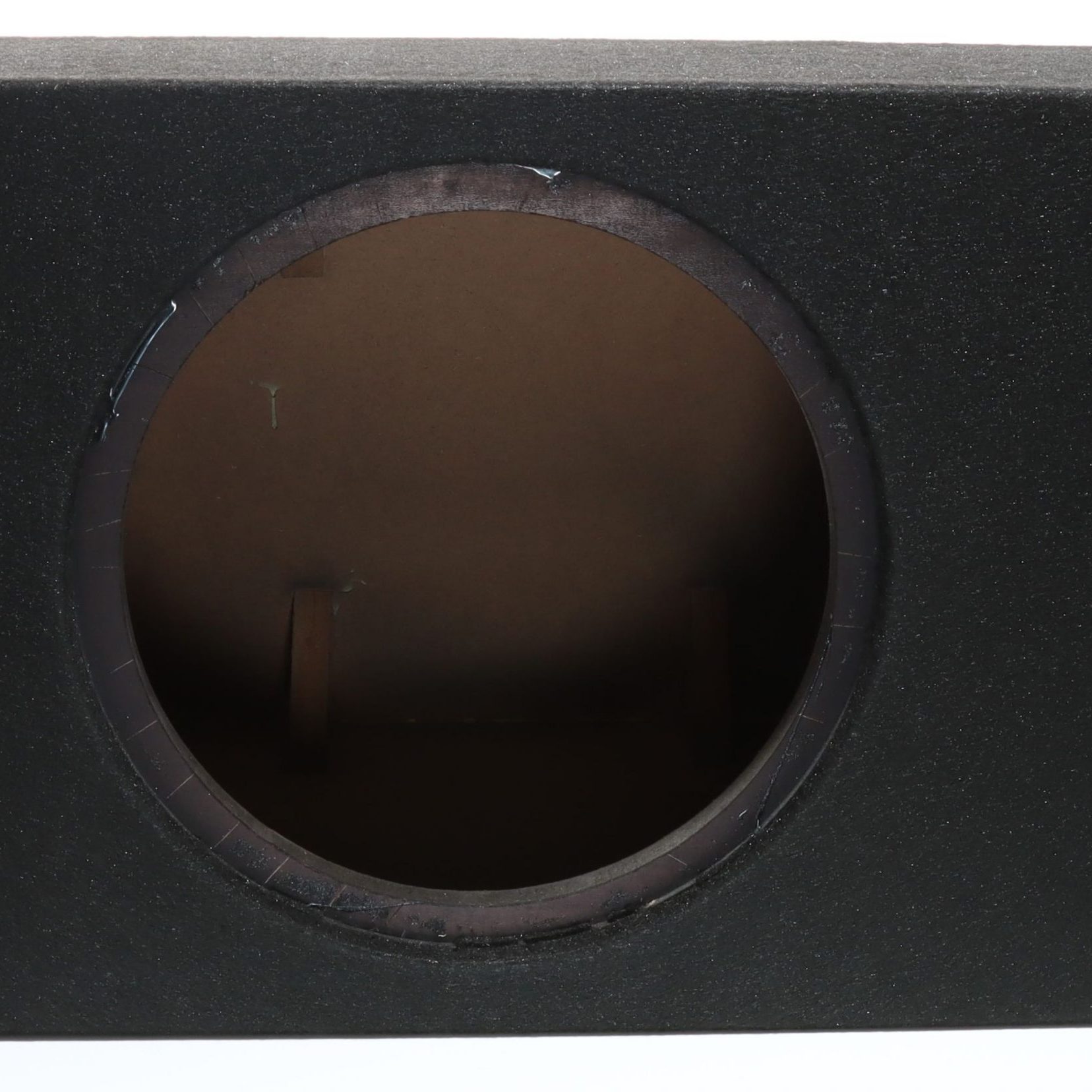

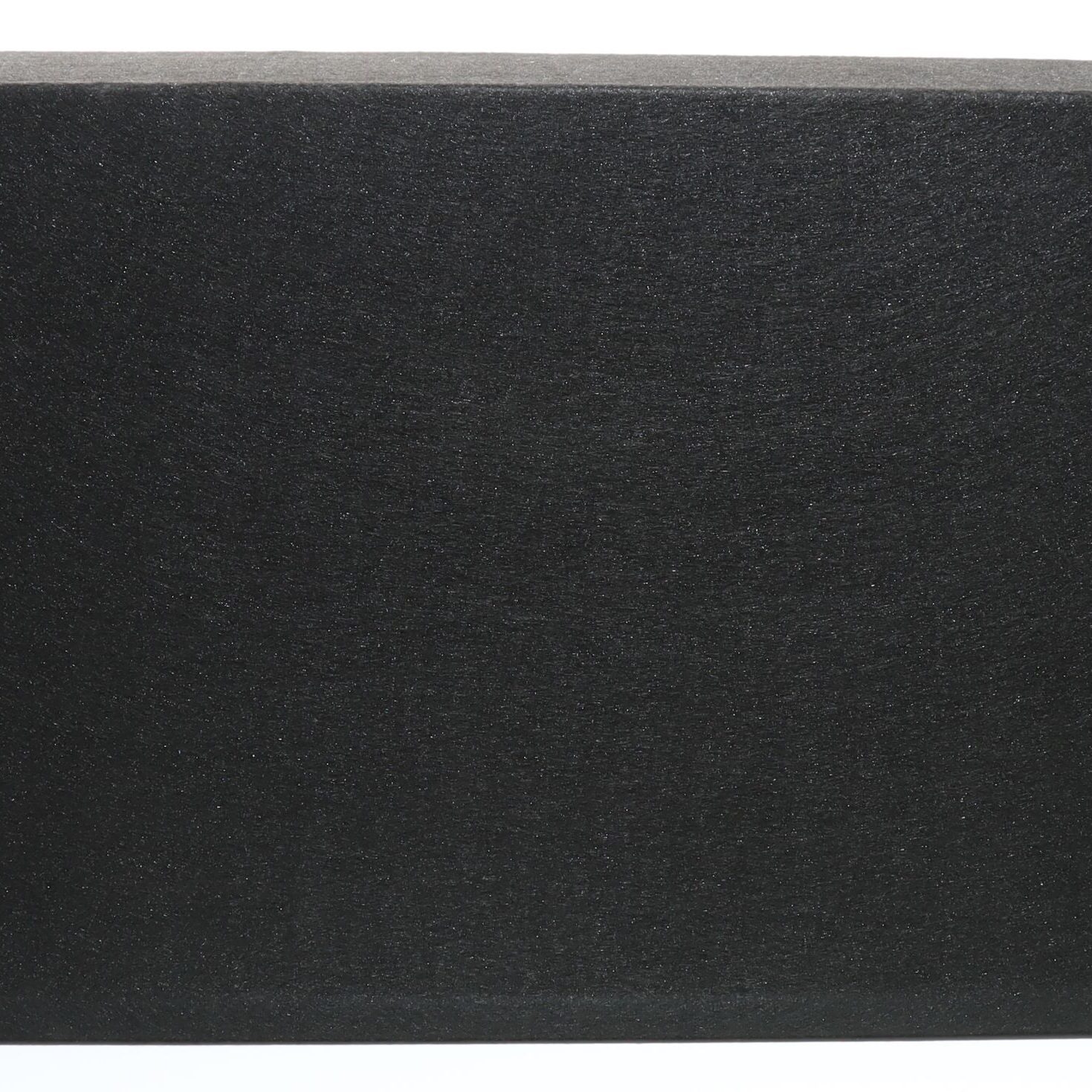

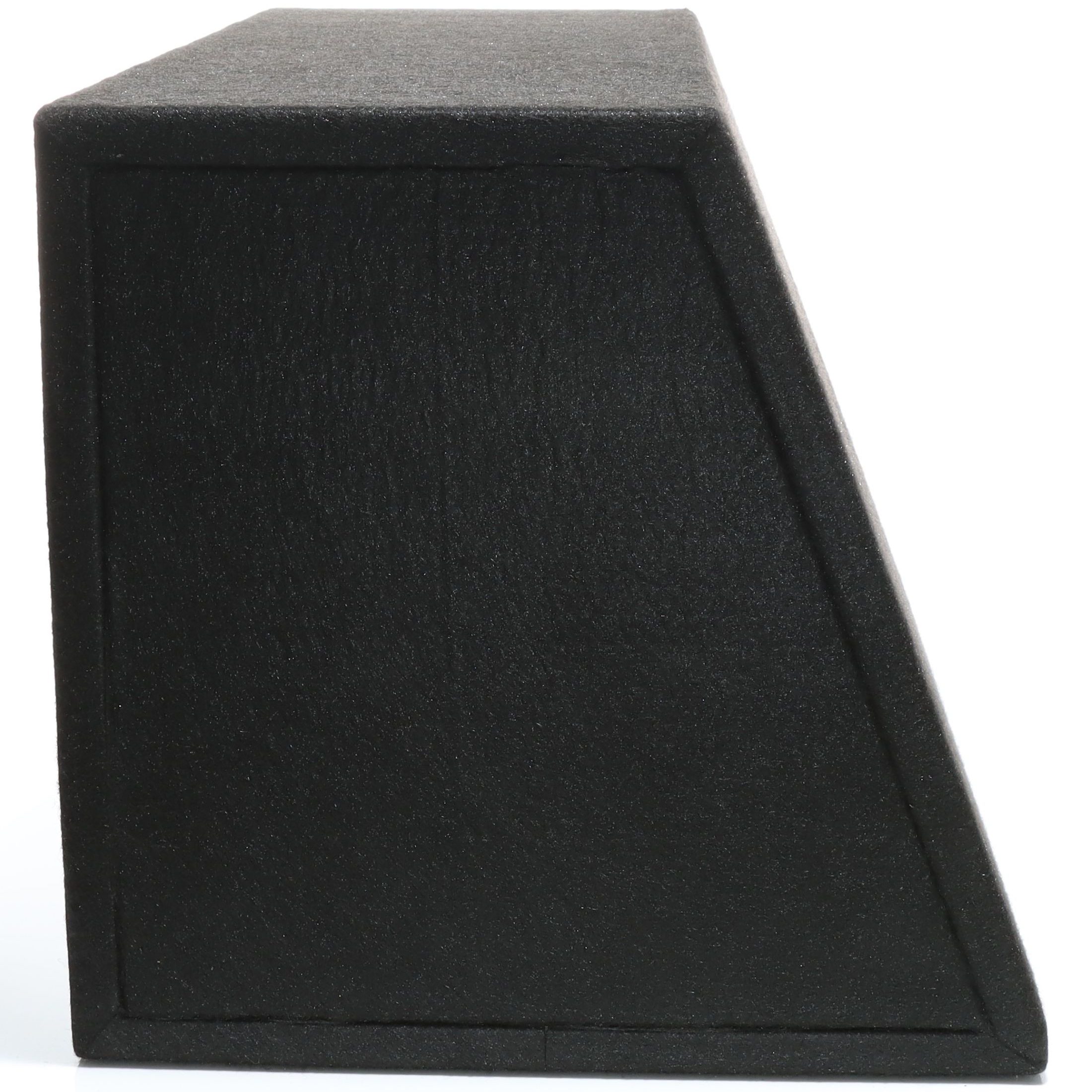

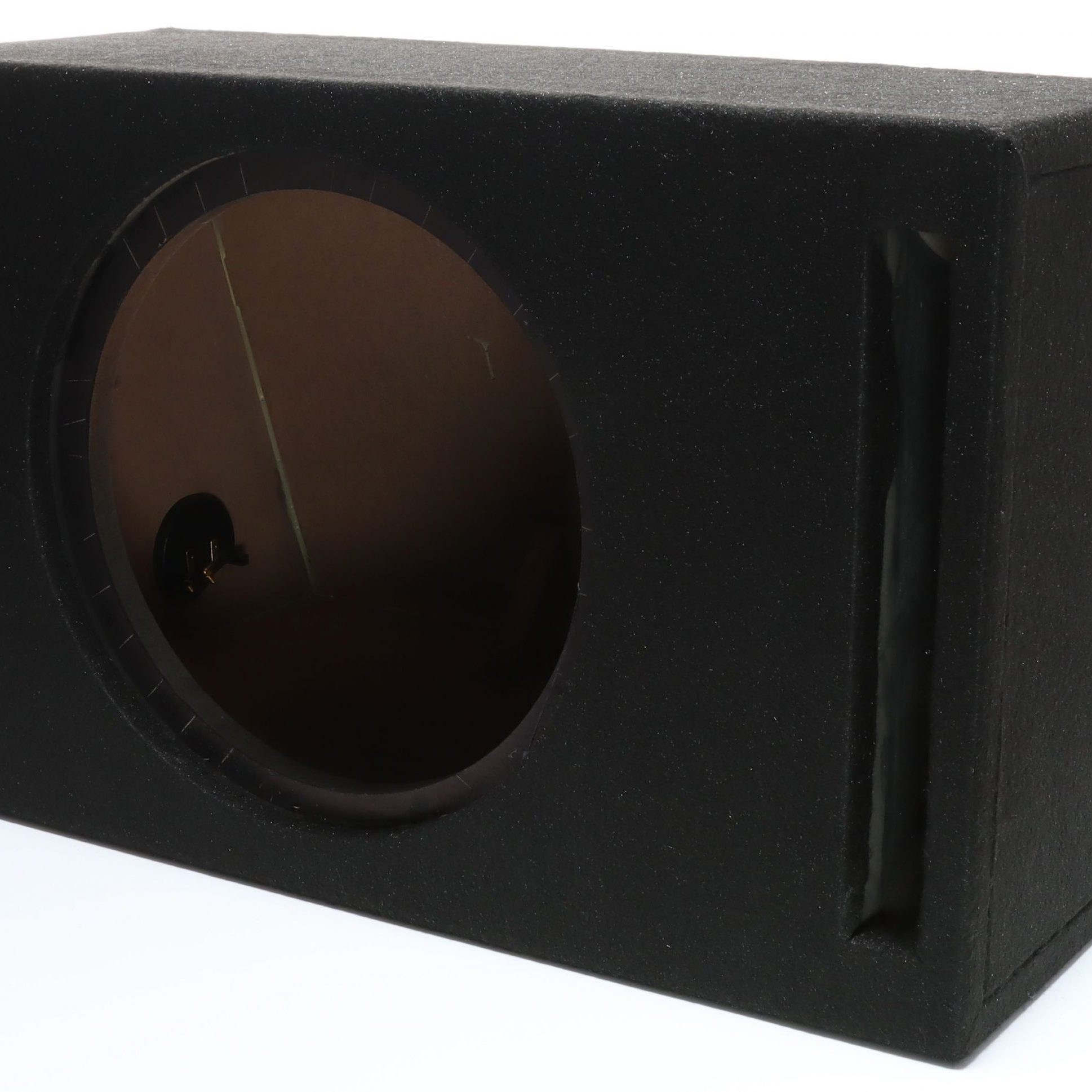

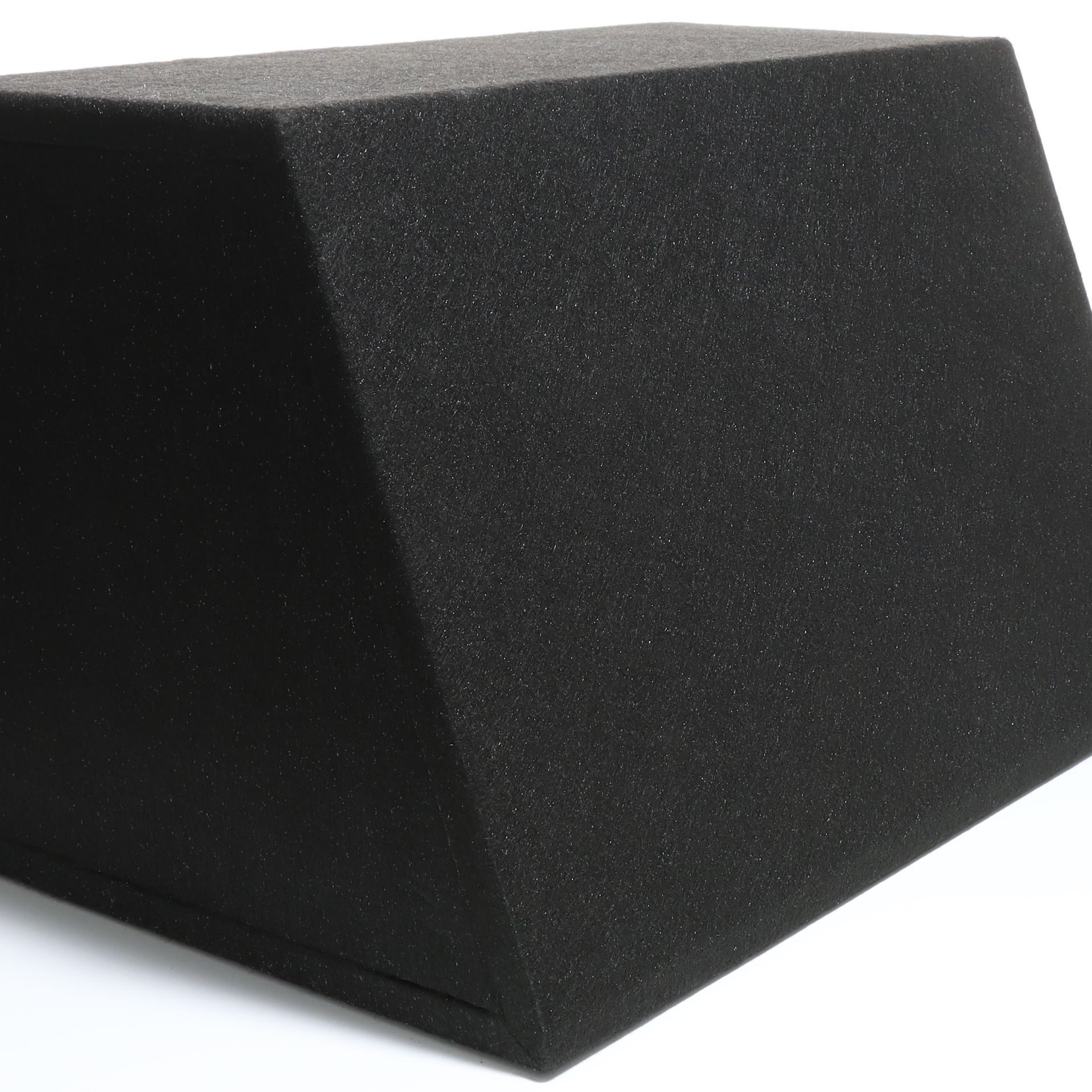

BR 12 EVO

Description

  • AUDIO SYSTEM Double-Empty Box
  • vented box with 50 Liter for 30 cm Bass
  • 18 mm MDF box with terminal and 36 mm front panel

Dimensions

  • hole circle: 28,1/32,3 cm
  • l= 620 mm
  • h= 380 mm
  • t1= 260 mm
  • t2= 390 mm

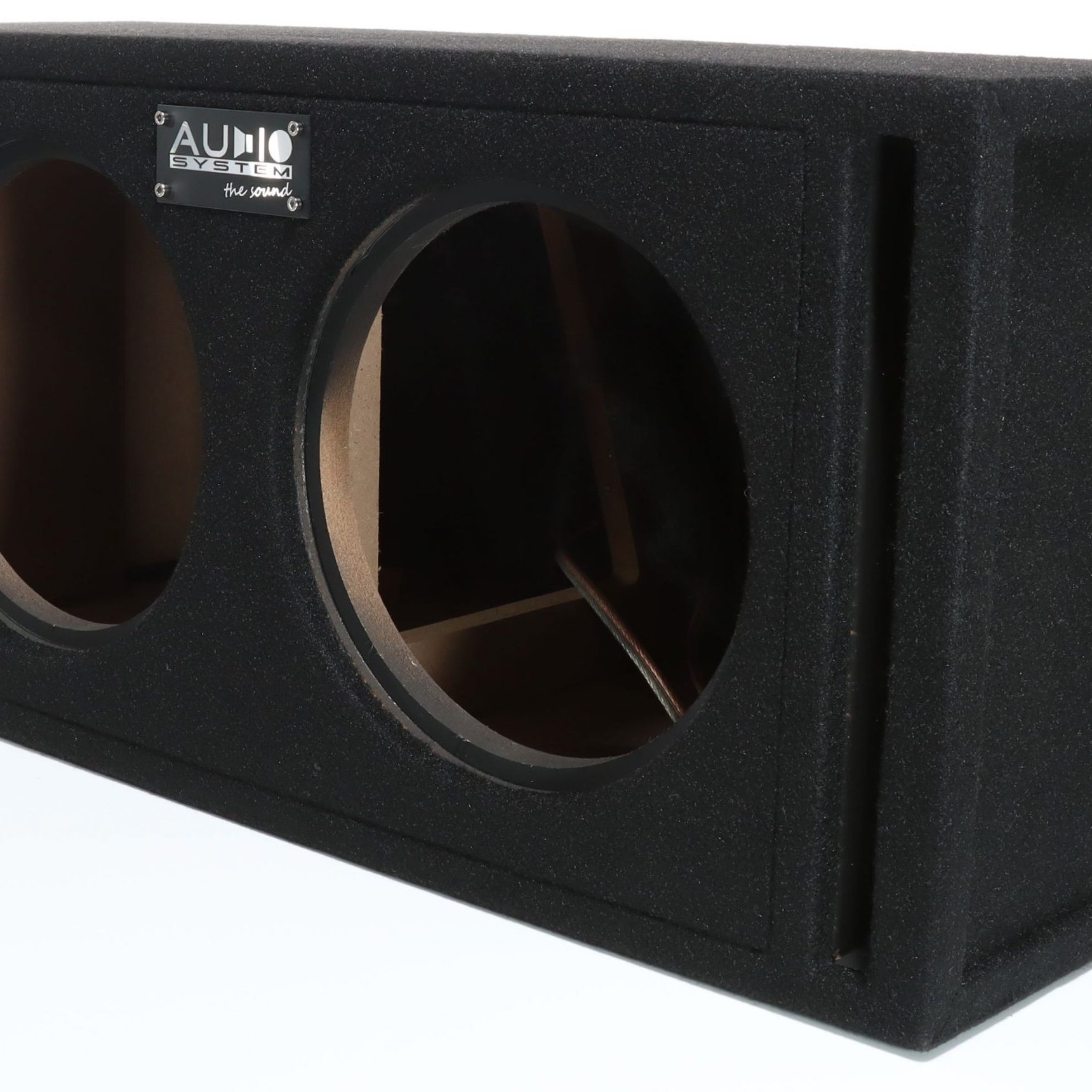

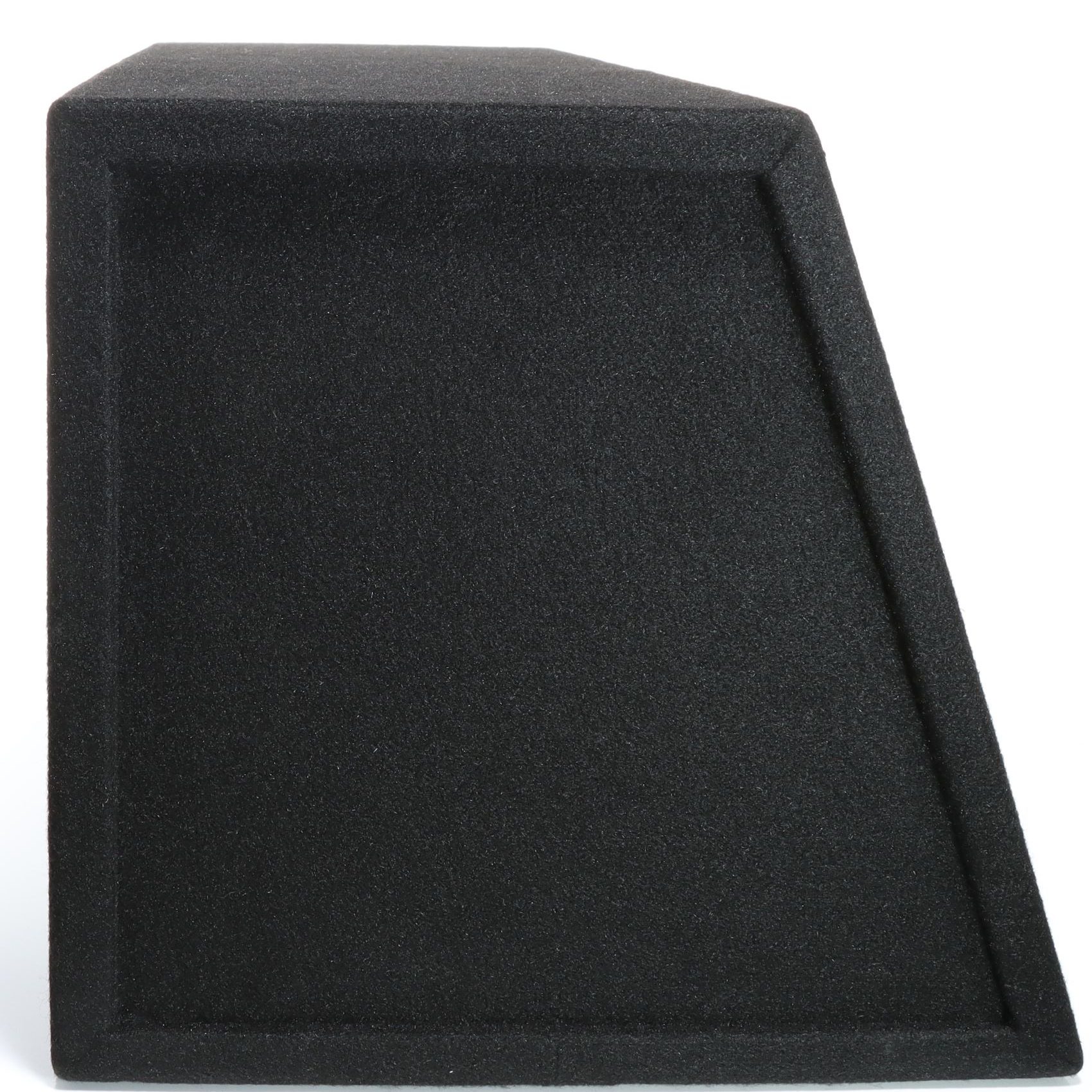

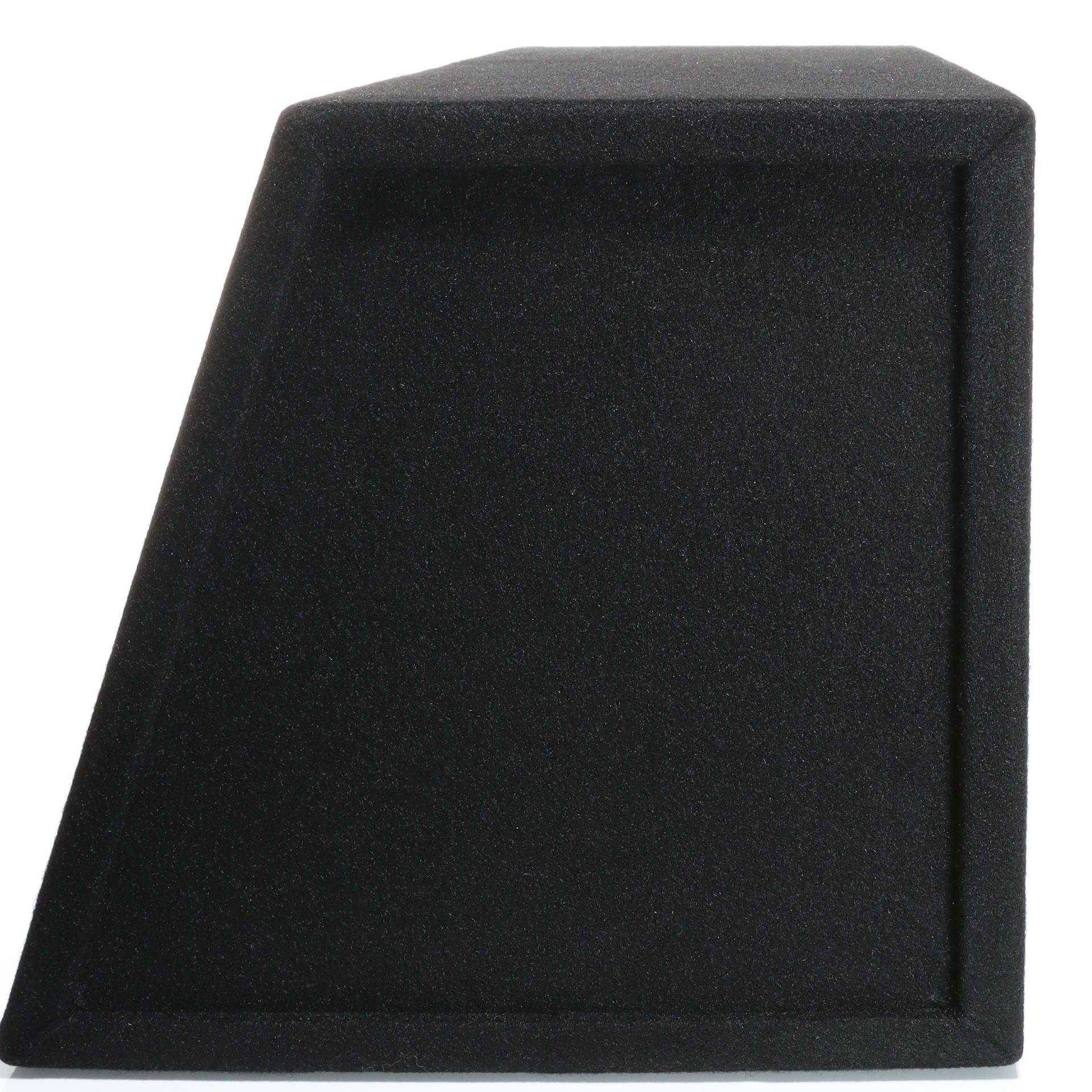

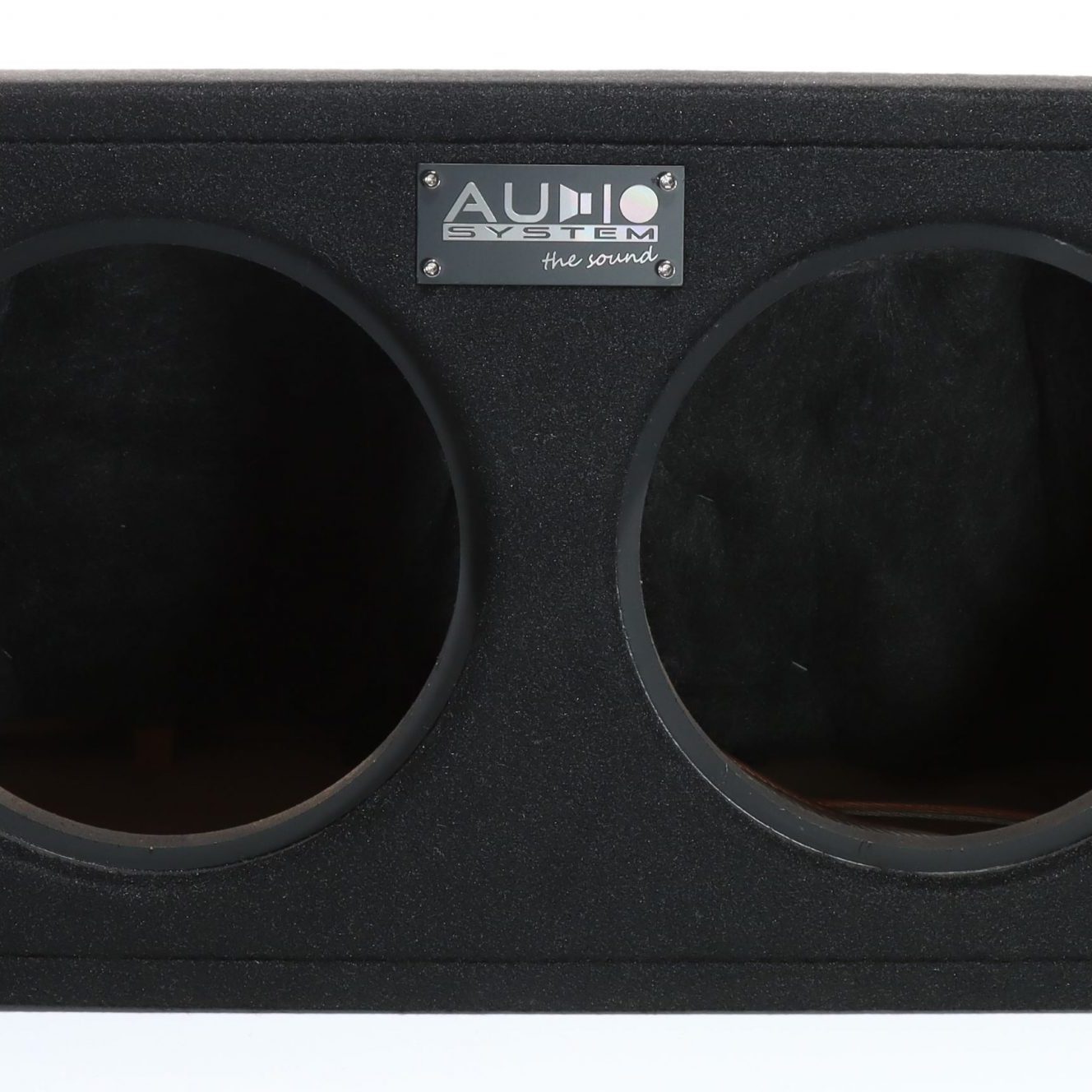

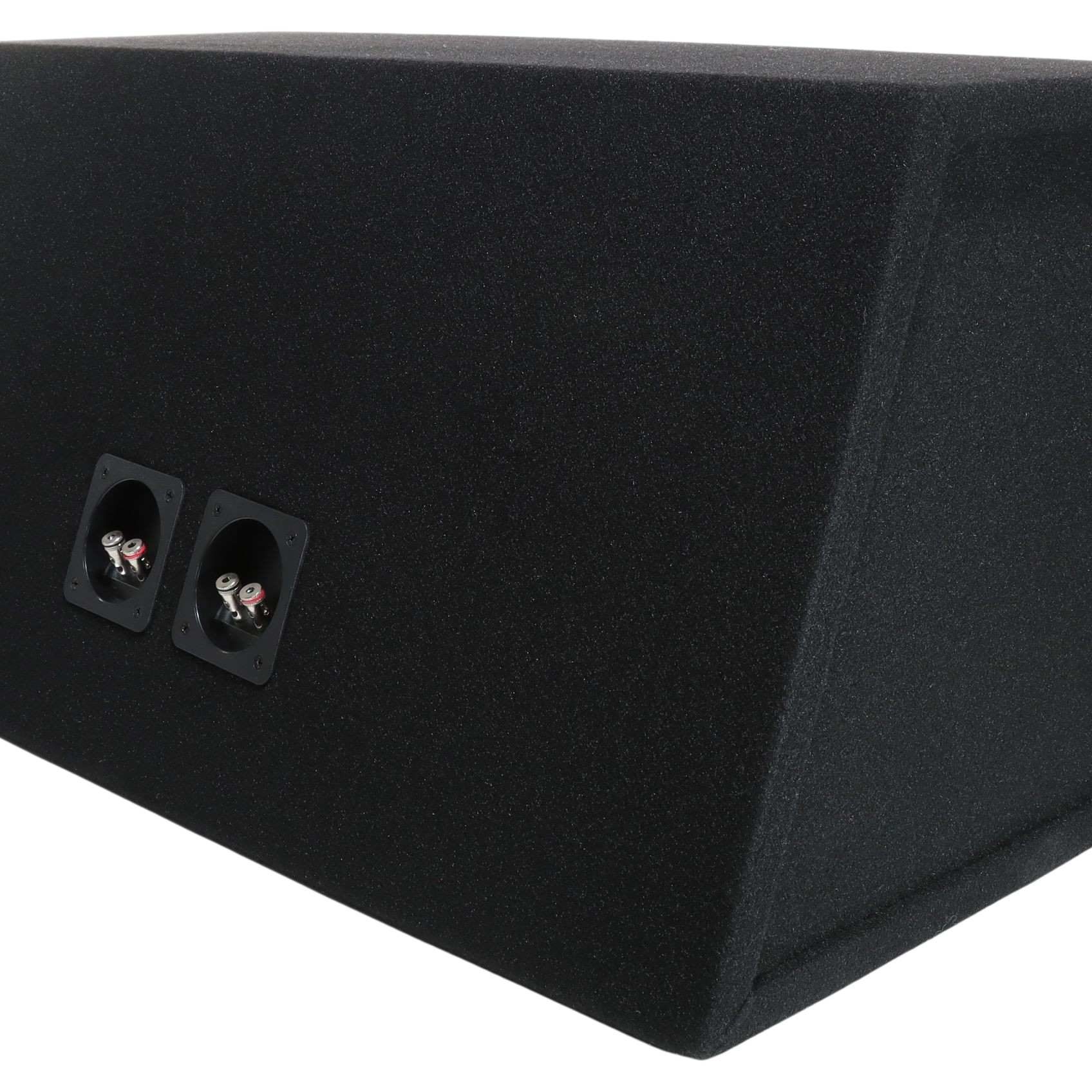

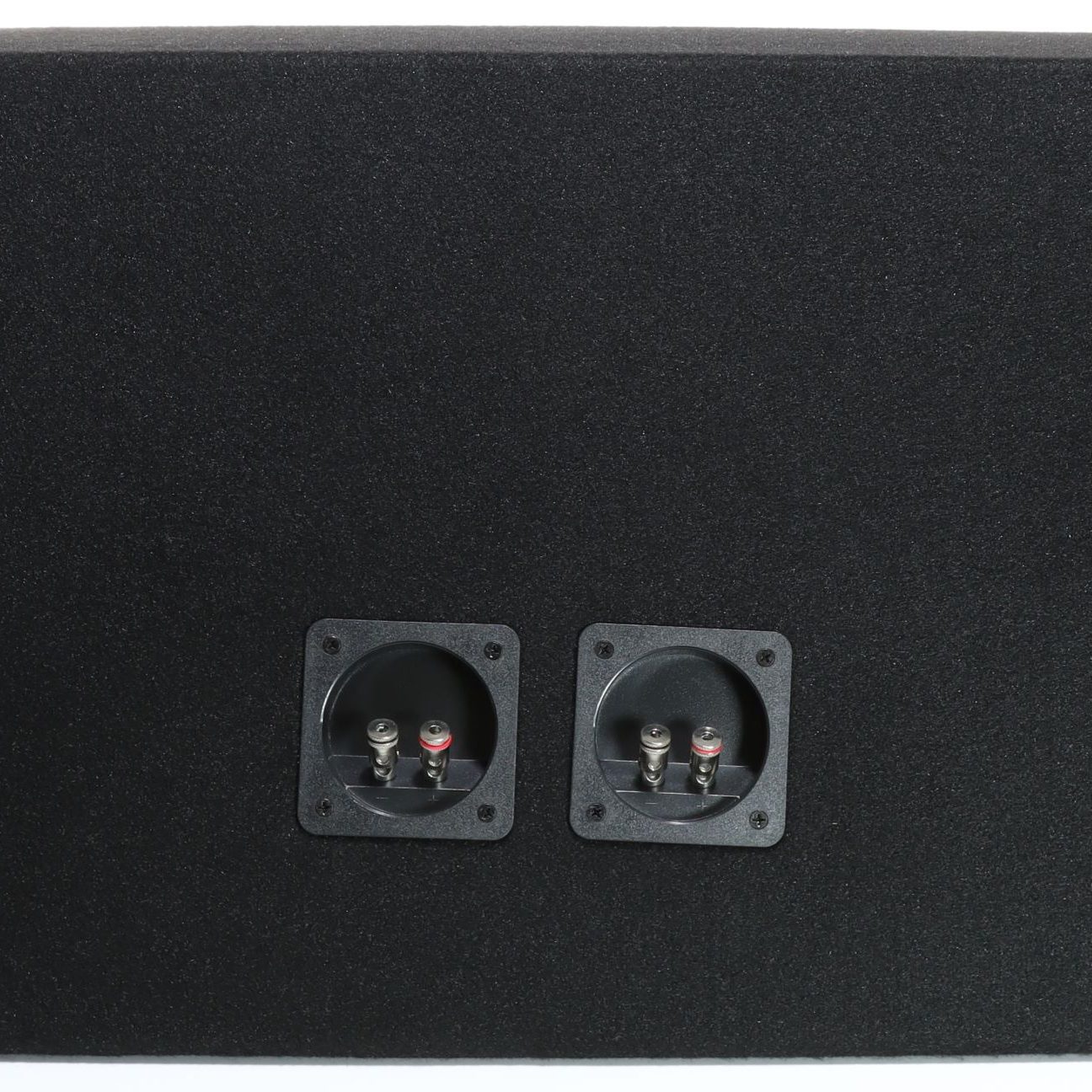

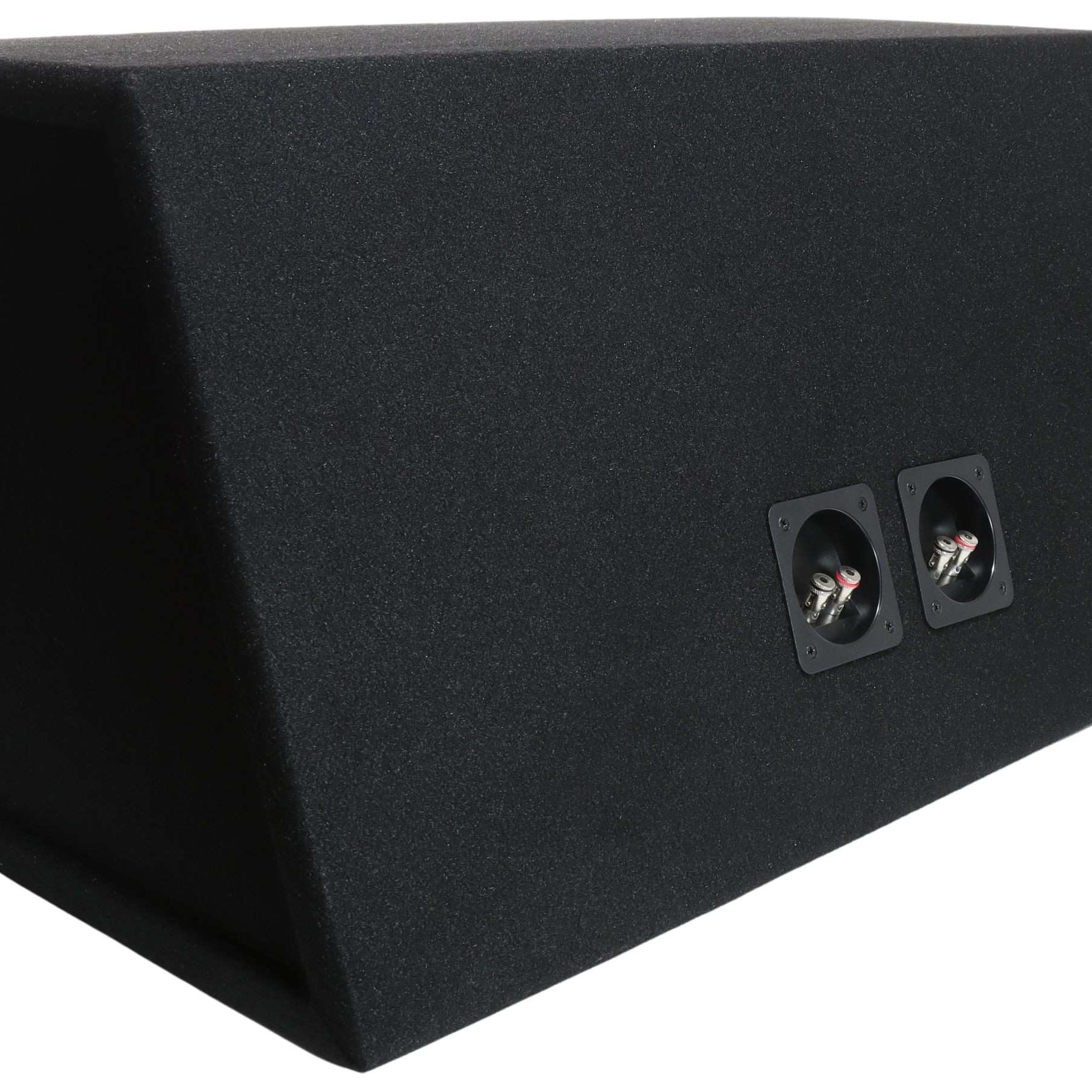

BR 10-2 EVO

Description

  • AUDIO SYSTEM Double-Empty Box
  • vented box with 2x 30 Liter for 2x 25 cm Bass
  • 18 mm MDF box with double terminal and 36 mm front panel

Dimensions

  • hole circle: 24/26,1 cm
  • l= 760 mm
  • h= 360 mm
  • t1= 265 mm
  • t2= 395 mm

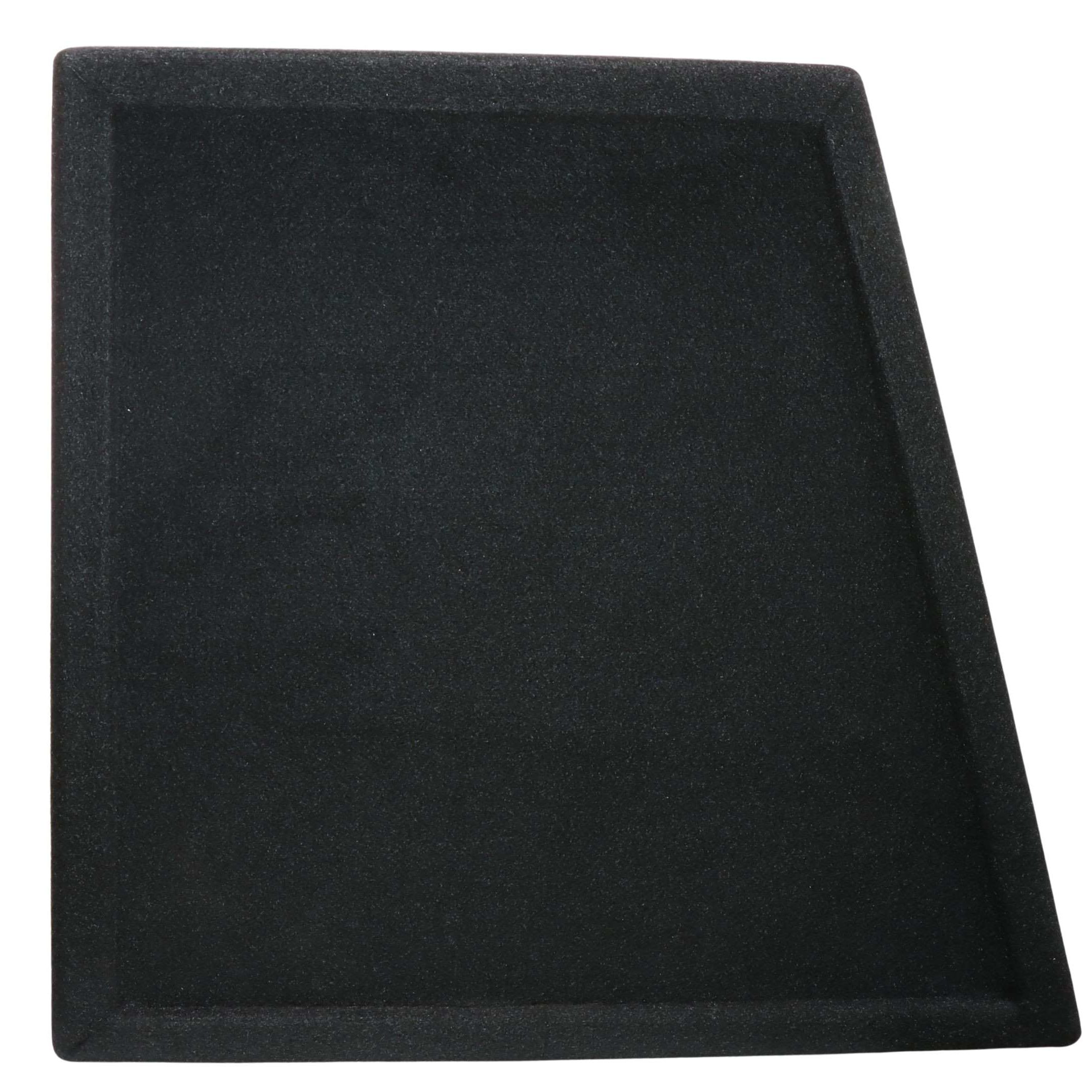

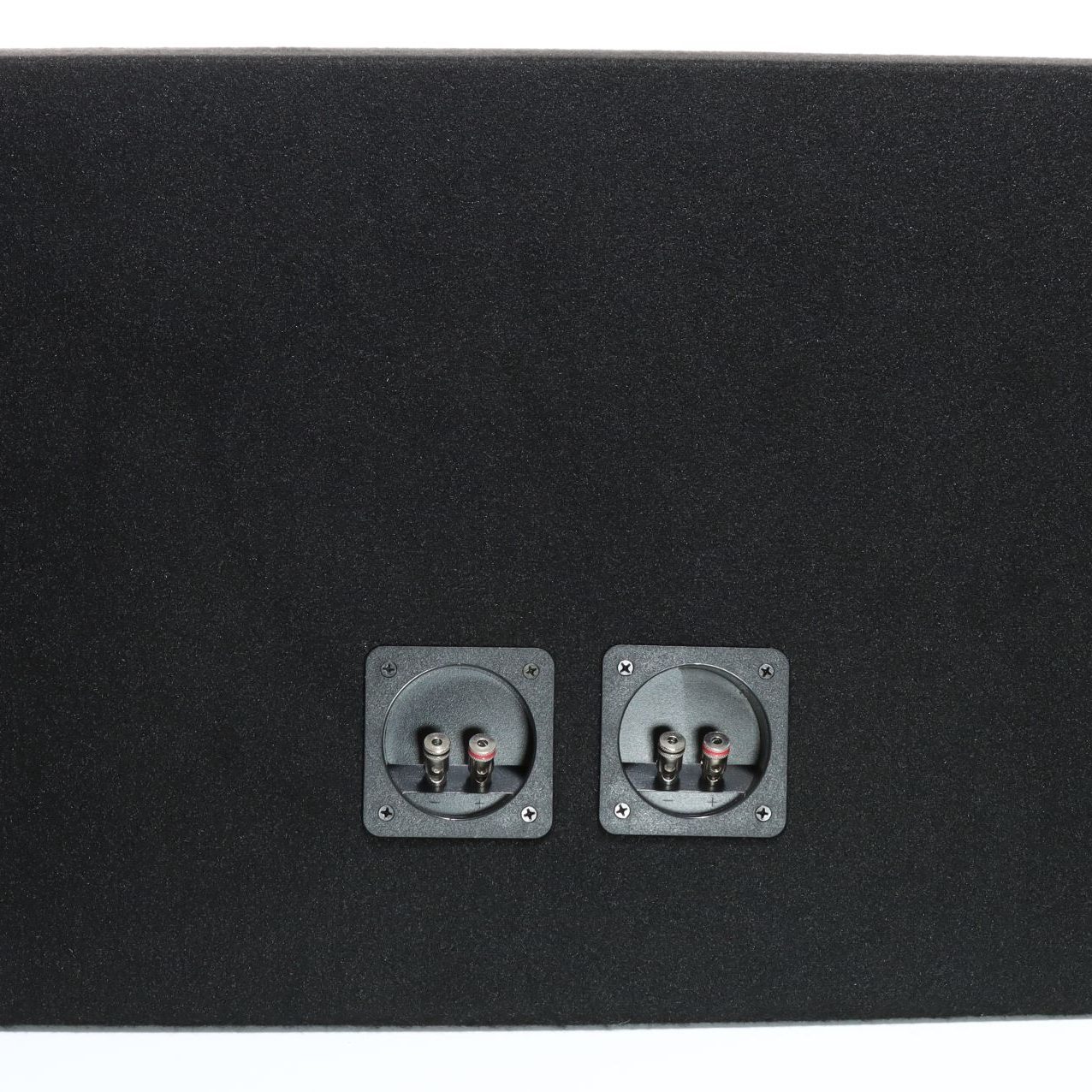

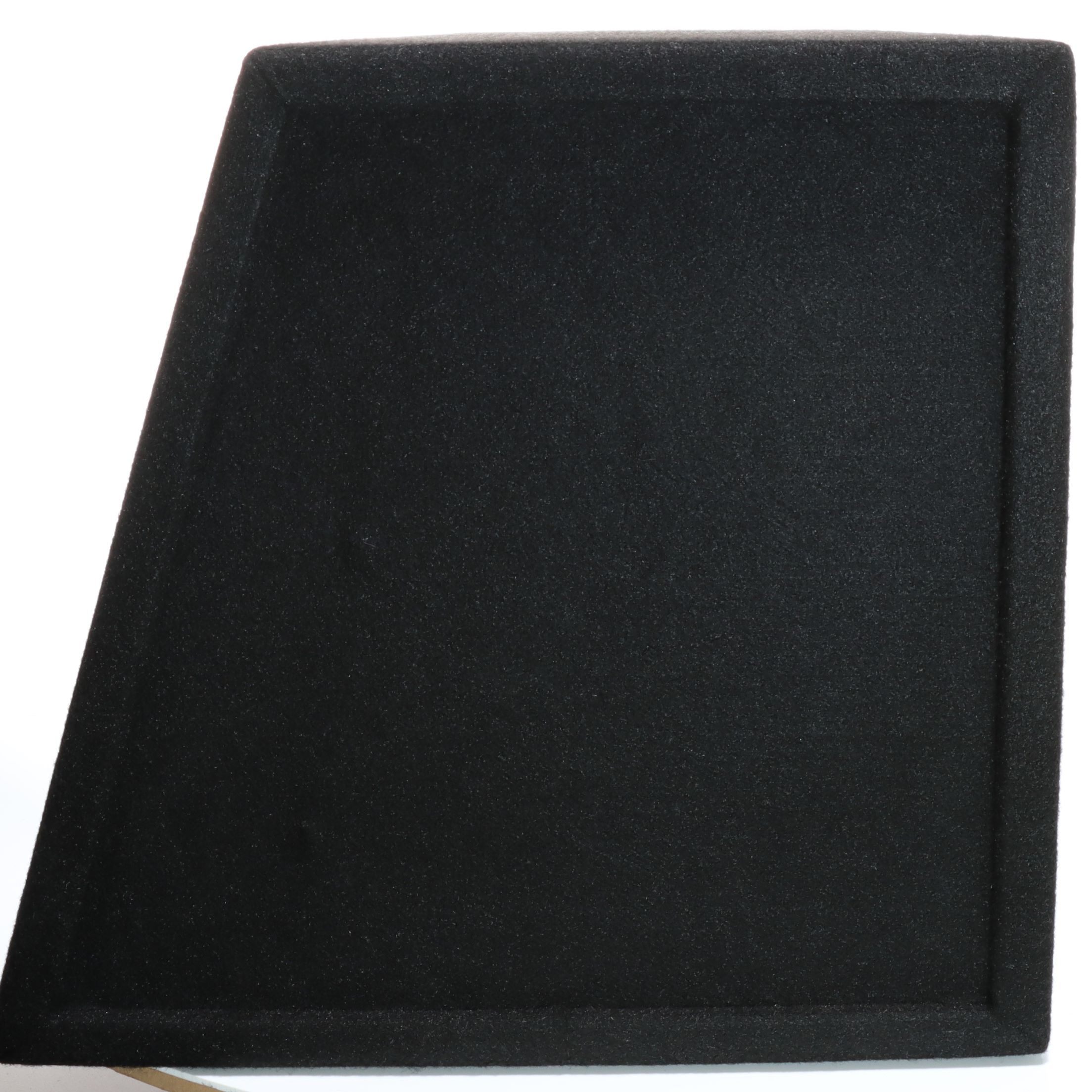

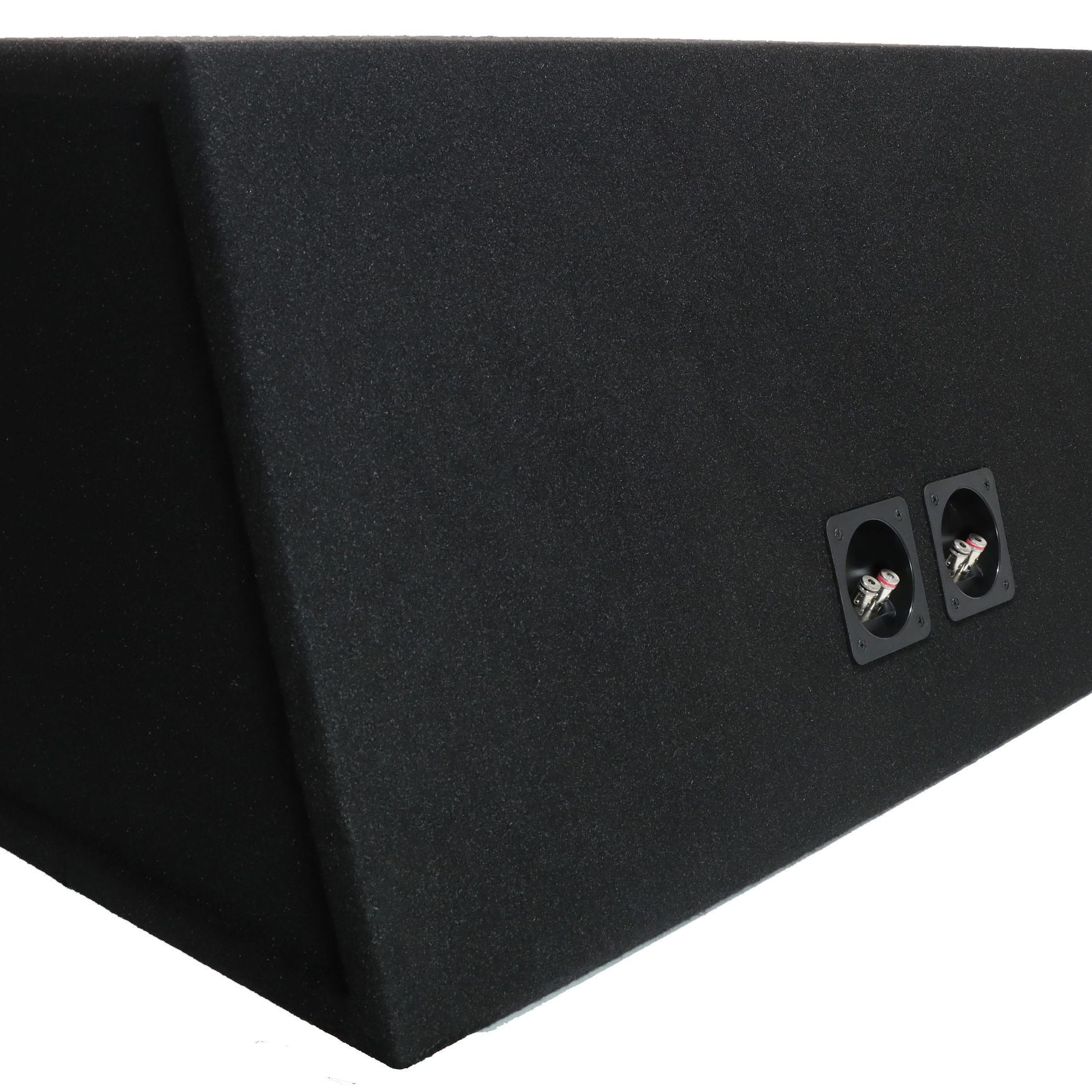

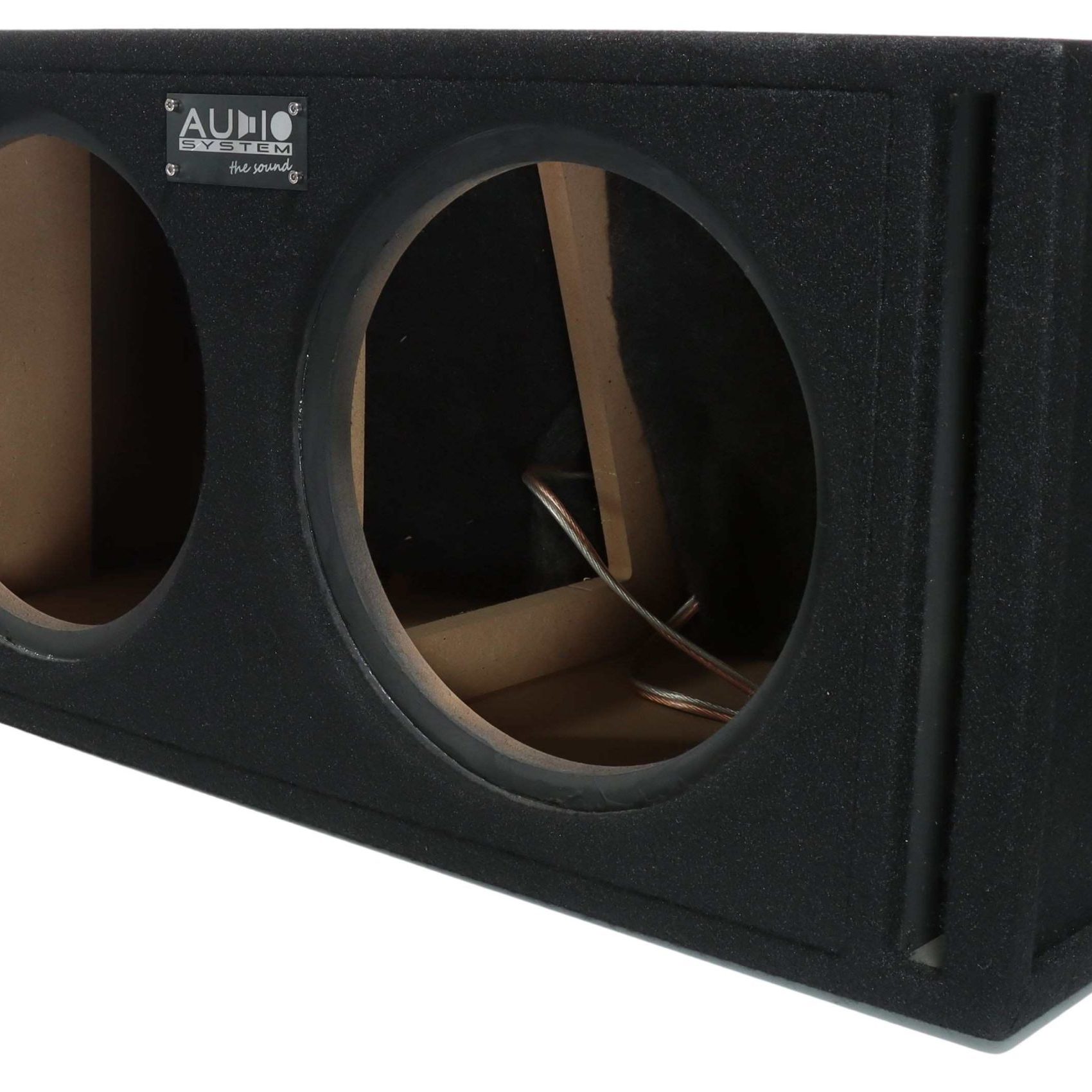

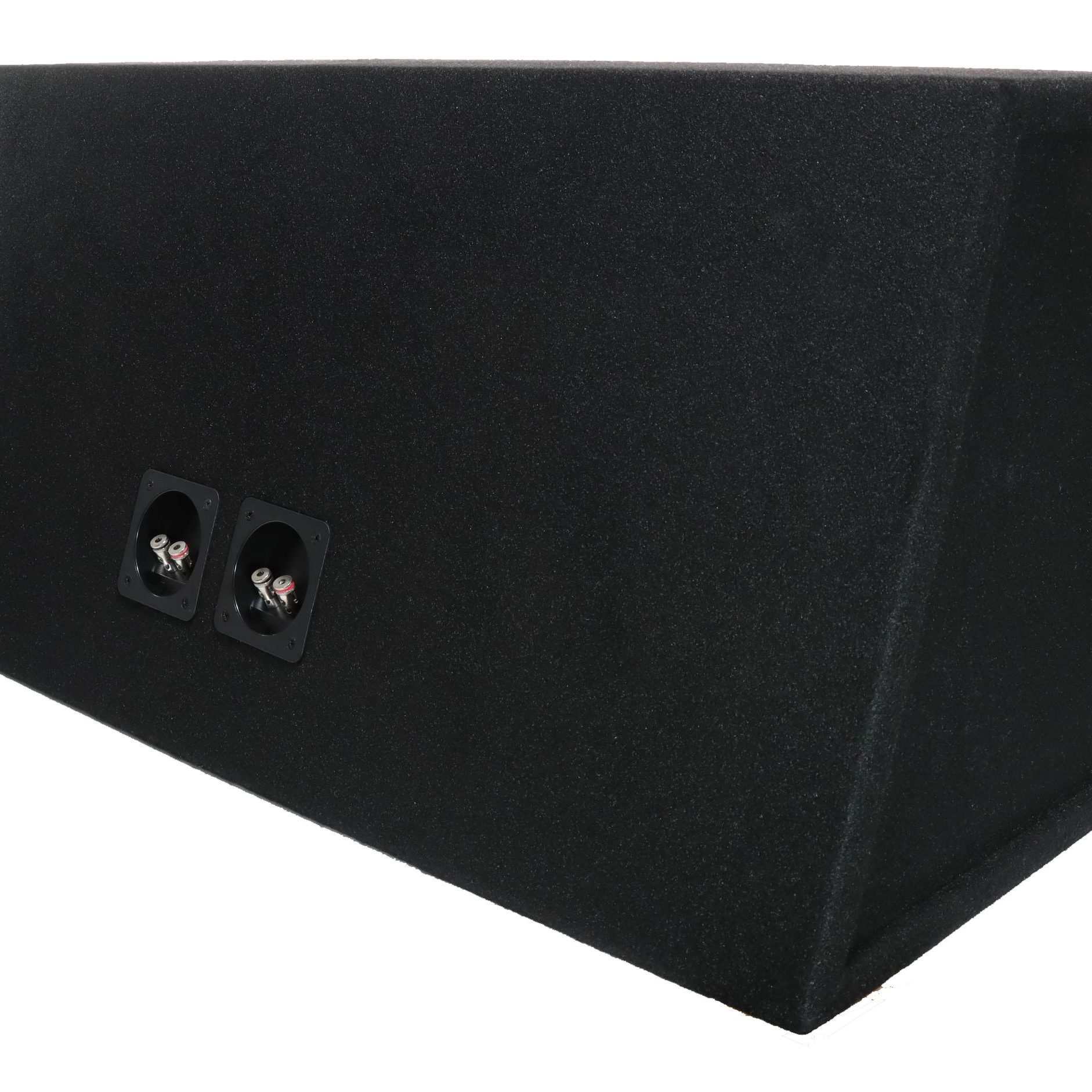

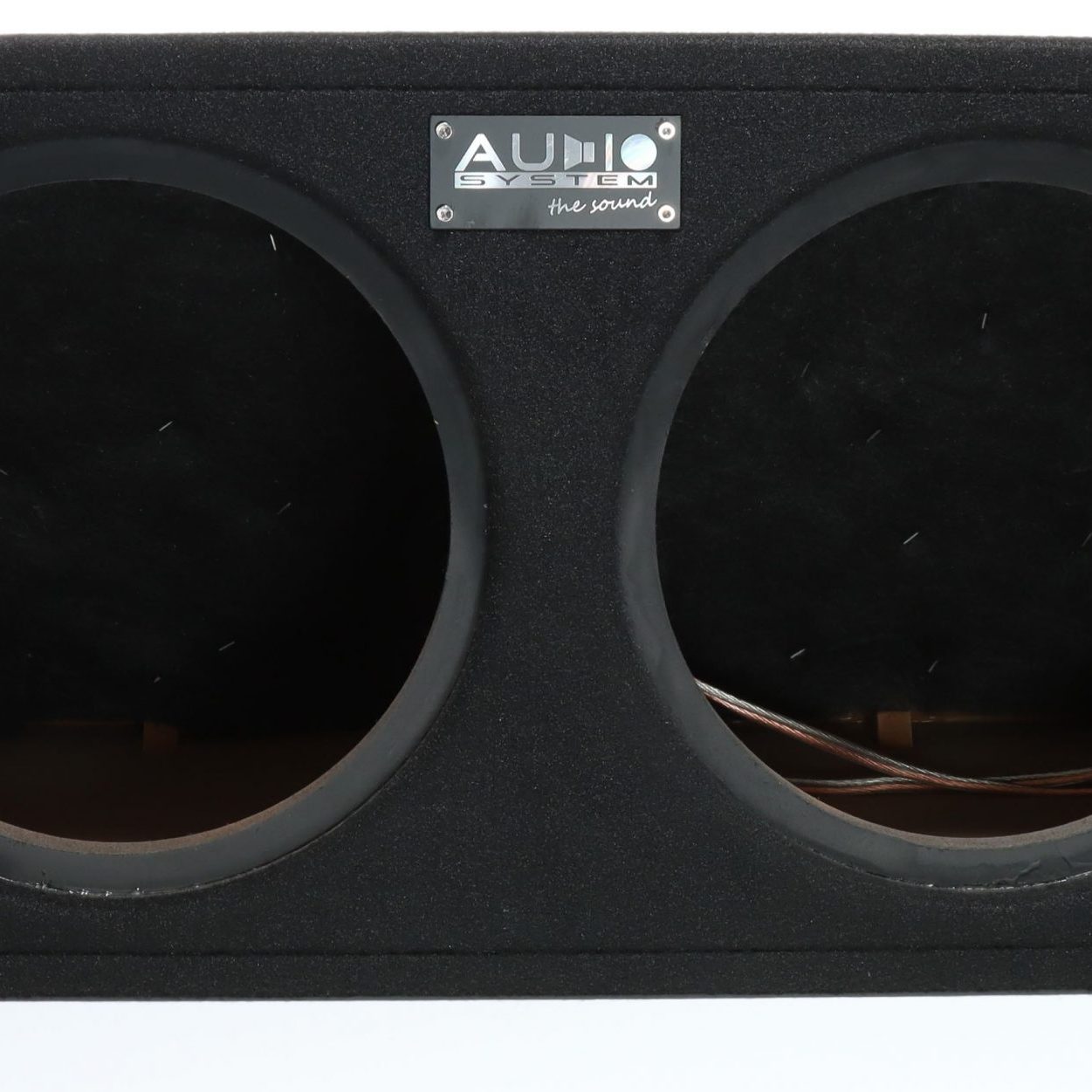

BR 12-2 EVO

Description

  • AUDIO SYSTEM Double-Empty Box
  • vented box with 2x 42 Liter für 2x 30 cm Bass
  • 18 mm MDF box with double terminal and 39 mm front panel

Dimensions

  • hole circle: 28,4,5/32cm
  • size: l= 880 mm
  • h= 400 mm
  • t1= 305 mm
  • t2= 430 mm

BP 12

Description

  • AUDIO SYSTEM Single-Bandpass Empty Box
  • bandpass-box with 75 Liter for 30 cm Bass
  • completely 25 mm MDF box with double terminal

Dimensions

  • Lochkreis: 28,4 cm
  • l= 760 mm
  • h= 380 mm
  • d1= 330 mm
  • d2= 470 mm

BP 12-2

Description

  • AUDIO SYSTEM Double-Bandpass Box
  • double bandpass box with 2x 50 Liter for 2x 30 cm Bass
  • 18 mm MDF box with double terminal and 25 mm MDF woofer panel

Dimensions

  • Lochkreis: 28,4 cm
  • l= 770 mm
  • h= 400 mm
  • d1= 420 mm
  • d2= 580 mm

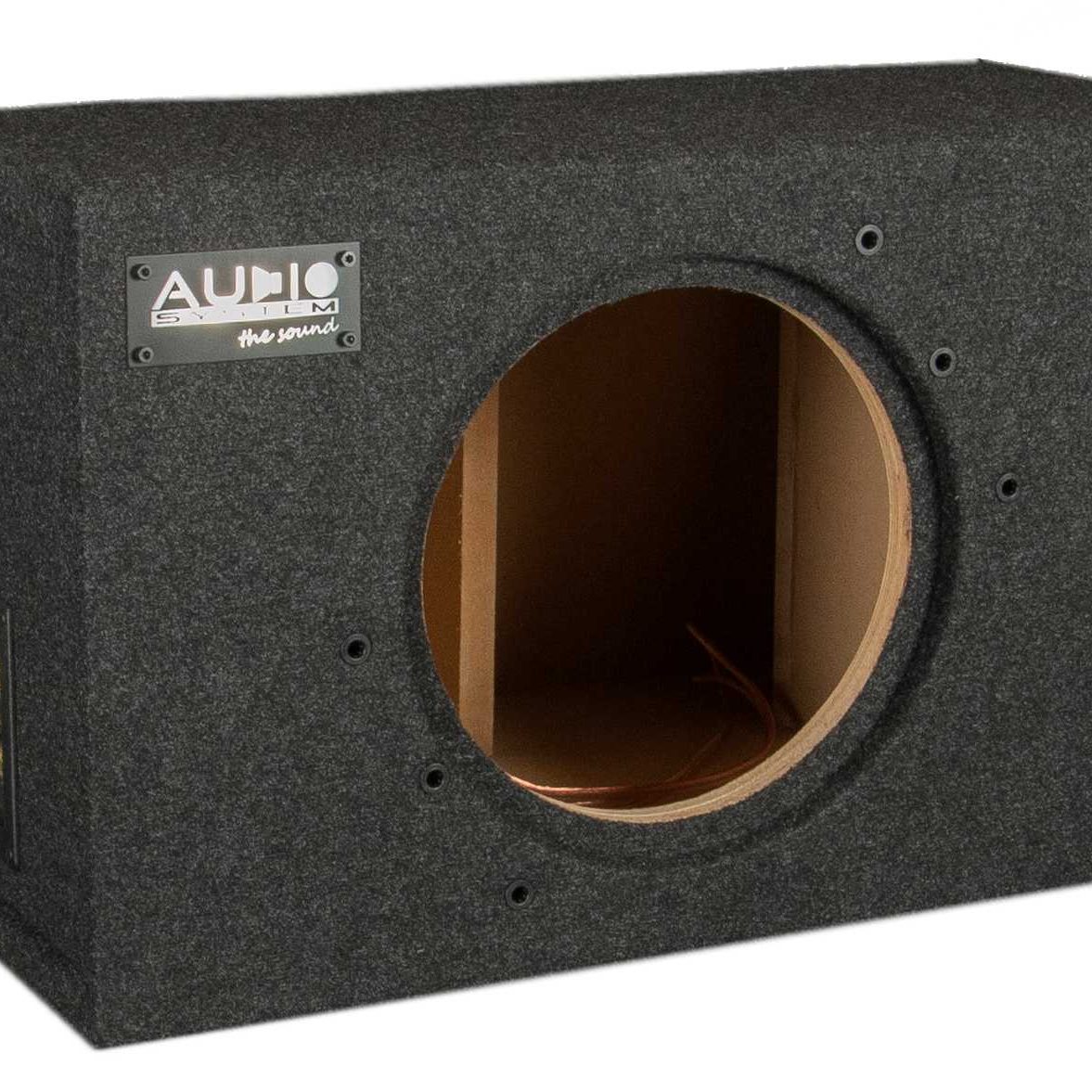

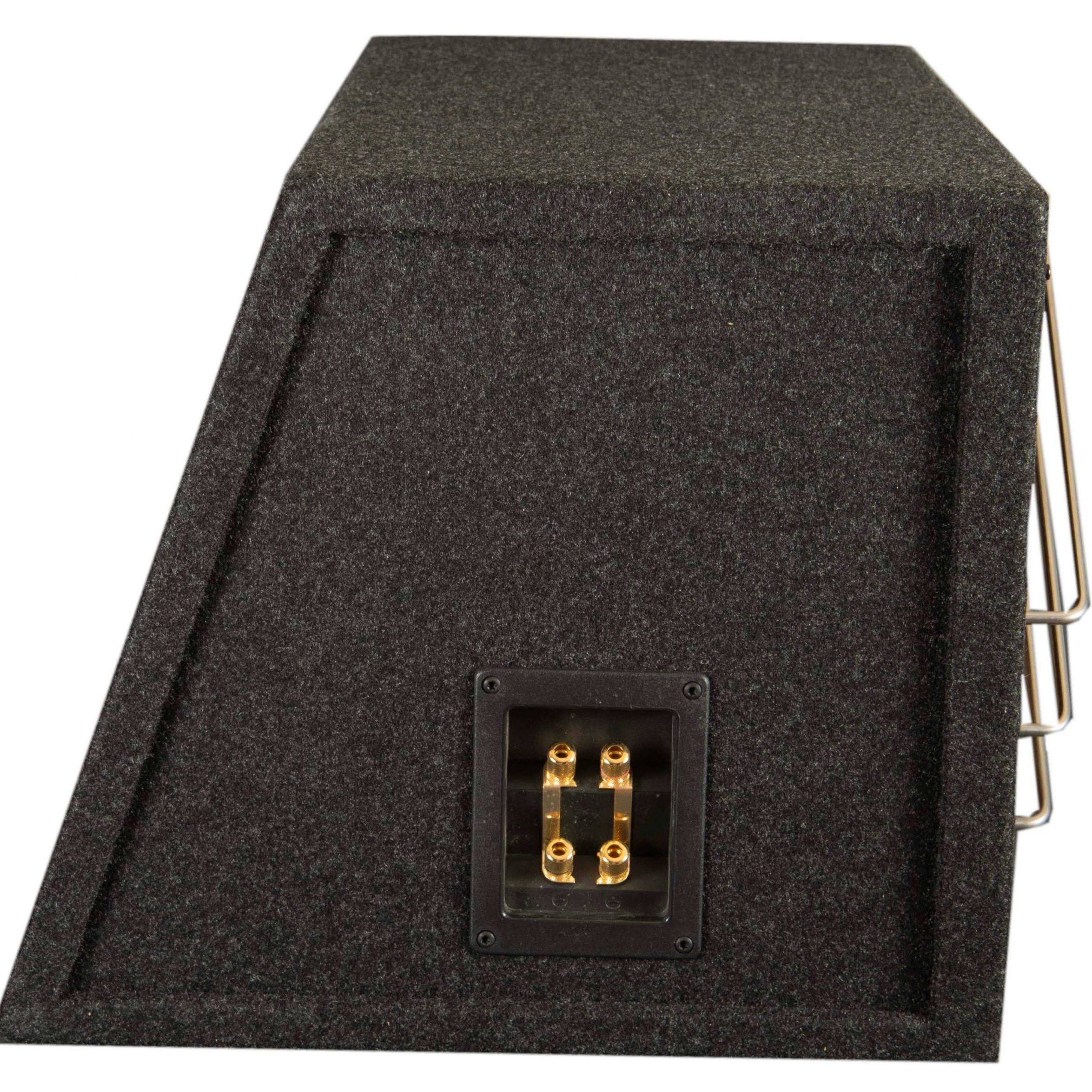

BR 10-60

Description

  • AUDIO SYSTEM Empty Box MADE IN GERMANY
  • vented box with 55 Liter for H10 EVO Bass
  • 19 mm MDF box with double terminal and 38 mm double-front panel

Dimensions

  • Lochkreis (Einbau): 23,8 cm
  • Lochkreis (Außen): 27,3 cm
  • Portgröße: 96,6 cm²
  • l= 600 mm
  • h= 360 mm
  • d1= 292 mm
  • d2= 416 mm

BR 12-80

Description

  • AUDIO SYSTEM Empty Box MADE IN GERMANY
  • vented box with 70 Liter for H12 EVO Bass
  • 19 mm MDF box with double terminal and 38 mm double-front panel

Dimensions

  • Lochkreis(Einbau): 29,0 cm
  • Lochkreis(Außen): 33,4 cm
  • Portgröße: 126,7cm²
  • l= 660 mm
  • h= 400 mm
  • d1= 291 mm
  • d2= 429 mm

BR 15-100

Description

  • AUDIO SYSTEM Empty Box MADE IN GERMANY
  • vented box with 100 Liter for H15 EVO Bass
  • 19 mm MDF box with double terminal and 38 mm double-front panel

Dimensions

  • Lochkreis: 36 cm
  • l= 850 mm
  • h= 450 mm
  • d1= 270 mm
  • d2= 460 mm
