R-SERIES AMPLIFIER

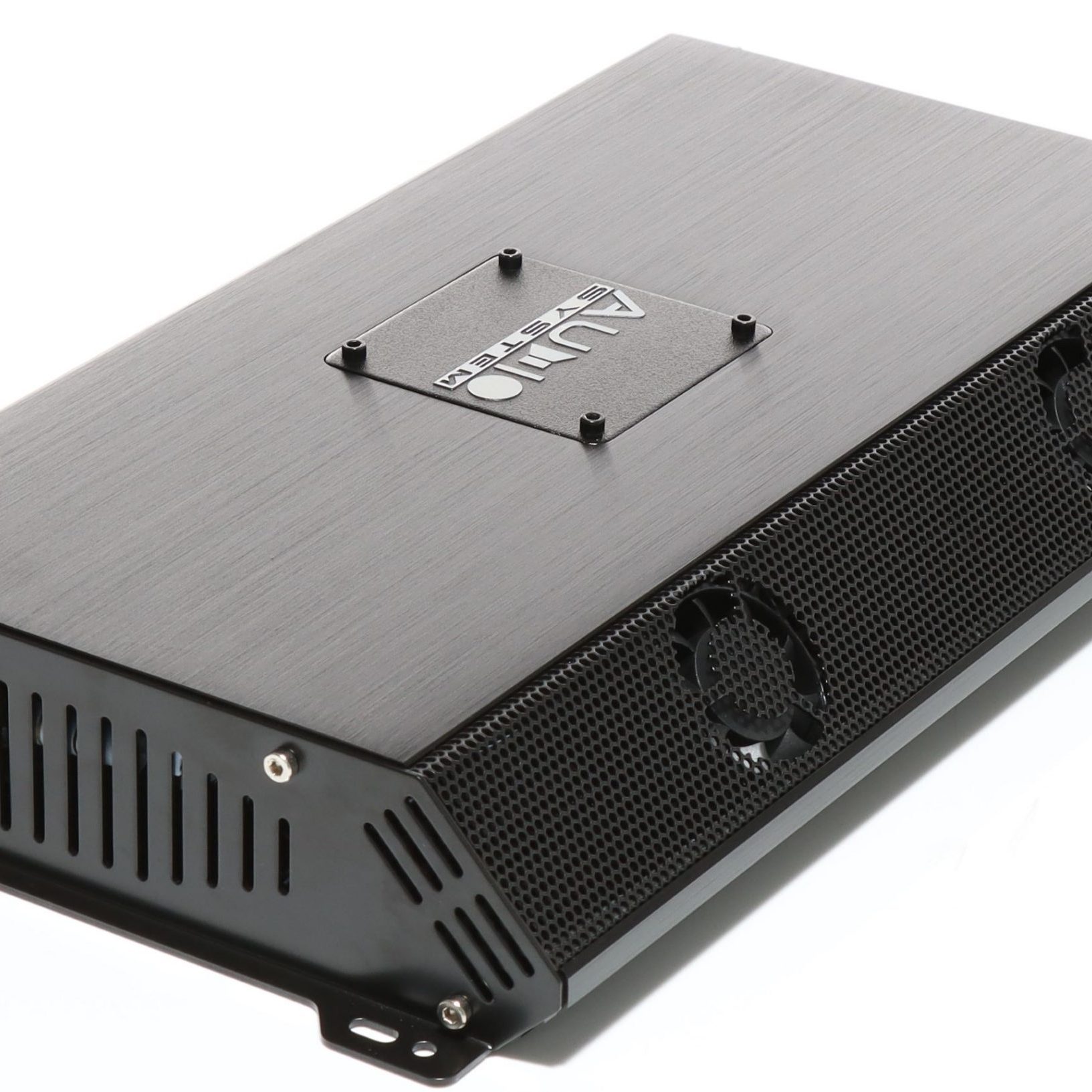

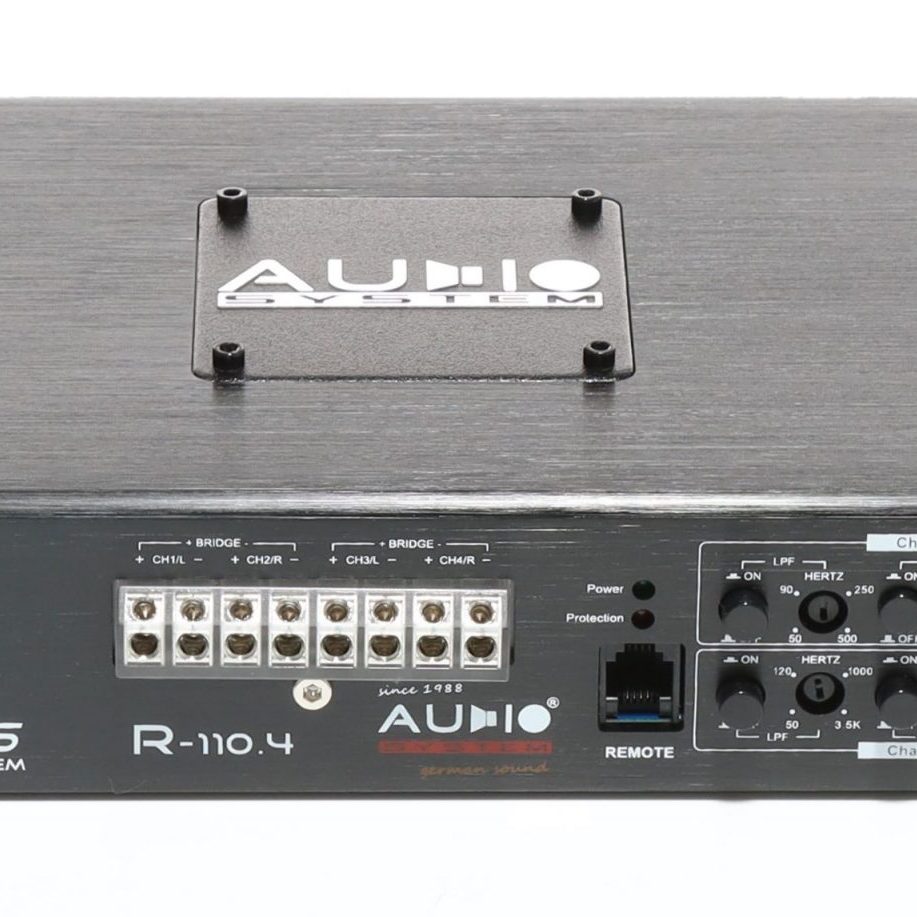

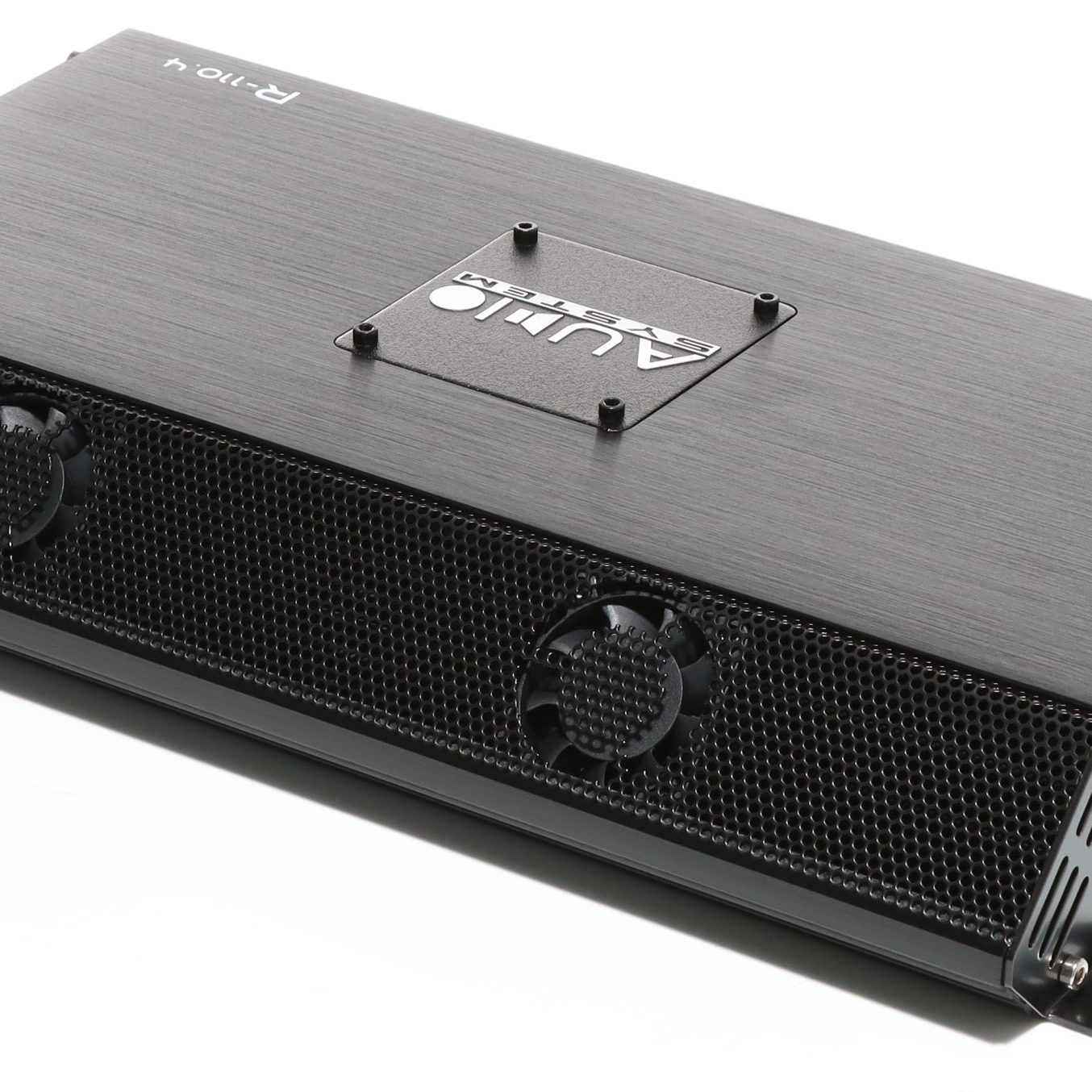

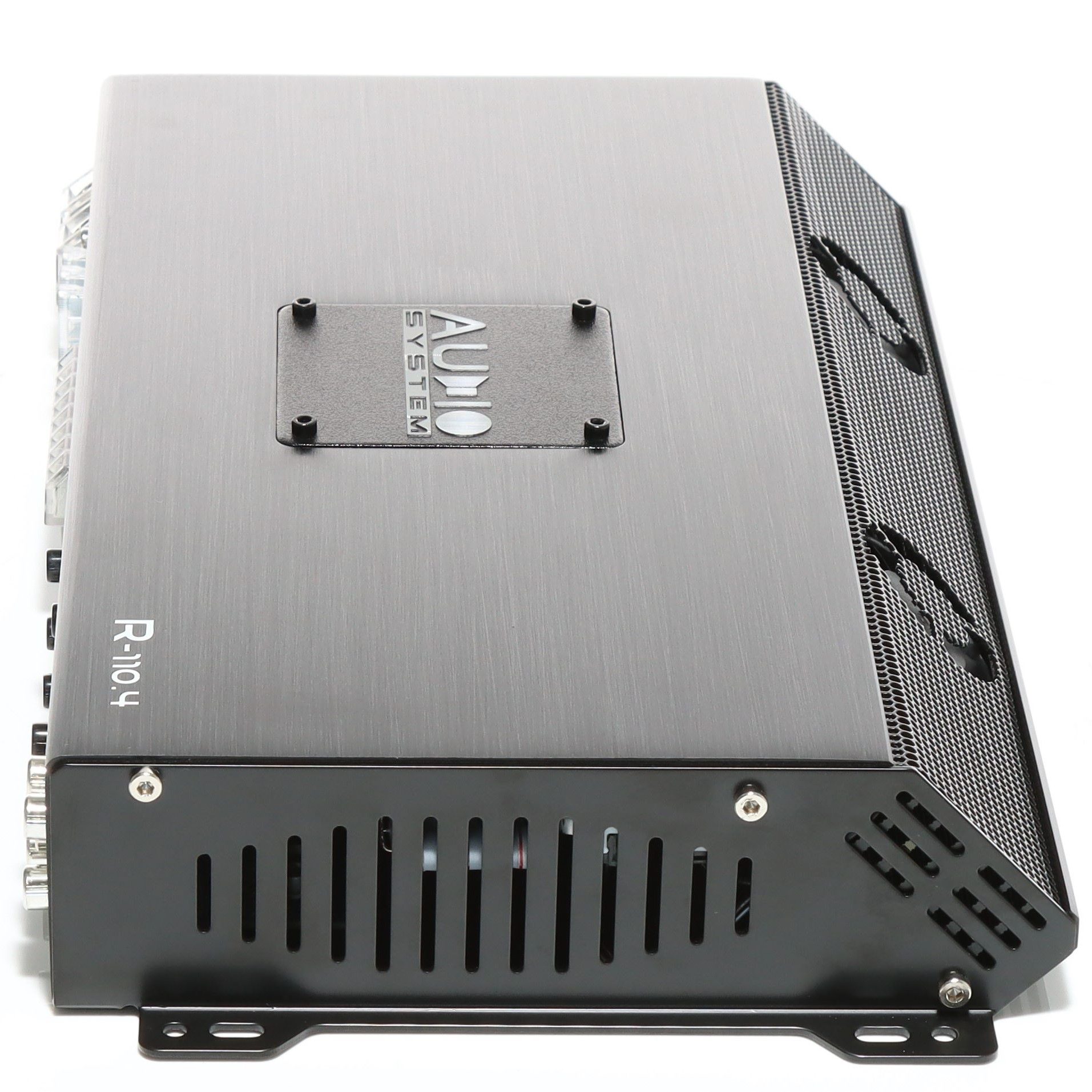

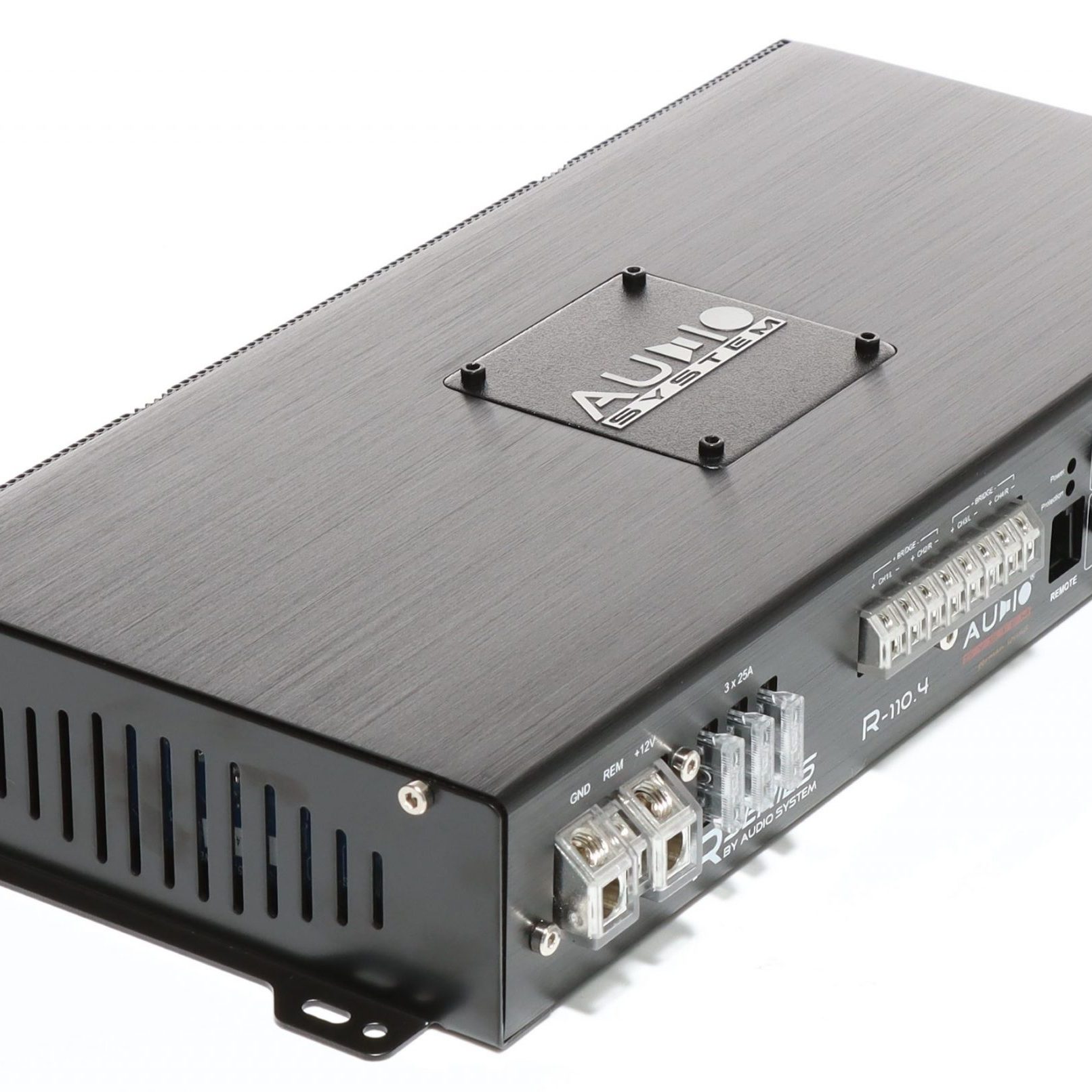

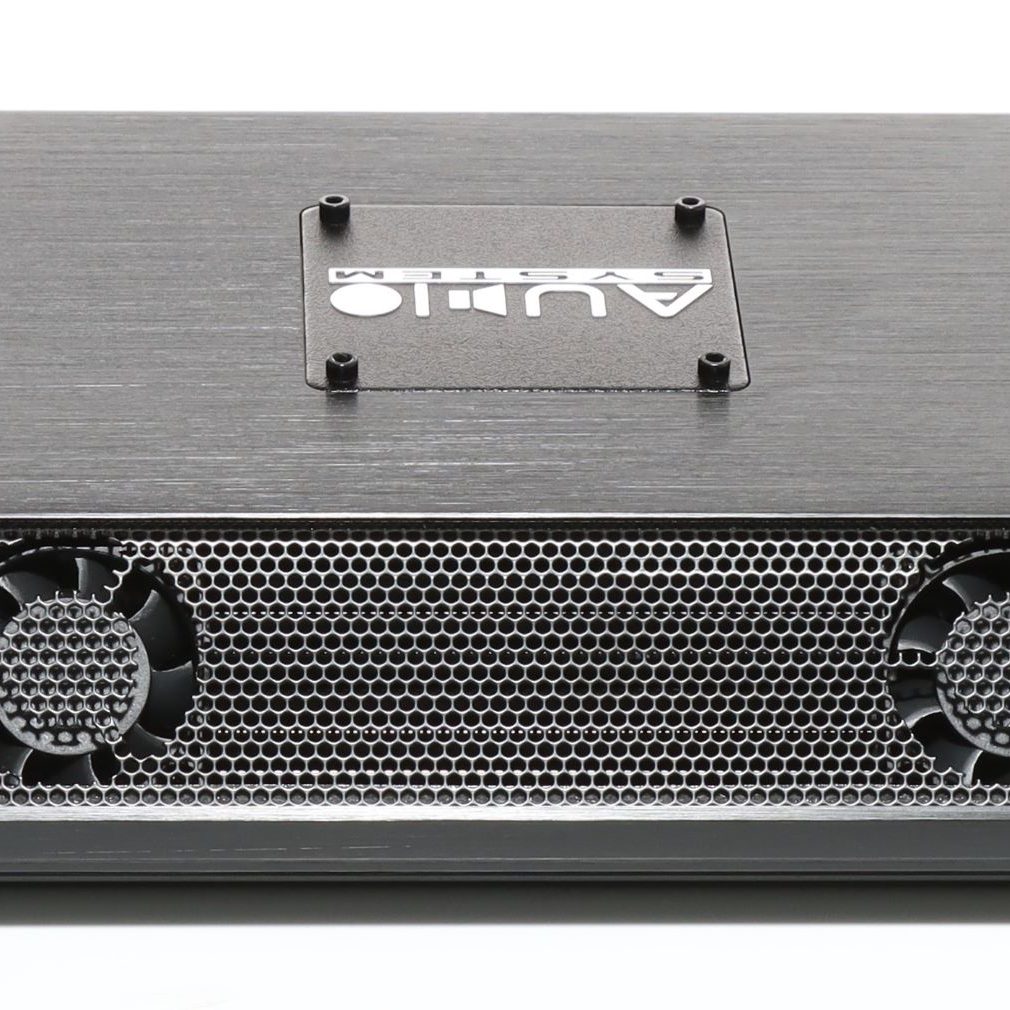

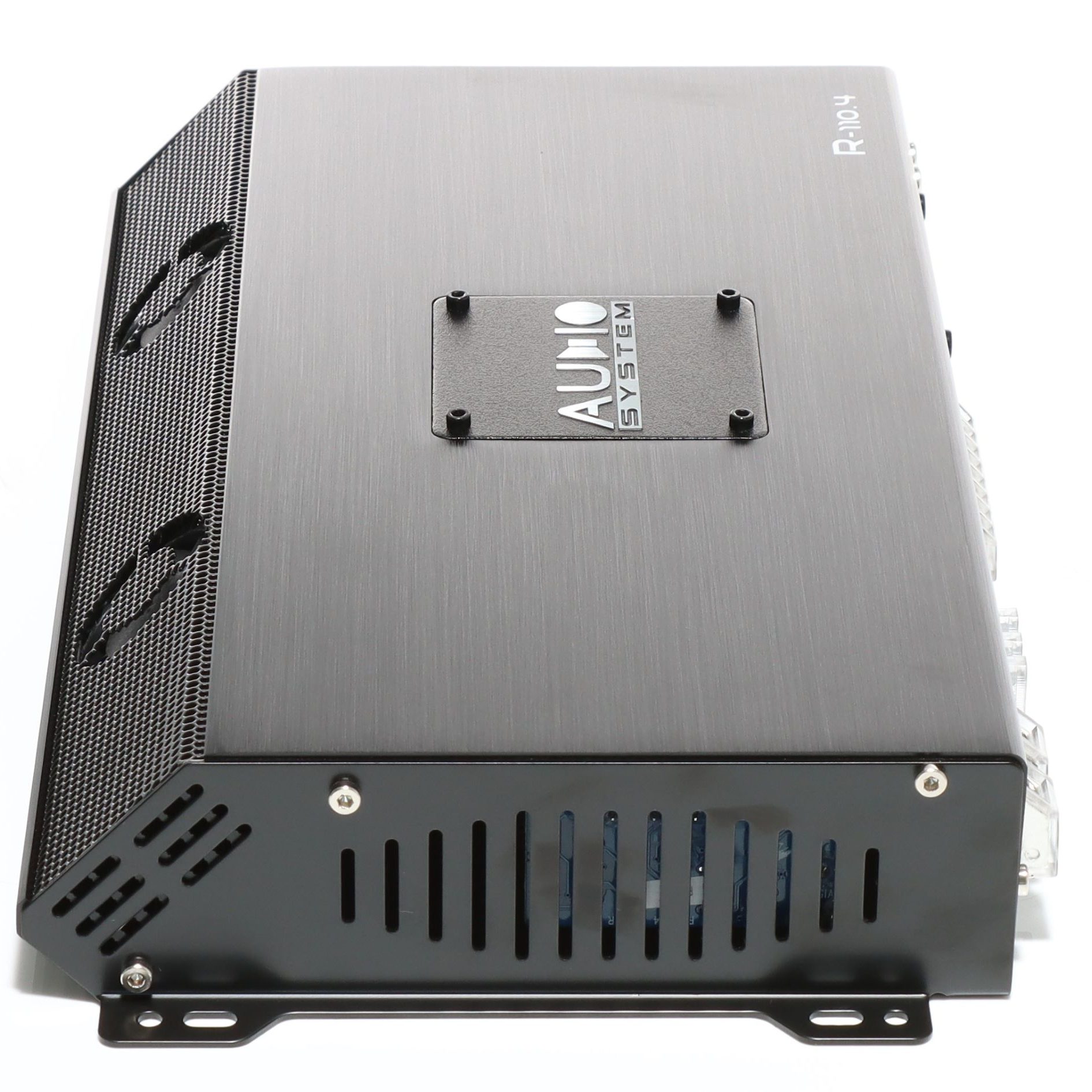

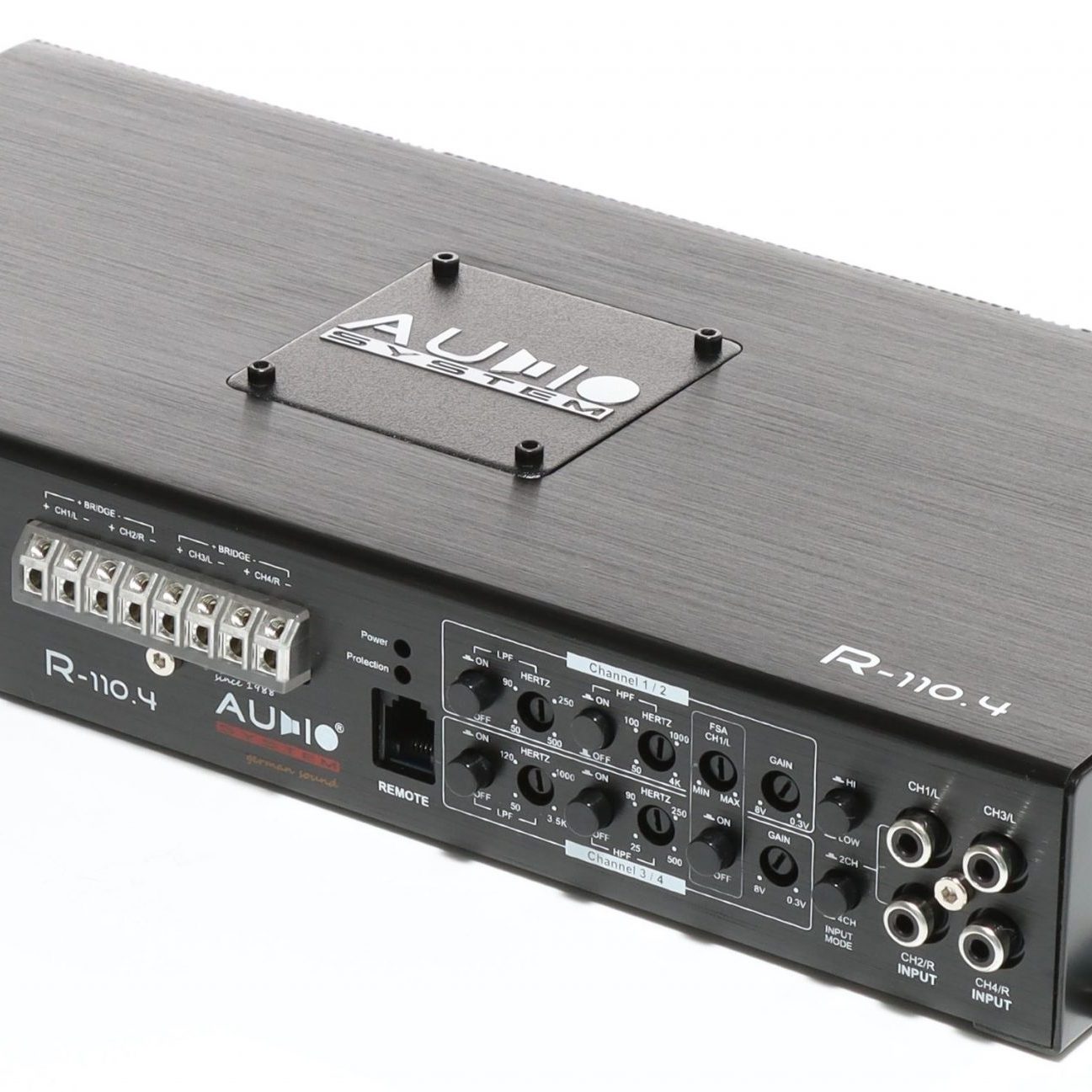

R-110.4

Description

  • 4-Channel with Alu-Logo
  • 4-channel Class A/B power-amplifier with SMD technology
  • variable switchable Subsonic
  • HP, LP, BP filter and full active mode possible
  • efficient 3-time ON TOP fan/cooling system
  • RTC (optional)
  • FSA (Front-Stage Adjuster)
  • RCA-high-level-input or adjustable signal dedection with automatically „TURN ON“

Performance Data

  • 4x 110 WRMS an 4 Ohm
  • 4x 200 WRMS an 2 Ohm
  • oder 2x 400 WRMS mono an 4 Ohm

Dimensions

  • 325 x 50 x 185 mm

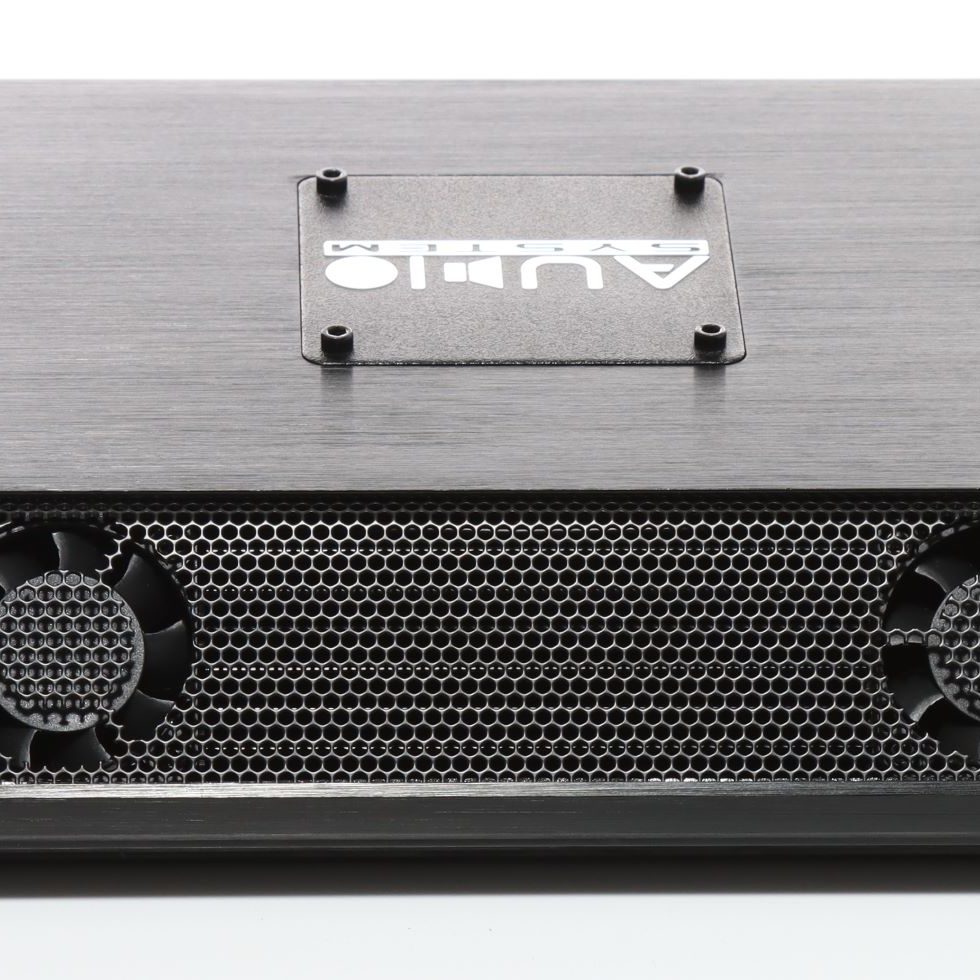

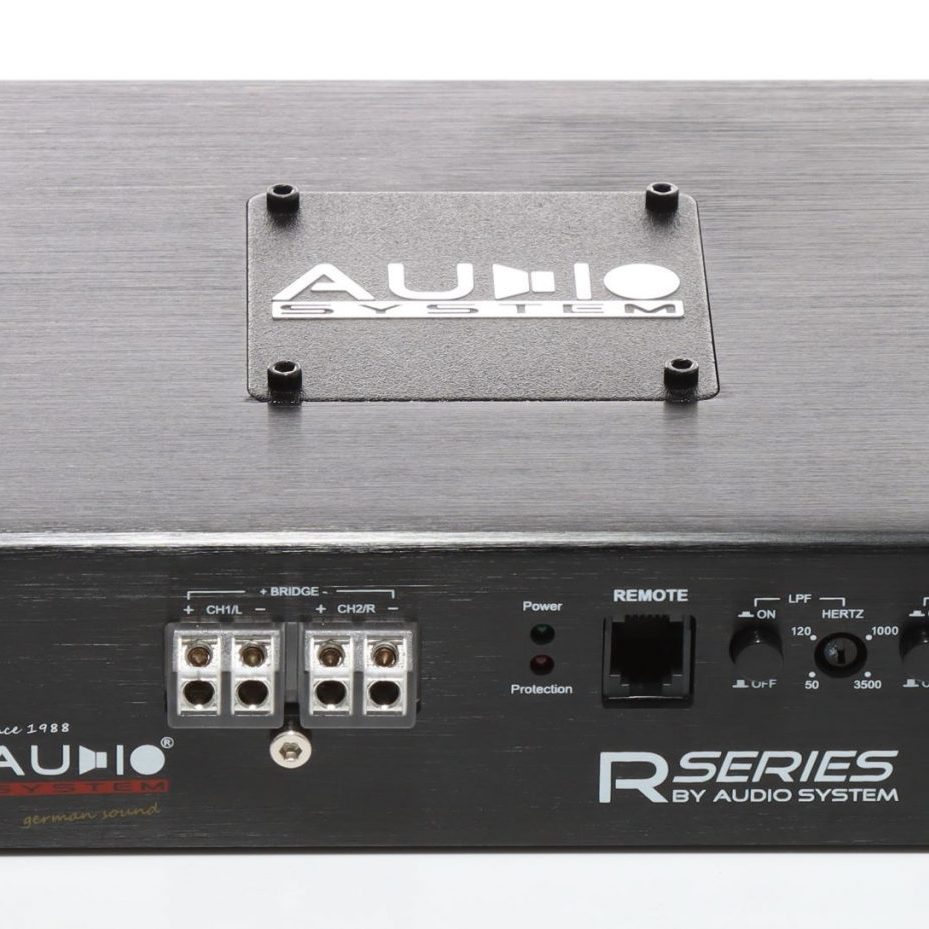

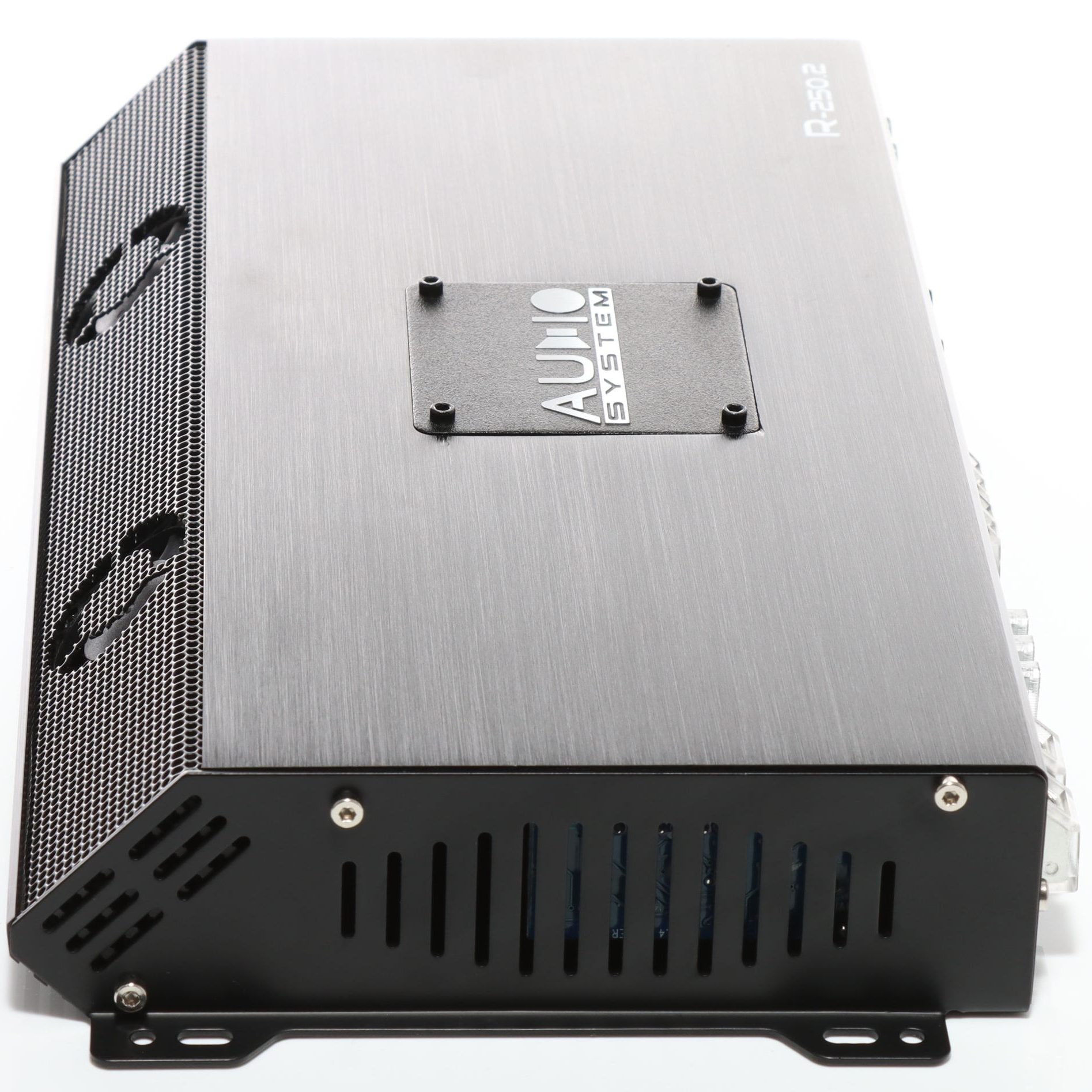

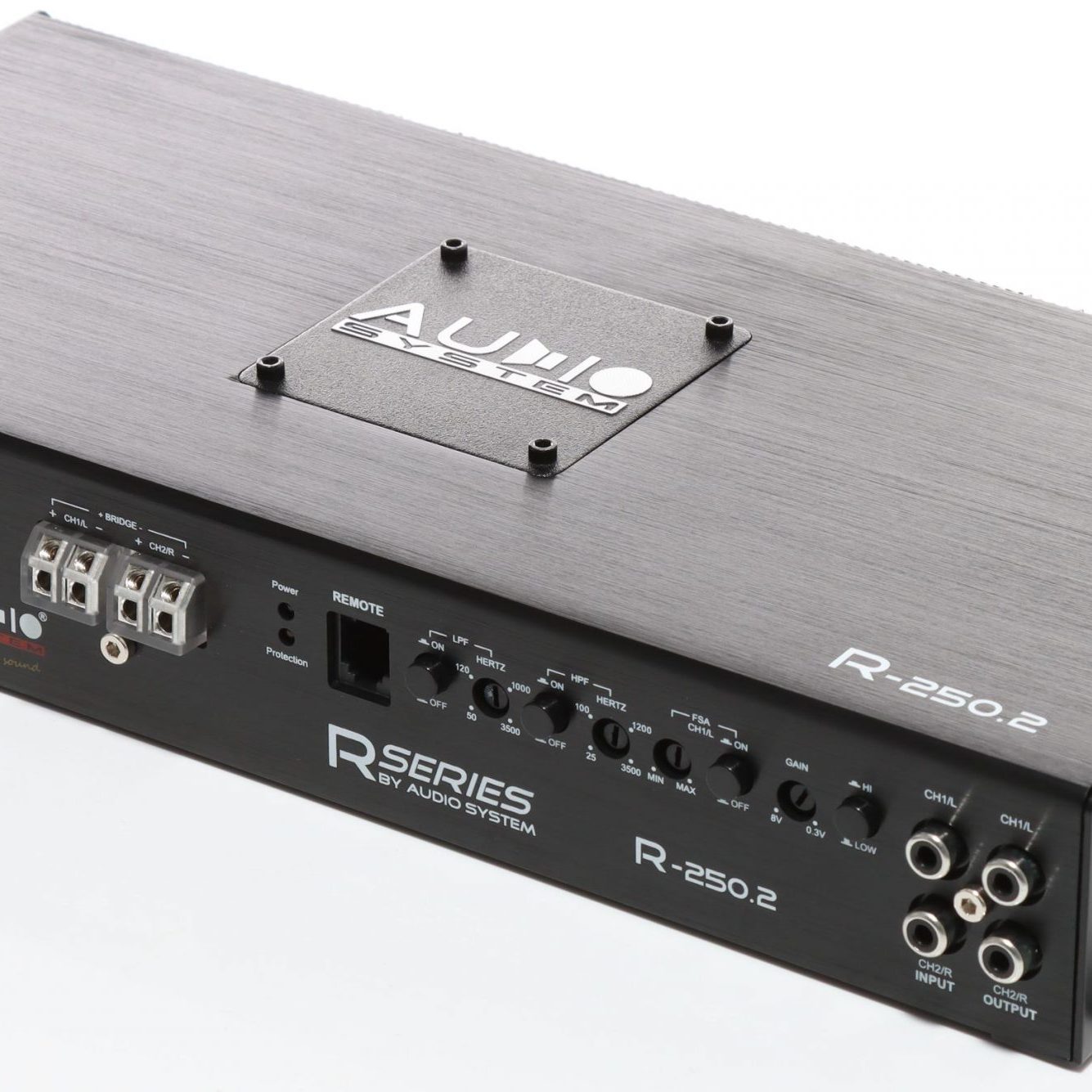

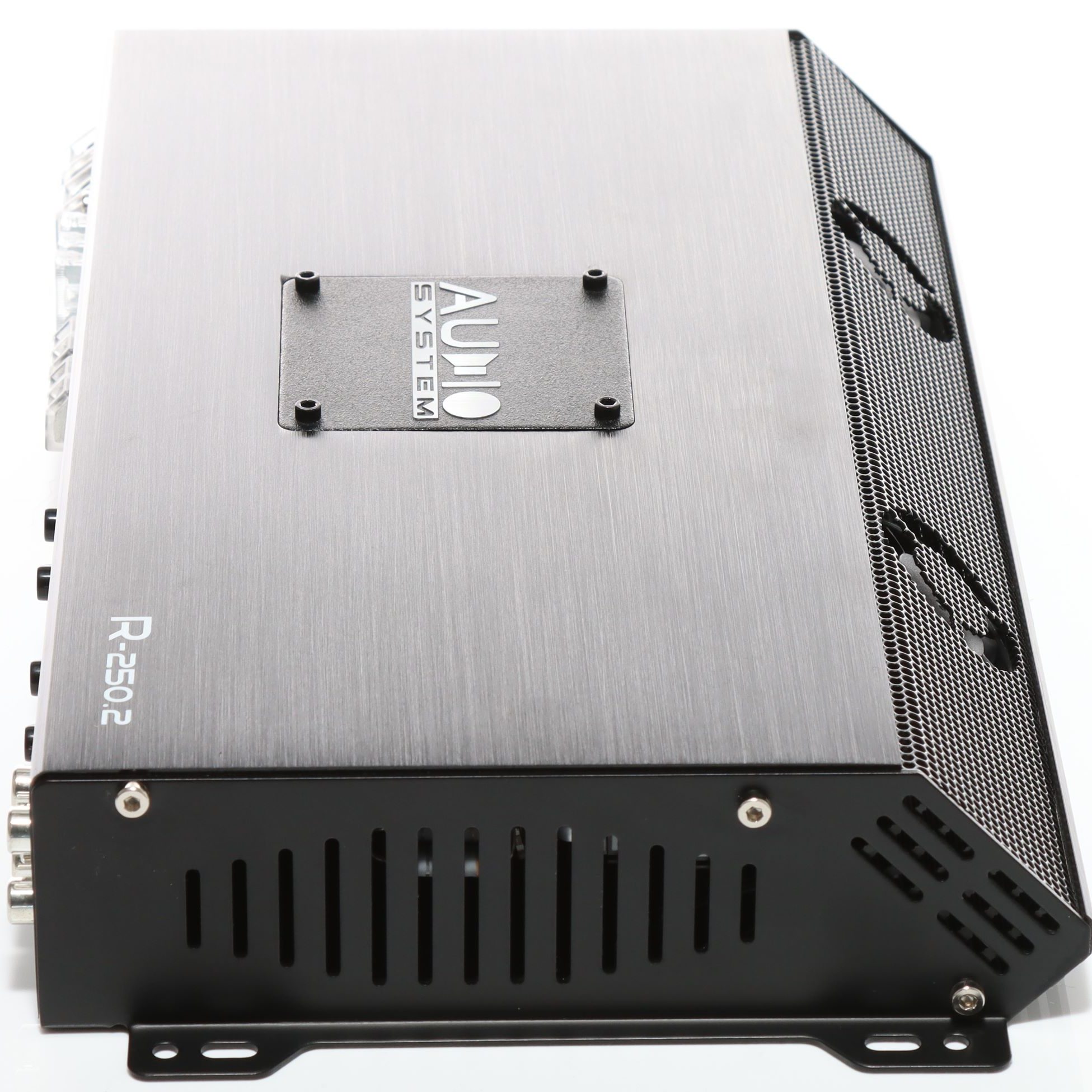

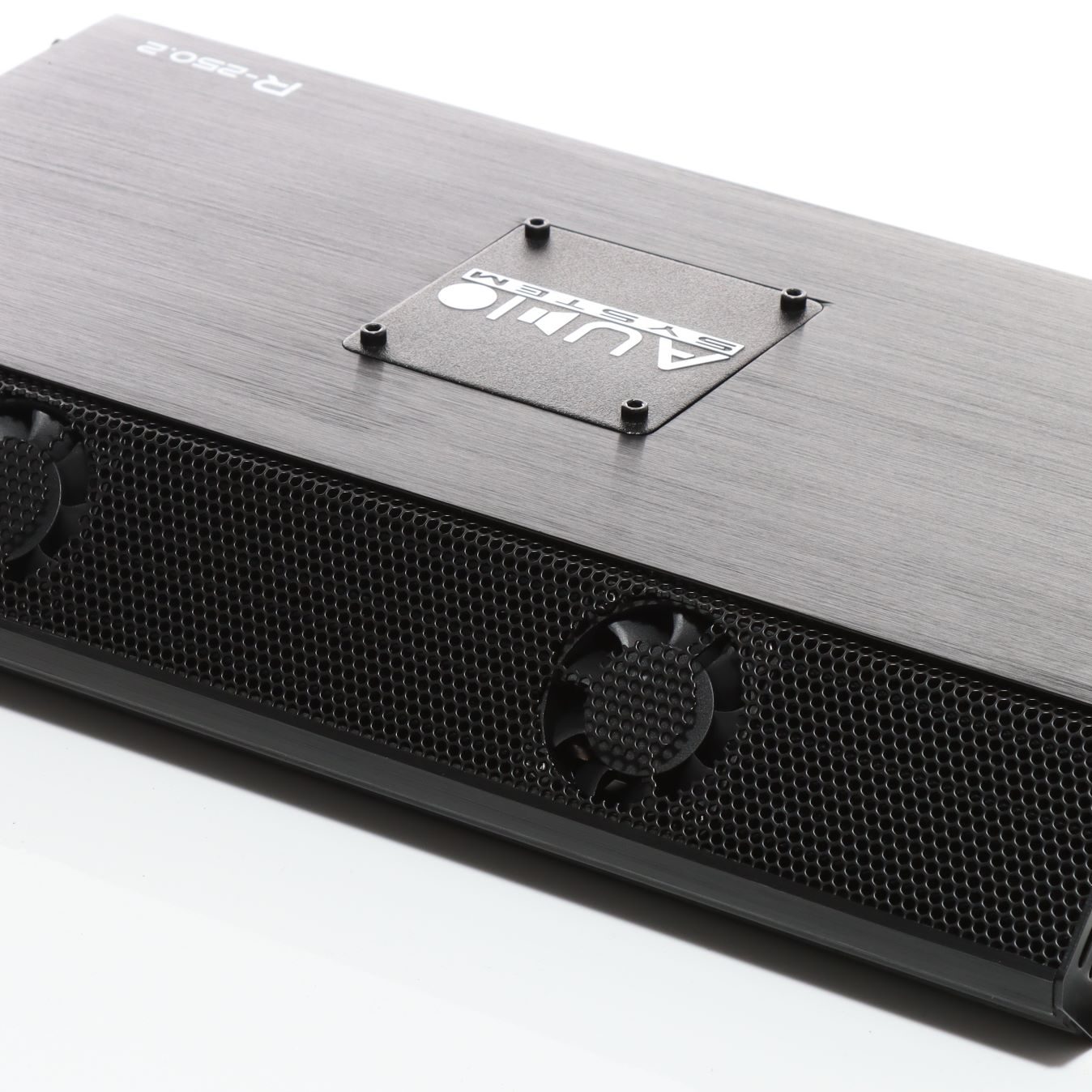

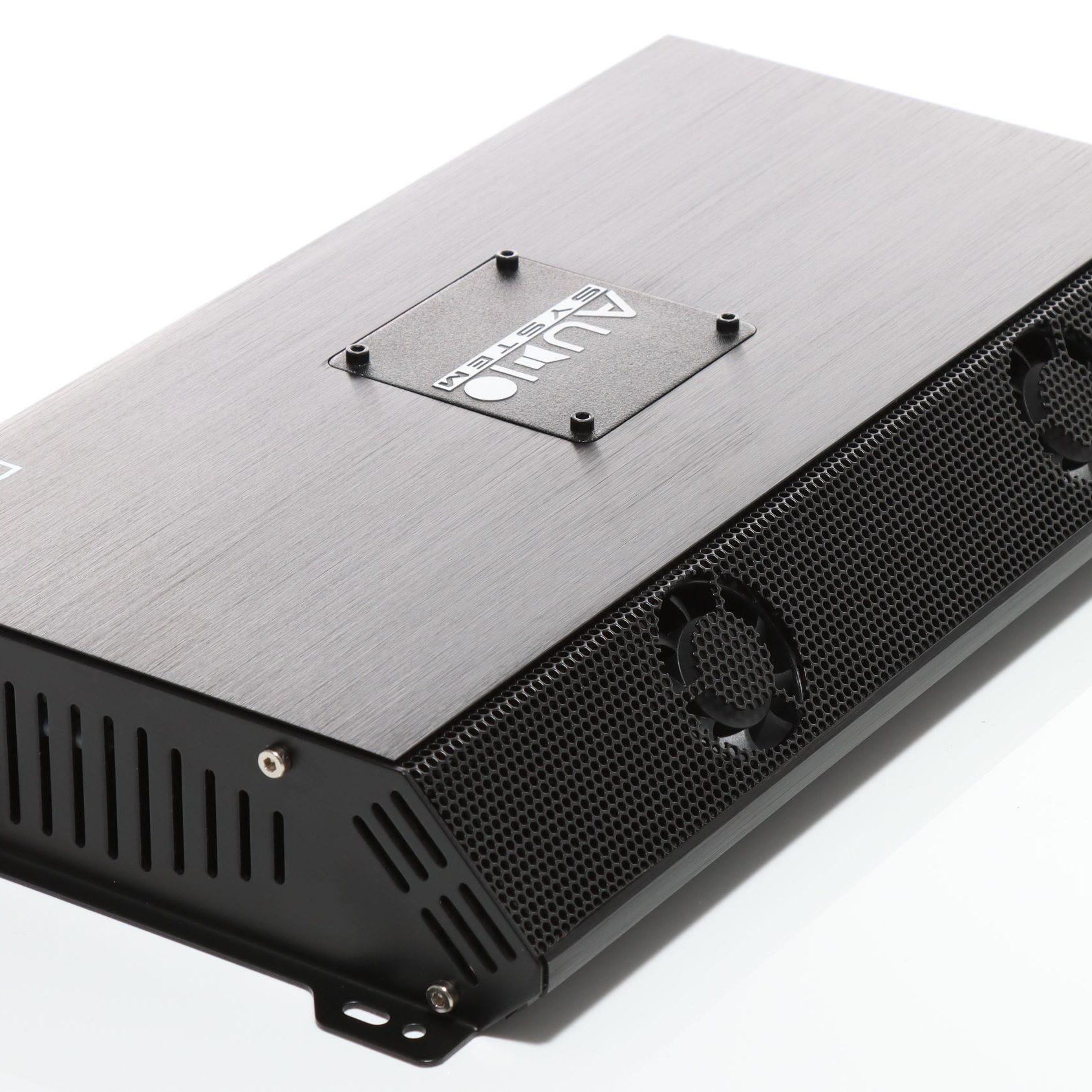

R-250.2

Description

  • 2-channel Class A/B power-amplifier with SMD technology
  • variable switchable Subsonic, HP, LP and BP filter
  • efficient3-time ON TOP fan/cooling system
  • remote control RTC(optional)
  • FSA (Front-Stage Adjuster)
  • RCA-high-level-input or adjustable signal dedection with automatically „TURN ON“

Performance Data

  • 2x 250(410) WRMS at 4(2) Ohm or
  • 1x 820 WRMS mono at 4 Ohm

Dimensions

  • 325 x 50 x 185 mm

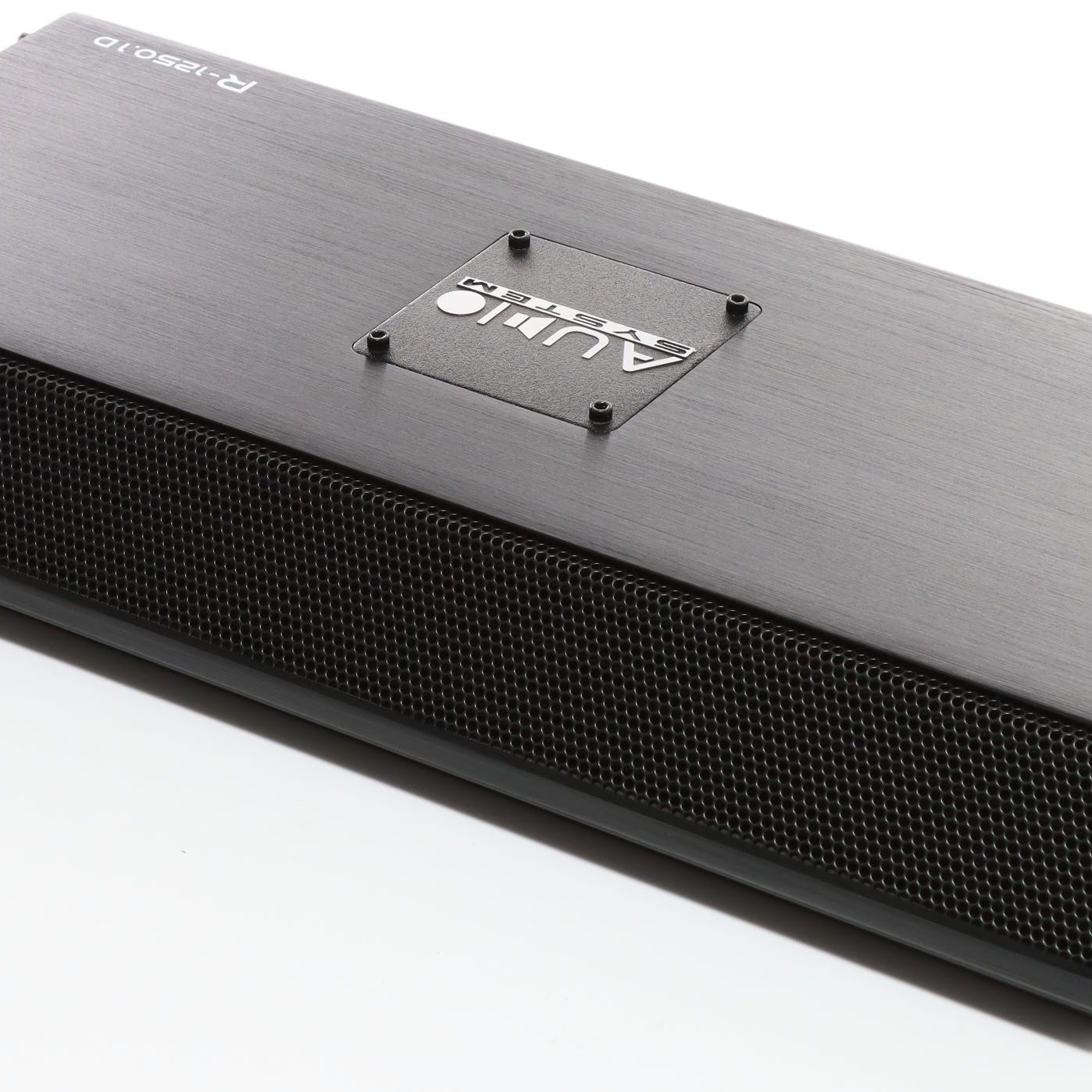

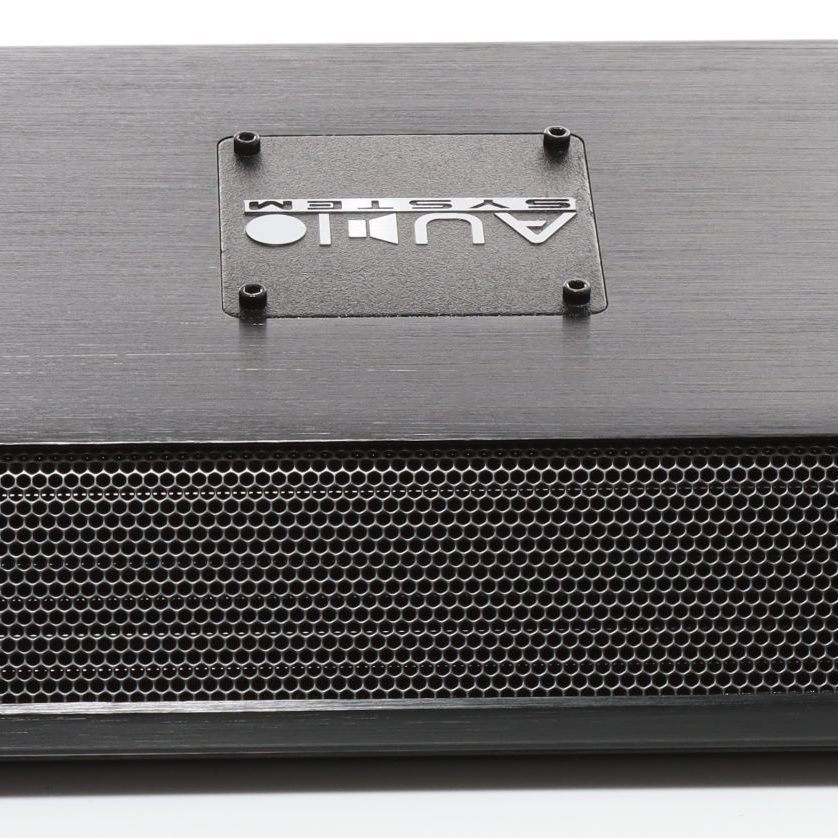

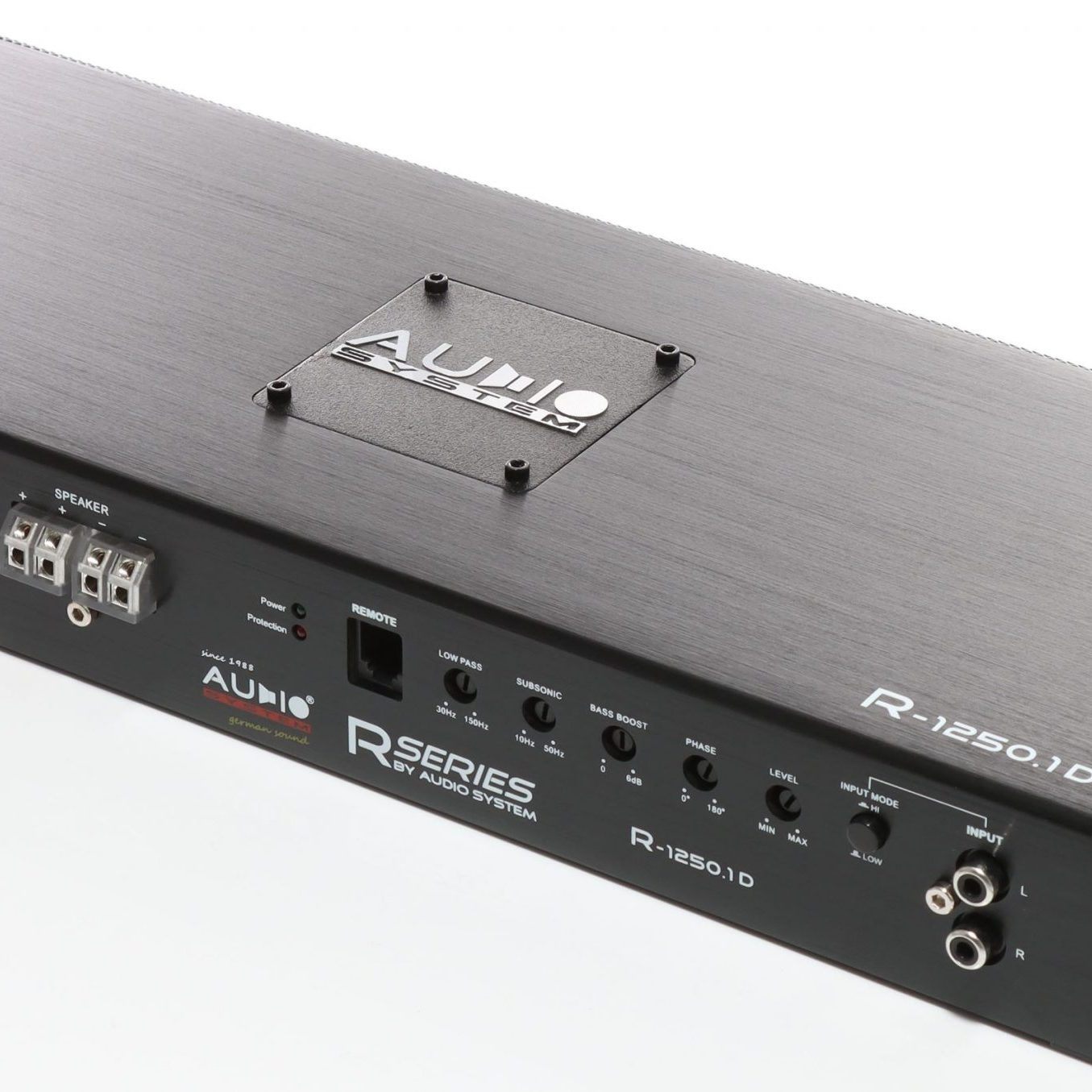

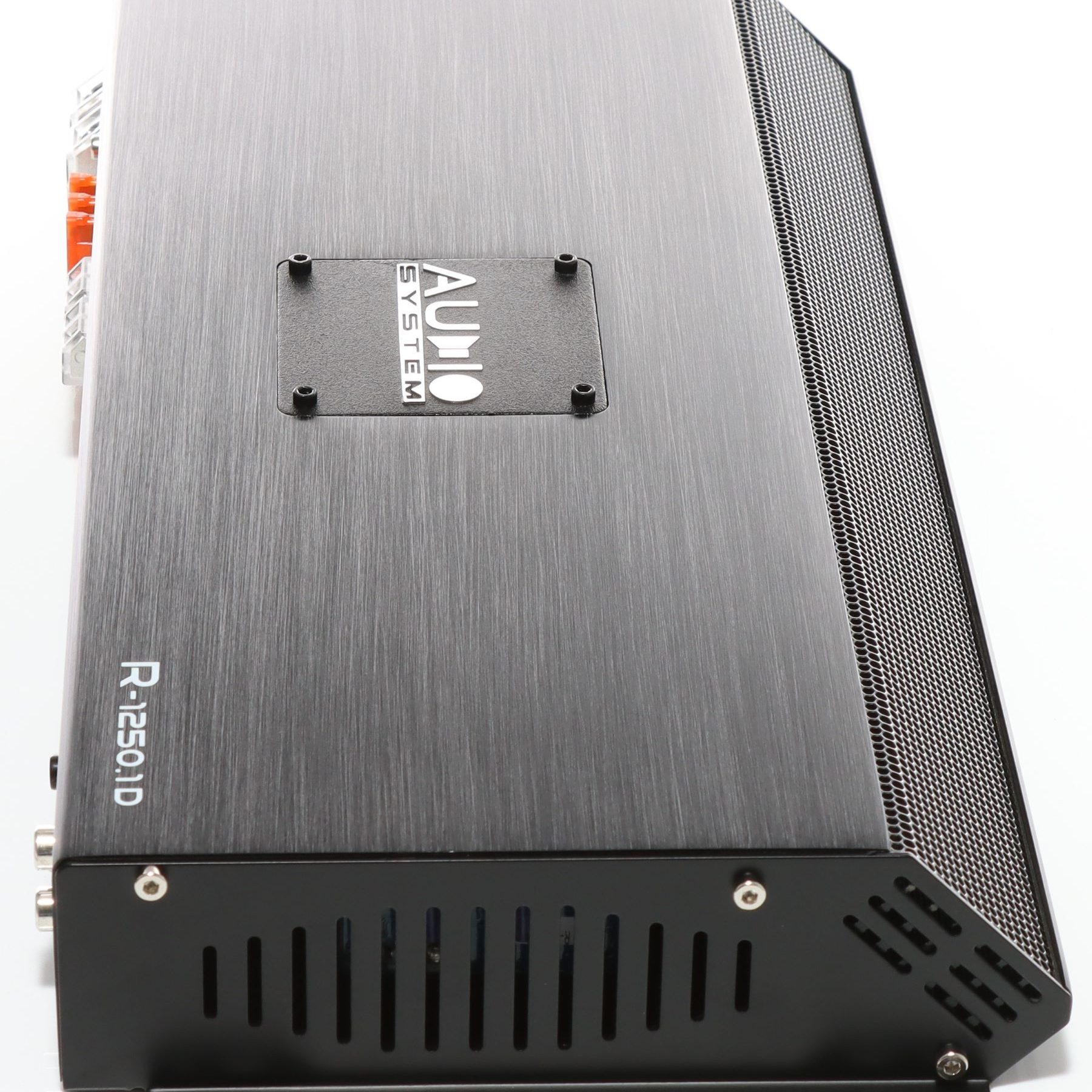

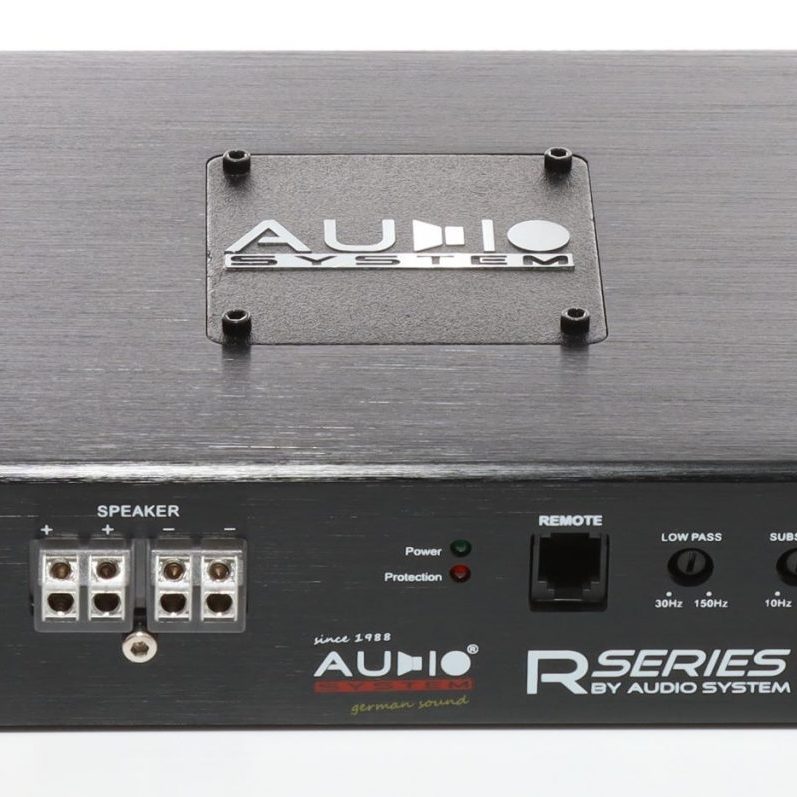

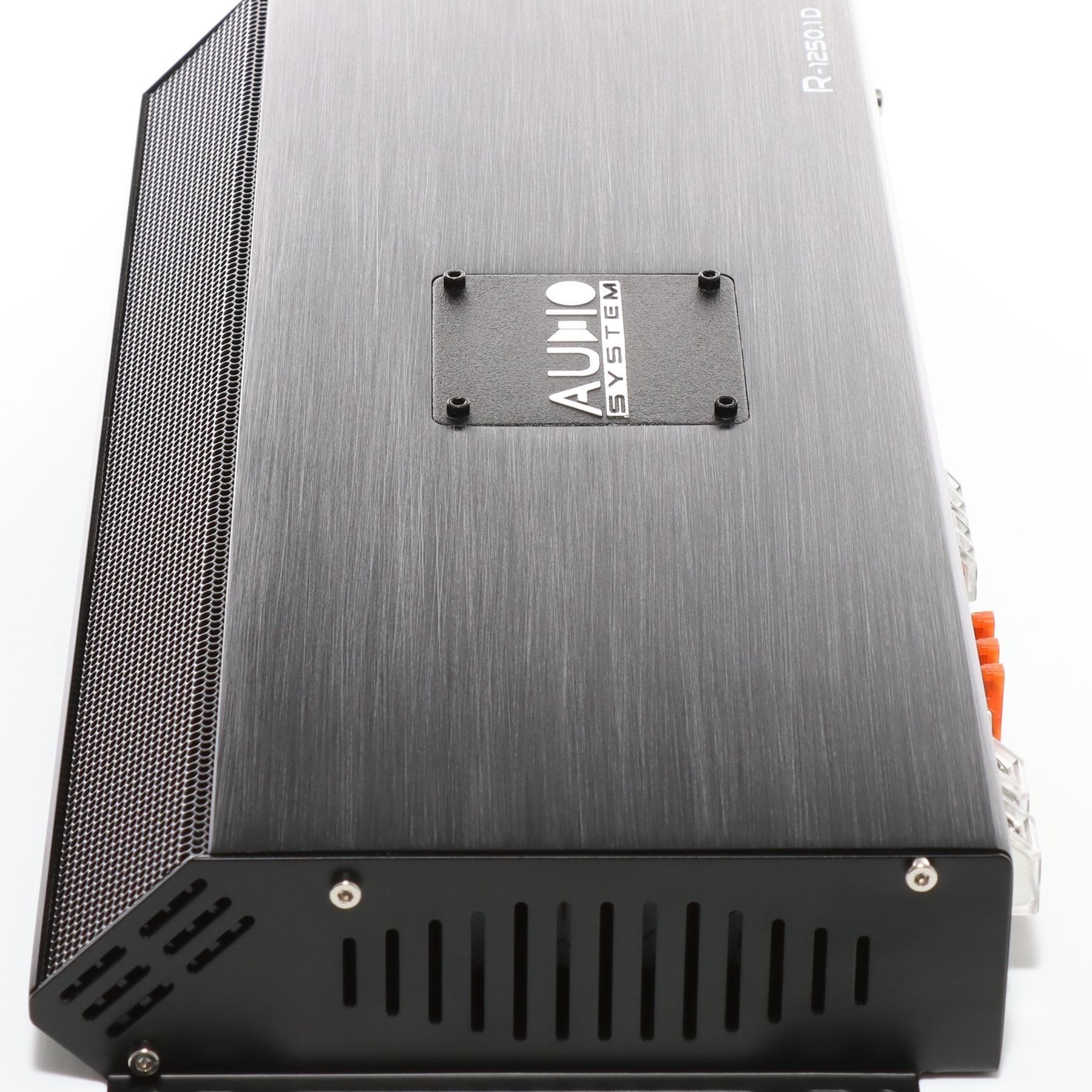

R-1250.1 D

Description

  • 1-Channel with Alu-Logo
  • digital MONO high power-amplifier with SMD technology
  • LowPass Filter
  • Subsonic filter
  • continuously adjustable 0-180°Phaseshift
  • up to 84% effiency possible
  • RTC incluted
  • RCA-high-level-input with automatically „TURN ON“
  • Bass EQ at 45 Hz with 0 – 6 dB

Performance Data

  • 1x 500 WRMS an 4 Ohm
  • 1x 900 WRMS an 2 Ohm
  • 1x 1250 WRMS an 1 Ohm

Dimensions

  • 380 x 50 x 185 mm

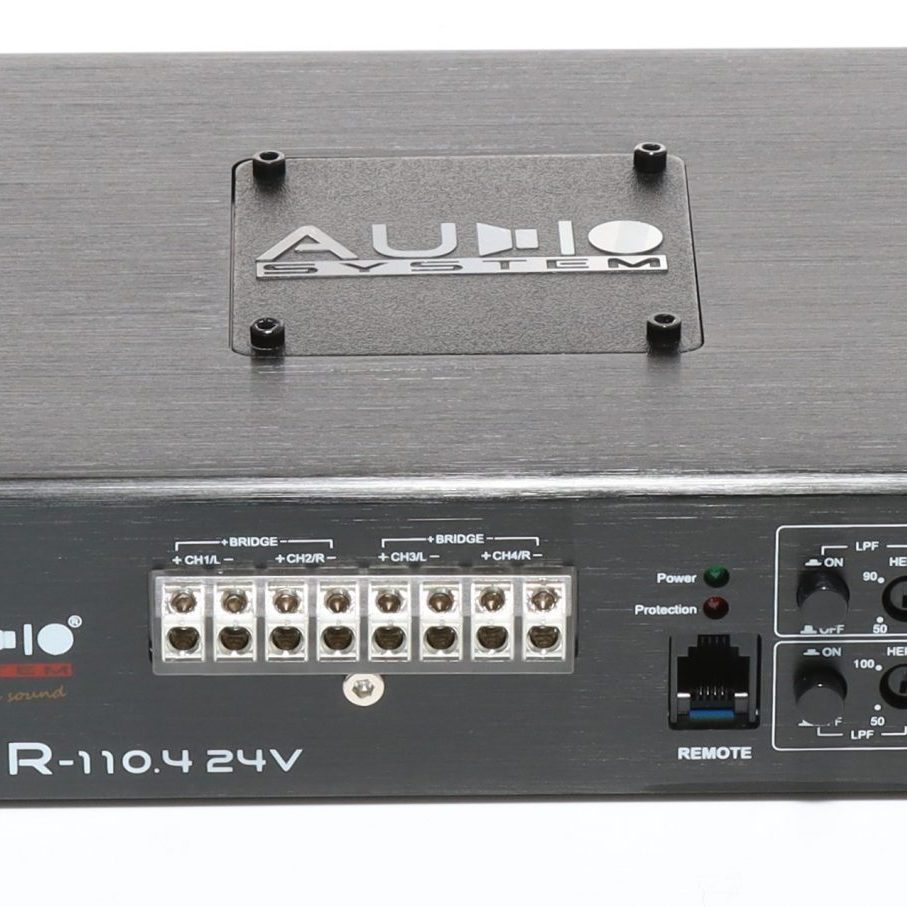

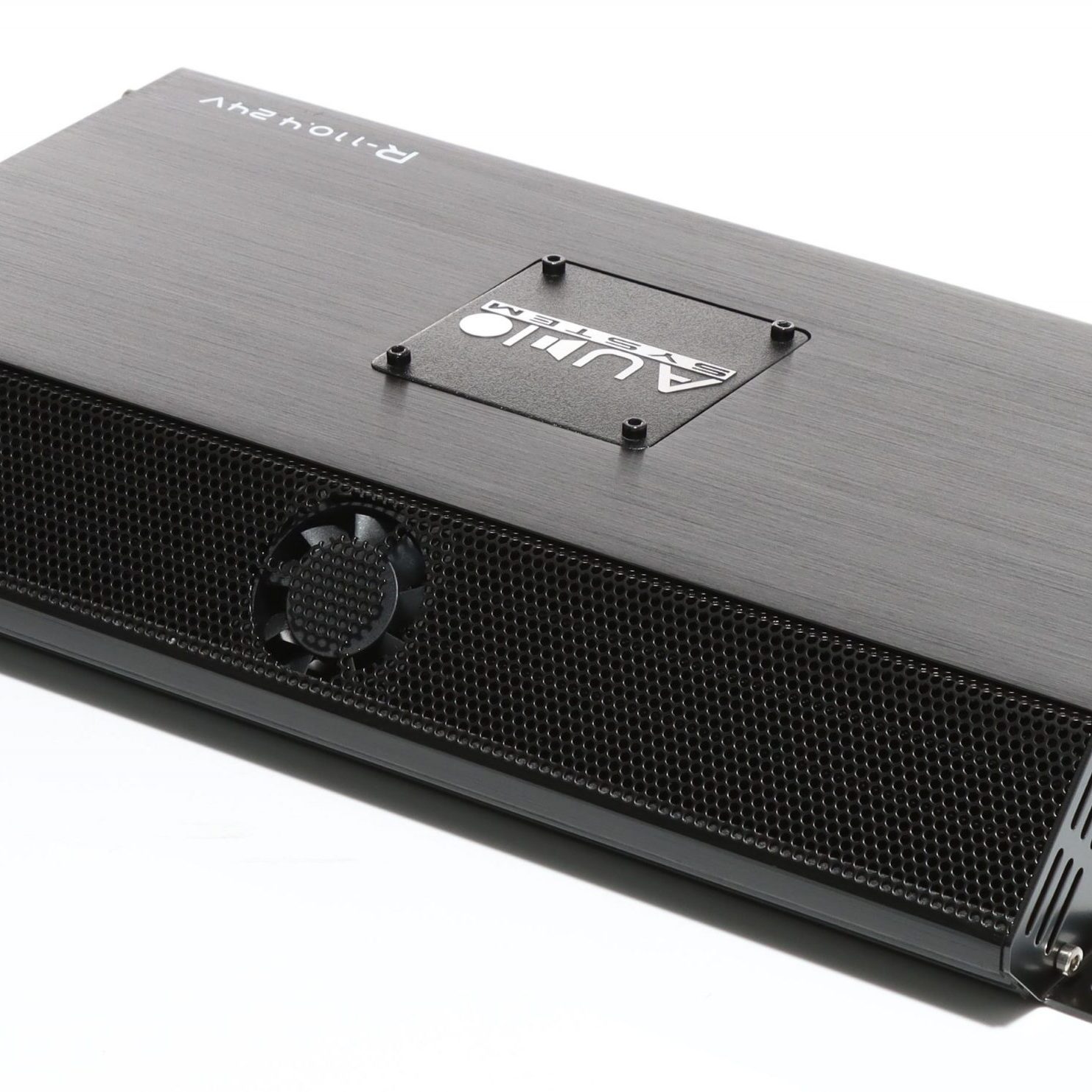

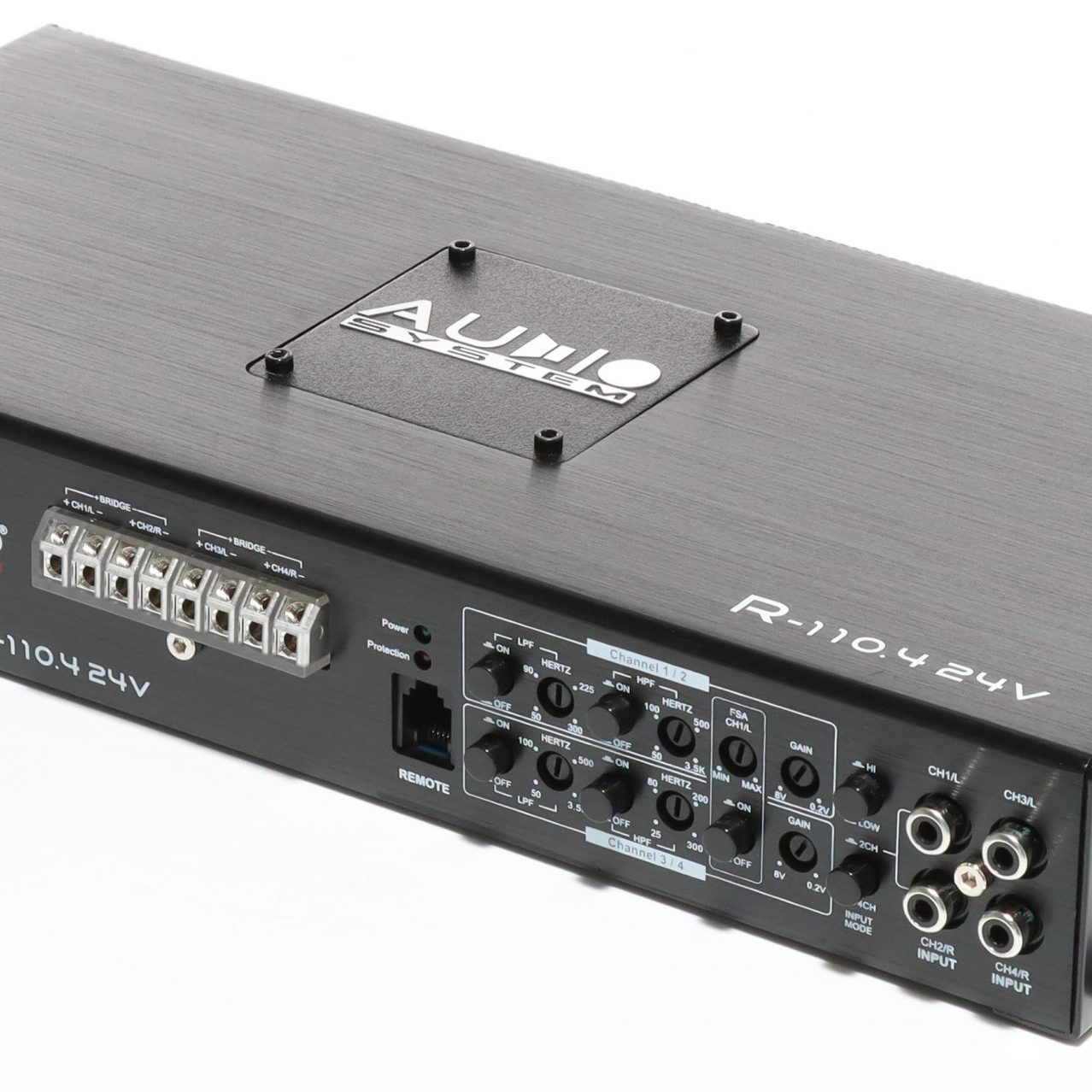

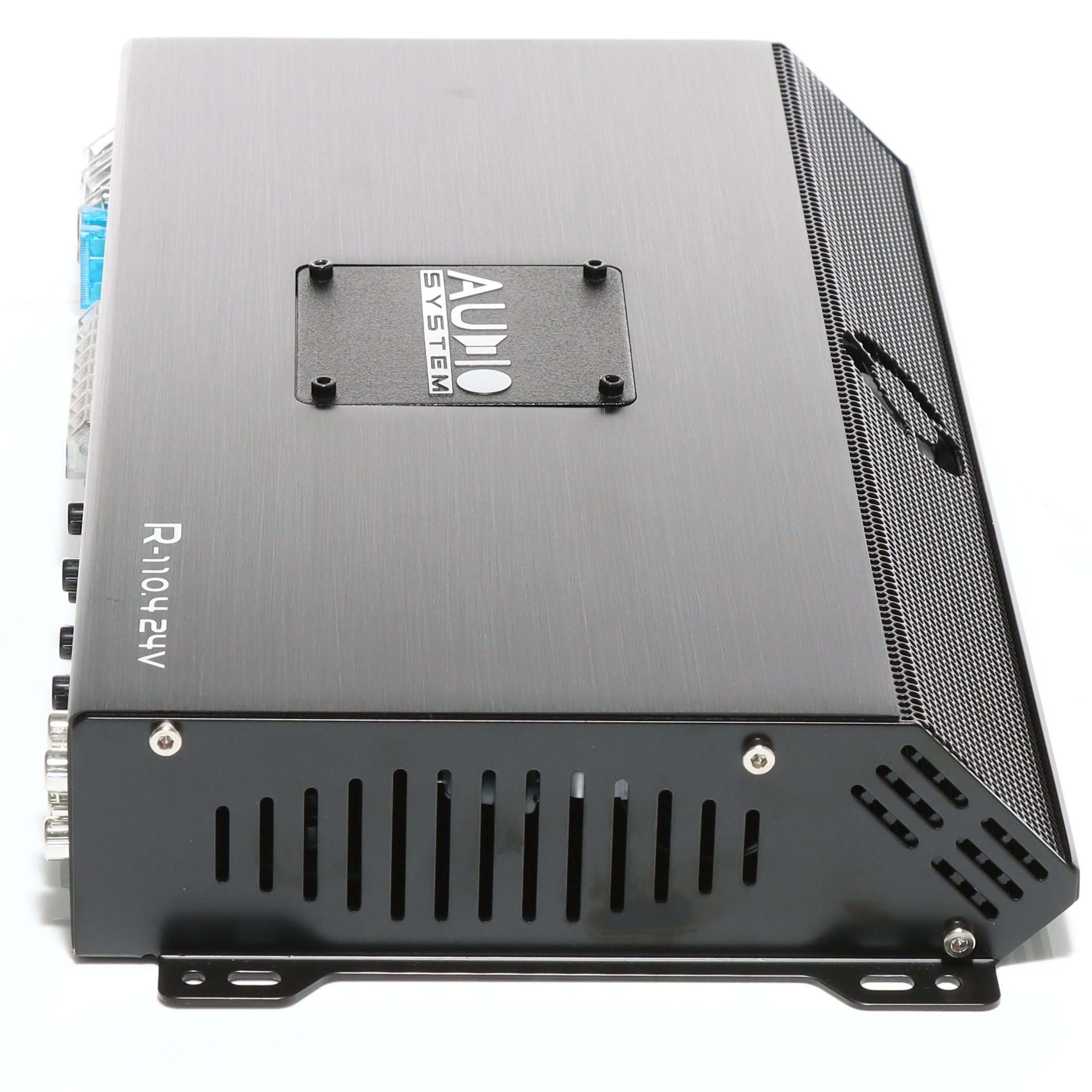

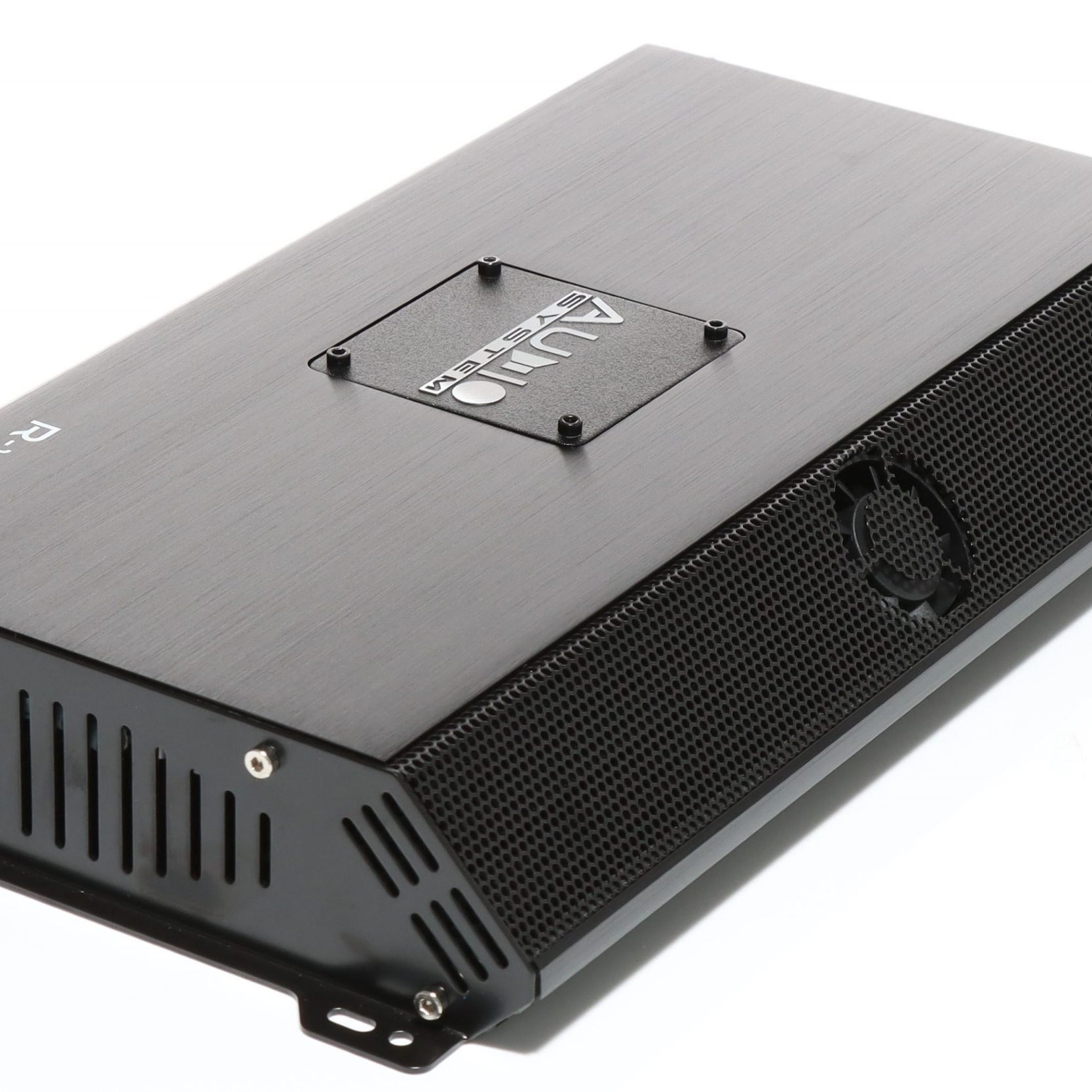

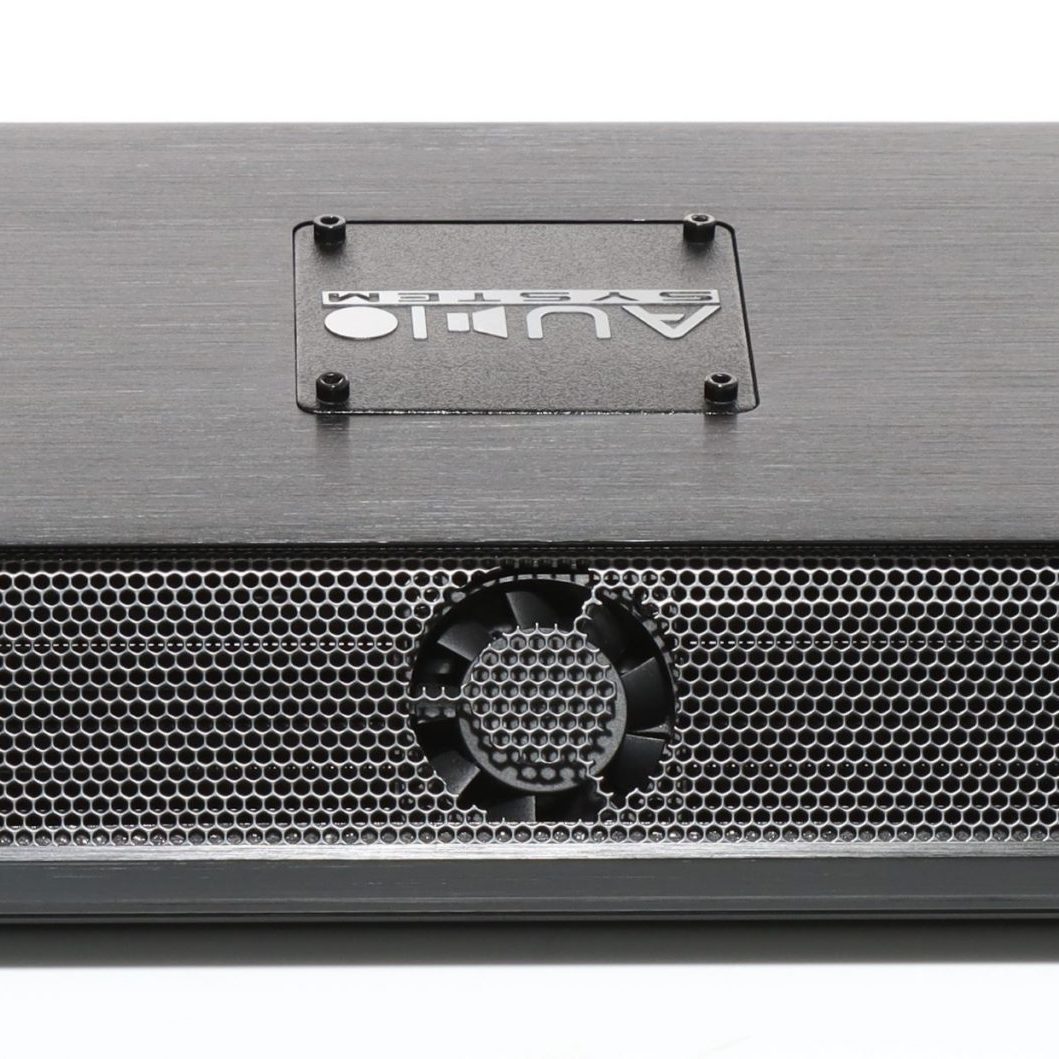

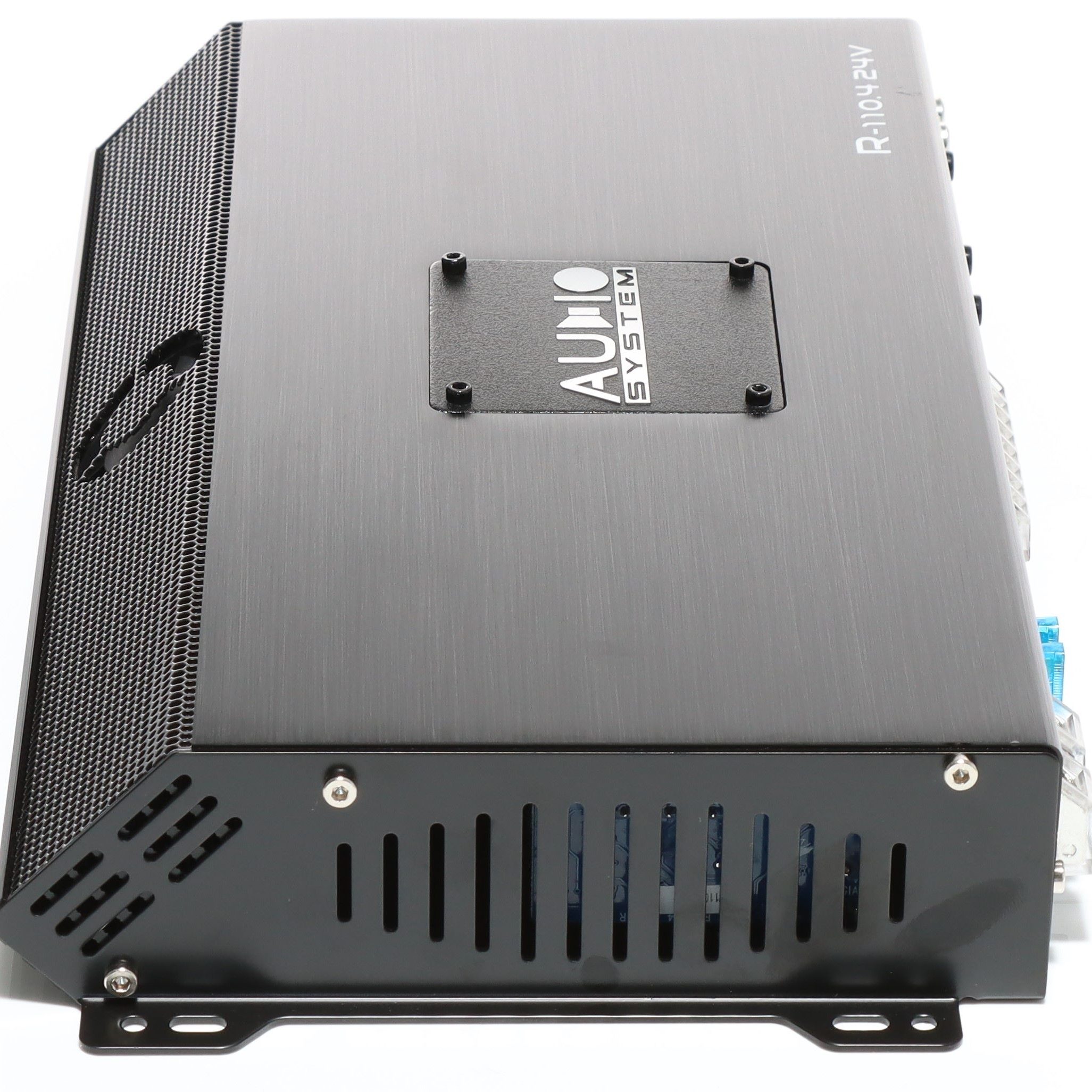

R-110.4 24V

Description

  • 4-Channel for 24 Volt use
  • 4-channel Class A/Bpower-amplifier with SMD technology
  • variable switchable Subsonic, HP, LP, BP filter and full active mode possible
  • efficient 3-time ON TOP fan/cooling system
  • RTC (optional)
  • FSA (Front-Stage Adjuster)
  • RCA-high-level-input or adjustable signal dedection with automatically „TURN ON“

Performance Data

  • 4x 120 WRMS an 4 Ohm
  • 4x 200 WRMS an 2 Ohm
  • oder 2x 400 WRMS mono an 4 Ohm

Dimensions

  • 325 x 50 x 185 mm

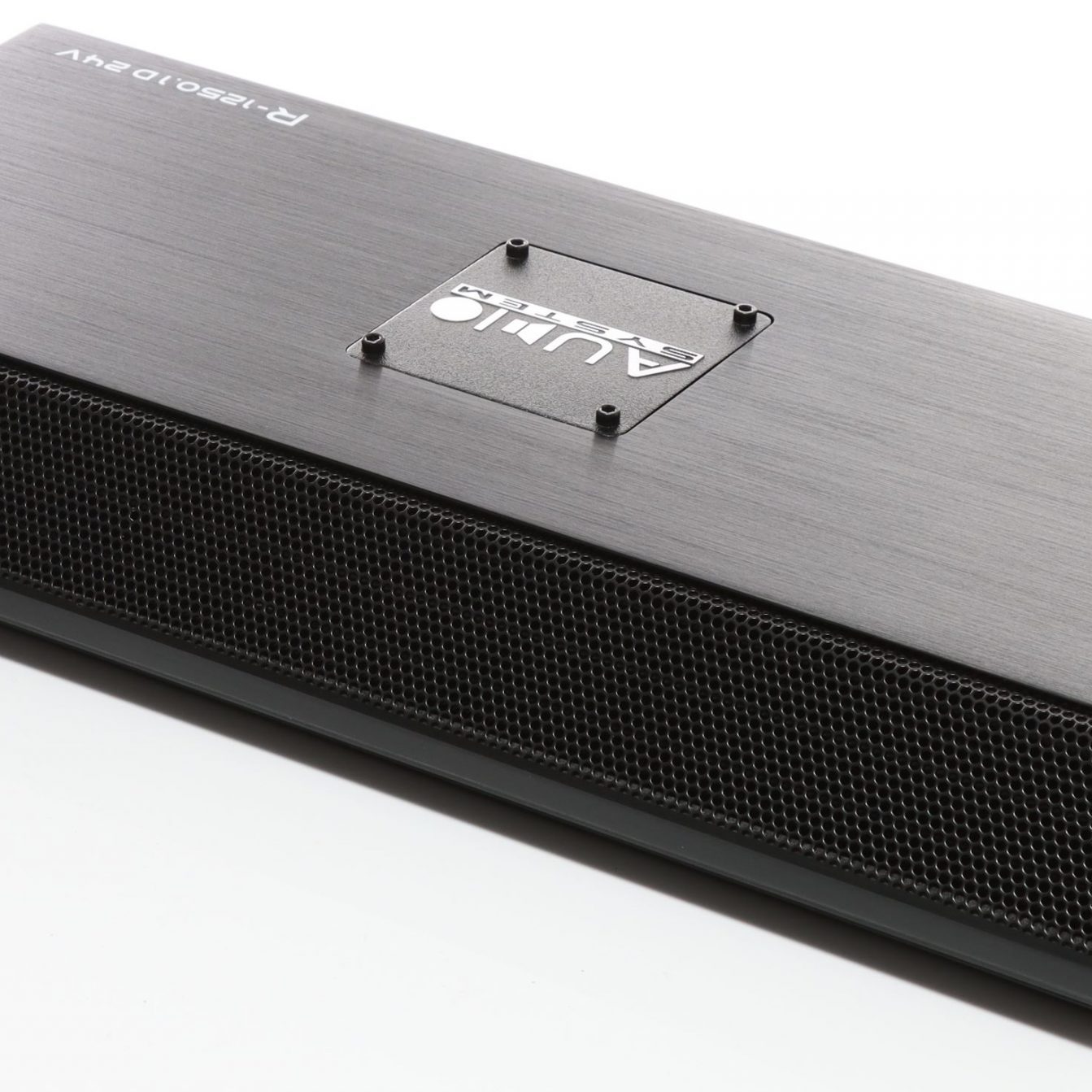

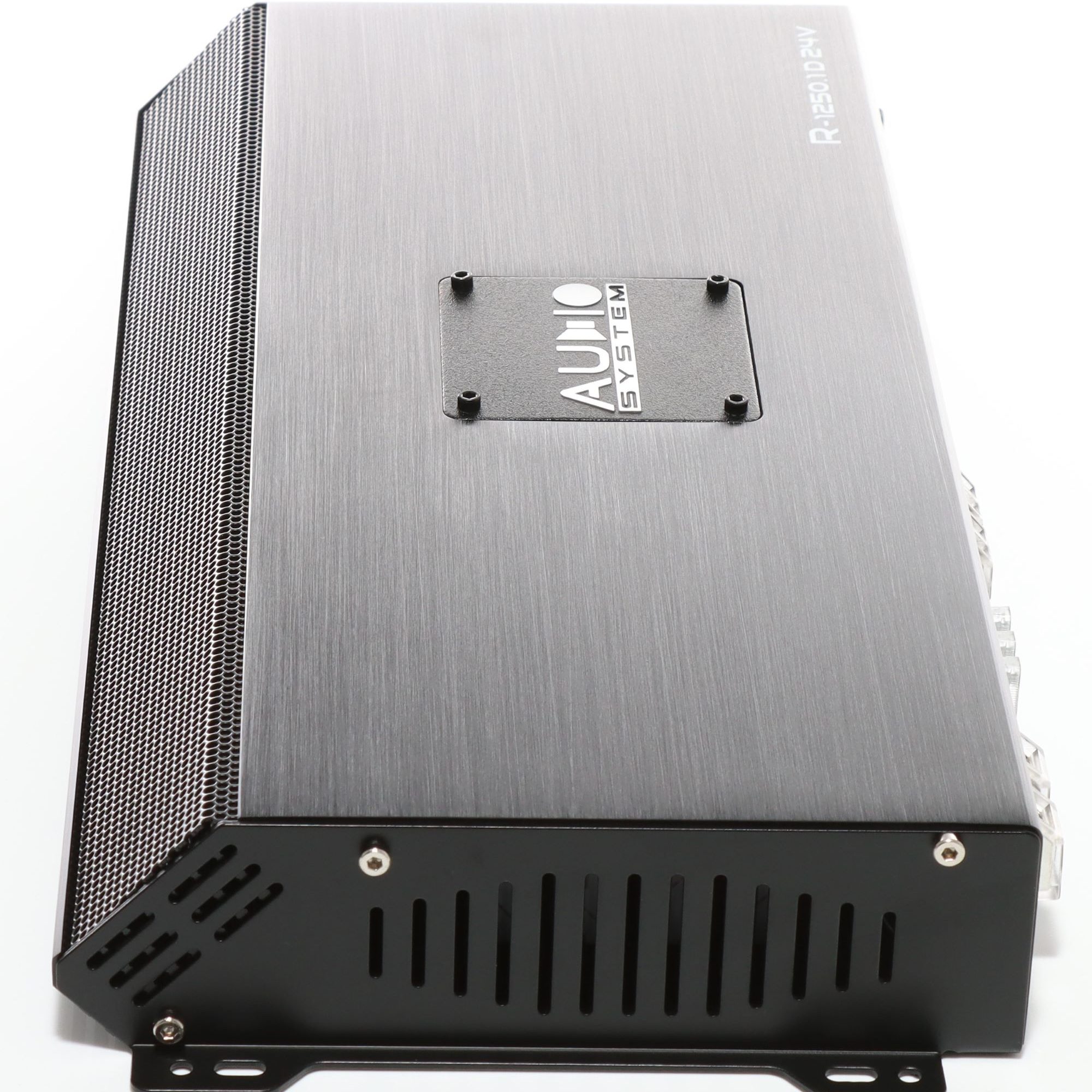

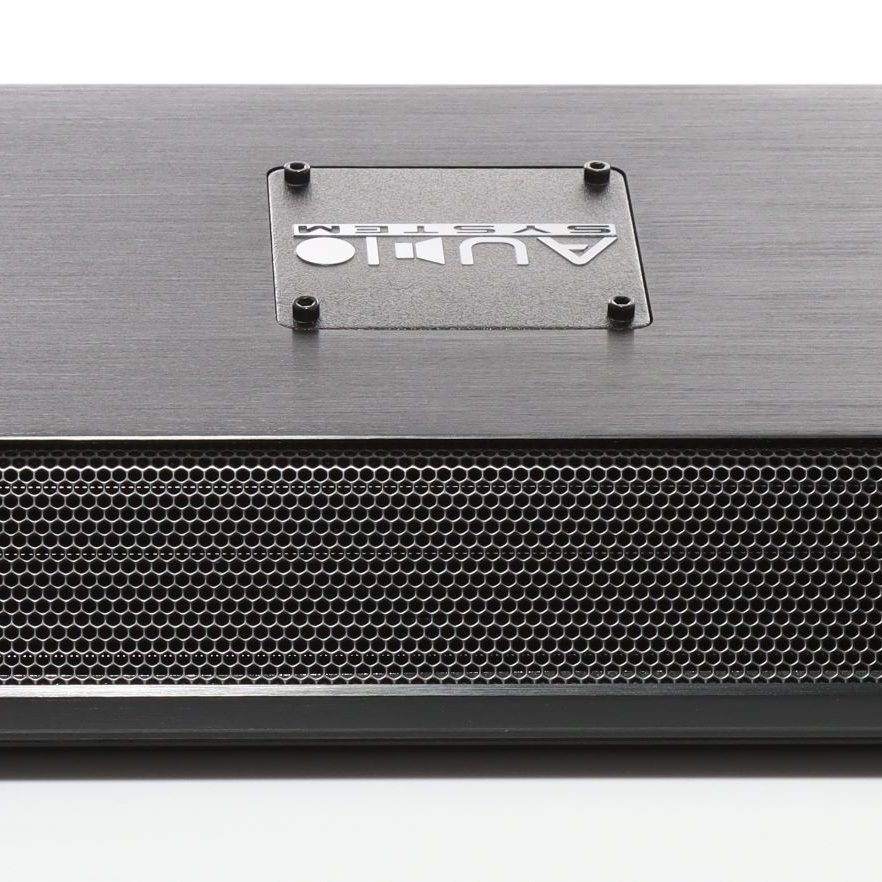

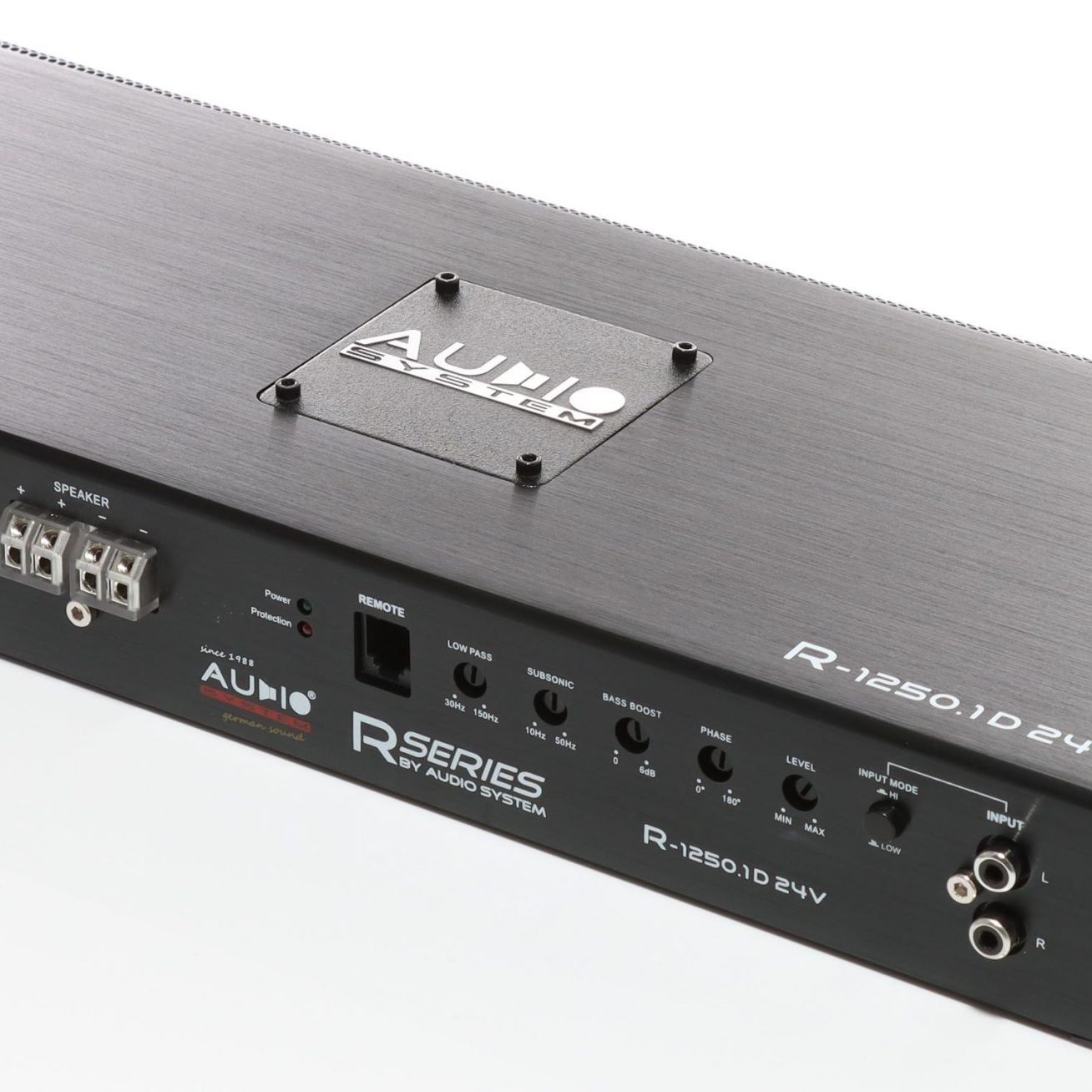

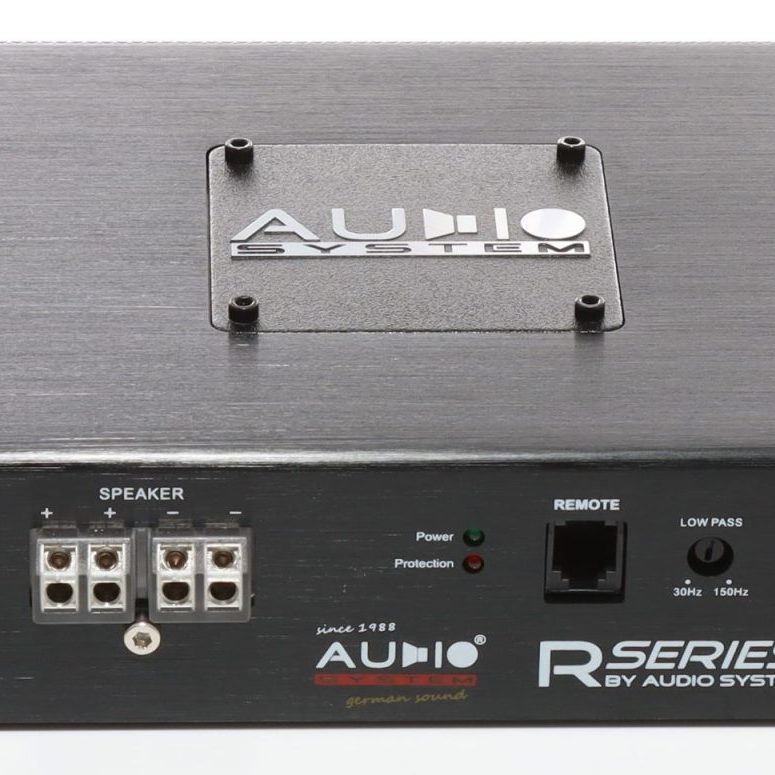

R-1250.1 D 24V

Description

  • RADION-SERIES 1-Channel for 24 Volt use
  • digital MONO high power-amplifier with SMD technology
  • LowPass Filter
  • Subsonicfilter
  • continuously adjustable 0-180°Phaseshift
  • up to 84% effiency possible, RTC included
  • RCA-high-level-input with automatically „TURN ON“
  • Bass EQ at 45 Hz with 0 – 6 dB

Performance Data

  • 1x 500 WRMS an 4 Ohm
  • 1x 900 WRMS an 2 Ohm
  • 1250 WRMS an 1 Ohm

Dimensions

  • 380x50x185 mm
